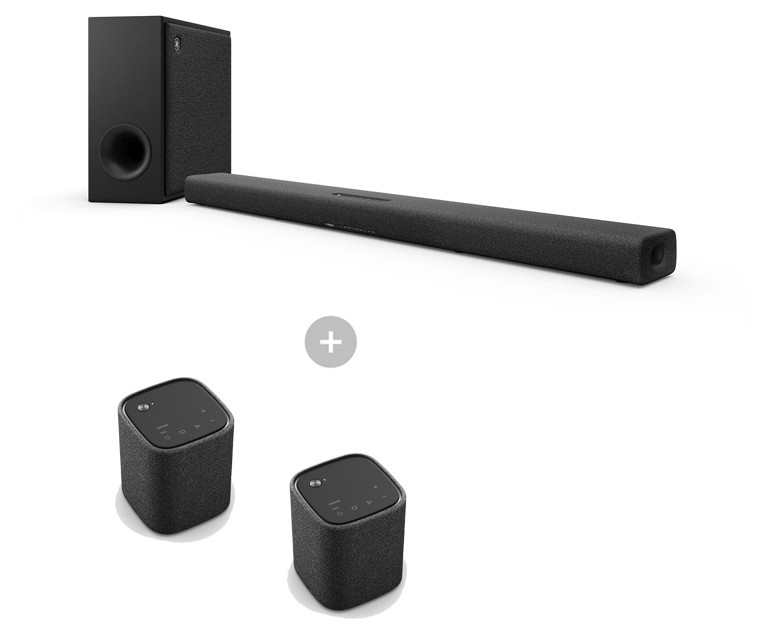

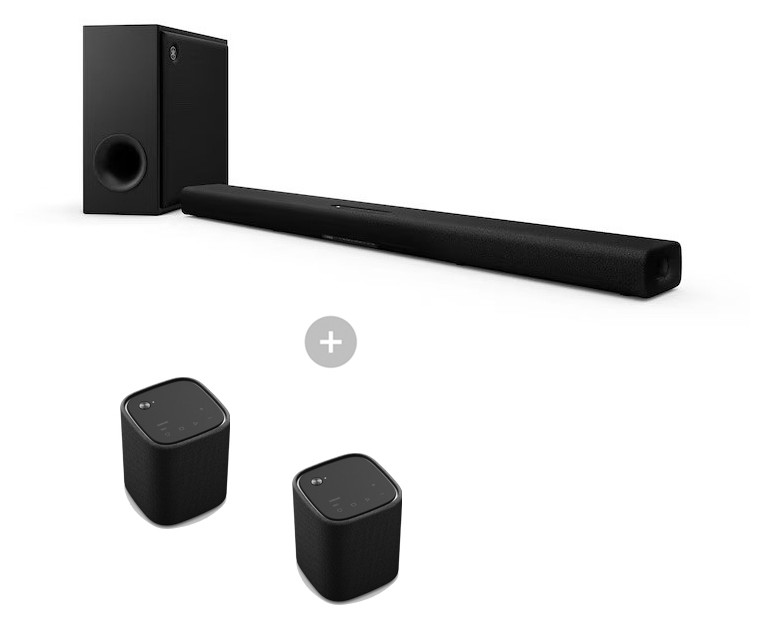

Yamaha True X Bar 50 Product Set

True x Bar 50A Home Theater Bundle

Attention: The docking station for the True X 1A speaker is not part of this bundle.

Immerse yourself in an audiophile world of surround sound with the True X Bar 50 Product Set.

This comprehensive system combines the innovative True X Bar 50A, the powerful True X Subwoofer 100A and the versatile True X Speakers 1A into an impressive overall package.

True X Bar 50A - Sound perfection redefined: The True X Bar 50A was developed with a clear focus on sound optimization. Every component, from the rear chamber to the uniquely designed bass reflex port, was designed with the aim of reproducing the finest nuances in the sound. The True X Bar 50A sets the standard for a thrilling audio experience that will impress even audiophiles.

True X Subwoofer 100A - Powerful surround sound: The True X Bar 50 Product Set presents the unique True X Surround system, in which the True X Bars and True X speakers are perfectly coordinated. The True X Subwoofer 100A helps to to create amazingly true surround sound that transforms your listening room into a soundscape with the touch of a button. Experience powerful and immersive audio quality that takes you to a new dimension of home entertainment.

True X Speaker 1A - Freedom of sound: Discover a new dimension of freedom with the True X Speaker 1A. Place the speakers effortlessly anywhere you want and immerse yourself in your favorite movies and music. Thanks to the wireless connection options, you can use the True X Bar 50 system seamlessly connects to the True X Surround speakers. Position the speakers anywhere in your room and experience sound that unfolds freely.

Technical data

TRUE X-BAR 50A

front surround system

• speaker chassis :
  • Front L/R: 4.6 × 6.6 cm (1-3/4 × 2-5/8') cone × 2
  • Height L/R: 5.2 cm (2') cone × 2
  • Integrated subwoofer: 7.5 cm (3') cone × 2
  • Wireless subwoofer: 16 cm (6-1/4') cone

performance specifications

• Total output power : 280 W
  • Front L/R: 30 W × 2
  • Height L/R: 30 W × 2
  • Integrated subwoofer: 30 W × 2
  • Wireless subwoofer: 100 W
• Power consumption :
  • Center unit: 36 W
  • Subwoofer: 18 W
• Power consumption in standby :
  • 0.5 W (HDMI control off, Bluetooth® standby off)
  • 2.0 W (HDMI control on, Bluetooth® standby off)
  • Subwoofer: 2.0 W

dimensions and weight

• Center unit : 1,015 × 63 × 112 mm (40' × 2-1/2' × 4-3/8'), 3.9 kg (8.5 lbs)
• Subwoofer : 187 × 407 × 409 mm (7-3/8” × 16” × 16-1/8”), 9.4 kg (20.7 lbs)

connections and interfaces

• HDMI : 1 input / 1 output (eARC)
• Digital Optical : Yes
• Subwoofer output : No
• Analog Audio : No
• HDMI 4K Pass-through : Yes
• eARC/ARC : Yes
• CEC : Yes
• Auto Lip-Sync : Up to 500 ms

sound technology

• Surround technology : Dolby Atmos
• Surround modes : Stereo, Standard, Movie, Game
• Compressed Music Enhancer : No
• Bass Extension : Yes

audio formats

• Dolby Digital : Yes
• Dolby Pro Logic II : No
• DTS Digital Surround : No

connectivity

• Wireless music streaming : Yes
• Bluetooth version/profile : Ver. 5.0 / A2DP / Codecs: SBC, AAC
• Wireless subwoofer : Yes
• Wi-Fi : Yes
• MusicCast Surround : No
• AirPlay : AirPlay 2
• Bluetooth range : Approx. 10 m (33 ft, without obstacles)

Additional functions

• App control : Yes (Sound Bar Controller)
• True X Surround : Yes
• Learning function : No

True X Speaker 1A

System : Desktop Audio System

Connectivity :

• Wi-Fi : No
• MusicCast Surround : No
• MusicCast Stereo : No
• True X Surround : Yes
• AirPlay : No
• Bluetooth :
  • Version/Profile : Ver. 5.0/A2DP, AVRCP
  • Range : Up to 10 m (32.8 ft, without interference)
• Ethernet : No
• Alarm : No

Speakers :

• Type : 55mm (2-1/8') Full-Range x 1, Passive Radiator x 2
• Maximum output power : 10 W (1 kHz, 10 % THD)

Power supply :

• Power supply : USB Type-C or charging station (CC-T1A)
• Battery :
  • Continuous operation : Up to 12 hours
  • Charging time : Approx. 3 hours

Water and dust protection :

• Protection class : IP67

Dimensions :

• Size (W × H × D) : 88 × 105 × 88 mm (3-1/2' × 4-1/8' × 3-1/2')
• Weight : 0.50 kg (1.10 lbs)

Colors :

• Black, Carbon Gray, Light Gray

TRUE X SUB 100A

subwoofer

• Chassis : 16 cm (6-1/4') cone
• Output power : 100 W
• Frequency response : 35–100 Hz

technologies

• Advanced YST : No
• Twisted Flare Port : No

functions

• Auto-Standby : Yes
• Power consumption in standby : 2.0 W

dimensions and weight

• Dimensions (W × H × D) : 187 × 407 × 409 mm (7-3/8” × 16” × 16-1/8”)
• Weight : 9.4 kg (20.7 lbs)
