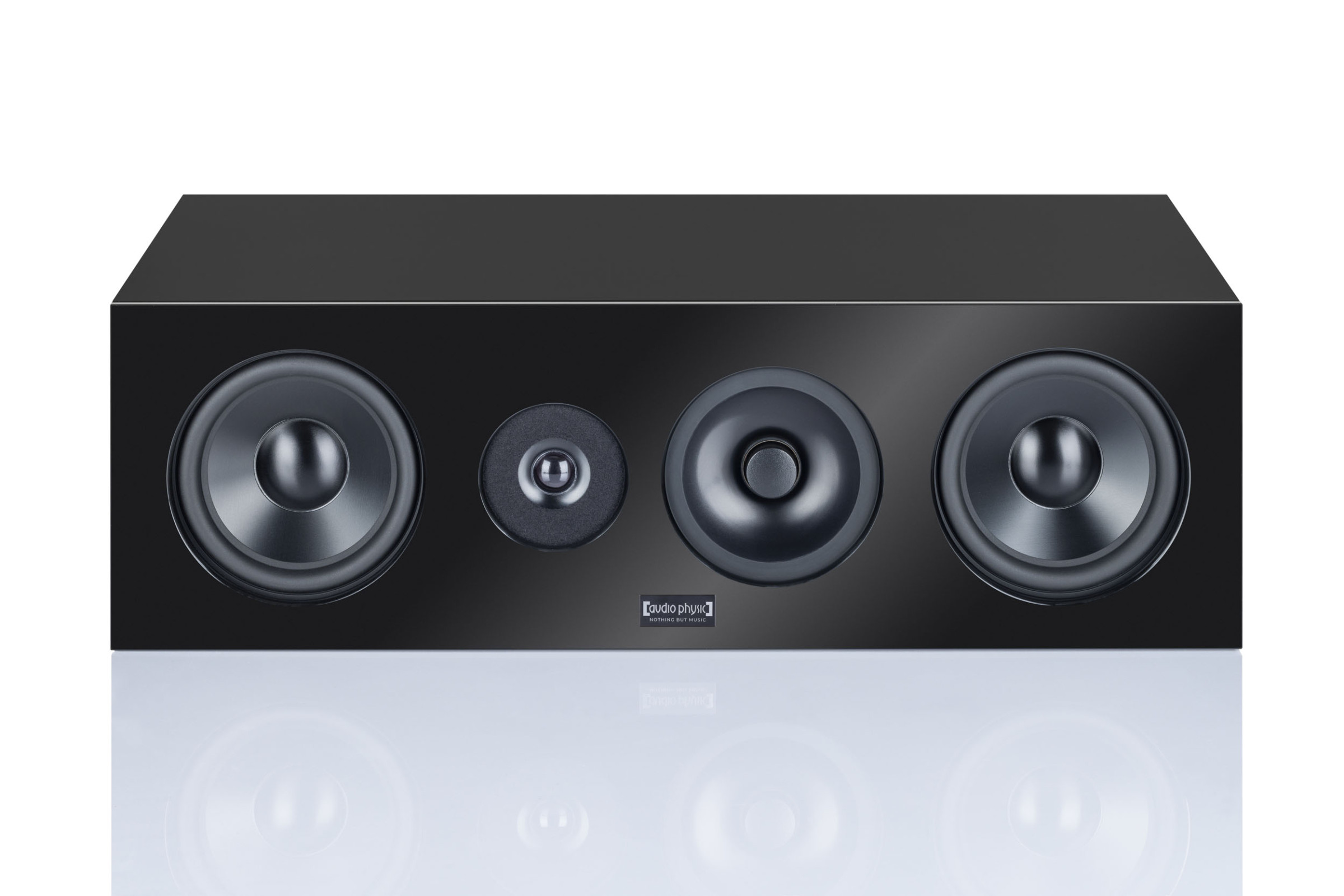

audio physic Reference Center Speaker

Audio Physics Reference Center

The Audio Physic Reference Center (2nd generation) is the result of years of engineering and innovation. This high-end center speaker sets new standards in audio reproduction and ensures an incomparable listening experience.

Outstanding design and high-quality materials

The Reference Center impresses with its fine workmanship and aesthetic appearance. The MDF sandwich housing is available in elegant glass surfaces in black, white and anthracite.

Perfection in the technical details

With a height of 202 mm, a width of 654 mm and a depth of 340 mm, the speaker fits harmoniously into any home cinema setup. The precise housing construction ensures excellent sound quality.

Superior sound quality

Equipped with state-of-the-art drivers, the Reference Center offers impressive sound performance:

• Tweeter: 39 mm HHCT III (Alu Cone)
• Midrange: 150 mm HHCM SL (Alu Cone)
• Bass: 2x 180 mm (Alu Cone)

The double basket design (DB) and double surround (DS) technologies as well as the absence of a centering spider (SL) ensure outstanding precision and clarity in the sound image.

Powerful and flexible application options

With a recommended amplifier output of 40 to 180 watts, the center speaker is easily suitable for a wide range of different amplifiers. With an efficiency of 89 dB, this center is one of the speakers that is easy to operate.

scope of delivery

The Reference Center II comes with the following components:

• Black glass cover

Conclusion

The Audio Physic Reference Center (2nd generation) is more than just a center speaker. It is a tribute to music that enriches every home theater with unparalleled sound fidelity and aesthetics. Immerse yourself in a world full of detail and dynamics - Nothing But Music.

Technical data at a glance

• Manufacturer: Audio Physic
• Model: REFERENCE CENTER (2nd generation)
• Year of construction: From September 2023

Housing dimensions:

• Height: 202mm
• Width: 654mm
• Depth: 340 mm
• Base area: 202 mm
• Weight 20kg

Technical key figures:

• Recommended amplifier power: 40 - 180 W
• Frequency response: 40 - 35,000 Hz
• Efficiency: 89 dB
• Impedance: 4 Ohm
• Number of ways: 3

Speaker Driver:

• Tweeter: 39 mm / HHCT III (Alu Cone)
• Midrange: 150 mm / HHCM SL (Alu Cone)
• Bass: 2x 180 mm (Alu Cone)

Scope of delivery:

• Cover glass black

Housing construction / colors

MDF sandwich housing (panels):

• Glass Black
• Glass White
• Glass Anthracite
