BlueSound BSP 1000 PoE Network Speaker

Bluesound Professional BSP1000 - The network streaming wonder

The Bluesound Professional BSP1000 is an active network speaker with integrated streaming capability, specially designed for use in commercial indoor or outdoor installations. This device is powered via Power over Ethernet (PoE), allowing a single cable connection to the speaker for both power and audio. The player in the BSP1000 is based on the proven BluOS platform and is capable of playing and distributing content from local network storage and a variety of streaming services. This includes services specifically designed for commercial use such as SoundMachine, Custom Channels, QSIC, SiriusXM Music for Business, Tunify and Radio Stations. In addition to standalone use, a pair of BSP1000 loudspeakers can be used in a stereo configuration and multiple BSP1000s can be used in a room in either mono or stereo configurations. The use of the BSP1000 in a larger BluOS system is also possible, allowing it to be grouped in customizable groups of any desired size with other BSP1000 units and/or other connected Bluesound Professional players, amplified players or network speakers in the network in an installation.

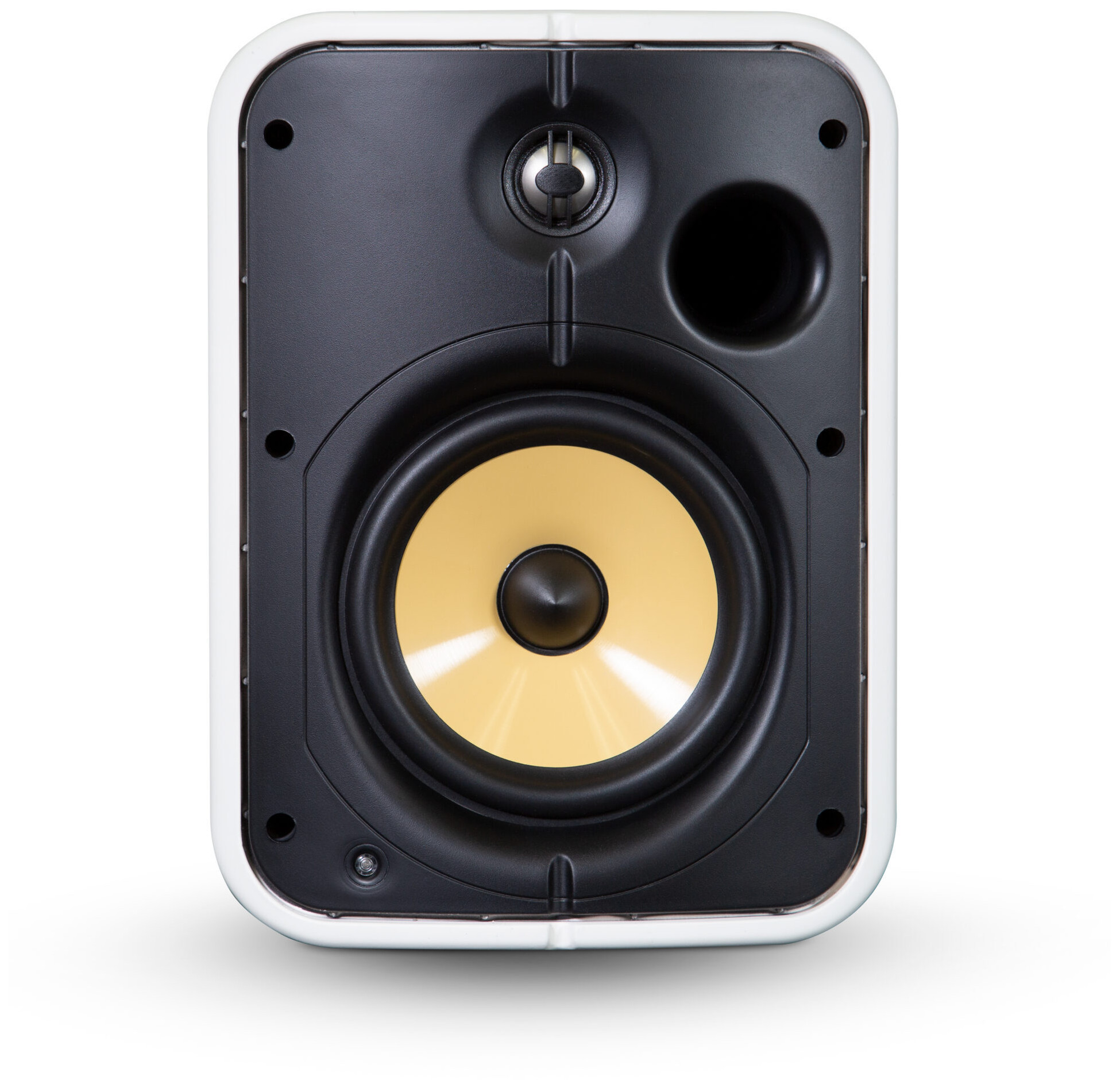

The speaker features a 6.5' woofer and 1' tweeter driven by a highly efficient amplifier, including an energy-saving standby mode. The woofer is equipped with an included port plug for outdoor use. The speaker's frequency response ranges from 45Hz to 23kHz and the system's THD+N is 0.095% at full power rating. Access to content and power is via wired Ethernet for uninterrupted streaming. Highly efficient electronics and drive units ensure a maximum sound pressure level of 100 dB (using PoE).

The speaker can be controlled from any Windows/Mac computer as well as from any iOS/Android smartphone or tablet and the Bluesound Professional CP100 wall mount controller. Third-party control is also possible, using any of the leading systems. Safety precautions prevent unauthorized control of the system.

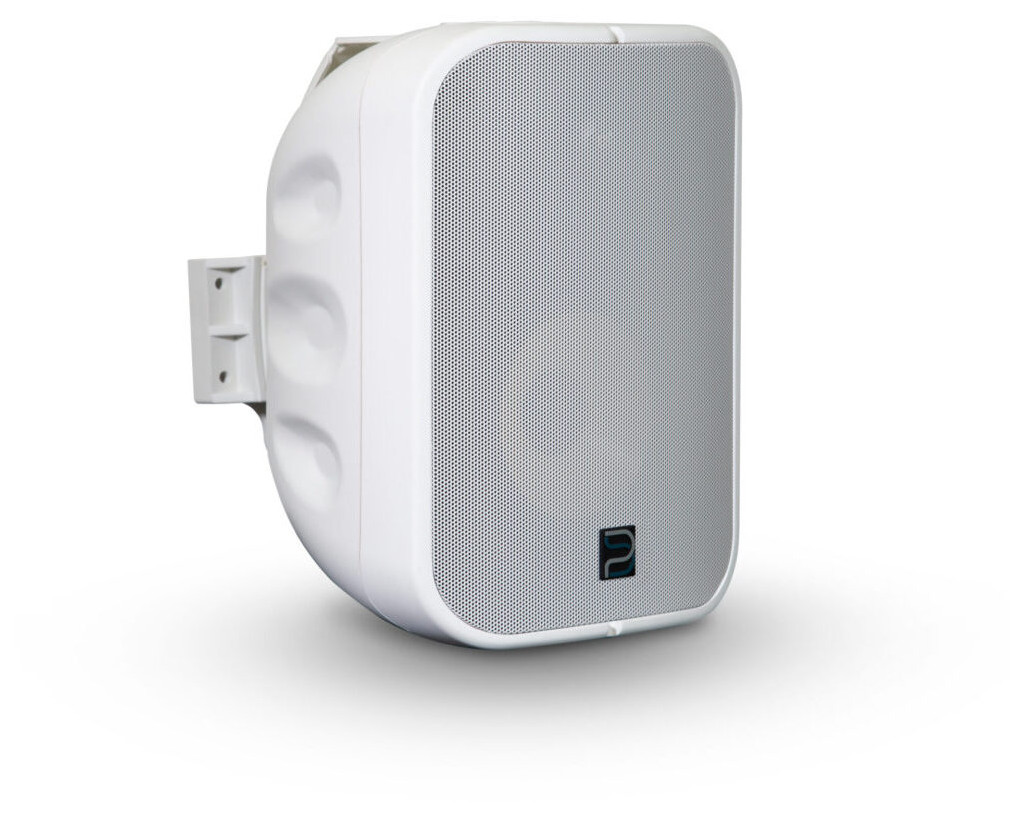

An integrated bracket allows for wall mounting with 90 degree rotation and 170 degree rotation. The IP65* rating allows for both indoor and outdoor use.

*With port plug installed

features

• Full network streaming speaker system with 6.5' woofer and 1' tweeter
• Bass reflex port with included port plug for outdoor use
• Powered over Power over Ethernet (PoE+, PoE++) for a single wired connection for power and signal
• Indoor or outdoor use (IP65* rating)
• Frequency range 45Hz-23kHz 0.095% THD+N at full rated power
• Maximum SPL of 100dB (using PoE++)
• 2 or more BSP1000 can be paired in stereo or multiple mono configurations
• Flexible and unlimited grouping of zones within a BluOS system
• Integration with local network storage content
• Integration with many streaming services including Spotify, Tidal, Qobuz, Soundmachine, QSIC, Custom Channels, etc.
• Integration with a variety of internet radio platforms
• PC/Mac, iOS/Android and 3rd party control
• Security features prevent unauthorized control
• Specialized Bluesound Professional control panels
• Hi-Res audio support up to 192kHz/24-bit MQA content support
• Streaming over Ethernet for increased reliability
• Wall mounting with integrated bracket

Technical information

AUDIO
Supported file formats
MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS

Hi-Res formats
FLAC, MQA, WAV, AIFF

Native sample rates
32 - 192kHz

bit depths
16 - 24

PERFORMANCE
frequency response
45Hz-23kHz

distortion
THD+N - 0.095% (20hz-20khz at rated power)

power output
20 watts @ 30 watts PoE
40 watts @ 60 watts PoE

speaker
1 x 165mm (6.5') woofer
1 x 25mm (1') tweeter

Supported Operating Systems
Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista 7-10, Apple Macintosh 7-10

Free internet radio
TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise, LiveXLive

Supported Cloud Services
SoundMachine, Tunify, Custom Channels, SiriusXM for Business, Spotify, Tidal, Amazon, Deezer, Qobuz, TuneIn, Radio.com and many others

partners for integration
Control4, RTI, Crestron, URC, ELAN, Lutron

album art
JPG

network
Gigabit Ethernet RJ45

USB
1 x Type-A connector for connecting USB memory sticks (Fat32
or NTFS formatted) and supported peripherals
1 x Type-B (Mini) for product maintenance
power supply
PoE+ IEEE 802.3at Type 2 (30W)
PoE++ IEEE 802.3bt Type 3 (60W)

USER INTERFACE
Mobile operating system
BluOS - Free Android and iOS App available on Google Play and Apple App Store
GENERAL
processor
ARM® CORTEX™ A9, 1GHz

weight of the device
4.56kg / 10.05lbs

gross dimensions
235 x 310 x 296mm / 9 1/4' x 12 1/4 x 11.3/4in

Power consumption (idle)
3.3 watts

storage environment
-10°C to 50°C, 20% to 80% relative humidity

Operating environment - indoor/outdoor
0° to 40° C
Degree of protection IP65*

surface
Available in white or black matt

*With connector plug installed
