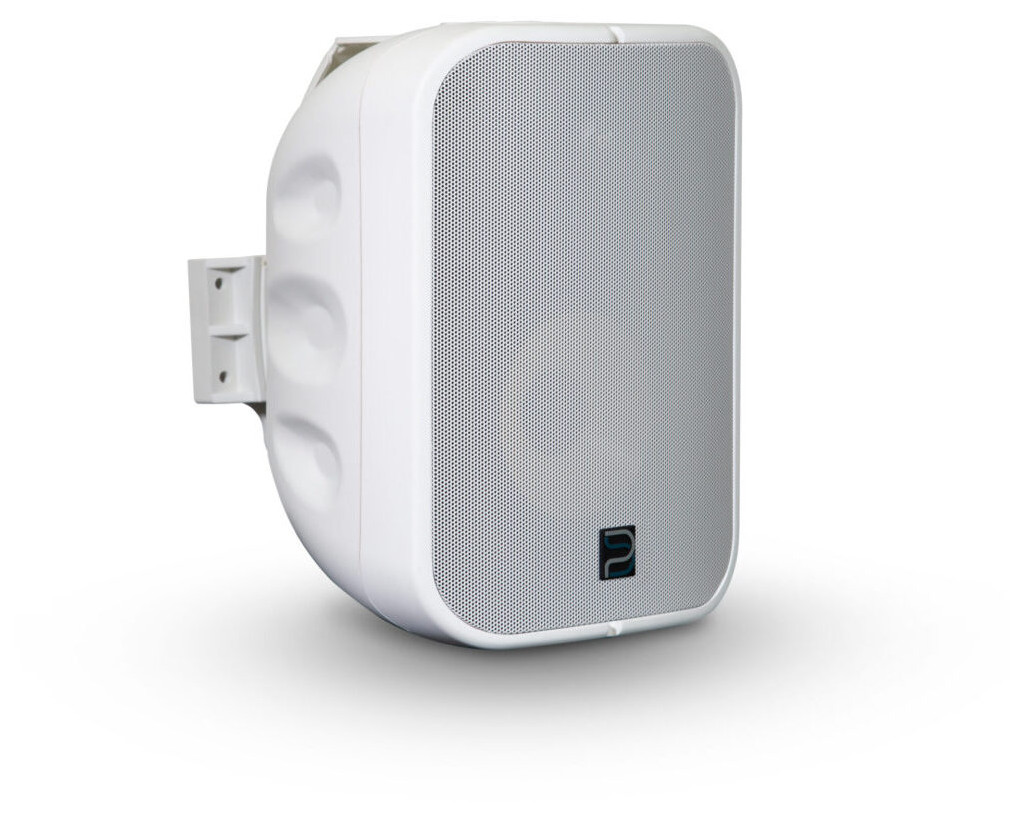

BlueSound BSP 500 PoE Network Speaker

Bluesound Professional BSP500 - The network streaming masterpiece

Immerse yourself in the world of sound of the Bluesound Professional BSP500, the active network loudspeaker with integrated streaming function, which was specially developed for use in commercial indoor or outdoor installations. This marvel of engineering is powered by Power over Ethernet (PoE), allowing a single cable connection to the speaker for both power and audio. The player in the BSP500 is based on the proven BluOS platform and is capable of playing and distributing content from local network storage and a variety of streaming services. This includes services specifically designed for commercial use such as SoundMachine, Custom Channels, QSIC, SiriusXM Music for Business, Tunify and Radio Stations. Regardless of whether it is used independently or in a network - the BSP500 is convincing in every application scenario.

The speaker features a 5.25' woofer and 1' tweeter driven by a highly efficient amplifier, including an energy-saving standby mode. The speaker's frequency response extends from 63Hz to 23kHz and the system's THD+N is 0.095% at full power rating. Access to content and power is via wired Ethernet for uninterrupted streaming. Highly efficient electronics and drive units ensure a maximum sound pressure level of 100 dB (using PoE++).

The speaker can be controlled from any Windows/Mac computer as well as from any iOS/Android smartphone or tablet and the Bluesound Professional CP100 wall mount controller. Third-party control is also possible with any of the leading systems. Safety precautions prevent unauthorized control of the system.

An integrated bracket allows for wall mounting with 90 degree rotation and 170 degree rotation. The IP65 rating allows for both indoor and outdoor use. The BSP500 is more than just a speaker - it's an experience that combines sound, quality and innovation, bringing extraordinary sound experiences to your commercial space.

features

• 5.25' LF driver and 1' HF driver
• Powered by Power over Ethernet (PoE+, PoE++) for a single wired connection for power and signal
• Indoor or outdoor use (protection class IP65)
• 63Hz-23kHz frequency range
  0.095% THD+N at full rated power
• Maximum sound pressure level of 100 dB (PoE++)
• 2 or more BSP500 can be linked in stereo or multiple mono configuration
• Flexible and unlimited grouping of zones within a BluOS system
• Integration with local network content storage
• Integration with many streaming services like Spotify, Tidal, Qobuz, Soundmachine, QSIC, Custom Channels, etc.
• Integration with a variety of internet radio platforms
• Control via PC/Mac, iOS/Android and 3rd party
• Security against unauthorized control
• Specialized Bluesound Professional control panels
• Support Hi-Res Audio up to 192kHz/24bit
• MQA content support
• Streaming over Ethernet for increased reliability
• Wall mounting with integrated bracket

Technical information

SPECIFICATIONS
AUDIO
Supported file formats
MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS

Hi-Res formats
FLAC, MQA, WAV, AIFF

Native sample rates
32 - 192kHz

bit depths
16 - 24

PERFORMANCE
frequency response
63Hz-23kHz

distortion
THD+N - 0.095% (20hz-20khz at rated power)

output power
20 watts @ 30 watts PoE
40 watts @ 60 watts PoE

speaker
1 x 133mm (5.25') woofer
1 x 25mm (1') tweeter

Supported Operating Systems
Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista 7-10, Apple Macintosh 7-10

Free internet radio
TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise, LiveXLive

Supported Cloud Services
SoundMachine, Tunify, Custom Channels, SiriusXM for Business, Spotify, Tidal, Amazon, Deezer, Qobuz, TuneIn, Radio.com and many others

partners for integration
Control4, RTI, Crestron, URC, ELAN, Lutron

album art
JPG

network
Gigabit Ethernet RJ45

USB
1 x Type-A connector for connecting USB memory sticks (Fat32
or NTFS formatted) and supported peripherals
1 x Type-B (Mini) for product maintenance
power supply
PoE+ IEEE 802.3at Type 2 (30W)
PoE++ IEEE 802.3bt Type 3 (60W)

USER INTERFACE
Mobile operating system
BluOS - Free Android and iOS App available on Google Play and Apple App Store
GENERAL
processor
ARM® CORTEX™ A9, 1GHz

weight of the device
3.2kg / 7.06lbs

gross dimensions
196 x 268 x 251mm / 7 7/8' x 10 5/8 x 9 7/8 in

Power consumption (idle)
3.3 watts

storage environment
-10°C to 50°C, 20% to 80% relative humidity

Operating environment - indoor/outdoor
0° to 40° C
Degree of protection IP65

surface
Available in white or black matt
