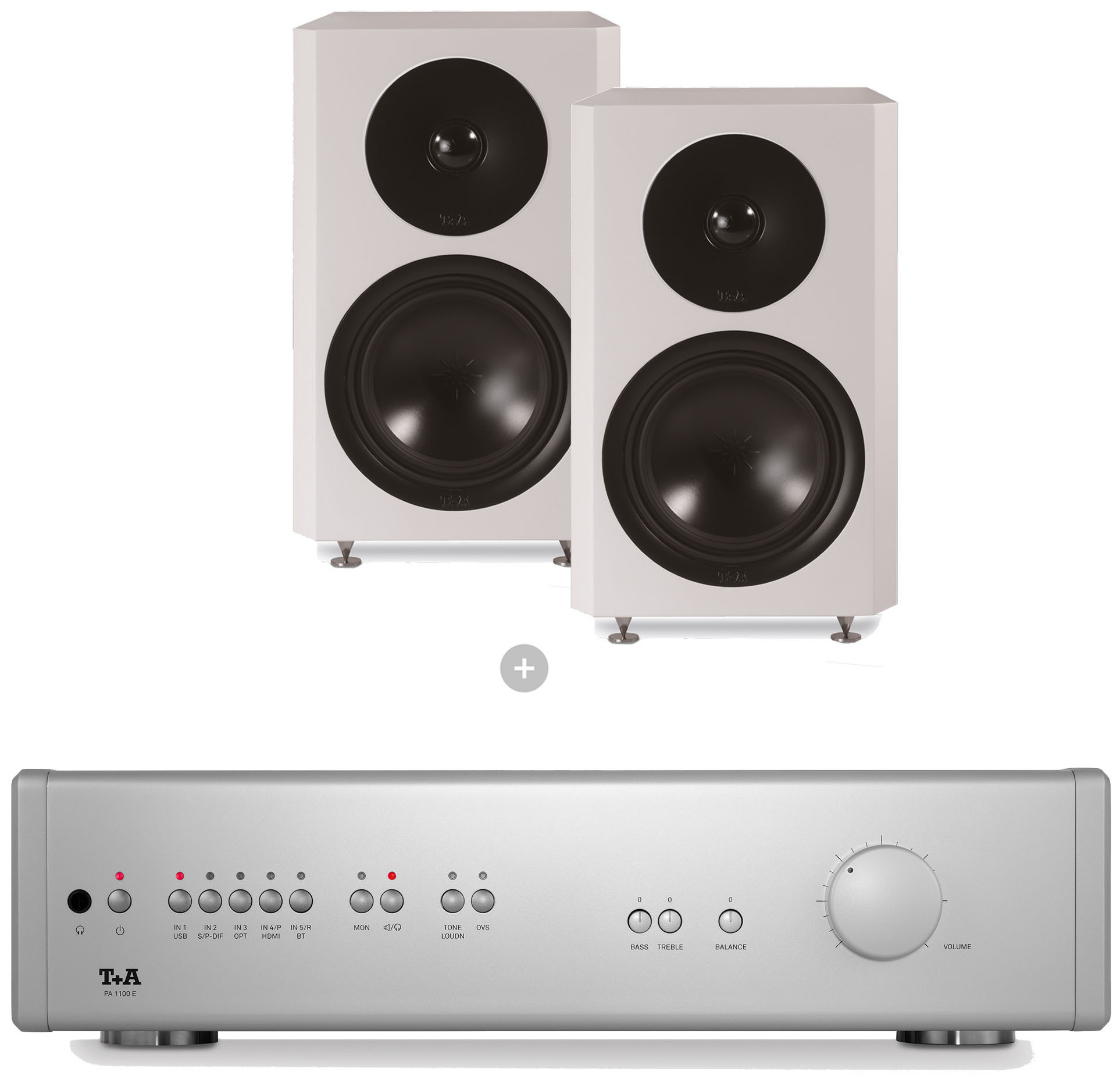

T+A PA 1100 E + R21 Speaker with DAC and MC Phono

NOTE: This item includes a phono module, which our technical team will install for you. Please be sure to tell us which pickup you are using, as the phono module must be adjusted accordingly. To do this, use the comment field at the end of the ordering process.

PA 1100 E + R21 LOUDSPEAKER WITH DAC AND MC-PHONO MODULE

The PA 1100 E integrated amplifier combines outstanding acoustic performance with the latest digital technology. Based on the proven PA 1000 E, the PA 1100 E also offers a self-contained digital input board. This enables connection to numerous digital sources in the highest quality. The built-in microprocessor controls the digital inputs, filters and converters, raising the sound quality to a new level. The high-quality Bluetooth® module enables music transmission from mobile devices in the best aptX™ quality.

Technical details

Audio data power amplifiers (LS output):

• Rated power per channel (4 Ohm / 8 Ohm): 2 x 250 Watt / 2 x 140 Watt
• Pulse power per channel (4 ohms / 8 ohms): 2 x 400 watts / 2 x 220 watts
• Frequency response (+0 -3dB): 1 Hz - 60 kHz
• THD / Intermodulation: < 0.004% / < 0.004%

Audio data preamplifier (PRE, REC):

• Frequency response / distortion factor: 1 Hz - 300 kHz / 0.0025 %
• S/N distance / channel separation: 108 dBA / > 82 dB

Analogue inputs:

• 5 x RCA
• 1 x sym. (XLR)
• 250 mVrms ... 3 Vrms / 20 kOhm
• 500 mVeff ... 6 Veff / 5 kOhm

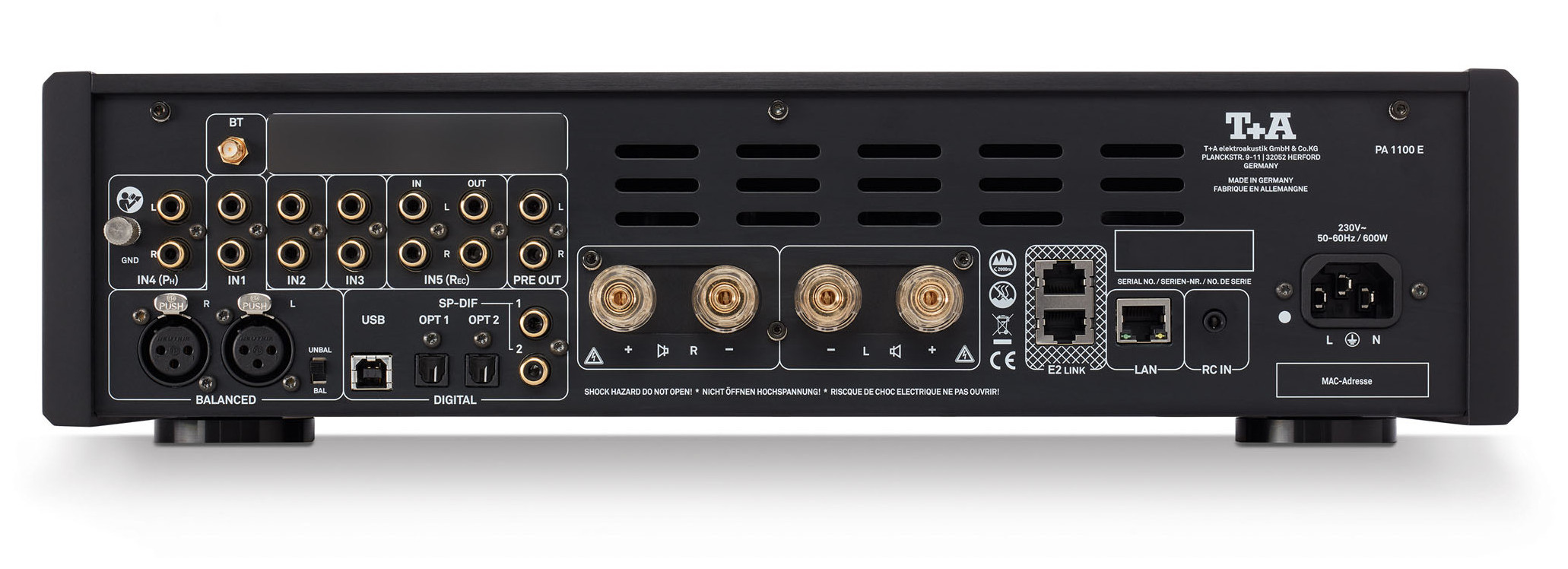

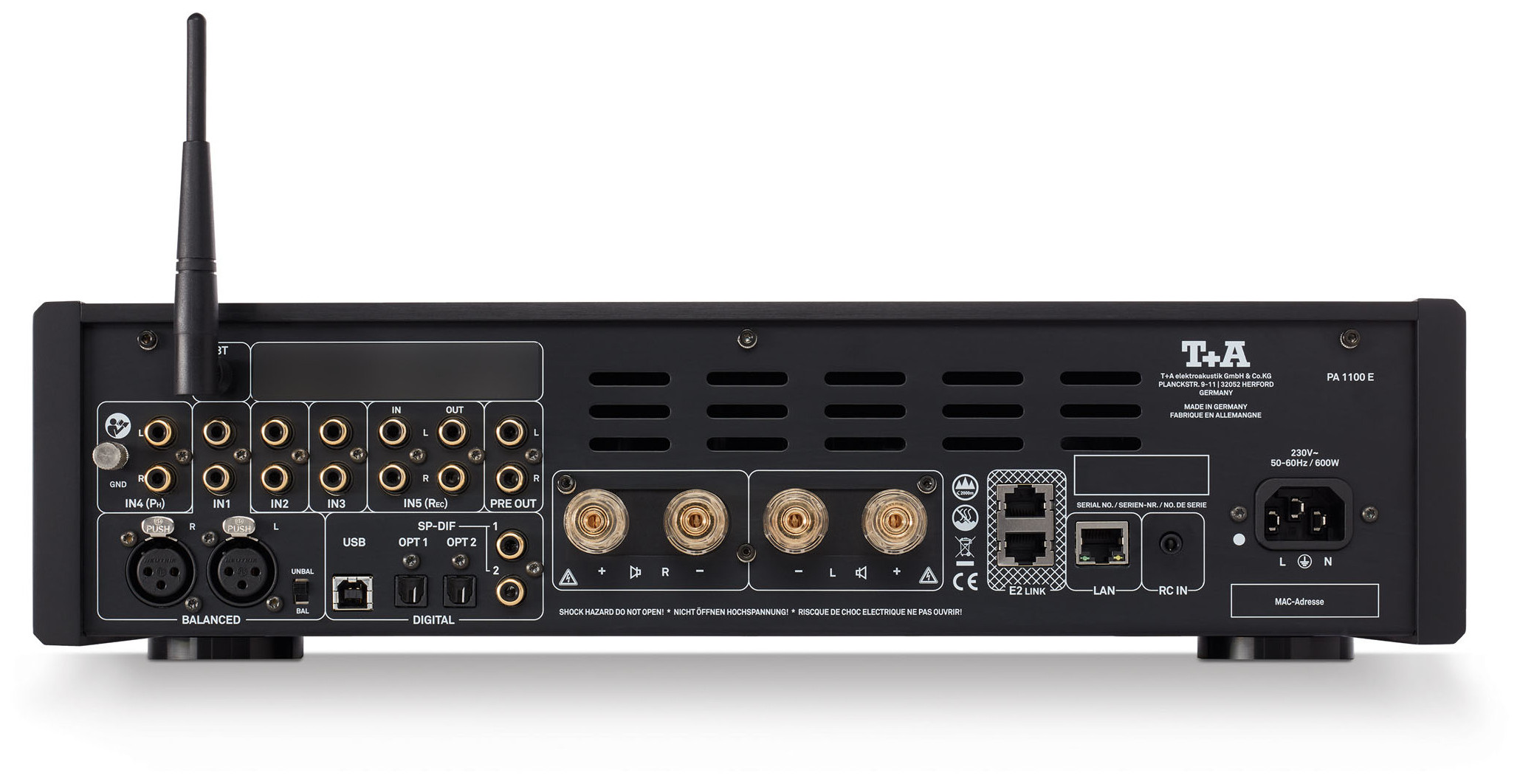

Outputs:

• 2 x RCA PRE OUT, REC OUT: 2.5 Vrms / 50 ohms
• Headphones 6.3 mm jack: > 32 Ohm

Digital part (DAC, inputs):

• D/A converter: PCM: 32-bit Sigma Delta, 384 kSps; DSD: up to DSD 256 (11.2 MHz)
• Switchable oversampling algorithms: standard FIR and T+A Bezier
• Inputs:
  • 2 x SP/DIF coax.: PCM 32 ... 192 kSps
  • 2 x TOSLINK opt.: PCM 32 ... 192 kSps
  • 1 x USB-B: PCM 32 ... 384 kSps, DSD 64 ... DSD 256 (MAC-OS only up to DSD 128)
  • Bluetooth: APT-X, MP3, AAC, SBC. AVRCP.

Remote control:

• FM 11 with E 2000

Mains connection / standby:

• 220-240V or 110-120V, 50-60Hz, 600W / <0.5 Watt

Dimensions (WxHxD) / Weight:

• 44 x 11.5 x 38 cm / 14 kg

PHE phono module for MM or MC cartridges

The T+A PHE phono module is specially designed for installation in the E-series and R 1260-series integrated amplifiers. This compact and high-quality module offers channel-separated signal paths, which are housed in a robust metal housing to ensure excellent shielding and excellent measurement values.

For MM pickups, the module offers flexible adjustment of the input sensitivity over five levels as well as adjustable input capacitance in sixteen levels. This enables optimal adaptation to different pickup systems and ensures outstanding sound quality.

For MC pickups, the module is equipped with an input sensitivity that can be adjusted in nine steps and an input impedance that can also be adjusted in nine steps. This versatility allows the module to be perfectly matched to a wide variety of pickups and thus exploit the full potential of the hi-fi system.

Technical details:

MM module:

• Input sensitivity: 1.0 to 10.0 mV
• Input capacitance: <120 to 500 pF

MC module:

• Input sensitivity: 100 to >2000 µV
• Input impedance: <15 to 650 Ohm

The T+A PHE Phono module lets you get the most out of your records by allowing precise and flexible adjustment to your cartridges. Enjoy vinyl in the highest sound quality thanks to the advanced technology and excellent build quality of this module.

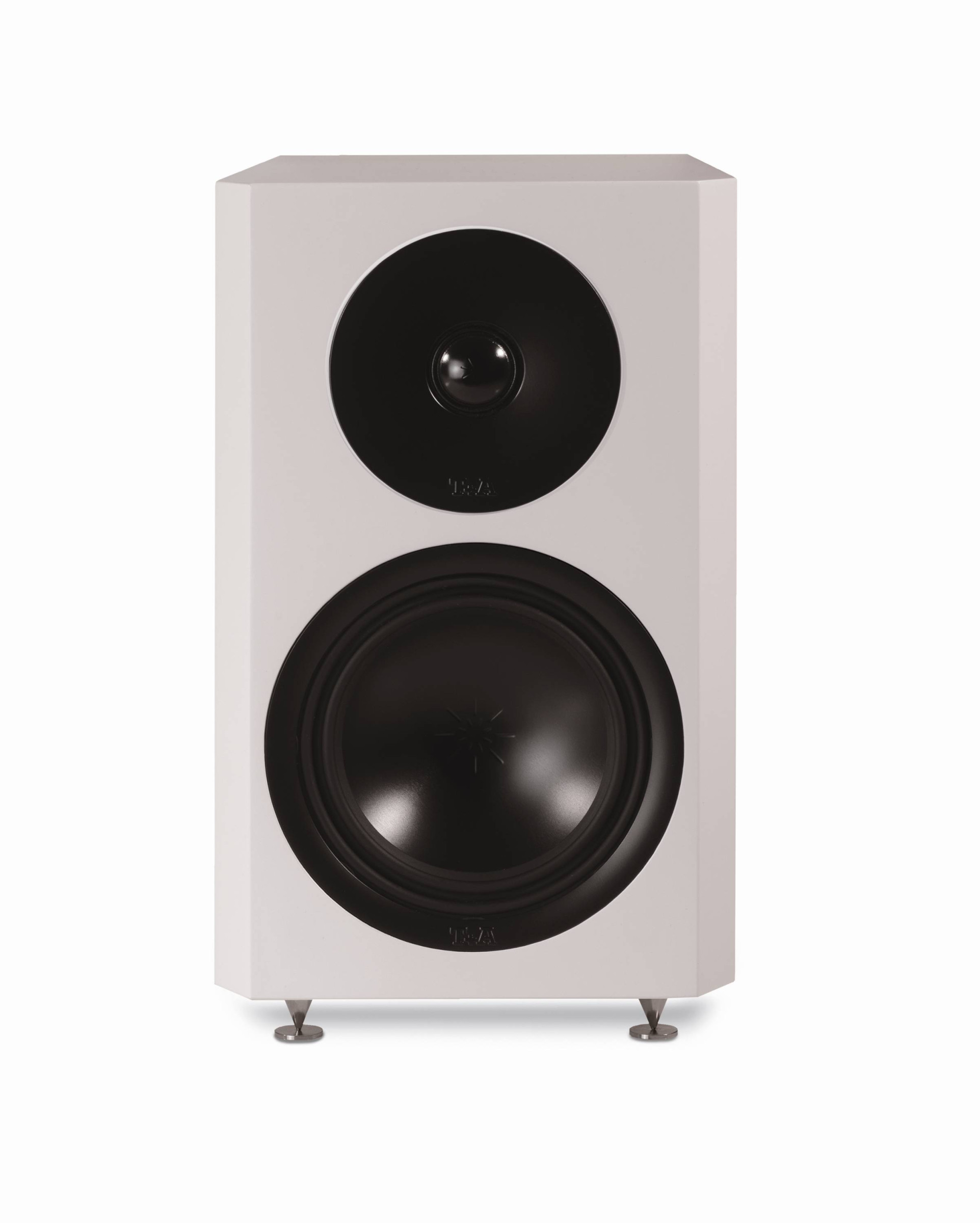

SPEAKER T+A R21

The R 21 bookshelf monitor from T+A is an excellent alternative to the ST 21 floorstanding speaker, especially for smaller rooms or difficult installation conditions. With its elegant and high-quality housing, which uses the same chassis family as the ST 21, the R 21 offers outstanding acoustic performance. Despite its compact size, this bookshelf speaker delivers impressive dynamics and spatiality. The precise and powerful deep bass and the extremely natural and transparent midrange ensure that the R 21's sound quality seems much larger than its dimensions would suggest.

Technical data:

• Principle: Bookshelf speaker, 2-way, bass reflex
• Nominal load capacity: 80 watts
• Music power handling: 120 watts
• Impedance: 4 Ohm
• Frequency range: 40 - 30,000 Hz
• Sensitivity: 85 dB
• Equipment:
  • Bass: 1 x 152 mm
  • Tweeter: 1 x 25 mm
• Crossover frequency: 2,000 Hz
• Dimensions (H x W x D, including terminal): 30 x 19 x 30 cm
• Weight: 7kg
• Versions: Black sanding varnish, white sanding varnish
• Optional accessories: Speaker Hex (Carbon), Speaker Quad (Carbon)
