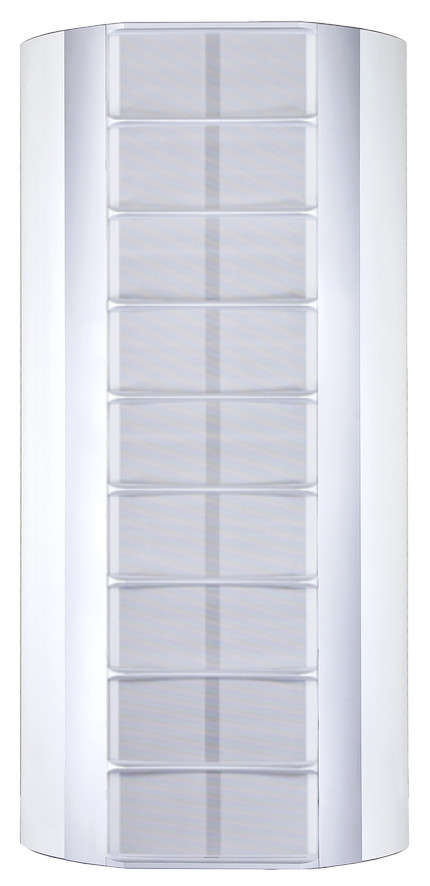

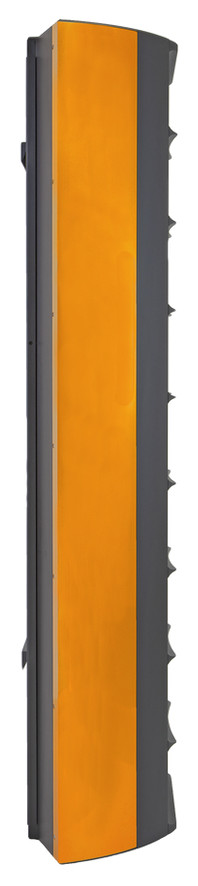

Wisdom LS3m On-Wall Loudspeaker

The Wisdom Audio LS3M is an outstanding loudspeaker system based on state-of-the-art planar magnet technology. Part of the renowned Wisdom Series, the LS3M represents uncompromising engineering excellence and sets new standards in sound reproduction for music and home theater applications. With its unique design, which incorporates a 60-inch (152.4 cm) high planar line-source unit, the LS3M delivers impressive acoustic performance that can be seamlessly integrated into both residential and professional applications.

Precise sound reproduction through planar line source

The heart of the LS3M is its planar magnet driver, a continuous line source with a height of 60 inches. This design offers decisive advantages over conventional loudspeakers. In particular, disturbing reflections from the floor and ceiling are almost completely eliminated. This results in a significantly clearer, more precise sound that offers consistent reproduction quality regardless of the room acoustics.

Another advantage of the vertical line source is the even sound distribution across the entire listening area. This preserves the sound character – even at different listening positions. The LS3M is therefore ideal for larger rooms or home theaters with multiple rows of seats, as it achieves homogenous sound reproduction without any perceptible loss of level or quality.

Powerful and dynamic

With a sound pressure level capacity of over 130 dB at a listening distance of 3.66 meters (12 feet), the LS3M is capable of filling even large rooms with impressive sound. This performance is based on a two-way system with a planar magnet driver that covers eight octaves of precise sound reproduction – from low mids to delicate highs.

A special feature is the extremely lightweight PEEK (polyetheretherketone) film material, which enables extremely rapid acceleration in the high-frequency range. This results in exceptionally detailed and dynamic music reproduction. Precise impulse fidelity and minimal distortion contribute to the remarkable transparency of the sound.

Technical specifications at a glance

The LS3M's frequency range extends from 80 Hz to 20 kHz, with the 60-inch planar magnet driver providing the majority of the sound reproduction. The speaker requires an external active crossover and a digital signal processor (DSP) for optimal control and fine-tuning. Two separate amplifier channels are required for operation, allowing flexible adaptation to different room and application scenarios.

Diverse installation options

The LS3M's flexibility in application is another advantage. It can be used as a freestanding model or discreetly installed behind an acoustically transparent screen – ideal for high-quality home theater installations. An in-wall version (LS3i) is also available, which can be flush-mounted into walls. For particularly large rooms, the LS3i can also be stacked, allowing for vertical expansion of the sound source. Wisdom Audio also offers customized color options for the LS3M to ensure it blends seamlessly into any room design.

Perfect integration into any audio system

Thanks to the use of an active crossover and digital signal processors, the LS3M can be precisely tuned to the spatial conditions. Integration into existing audio systems is easy, and the speaker system is ideal for combining with high-quality AV processors and power amplifiers. Its scalability, both in standalone operation and in more complex multi-channel setups, makes it the first choice for audiophile applications and professional cinemas.
