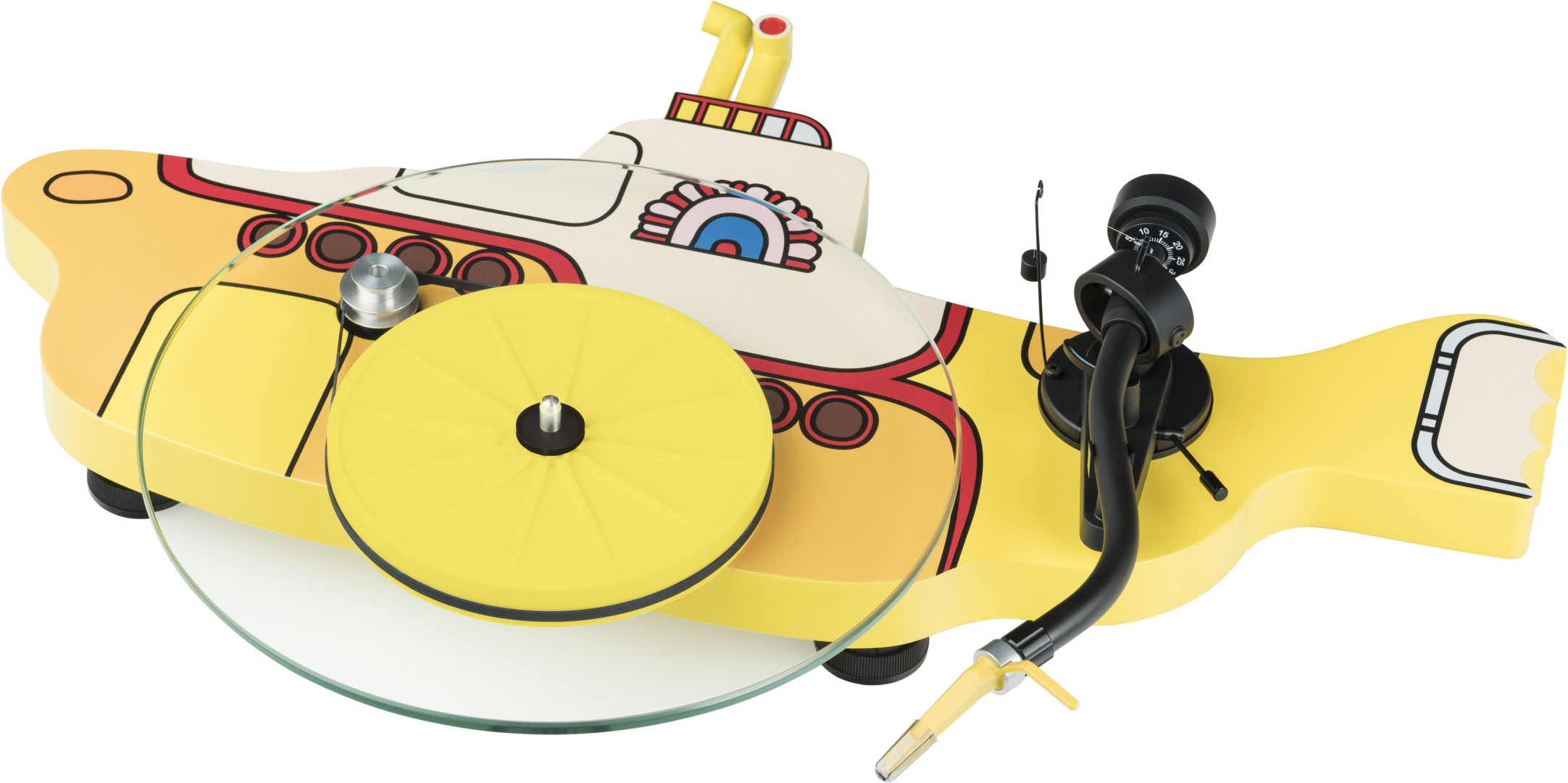

Pro-Ject The Beatles Yellow Submarine Turntable

Collector's Edition

The Pro-Ject The Beatles Yellow Submarine turntable is an exclusive collector's edition created in honor of the legendary 1968 Beatles film 'Yellow Submarine'. This unique film, which premiered in April 1968, is one of the Beatles' most famous works and has now, 50 years later, been digitally restored in 4K and remixed in 5.1 surround sound by Apple Corps Ltd and Universal Music Group. This reissue allows Beatles fans worldwide to rediscover the iconic experience.

Unique design for real Beatles fans

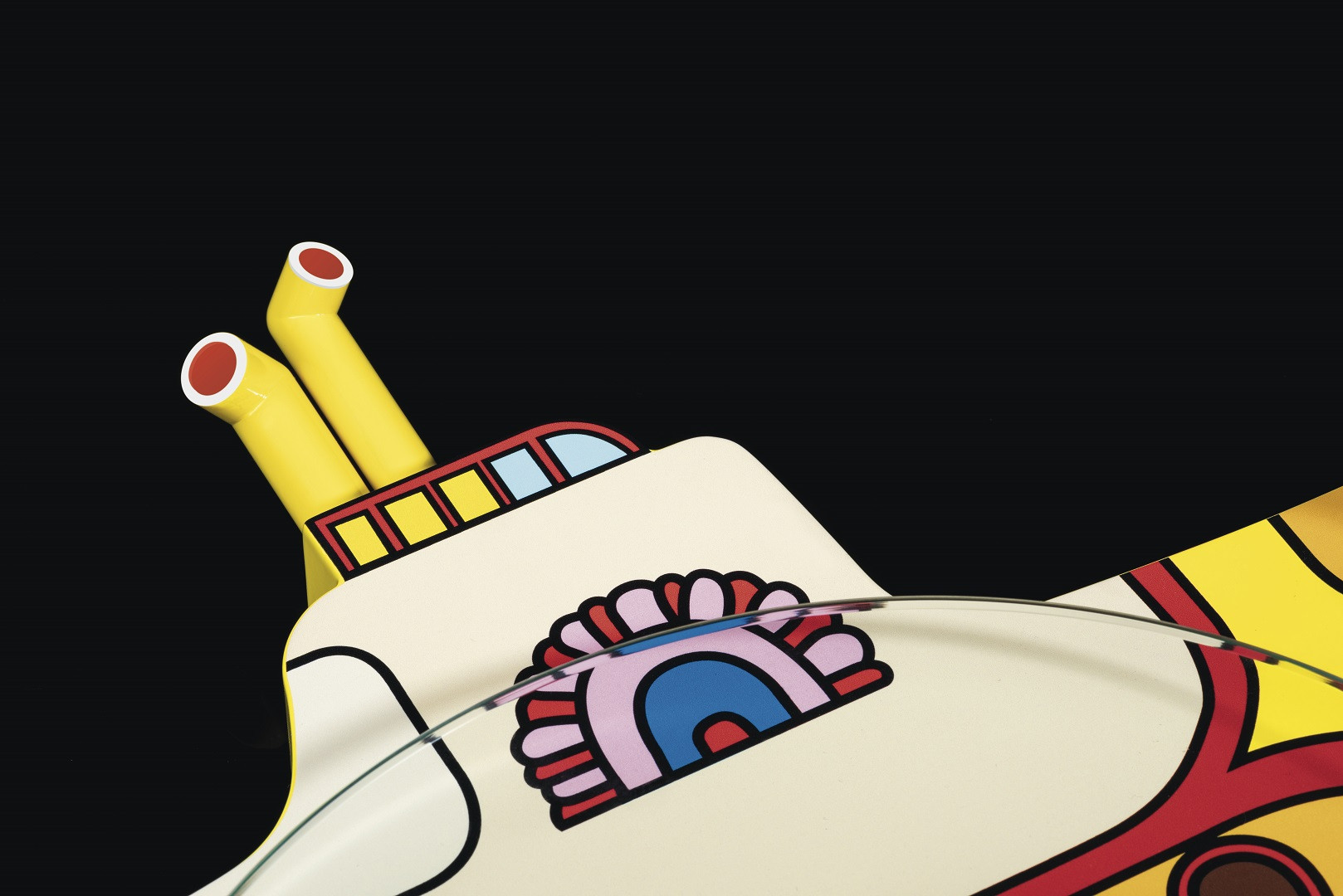

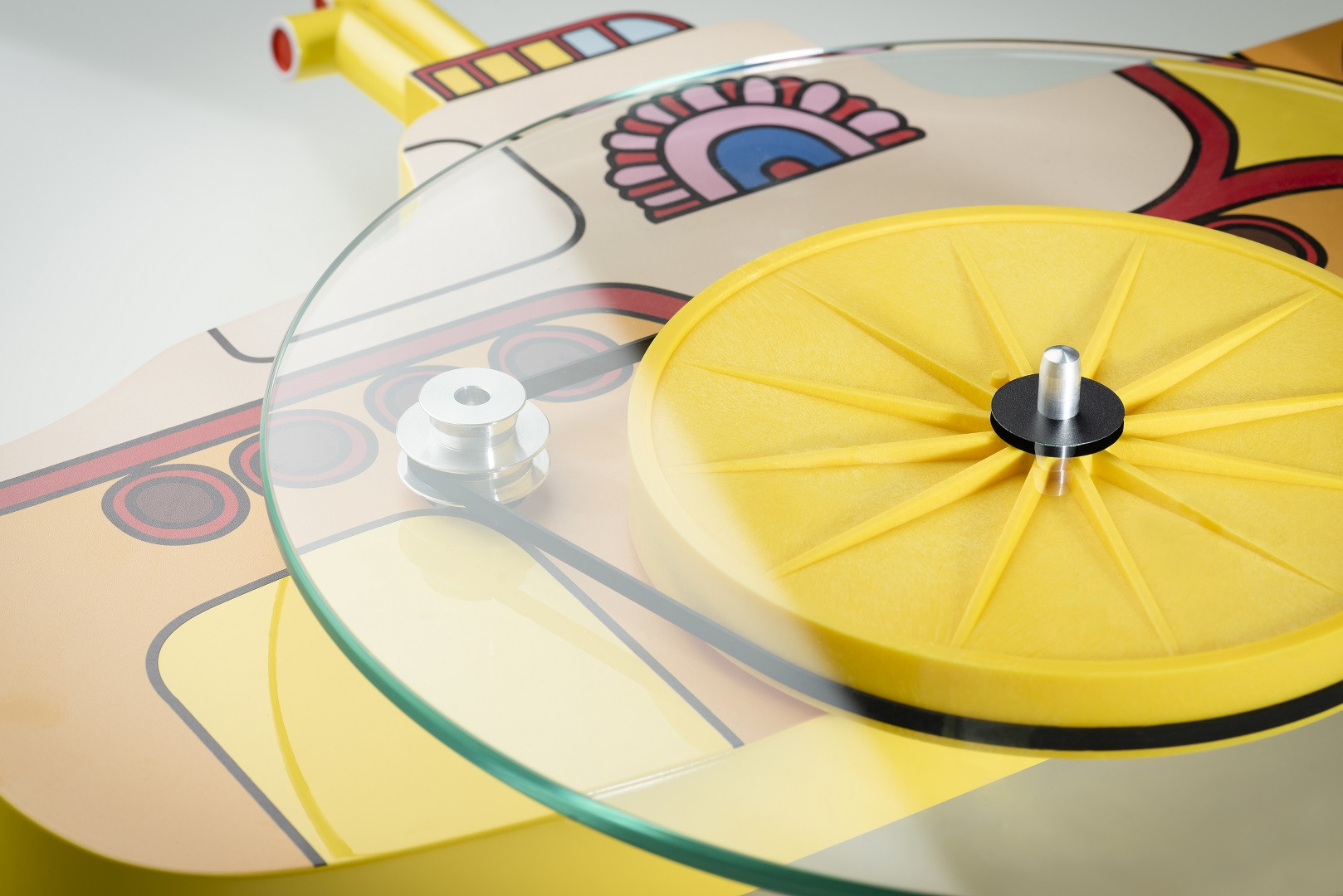

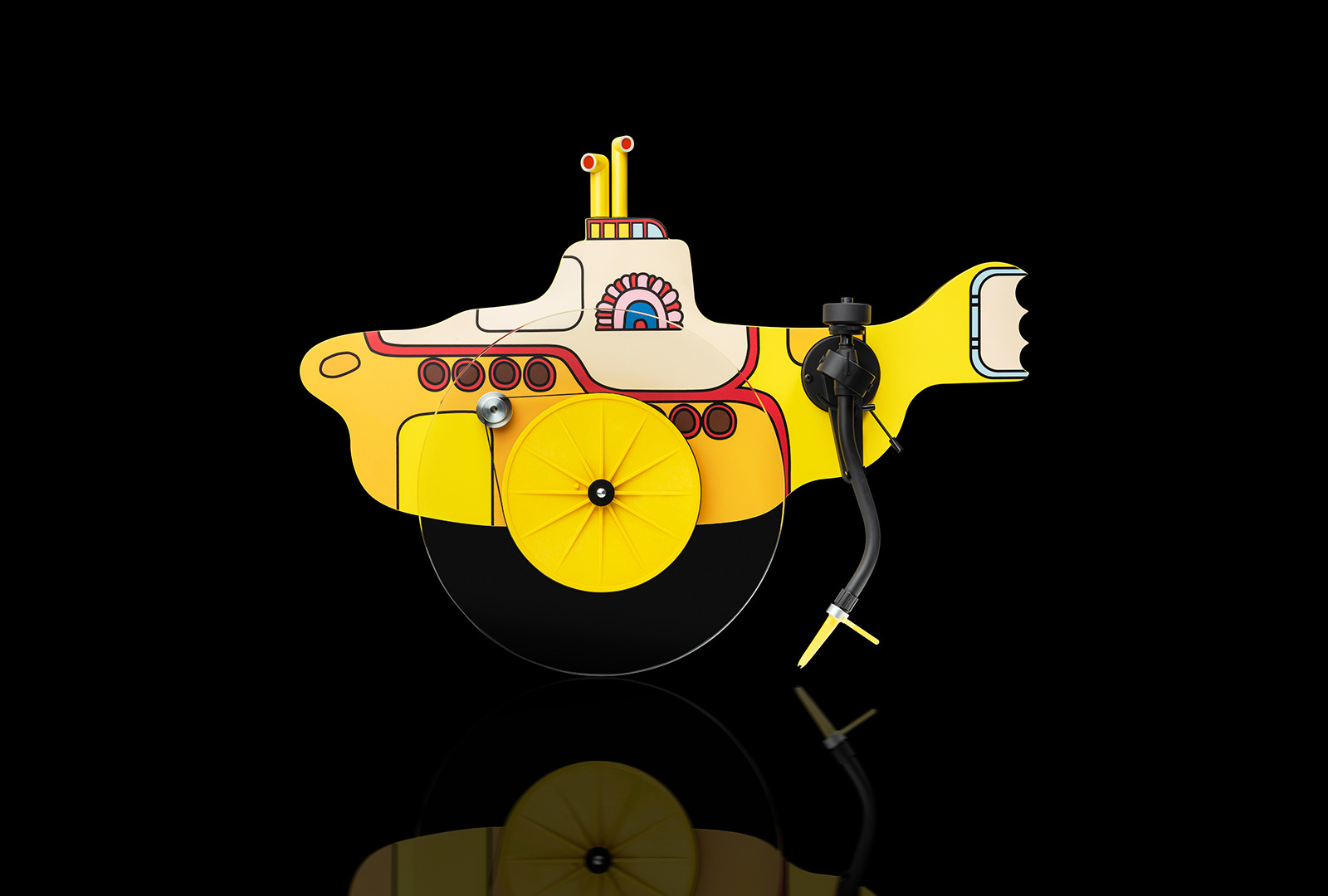

As a tribute to the iconic film, this record player is part of a special Beatles series. The Yellow Submarine record player is the most eye-catching model in the series and a must-have for every Beatles fan. The striking yellow submarine design is based on a robust MDF chassis and attracts everyone's attention. A glass turntable complements the overall picture perfectly, allowing the extraordinary design to come into its own.

Sound quality at the highest level

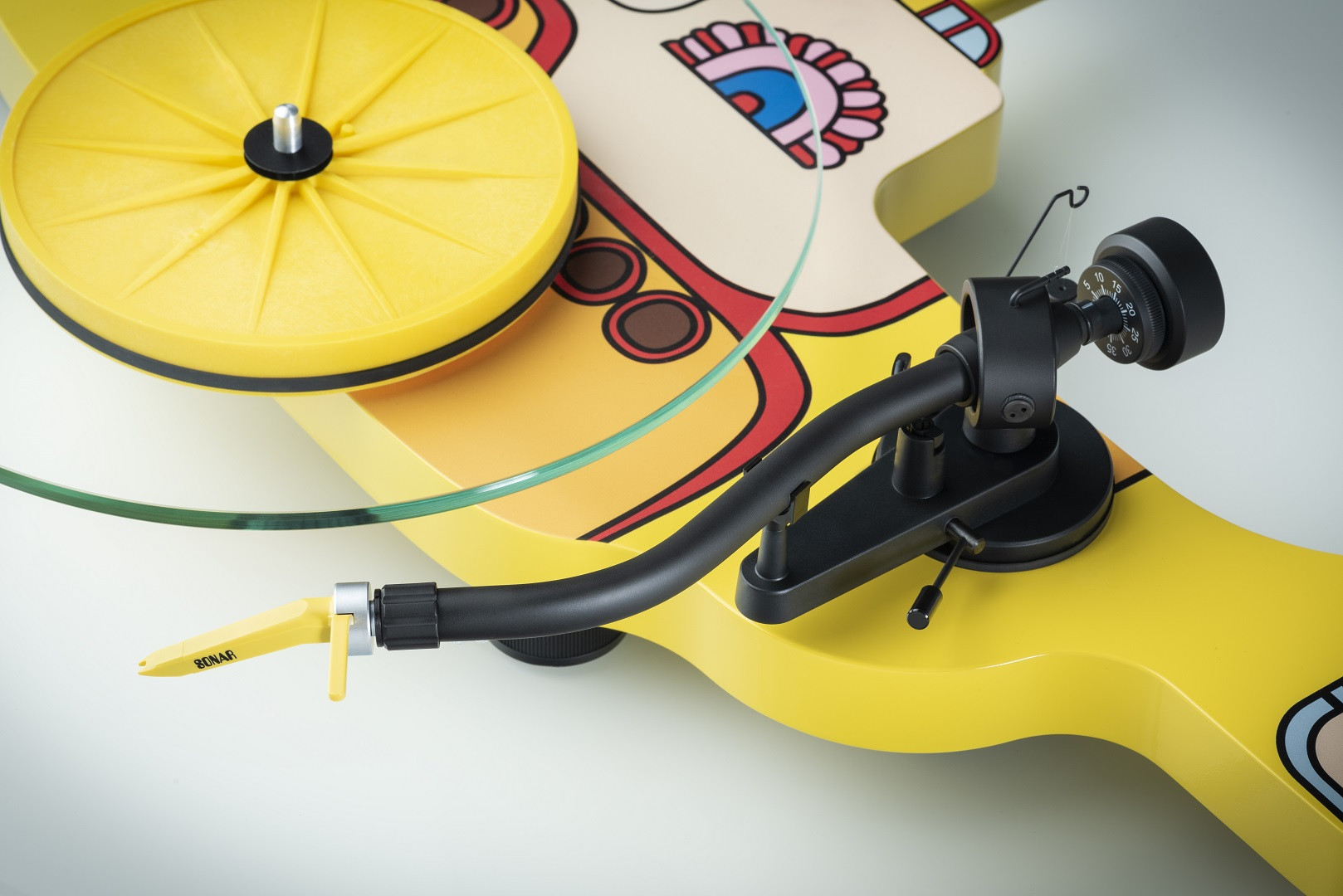

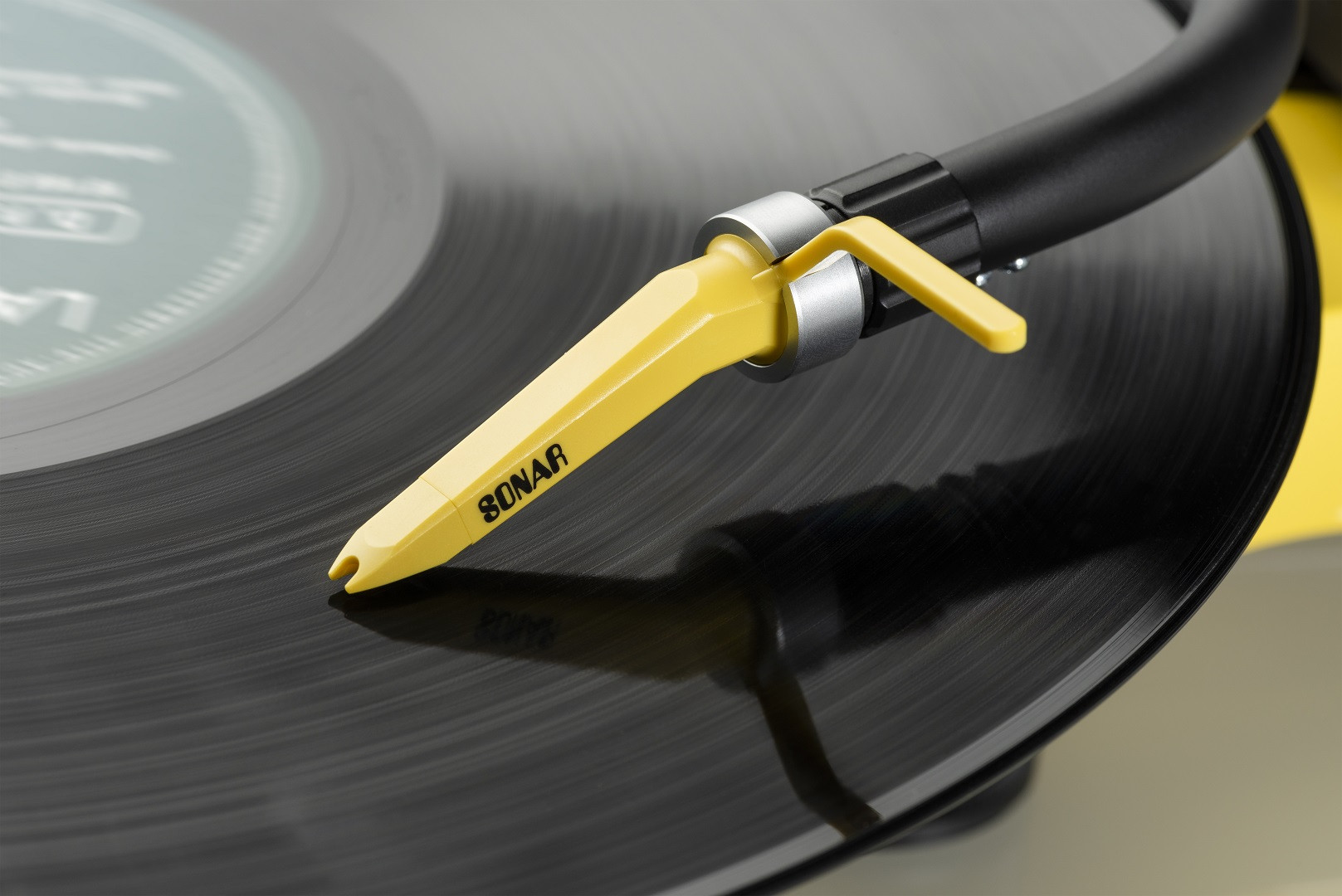

The Yellow Submarine record player not only impresses with its striking design, but also with its first-class features. The included pickup comes from Ortofon, a renowned manufacturer that developed the yellow Concorde 'Sonar' pickup especially for this edition. The S-shaped aluminum tonearm ensures harmonious sound reproduction and is equipped with a high-precision sapphire bearing. Special vibration-damping feet ensure stable positioning and minimize unwanted vibrations.

Handcrafted quality from Europe

The record player is handmade in Europe and impresses with its highest quality workmanship. The belt-driven record player with a synchronous motor and a silicone belt offers precise speed stability and ensures that vinyl treasures are reproduced with the best possible sound quality.

The Pro-Ject The Beatles Yellow Submarine record player is a masterpiece that not only impresses with its unique design, but also with its outstanding sound quality. A must for every Beatles fan and vinyl lover!

Technical data

• Speeds: 33, 45 rpm (manual change)
• Drive principle: Belt drive
• Speed deviation: 33: 0.60%, 45: 0.50%
• Wow and flutter: 33: 0.19%, 45: 0.17%
• Turntable: 300 mm glass with felt pad
• Main bearing: brass with Teflon plate
• Tonearm: 8.6” aluminum
• Effective tonearm length: 218.5 mm
• Output voltage at 1000 Hz, 5 cm/sec: 5 mV
• Frequency response: 20-20,000 Hz ± 1.5 dB
• Needle type: Spherical
• Internal inductance: 450 mH
• Recommended termination resistance: 47 kOhm
• Recommended termination capacitance: 200-500 pF
• Pickup weight: 19 g
• Overhang: 18.5 mm
• Effective tonearm mass: 6.0 g
• Counterweight for mass: 2 - 5.0 g
• Recommended tracking force: 1.75 g (17.5 mN)
• Power consumption: Max. 4.5 watts
• Dimensions (WxHxD): 500 x 120 x 400 mm
• Weight: 4.5 kg net

Technical data of the MM cartridge Pro-Ject Pick it Sonar

• Tonearm mounting: SME bayonet
• Frequency range: 20-27,000 Hz
• Crosstalk attenuation: 23 dB at 1 kHz
• Output voltage: 5 mV
• Recommended termination resistance: 47 kOhm (amplifier connection Phono MM)
• Recommended termination capacitance: 200-500 pF
• Needle compliance/diamond: 16 µm/mN – elliptical
• Recommended tracking force: 18 mN
• Weight: 18.5g
