HUB - Network accessory for versatile audio connection

The Bluesound Professional HUB is a versatile network accessory that enables the connection of analog and digital audio devices to a BluOS ecosystem for networked streaming. The HUB allows users to play audio sources such as televisions and business music players in one or more zones of an installation without being restricted by cables and physical proximity.

Highlights:

• Connect a TV to the HUB's HDMI eARC input to share TV audio over a BluOS network.
• Five input options: HDMI eARC, coaxial, digital optical, stereo analogue and a moving magnet phono stage allow versatile source and streaming possibilities.
• Simultaneously play an analogue and a digital stream on any Bluesound Professional or BluOS player on the network.
• Connect to the network with dual-band WiFi or Gigabit Ethernet.
• Simply select the HUB as the audio source in the BluOS app.
• Powered by USB-C power delivery.

The Bluesound Professional HUB creates flexible connection options for your audio devices and enables seamless streaming in your BluOS network.

Technical information

AUDIO & OPERATING SYSTEM
The operating system
BluOS

BluOS controller operating system
iOS, Android, Windows, Mac OS

*Control system integrations
Control4, Crestron, URC, RTI, ELAN, Lutron
*via software update

Simultaneous audio streams
2 per HUB
1 x analog audio input, 1 x digital audio input

Maximum number of units
4x HUB in a single network (8 simultaneous streams)

Native sample rates
up to 192kHz

bit depth
16-24

signal to noise ratio
>100 dB (line input)
>80 dB (phono MM input)

distortion
<0.03% 20-20kHz -1dBFS output

frequency response
20-20kHz +/-0.3dB; 50kHz -3dB

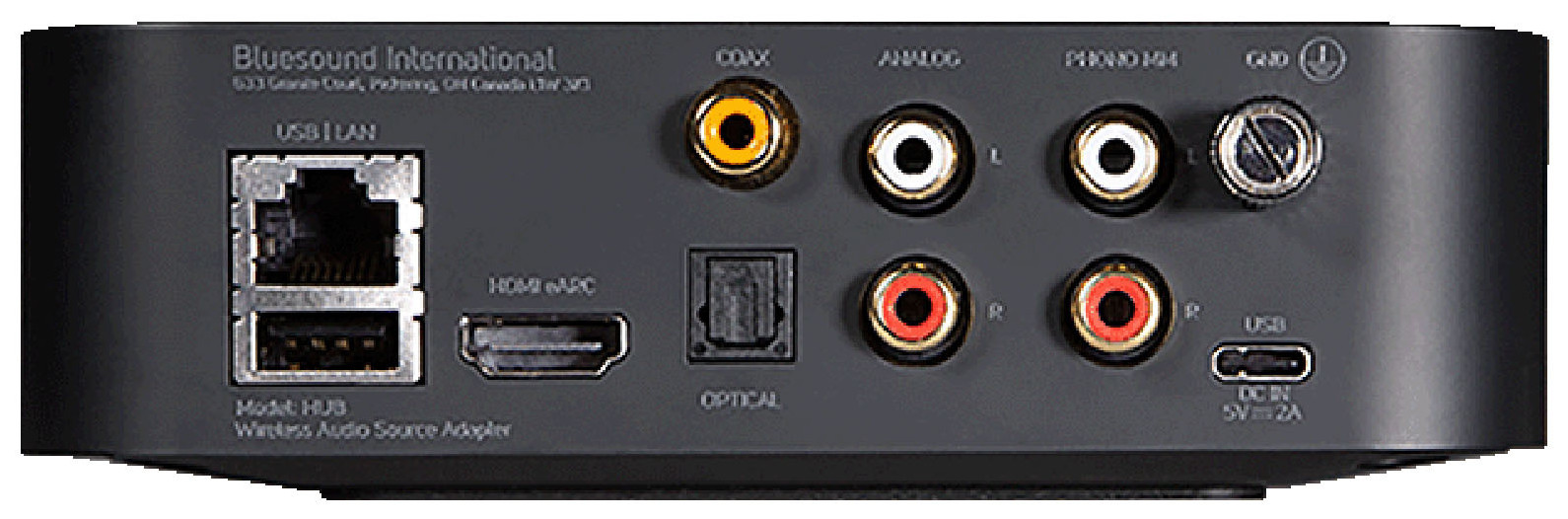

CONNECTIONS
power supply
Universal USB-C power adapter
(Input:100-240V AC/0.3A Output:5V/2A)

Ethernet/LAN
Ethernet RJ45, GigE 1000Mbps

Built-in WiFi
Wi-Fi 5 (802.11ac), 2.4/5GHz

Analog line input
1 x stereo RCA

phono input
1 x stereo RCA (moving magnet)

Optical input
1 x TOSLINK digital optical

Coaxial input
1 x RCA (75 ohms)

HDMI input
HDMI eARC with CEC

USB input
Type A (only for BluOS firmware upgrade)

audio output
network

FEATURES
processor
ARM® Cortex™ -A53, quad-core, 1.8GHz per core

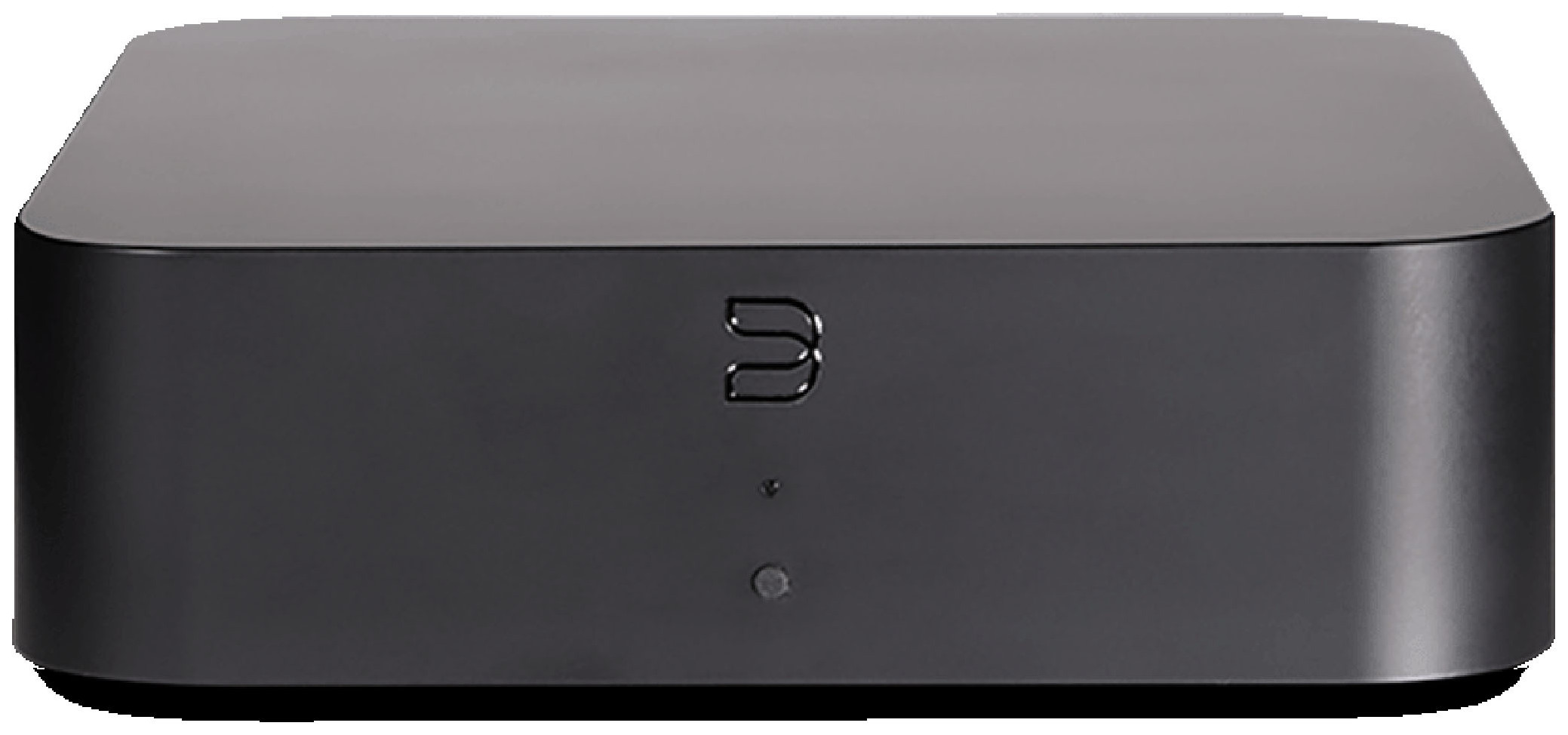

status display
LEDs on the front panel

function key
Function button on the front panel

power consumption
0.5W network standby

GENERAL
surface
Black; Matte satin finish

execution
CB130

Product Dimensions
143 x 153 x 45 mm (W x D x H)
5.6 x 6 x 1.8 inches (W x D x H)*

Weight
0.63kg / 1.39lbs

included supply
5V power adapter
3 x international plug adapters
USB-C power cable
Ethernet cable
mounting template
Safety/Warranty Guide
Quick setup guide

* Non-metric measurements are approximate.
