Stax SRM-353X Headphone driver unit (amplifier) silver
€1,298.00
% €1,350.00 RRP (3.85% saved)per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
The SRM-353X is a headphone amplifier and driver unit for STAX electrostatic speakers.
STAX Audio has redesigned the circuitry to achieve a wider frequency response, and has also used carefully hand-picked, high-quality components to further improve sound quality.
The newly added XLR input allows connection to the balanced outputs of audio devices to take full advantage of the superior performance of the SRM-353X.
characteristics
Original low-noise dual FET first stage amplifier, all stages with direct coupling and Class A DC amplifier configuration with no coupling capacitor.
Improved emitter follower in the output stage.

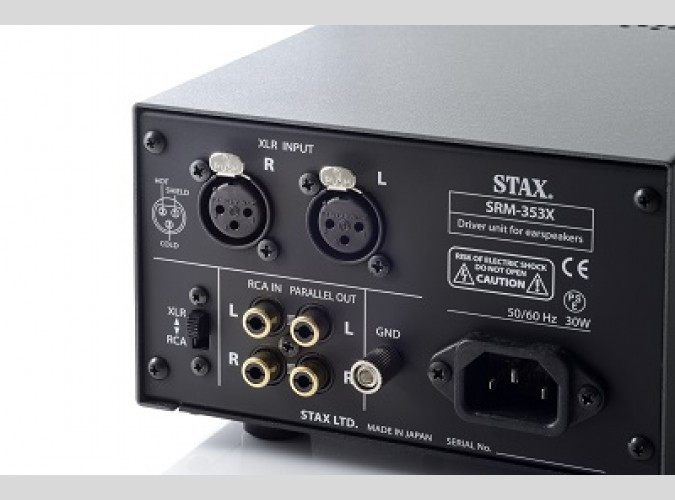

RCA input / balanced XLR input connectors.
Custom built 2-axis volume control, 4-way
Extravagant housing made of non-magnetic aluminum alloy
specifications
- Type: All-Stage Solid State, Low-Noise Dual FET Input, Class A Operation, Pure Balanced DC Amplifier Configuration Handset Driver Unit
- Frequency Response: DC to 90,000 Hz (with 1 SR-L Series speaker)
- High Harmonic Distortion: Max 0.01% (1kHz at 100V RMS with SR-L500)
- Gain: 60dB (x1000)
- Input connector: 1 RCA with 1 RCA parallel output and XLR
- Nominal input level: 100mV / 100V outputs
- Max. input level: 30V (at minimum volume)
- Input Impedance: 50KO(RCA) 50KOx2(XLR)
- Max. output voltage: 400V RMS (1kHz)
- Standard bias: PRO 580V x 2
- Mains voltage frequency: 117V (50Hz / 60Hz)
- Power consumption: 30W
- Temperature & Humidity: 0 to 35°C / 90% max without condensation
- Dimensions: 5.9(W) x 3.9(H) x 14.2(D) inches
- Weight: 6.6lbs
- silver
- Voltage: 120V/60HZ
| Color: | silver |
|---|---|
| Condition: | New goods |
| Device depth mm: | 365 |
| Device height mm: | 100 |
| Device width mm: | 150 |
| Inputs: | Analog RCA, Analog XLR |
| Material: | aluminum |
| Product type: | Headphone amplifier |
| Surface: | aluminum |
