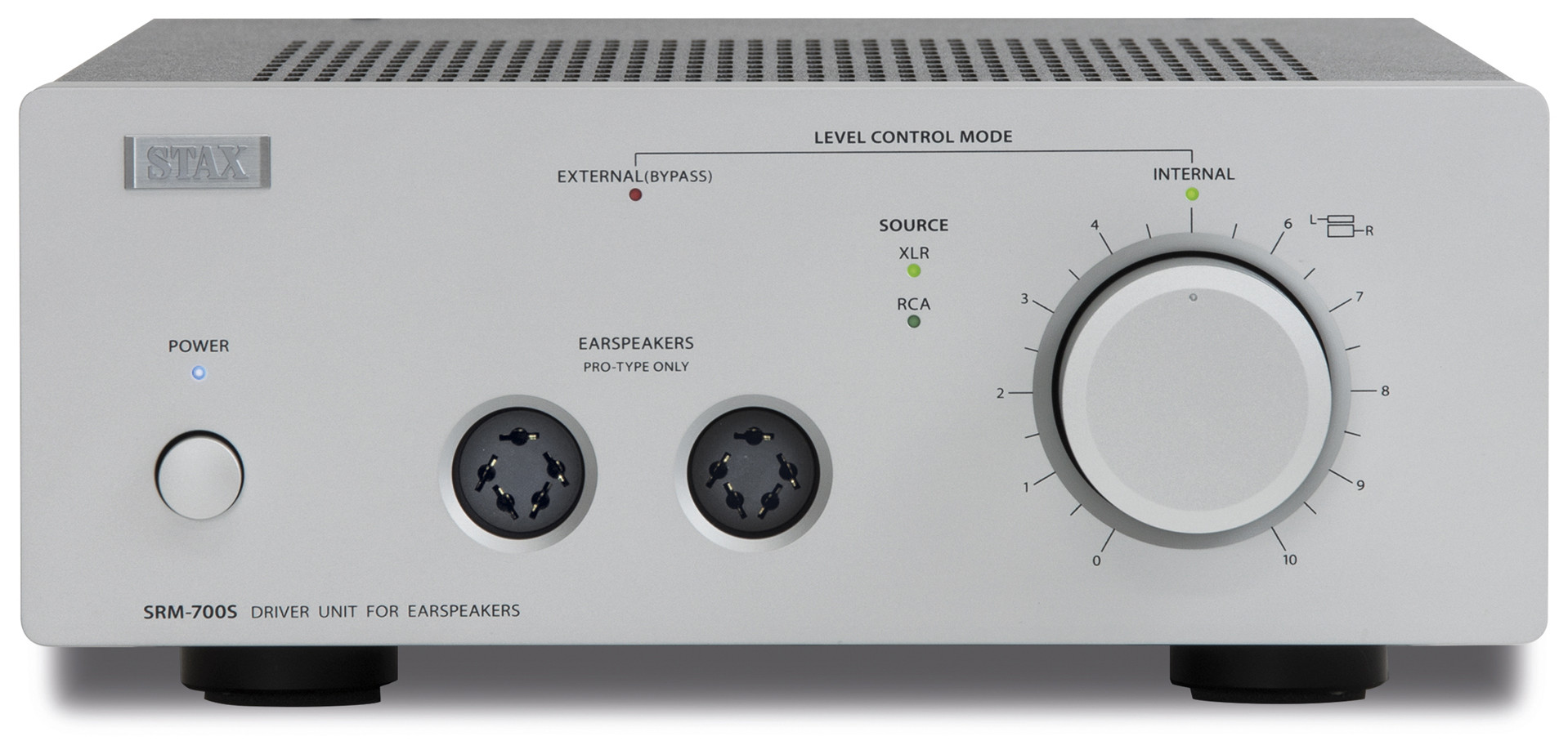

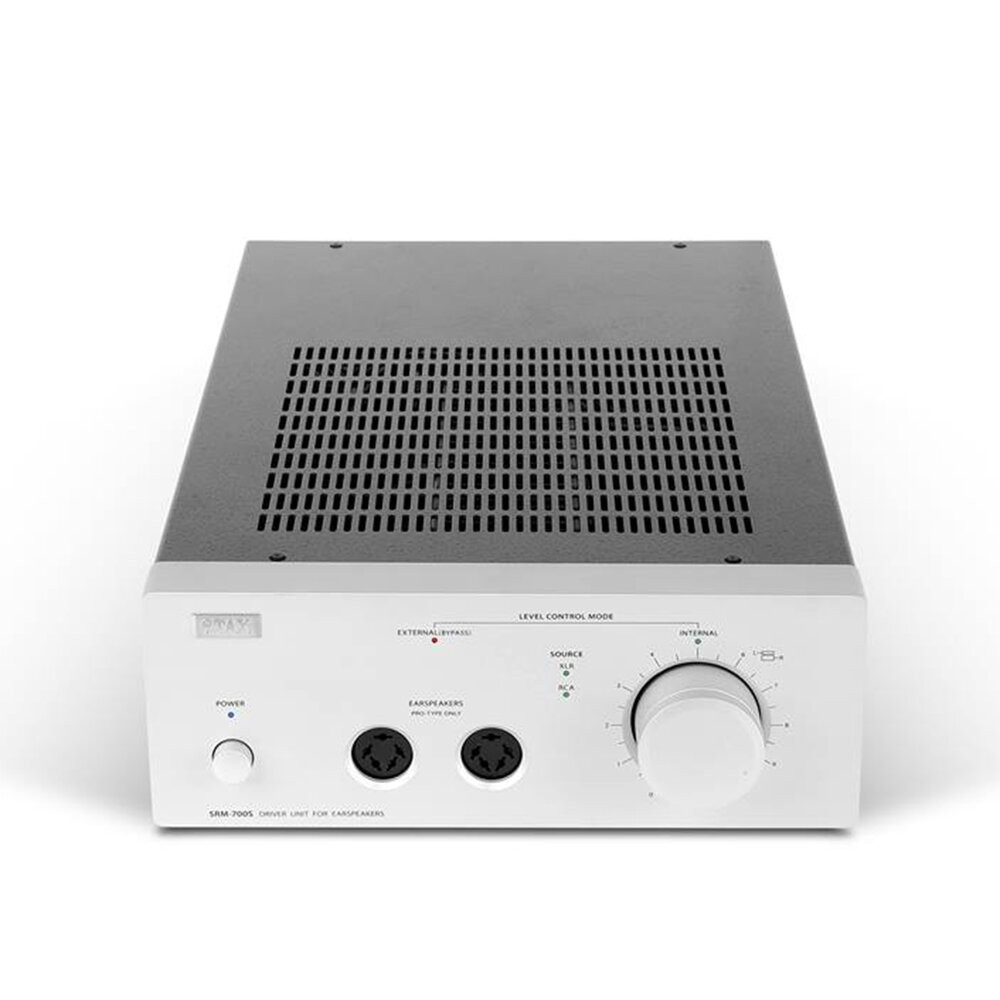

Stax SRM-700S electrostatic headphone driver
€3,950.00
per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
The SRM-700S is an electrostatic headphone driver utilizing a fully discrete dual FET. The output of the J-FET and the large current emitter follower circuit are low noise. Accurate music reproduction is realized without missing any fine details.
New semiconductor driver with J-FET in the amplification stage. The custom-made, low-noise dual FET is low-noise.
Type: All-stage FET configuration DC amplification driver unit
Frequency response: DC – 100kHz (with one SR-009S)
Gain: 60dB
Harmonic distortion: 0.01% or less (1kHz/100Vrms output)
Input impedance: 50kO (RCA), 50kOx 2 (XLR)
Maximum output voltage: 450Vrms (1kHz)
Bias voltage: PRO 580V
Operating temperature / humidity: 0 to 35 degrees C / less than 90% (non condensing)

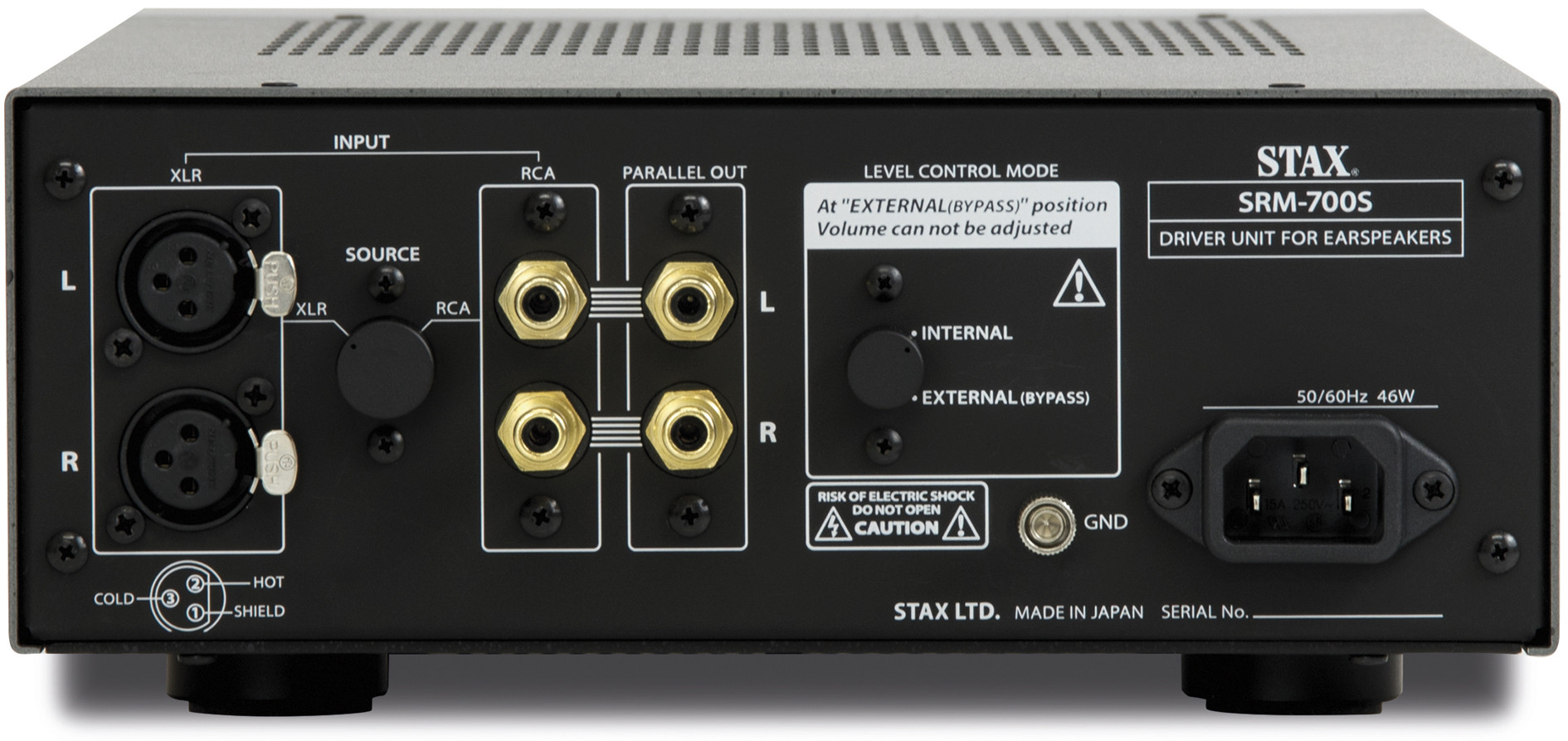

Input terminal: RCA x 1, XLR x 1
Output: RCA parallel output terminal
Power consumption: 46W
Dimension: 240W x 103 H x 393 D mm (maximum protruding portion included)
Weight: 6.3kg
| Color: | silver |
|---|---|
| Condition: | new item |
| Device depth mm: | 393 |
| Device height mm: | 103 |
| Device width mm: | 240 |
| Features / special features: | Transistor driver amplifier |
| Inputs: | Analog RCA, Analog XLR |
| Material: | aluminum |
| Outputs: | Analog RCA |
| Product type: | headphone amplifier |
| Series: | SRM |
| Surface: | aluminum |
