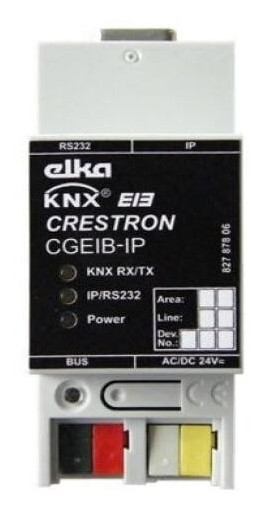

Crestron CGEIB-IP KNX/IP-Gateway
€799.00
% €1,106.70 RRP (27.8% saved)per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
Reliable interface for modern building automation
The CGEIB-IP from Crestron is a powerful and future-proof solution for seamlessly connecting a Crestron control center to a KNX (formerly EIB) installation. Whether via RS232 or Ethernet (TCP/IP), this interface offers maximum flexibility and compatibility for professional building automation applications.
The ability to filter data directly from KNX/EIB messages and forward them to the Crestron system in real time creates seamless communication between both worlds. This ensures that the Crestron system always receives up-to-date information about the status of the KNX installation, significantly increasing the efficiency and responsiveness of the entire control architecture.
A particular advantage of the CGEIB-IP is its backward compatibility: It can be easily integrated into existing installations using the predecessor model, the CGEIB. Thanks to the expanded TCP/IP functionality, modern network communication via Ethernet is also possible – without having to forego the proven RS232 connection.
With the CGEIB-IP, Crestron underscores its expertise in developing reliable, DIN rail-compatible components for smart buildings. The device requires only two modules on the DIN rail and impresses with its robust construction and low energy consumption.
Technical data – CGEIB-IP KNX/IP gateway
Connections:
Power: (1) Wago connector for power supply
KNX/EIB bus: (1) Wago connector for connection to the KNX bus
RS232: (1) DB9 female connector
LAN: (1) RJ45 port (10/100 BaseT Ethernet) with 2 LED indicators
Green = link status
Yellow = Ethernet activity
Power supply:
Power consumption: 1.8 watts (0.075 A at 24 V AC/DC)
(Power supply not included)
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Humidity: 10% to 93% RH (non-condensing)
Housing:
Material: Polycarbonate (light grey)
DIN rail mounting: 2 module units (36 mm)
Dimensions:
Length: 90 mm
Width: 35 mm
Height: 70 mm
Weight: 105 g
Status indicators and controls:
Power: (1) blue LED
KNX RX/TX: (1) red/green LED
Red = KNX data received
Green = Sending KNX data
IP/RS232: (1) red LED
Red = RS232 connected
Green = IP connected
Programming button: Activates ETS programming mode
Programming display: (1) red LED to indicate programming mode
| Condition: | new item |
|---|---|
| Device depth mm: | 70 |
| Device height mm: | 95 |
| Device width mm: | 35 |
| Product type: | equipment |
Safety Information
Product-specific safety instructions can be found in the operating manual.
