Zuma Lumisonic - Light and Sound

Zuma is the new way to experience natural, colorful light and room-filling high-fidelity sound.

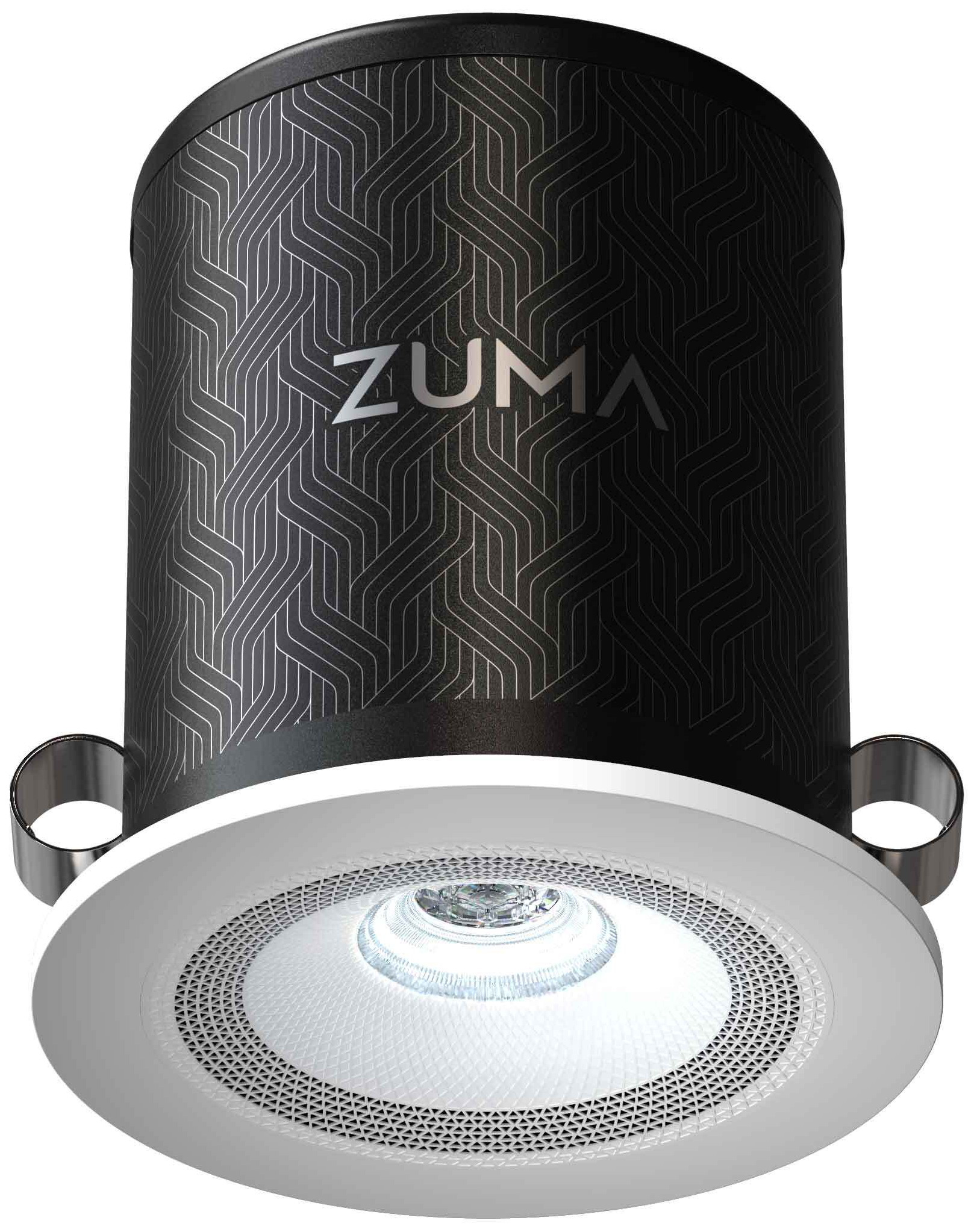

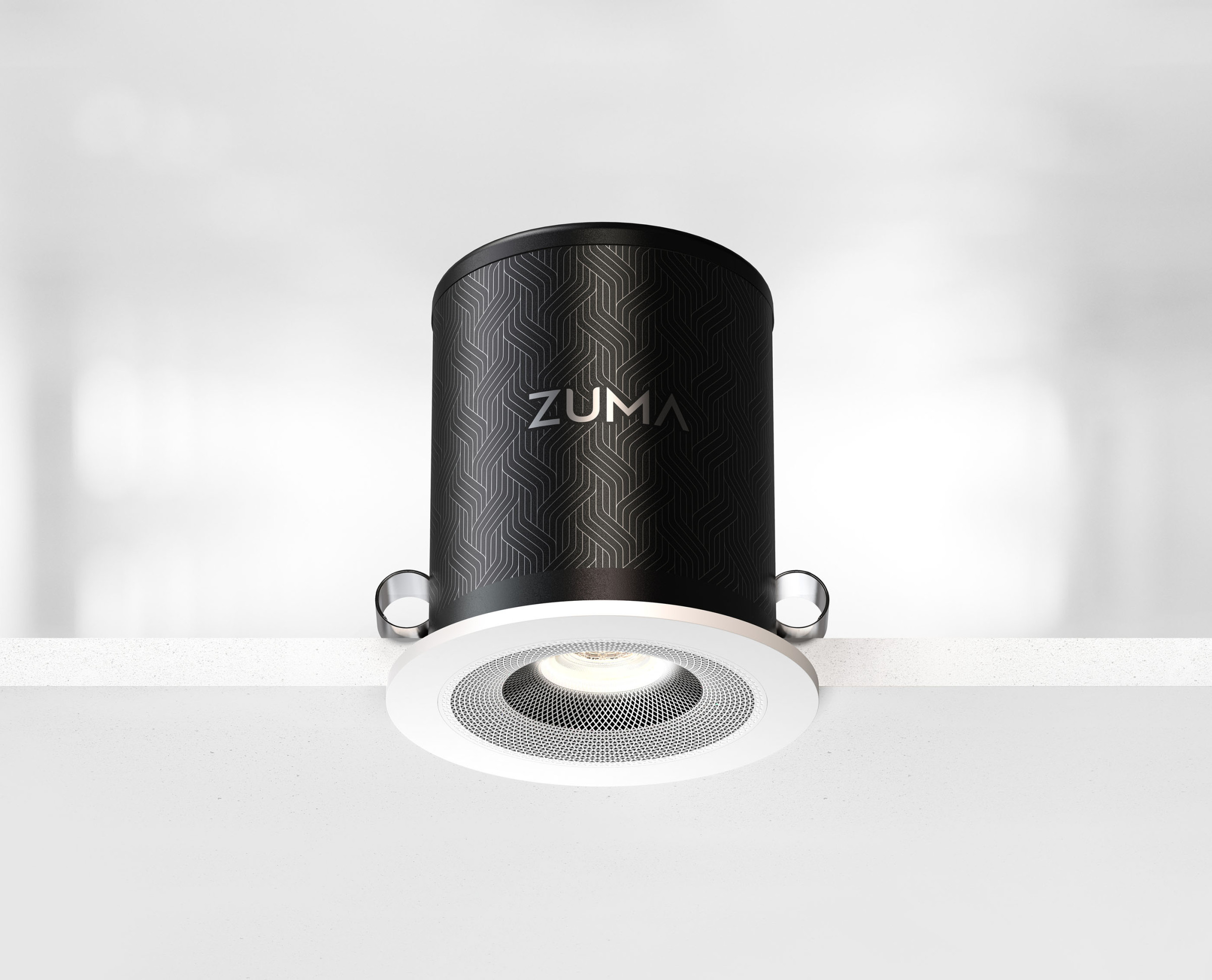

A unique, ultra-compact, high-performance ceiling speaker with an energy-saving LED light – all in a sleek, extremely easy-to-install ceiling light.
The approach is to find a simple, wireless way to enjoy high-fidelity sound throughout the home. The ubiquitous ceiling speakers already found in every room are ideally placed to deliver impressive sound from a single point source.
Zuma integrated a unique high-performance speaker with a high-quality, fully dimmable and adjustable warm-tone light – the wireless multi-room system was born!

The unique Zuma Lumisonic System

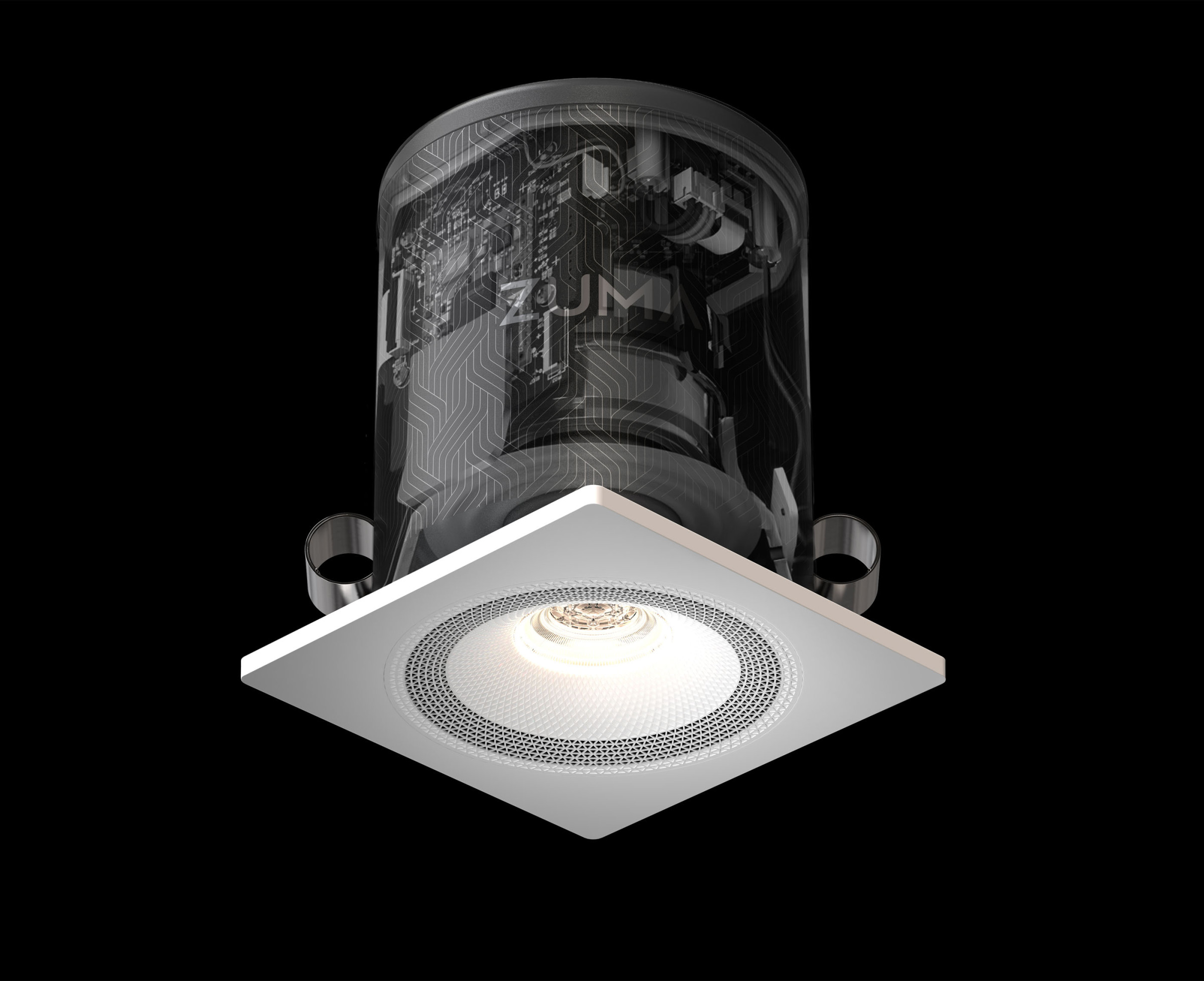

Under the hood is a next-generation monolithic HD Audio Class-D amplifier. This is driven by a premium quad-core audio processor with advanced DSP capabilities. Each channel is actively filtered and monitored by advanced DSP algorithms to maximize detail and performance—so you can enjoy a truly immersive sound experience.
The custom-designed two-way speaker system features a uniquely optimized 80 mm Superform aluminum cone with a long excursion (20 mm). Every aspect of the woofer design and cabinet has been fine-tuned and refined to ensure that, combined with the unique Zuma electronics, it delivers rhythm, pace, and exceptional detail.
At the heart of the Lumisonic design is the powerful, horn-loaded silk dome tweeter, engineered with an extremely wide dispersion pattern for enhanced clarity and room coverage. Zuma utilizes a custom wireless multi-room connectivity system that automatically adapts to your environment, enabling wireless, room-filling audio.
At the heart of a Zuma is a central quad-core ARM processor, which, at 1.4 GHz, delivers enough power to ensure your experience is flawless. All software components of the product are upgradable, ensuring that future requirements and trends can be met.

ZUMA – WELL CONNECTED
Zuma is well-connected. Zuma supports and is certified for most of the applications you need for listening – from Bluetooth to internet radio, from AirPlay to Spotify and Alexa. Choose your music streaming service and get started.
By linking it with an Alexa Echo Dot (for example), you create a voice-controlled light and sound solution where you only have to ask for music and light - Zuma does the rest.

TECHNICAL DATA

Sound
• Built-in Class-D monolith power amplifier
• Power: 75W
• Quad-core 1.5GHz ARM Cortex-53 CPU
• Digital signal processor
• 80 mm high-excursion superform aluminum woofer
• 20 mm horn-loaded silk dome tweeter unit
• Frequency range: 40Hz–25kHz (-6dB points)
• Audio streaming with industry-leading synchronization (100µs)
• Support for lossless audio formats up to 24 bit / 192kHz
• Dynamic bass management

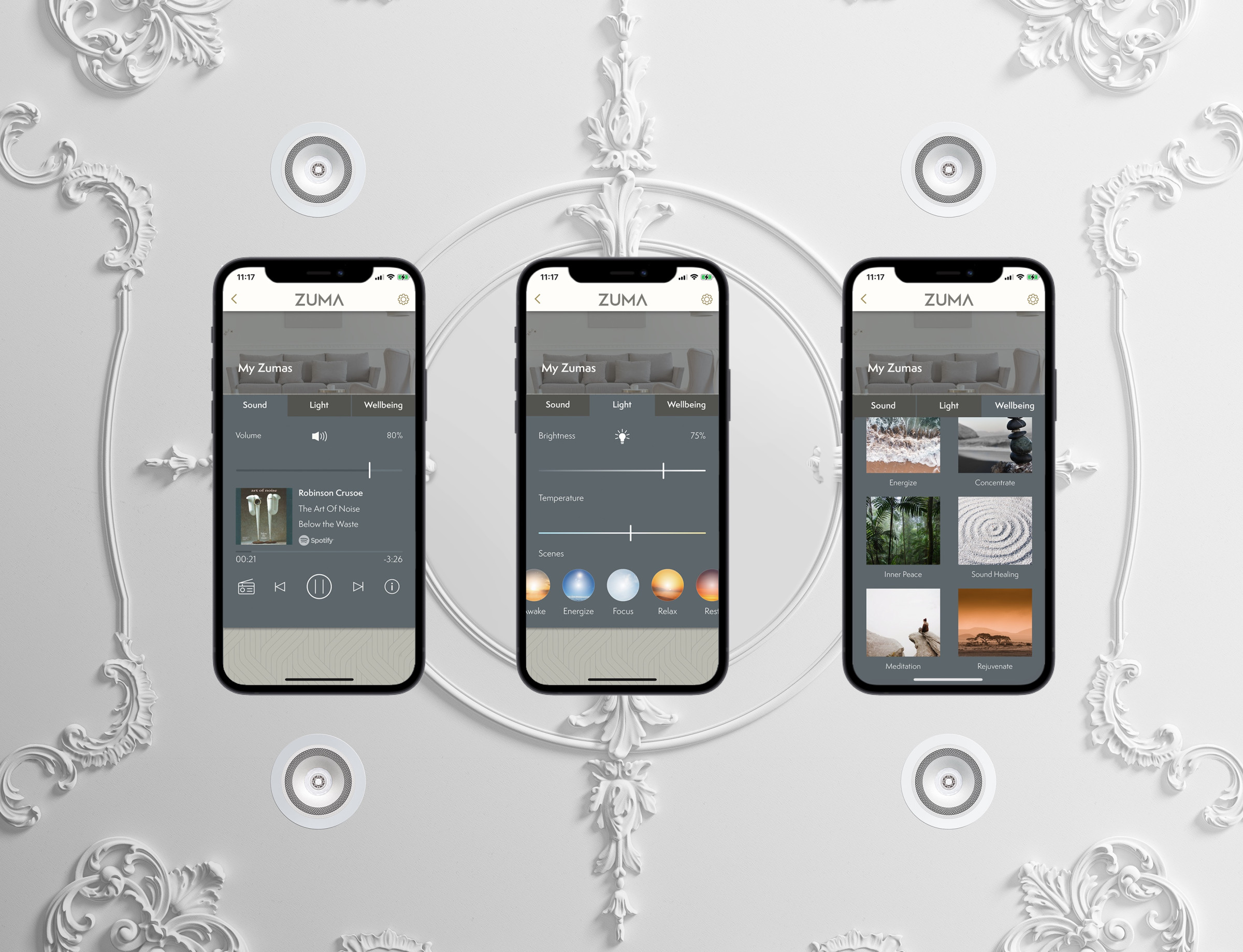

• Control: Zuma Mobile App and voice control via Alexa
• Multi-room audio: Yes, with Alexa and AirPlay 2
• Connectivity: Wi-Fi, Bluetooth, Alexa, AirPlay 2, Spotify Connect
• Software updates: Wirelessly via the Zuma app
• Dynamic left/right stereo and mono control
• Network: WLAN dual-band (802.11a/b/g/n/ac, 2.4 and 5 GHz), 10/100 Mbps
• 10/100 Mbps Micro Ethernet port (adapter sold separately)
• Support for IPv4 and IPv6

Light
• Light: Color-adjustable and dimmable light with 100 color gradations
• Application: Flush-mounted, available as surface-mounted or flush-mounted installation
• Light source: LED chips
• Beam angle: 52° wide beam
• Power: 6W
• Luminous flux: 536lm
• Voltage: 24V constant voltage
• Color temperature range: 2800K – 4800K
• Luminous efficacy: 89lm/W
• Color Rendering Index (CRI): 90+
• SDCM: <3
• Drivers available for: Lutron, Crestron, Control 4

design
• Dimensions: Ø94mm x 120mm depth

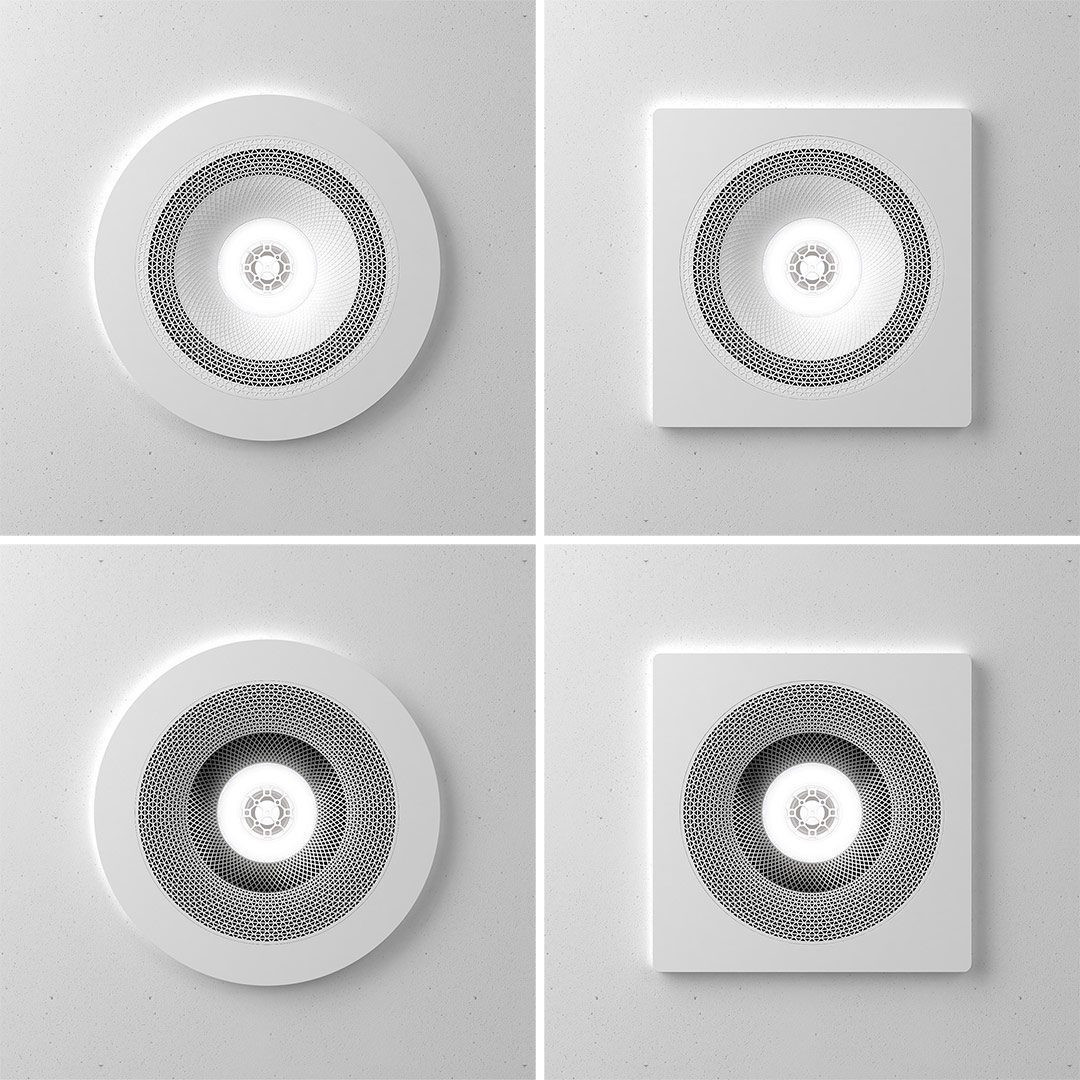

• Square front panel: 104.5mm x 104.5mm x 4mm depth
• Materials: Laser-engraved aluminum extrusion, aluminum die-casting
• Laser-cut stainless steel grille with individual design
• Magnetically attached, injection-molded ABS plastic front panel
• Quick-release ceiling fixings made of stainless steel, damage-free

Summary
• Electrical and environmental performance
• Operating temperature: 0°C to 40°C
• Operating humidity range: 10% to max. 90%
• UV resistance: No UV deterioration over 3 years
• Switching power supply 230V, 50/60Hz AC with DC 24V / 3.1A constant voltage supply
• Unique wireless connection system for audio synchronization
• Protection class: IP65
