Rotel RA 6000 Integrated Amplifier
€3,890.00
% €4,499.00 RRP (13.54% saved)per Piece incl. VAT / incl. Shipping
No longer available
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
The RA-6000 Diamond Series Integrated Amplifier is the result of Rotel's 60 years of experience. The RA-6000 supports a wide range of modern and traditional analogue and digital sources. Its class AB power amp delivers 350 watts into 4 ohms with exceptional detail and precise lows.
Integrated DAC and phono input
The digital inputs support audio streams up to 24-bit/192 kHz. The asynchronous PC USB input supports audio up to 32-bit/384kHz, decodes and renders MQA and is Roon certified. For vinyl fans there is a phono input for moving magnet systems.

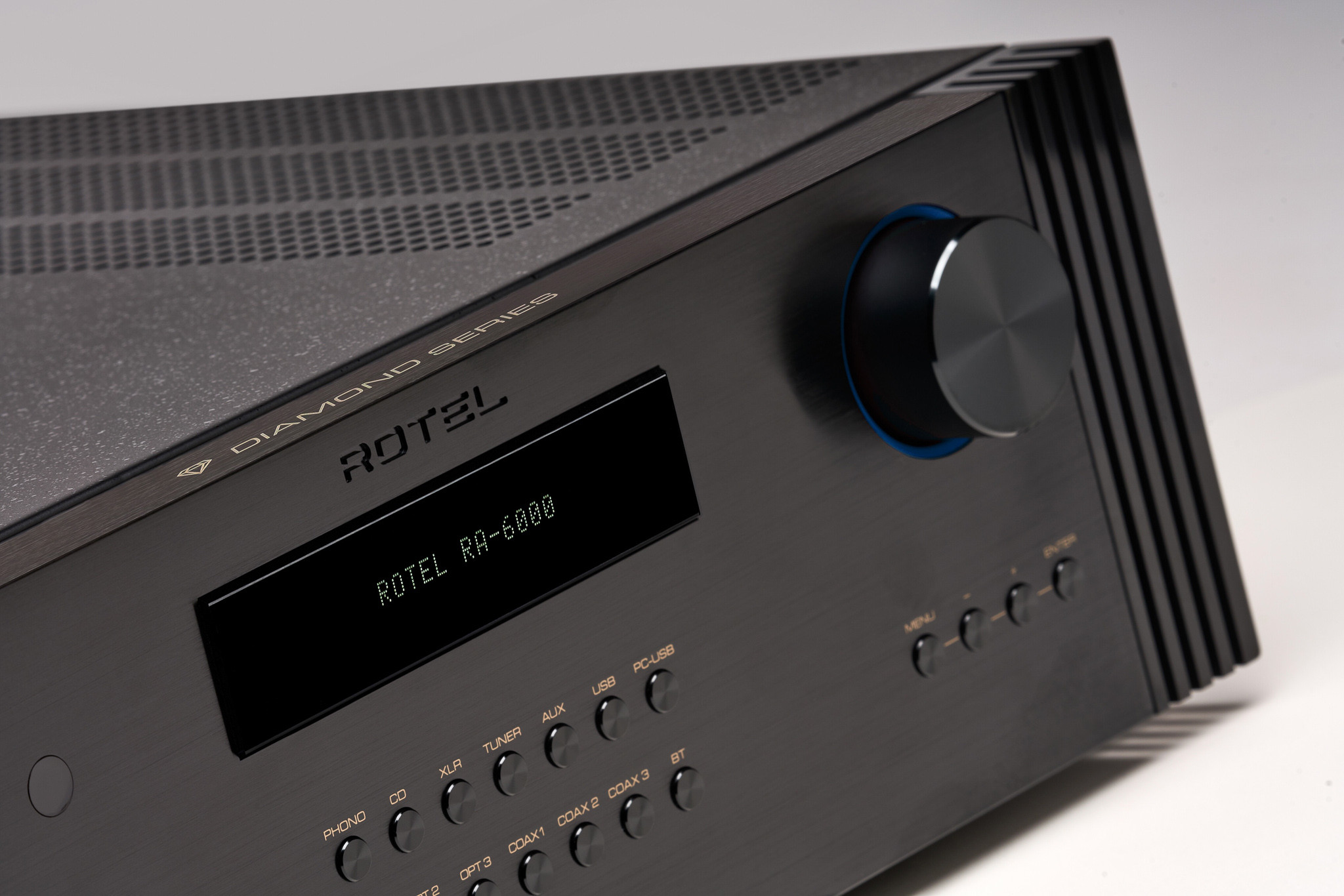

The device can be operated intuitively via the front panel controls, the IR remote control with backlight and the two-line display.

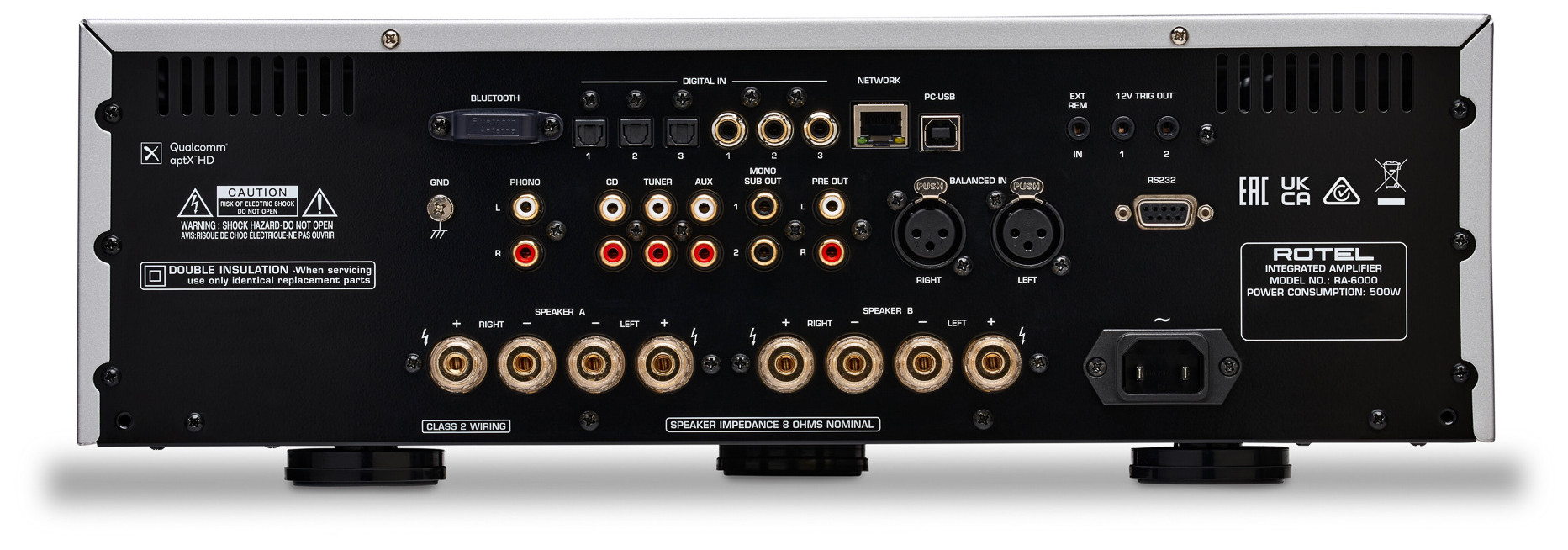

Ethernet, RS232, 12V trigger and a remote input facilitate integration into control systems.
The RA-6000 is available in black and silver.
Technical details
INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
600
INPUT SENSITIVITY
High level inputs (RCA): 340mV
High level inputs (XLR): 540mV
Digital inputs: 0 dBfs
Phono input (MM): 5.2mV
INPUT IMPEDANCE
High level inputs (RCA): 5.6kO
High level inputs (XLR): 100kO
Digital inputs: 75O
Phono input (MM): 47kO
PASS
High level inputs (RCA): 3.5V
High level inputs (XLR): 4.5V
Phono input: 52mV
OUTPUT LEVEL
1.9V
OUTPUT IMPEDANCE
100O
DIGITAL SIGNALS (COAXIAL/OPTICAL)
LPCM (up to 24-bit/192kHz)
PC USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
DIMENSIONS (W × H × D)
431×144×425mm
17' × 5.7' × 16'
PANEL HEIGHT
3U / 132.6mm (5.25')
POWER SUPPLY
230V, 50Hz
POWER CONSUMPTION
500W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
18.81kg (41.47lbs.)
Btu
1239 BTU/hr
MAXIMUM POWER OUTPUT
350W/Ch (4O)
CONTINUOUS OUTPUT
200W/Ch (8O)
OVERALL THD
<0.0075%
FREQUENCY RESPONSE
High level inputs:
10Hz - 100kHz, ±0.5dB
digital inputs:
10Hz - 90kHz, ±2dB
Phono input:
20Hz - 20kHz, ±0.5dB
VOLTAGE/NOISE RATIO (IHF 'A')
High level inputs: 103dB
Digital inputs: 102dB
Phono input: 80dB
| Color: | black |
|---|---|
| Condition: | new item |
| Connection types: | pawl |
| DAC function: | Yes |
| Device depth mm: | 425 |
| Device height mm: | 144 |
| Device width mm: | 431 |
| Inputs: | Analog RCA, Analog XLR, Digital RCA, Digital Toslink |
| Material: | aluminum |
| Operation: | remote control |
| Outputs: | Analog RCA |
| Power amplifier: | Stereo |
| Power amplifier channels: | 2 |
| Power per channel in W: | 200 |
| Product type: | amplifier |
| Series: | Diamond |
| Surface: | aluminum |
Manufacturer
THE ROTEL CO. LTD.
Tachikawa Building 1F
2-11-4
Nakane
Meguro-ku
Tokyo
Japan 152-0031
sales@rotel.com
EU Representative
ATR Audio-Trade Hi-Fi - Vertreibsgesellschaft mbH
Villa Belvedere
Wallufer Straße 2
65343 Eltville am Rhein
GERMANY
rotel@audiotra.de
Safety Information
Product-specific safety instructions can be found in the operating manual.
