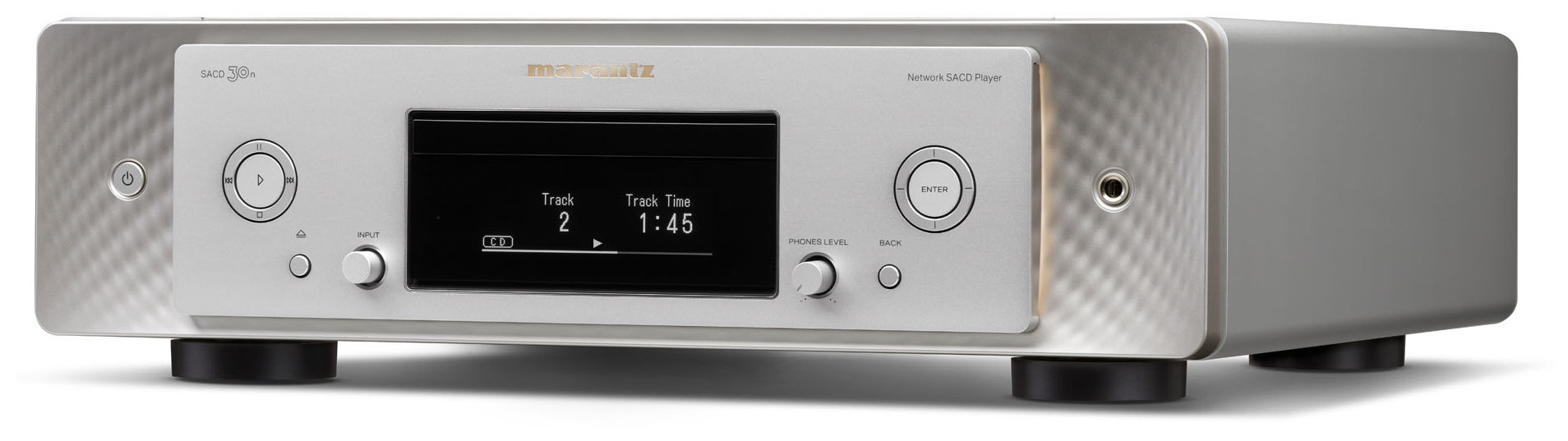

Marantz SACD 30n Network-SACD-Player

The SACD 30n is designed to meet the needs of today's audiophiles who want to combine their extensive digital music collection with leading online music services. Thanks to the support of file formats up to 11.2 MHz (Quad-DSD) and 384 kHz / 32 Bit (PCM) via USB-B / USB-DAC, you are well equipped for the future with the SACD 30n. The perfect partner for the MODEL 30 integrated amplifier. With a Marantz, your music always sounds better.

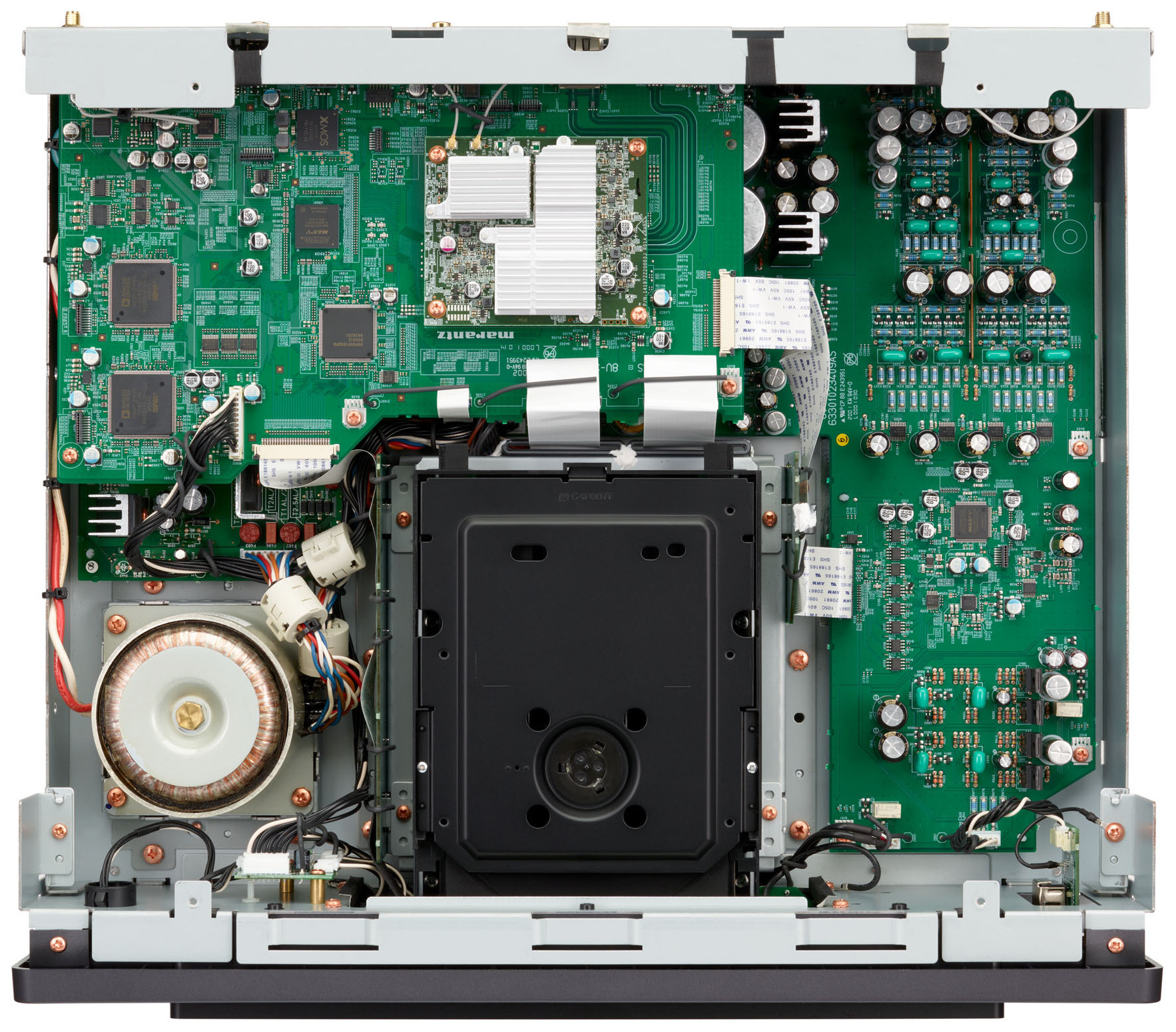

The SACD 30n uses the proprietary Marantz transport mechanism SACDM-3L, which is designed for the best possible performance when playing SACDs, CDs and music stored on data carriers. It is also created for the needs of the modern music enthusiast who wants to access existing music file collections and leading streaming services. The SACD 30n uses the HEOS built-in platform and combines a first-class CD / SACD player, a modern hub for digital sources, a USB-DAC and an integrated preamplifier in one device.

With the help of HEOS Built-in technology, the SACD 30n can read the audio formats FLAC from 44.1 kHz to 192 kHz with a resolution of up to 24 bit, DSD 2.8 MHz and DSD 5.6 MHz, ALAC (Apple Lossless Audio Codec) as well as MP3 from the major streaming providers, including Amazon Music HD or TIDAL. The HEOS built-in module extends the access options considerably. For example, voice-assisted technologies such as Amazon Alexa, Google Assistant or Apple Siri are also available for easy music playback and control. *

The SACD 30n uses the company's own Marantz Musical Mastering (MMM stream converter and MMM conversion stage) for optimum digital-to-analog conversion. PCM input signals are extrapolated to DSD (11.2 MHz) using the MMM stream converter within the player. The generated high-frequency signal is converted into the analog output signal by the MMM conversion stage, which is used here instead of a conventional DAC. Two system clocks ensure the most accurate up-conversion of the incoming signal in the range from 44.1 to 384 kHz, regardless of whether it comes from a disc or from the digital inputs. The DSD-to-analog converter forwards its signal to the Marantz HDAMs in the output stage.

The headphone amplifier built into the SACD 30n has a dedicated amplifier module in which the well-known Marantz HDAM-SA2 circuits with an excellent signal-to-noise ratio are installed. The amplification factor can be adjusted in three stages (LOW, MID and HIGH) to headphones of different impedances. This means that high-impedance headphones can also be used.

* The range of functions depends on the respective platform. Additional devices are required in order to be able to use the language functions.

• SACD / CD player with network audio streaming and DAC mode.
• Tuned with passion by the Marantz sound master.
• Marantz CD / SACD drive for excellent data acquisition.
• HEOS® built-in network function with WLAN, AirPlay 2 and Bluetooth.
• Access to numerous music streaming services such as Spotify, Amazon Music HD and TIDAL.
• High-resolution audio streaming up to FLAC HD 192 and DSD5.6.

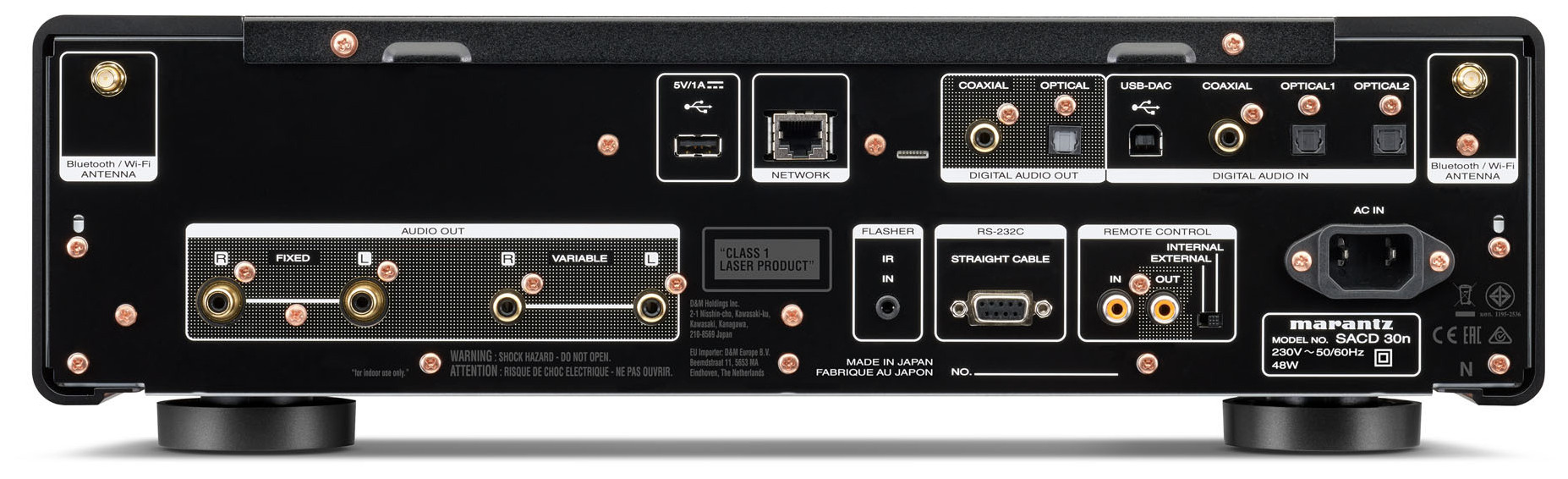

• USB-B DAC mode supports PCM up to 384kHz and DSD11.2.
• Marantz Musical Mastering for analog output signal from all digital sources.
• Marantz HDAM circuit for clear, low-noise and dynamic sound.
• Low noise fixed level and independent variable output to drive active speakers or a power amplifier directly.
• High quality headphone amplifier with adjustable gain.

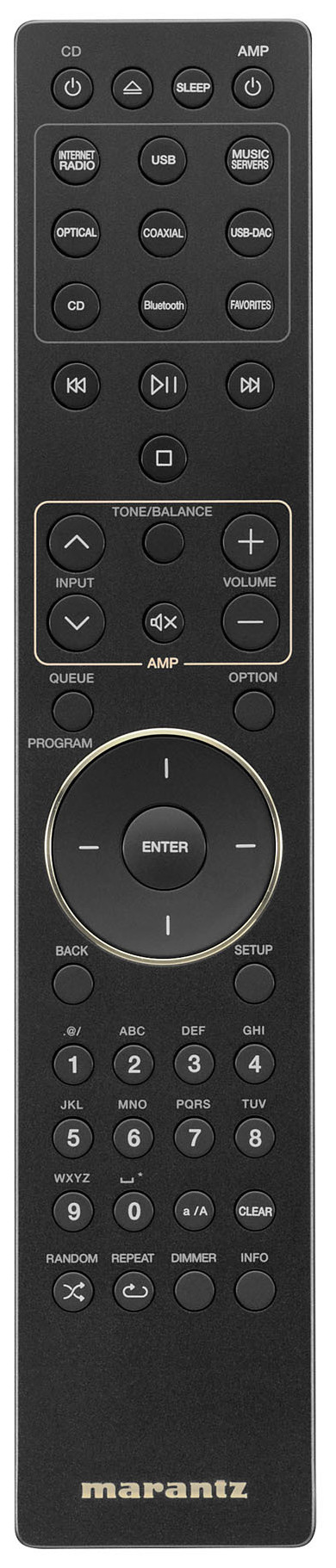

• Controllable with remote control, app and leading voice assistants (where available).
• Available in black and silver-gold.
