Marantz SA-12SE/N1B CD-Player with DAC

SA-12 Special Edition

Marantz Musical Mastering Technology defines new standards in digital and analogue audio processing. The transport mechanism called "SACDM-3" was specially developed for playing SACDs, CDs and audio data from CD-ROM and DVD-ROM. The asynchronous USB input supports formats up to PCM/DXD 384 KHz/32 bit and DSD 11.2 MHz.

Using advanced filtering and processing, the SA-12SE converts all file formats to DSD and then to analog signals via direct 1-bit conversion without using a conventional DAC. Marantz engineers have developed this CD player so that you can experience your favorite music up close.

The reason for this is simple and lies at the heart of the Marantz philosophy: "Because Music Matters".

The SA-12 Special Edition SACD player with D/A converter mode at a glance:

• Developed and extensively tuned by European and Japanese sound engineers who draw on more than 35 years of experience in the field of CD players and digital audio systems
• Marantz-developed audio-specific SACD/CD mechanism "SACDM-3"
• Playback of SACD/CD as well as audio data from CD-ROM and DVD-ROM
• Asynchronous USB input for high-resolution audio up to PCM/DXD 384 kHz/32 bit and DSD 11.2 MHz
• Separation of USB and other digital inputs (optical and coaxial) to avoid noise from internal and external sources
• Unique Marantz Musical Mastering (MMM) stream section for filtering and innovative upsampling to DSD
• Specially designed MMM conversion stage (1 bit) for direct conversion of DSD to analogue signals
• New analogue output stage with Marantz HDAM-SA3 and HDAM-SA2 technology and low-impedance output
• Power pack with toroidal transformer
• Dedicated headphone amplifier with fully discrete construction and HDAMSA2

properties

CD Compatibility: CD / CD-R/RW / SA-CD / WMA
SA-CD Text / ID3 Tag / WMA TAG
USB input
DAC inputs: USB / coaxial / optical
Asynchronous mode USB Type-B
Bit perfect transmission
USB-B DSD Audio Streaming: DSD2.8 / 5.6 / 11.2MHz
DAC mode and SACD/CD mode with inductive isolation
HDAM versions SA3, SA2
Power transformer toroidal
High quality audio components
Optimized components
Symmetrical board layout
Digital output switchable

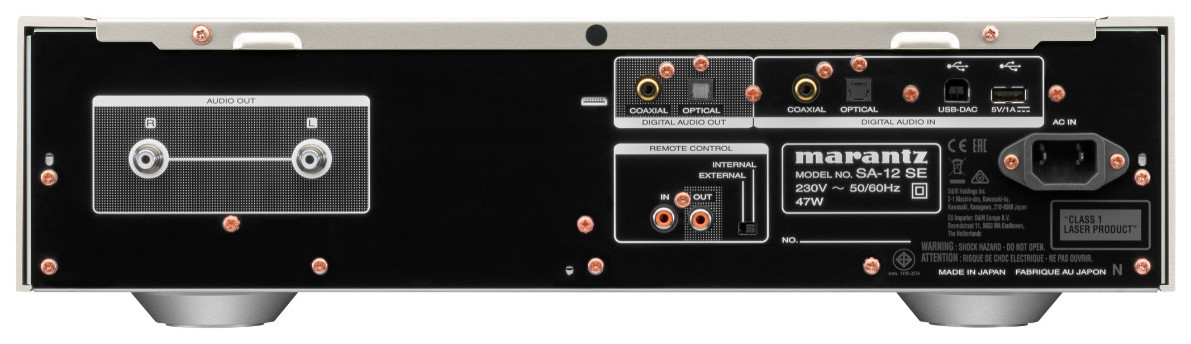

Inputs/Outputs

Analog Out (Cinch) 2 channel
Digital Optical In / Out
Digital coaxial in / out
Gold plated RCA connectors analog out
Nickel plated
USB type A input, USB mass storage (rear)
USB type B input for PC (rear)
D bus
headphone output
Headphone Gain Control

specifications

Drive SACDM-3
Low-pass filter stage HDAM-SA3/SA2
(current feedback)
Output Buffer HDAM SA3
Headphone amplifier HDAM-SA2 (current feedback)

SA CD audio

Frequency response 2Hz - 50kHz
Dynamic range 109 dB
Signal-to-noise ratio 112 dB
Distortion 0.0008% (1kHz)

CDDA audio

Frequency response 2Hz - 20kHz
Dynamic range 98 dB
Signal-to-noise ratio 104 dB
Distortion 0.0015% (1kHz)

characteristics

Colors available: Gold/Black
metal front panel
RC005PMSA remote control
Power consumption in W 47
Standby consumption in W 0.3
Automatic shutdown
Detachable power cord
Dimensions (W x D x H) in mm 440 x 419 x 123
Weight in kg 16.4
