Nexo Nexo Live Music Bundle
€16,714.00
per Piece incl. VAT / incl. Shipping
- After placing your order, your Account Manager will contact you to schedule delivery and installation.
- We deliver your new devices in Germany and Austria personally to the place of installation - no courier, no forwarding agency.
- The Auditorium Team installs your new devices professionally and connects them to existing components.

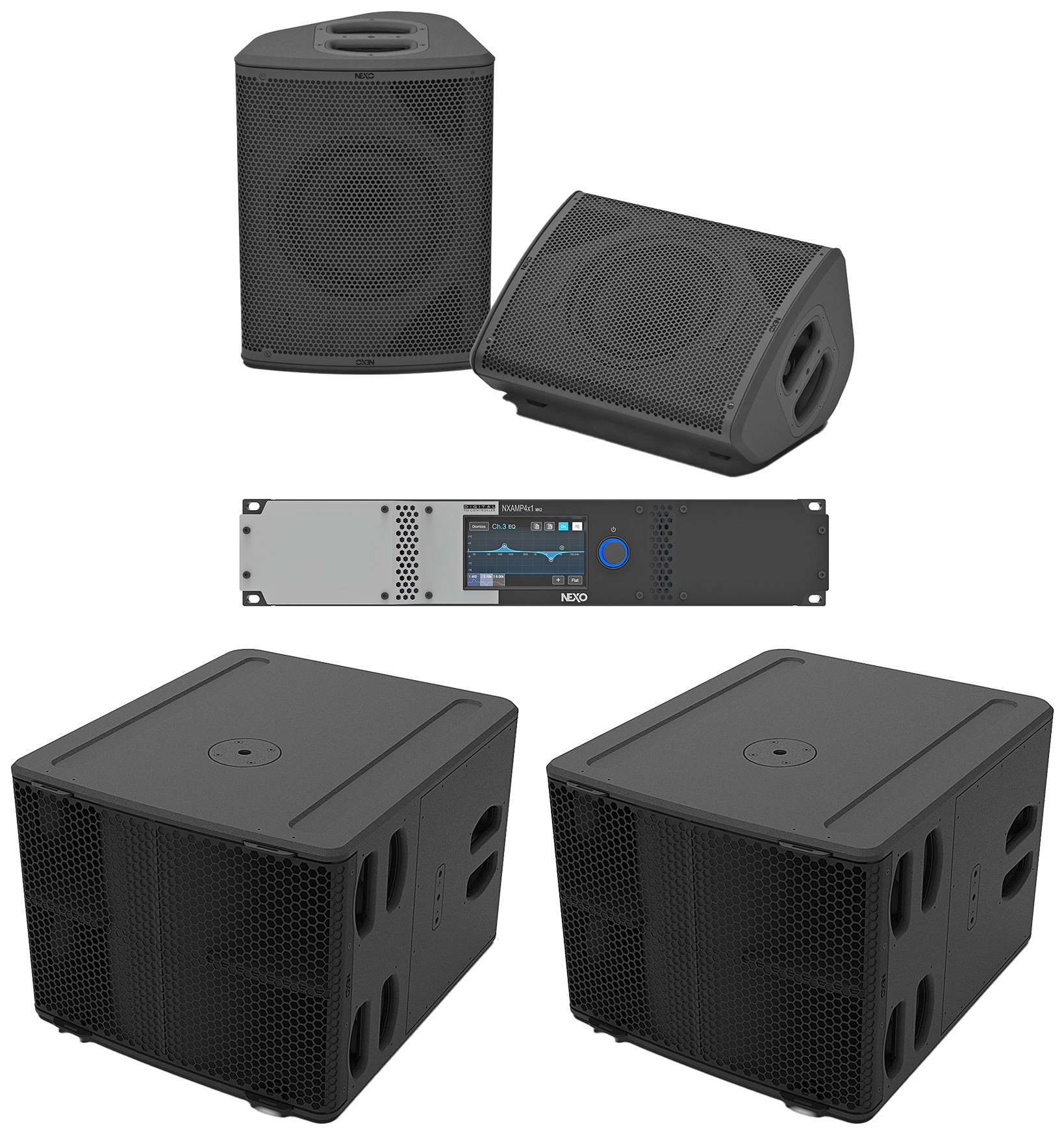

Nexo set for live music
Set for live music
note note:
Please remember that a controller is required for optimal use of the speakers, subwoofers. Without a controller, the Nexo guarantee is also void. Please ask when purchasing.
Loudspeaker P10
Weighing in at 15kg, the P10 can be used in vertical or horizontal (stage monitor) configurations, with the ability to adjust the RF radiation pattern to suit the application. Available as mobile installation or touring version.
Speakon connectors are located on the side handles and rear connector panel (Touring version only). The installation version has a 2-pin cable for the audio signal to meet the IP54 protection class. The P10 is basically passive.
Key features
- Compact, unobtrusive, rounded body
- 10' neodymium bass driver and tweeter with 1.7' cone in a coaxial arrangement
- Variable HF radiation characteristics
- 136 dB SPL peak level
- Threaded inserts on rear and both sides for mounting mounting accessories
- Tripod mounts on both sides
- 4 x NL4, 4-pin assigned connectors; 2 on the back and 1 on each side
Specs
With NEXO processing
Frequency range (+6 dB) 63 Hz - 20 kHz
SPL peak level (1 m) 136 dB peak
Operating voltage 50 Vrms (150 Vpeak)
HF coverage angle (according to horn) 100° x 100° (standard) – 110° x 60° (with optional horn 110° x 60°)
Crossover frequency 63 Hz, 85 Hz
Nominal impedance 8O
features
Components 1 x 10' long throw 8 ohm neodymium coaxial woofer & 1.7' 8 ohm neodymium tweeter
Number of ways 2-way passive
Connectors (Touring version) 4 x NL4, 4-pin sockets (1 per handle + 2 on rear)
Connections (installation version) 1 x grommet with 2-core cable
Flying points 1 x universal mount on each side + 1 x on the bottom
Material Custom-made bent plywood from Baltic birch and poplar
Surface Black or white textured paint
Front (Touring version) Magnelis® steel grille and fabric backing
Front (installation version) UV-resistant acoustic fabric covering
Height x width x depth 497mm x 384mm x 274mm
Weight: net 15 kg
Operating temperature range 0°C - 40°C
Storage temperature range -20°C - 60°C
Subwoofer L15
Weighing in at 35 kg, the L15 Sub features a long-throw 15-inch driver in a Baltic birch/poplar plywood cabinet, complete with threaded inserts for mounting mounting accessories and an M20 tripod mount.
With a frequency range of 40-120 Hz and an SPL of 139 dB peak, the L15 was purpose-built to match the P12 in size, making it a perfect partner in both flown applications and for use as a drum fill.
Key features
- Tailor-made partner as a sub for the P12 with the same floor plan
- Extends the LF frequency response to 40 Hz
- 139 dB SPL peak level
- 1 x 15' Long Throw Neodymium Driver
- Accepts standard and cardioid (kidney) configurations
- Threaded inserts on rear and both sides for mounting mounting accessories
- Standard M20 thread insert
Specs
Frequency range (+6 dB) 40 Hz - 120 Hz
SPL peak level (1 m) 139 dB peak
Operating voltage 55 Vrms (150 Vpeak)
Crossover frequency 85 Hz - 120 Hz
Nominal impedance 4O
features
Components 1 x 15' - 4 ohm - long throw - neodymium driver
Material Baltic birch/poplar plywood
Surface Black or white textured paint
Surface front steel mesh
Fittings handles on both sides. Threaded inserts on both sides for mounting mounting accessories. M20 tripod mount.
Connection sockets 2 x NL4, 4-pin assigned
Weight 35kg
Height x Width x Depth 439mm x 550mm x 650mm (17.3” x 21.7” x 25.6”)
Amplifier NXAMP4X1MK2
The NXAMPMK2 is available in three different versions, either with 4 x 1300 watts, 4 x 2500 watts or 4 x 4500 watts.
| Color: | black |
|---|---|
| Condition: | new item |
| Product type: | Compact speaker, amplifier, subwoofer |
Safety Information
Product-specific safety instructions can be found in the operating manual.
