Storm Audio PA 16 MK3 AV power amplifier
€12,499.00
per Piece incl. VAT / incl. Shipping
- After placing your order, your Account Manager will contact you to schedule delivery and installation.
- We deliver your new devices in Germany and Austria personally to the place of installation - no courier, no forwarding agency.
- The Auditorium Team installs your new devices professionally and connects them to existing components.
Storm Audio PA 16 MK3 – Powerful 16-channel amplifier
The PA 16 from Storm Audio is a 16-channel amplifier that combines modern Class D technology with high efficiency and dynamics. Thanks to UMACTM technology, this model delivers impressive performance with minimal distortion and high sound quality. The four independent URECTM-based power supplies enable a total output of up to 3 kW and respond immediately to the dynamic demands of film and music productions.
Versatile and flexible
This amplifier offers a high level of flexibility thanks to its Bridge Tied Load (BTL) function, which allows two channels to be combined into one. This means that up to four BTL channels can be used to supply powerful speakers or subwoofers with up to 800 W. The PA 16 therefore offers a powerful solution, especially in demanding home cinema or studio environments.
The integration with Storm Audio's ISP products enables easy control and monitoring via the ISP WebUI interface. Thanks to StormMonitoring technology, installers always have an overview of all relevant status information - both on-site and remotely. This makes the amplifier particularly easy to maintain and efficient to use.
Reliable technology with Danish engineering
Developed in collaboration with the Danish company Pascal Audio, Storm Audio relies on proven and powerful Class D technology with the PA 16. This not only ensures excellent sound quality, but also a high level of operational reliability.

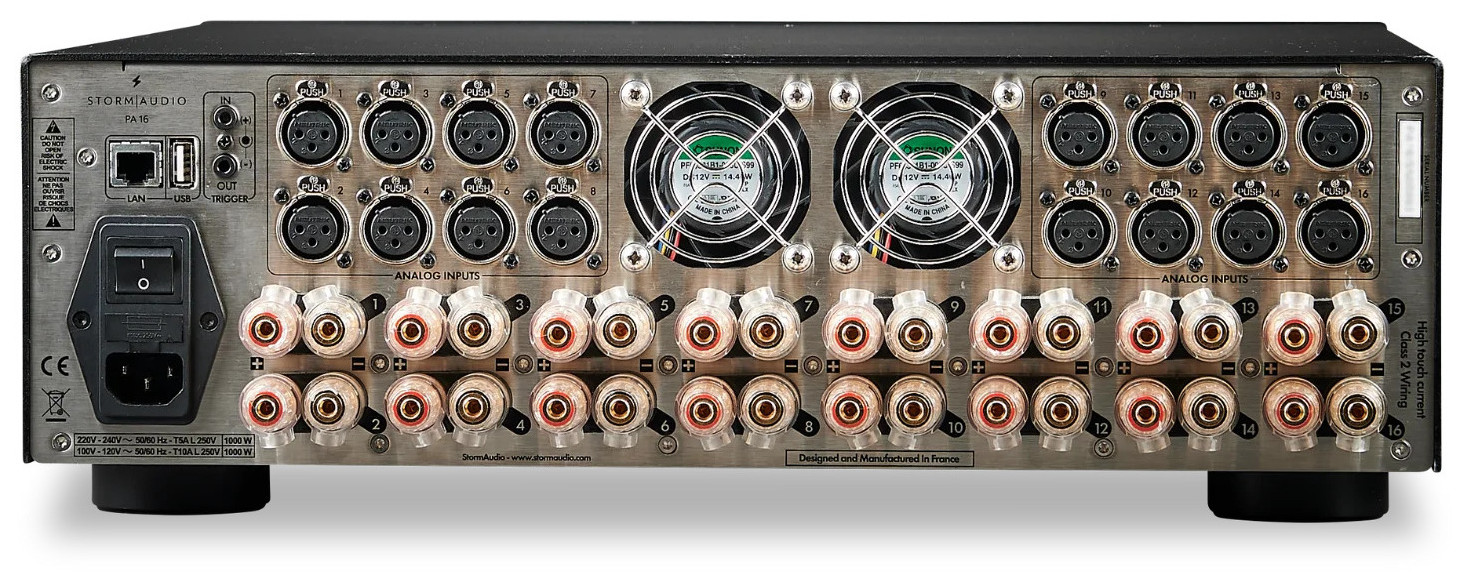

Technical data of the Storm Audio PA 16 MK3

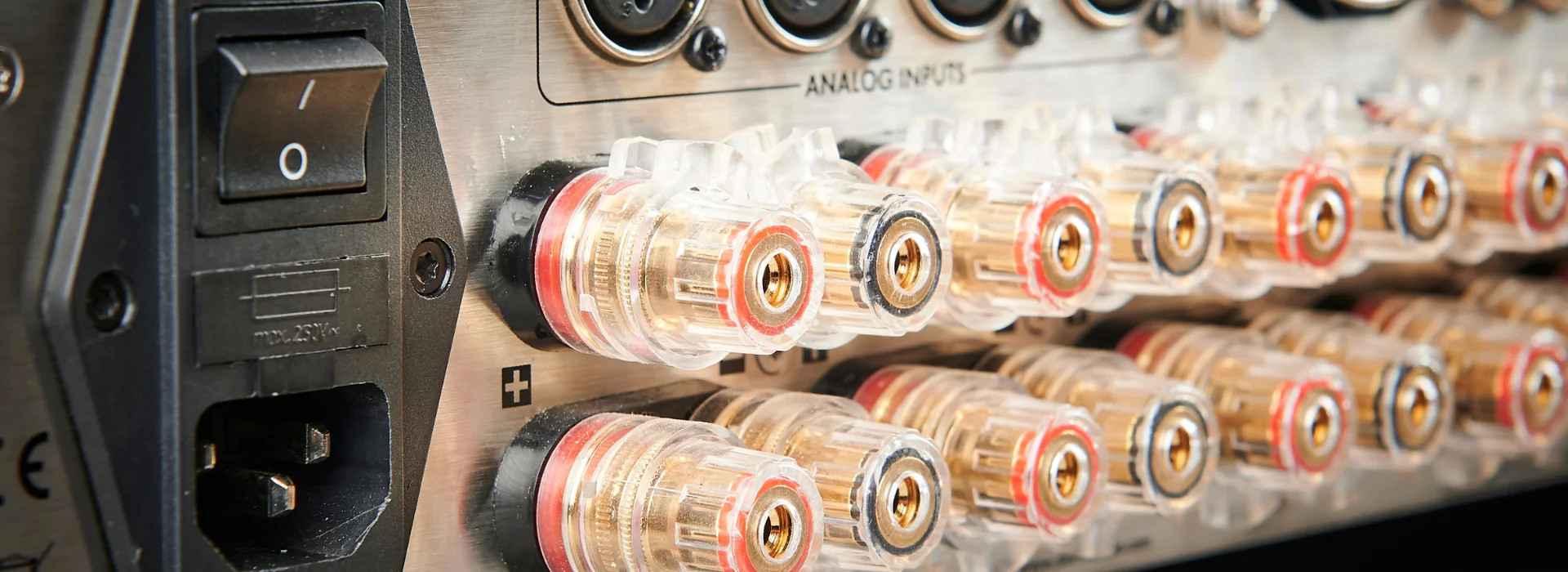

Outputs:
3-way binding post
4 mm cable connection
Inputs:
16-channel XLR
Size:
3U rack installation
Configuration:
16-channel single ended
Up to 4-channel BTL (Bridge Tied Load) + 8-channel SE
Class D
Specifications:
Signal-to-noise ratio (p-rated): 115 dB
THD+N (1W): <0.005%
Perfomance:
SE channels, 26 dB gain:
200 W @ 8 Ohm / 225 W @ 4 Ohm (all channels driven, 0.1% THD+N)
200 W @ 8 Ohm / 400 W @ 4 Ohm (8 channels driven, 0.1% THD+N)
BTL channels, 32 dB gain:
800 W @ 8 Ohm / 800 W @ 4 Ohm (4 channels driven, 0.1% THD+N)
The PA 16 impresses with its versatility, high performance and easy control - an optimal choice for high-quality audio setups.
| Color: | black |
|---|---|
| Condition: | Brand new |
| Configuration: | 16-channel |
| Device depth mm: | 132.7 |
| Device height mm: | 442 |
| Device width mm: | 461 |
| Inputs: | Analog RCA, Analog XLR, LAN, USB-A |
| Outputs: | Analog RCA |
| Power amplifier: | Multi-channel |
| Power amplifier channels: | 16 |
| Power per channel in W: | 200 |
| Product type: | Power amplifier |
| Series: | PA MK3 |
Safety Information
Product-specific safety instructions can be found in the operating manual.
