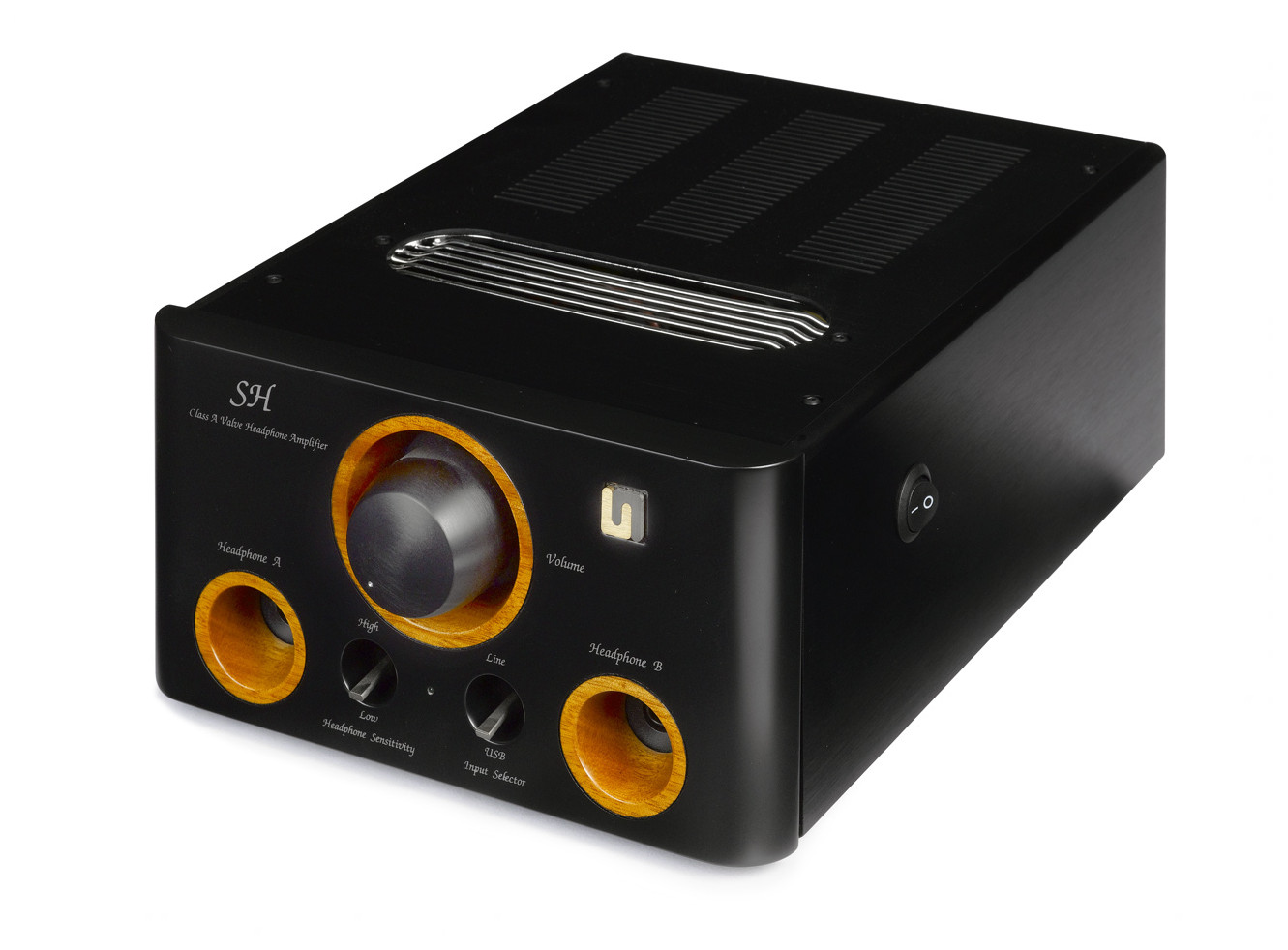

Unison Research SH Headhone amplifier
€1,799.00
per Piece incl. VAT / incl. Shipping
No longer available
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
The Unison Research SH combines the classic in-house circuit concepts with the convenience of modernity.
In addition to an analog input, the SH also has the option of connecting a computer directly to the integrated USB-DAC.

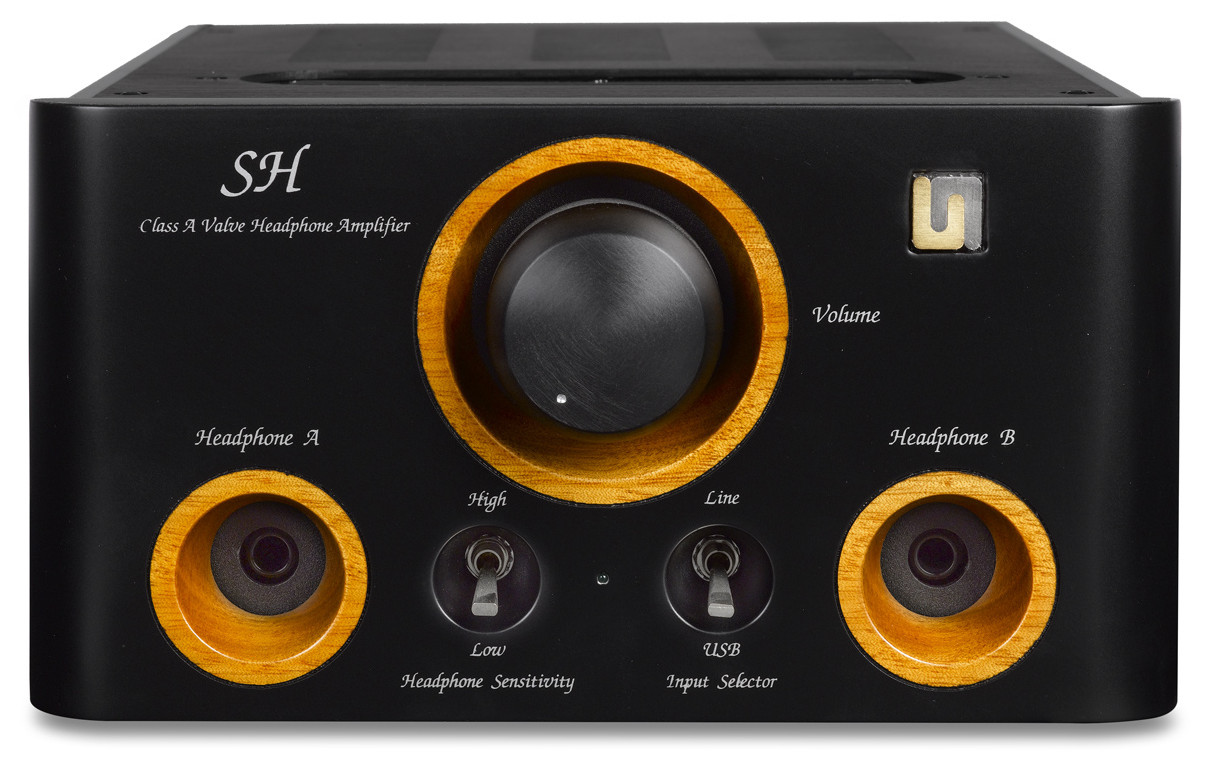

In addition to the centrally located volume control, all relevant control elements are located on the front of the device.
The two-stage sensitivity
adjustment enables optimal operation of almost all dynamic headphones.
A total of two headphones are connected to the EL 84 equipped output stage via the 6.3mm stereo jack sockets in the tried and tested Class A triode circuit.
Technical specifications:
Negative feedback: 16 dB
Output stage: Class-A, EL84 in triode circuit

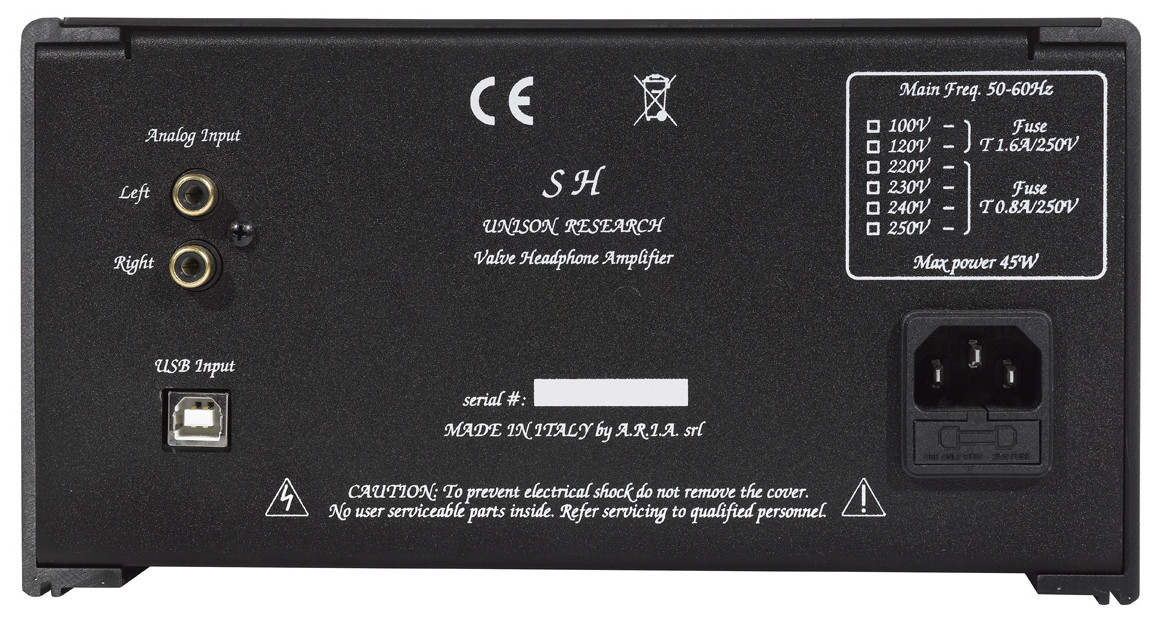

Inputs: 1 x line-in RCA, 1 x USB
Outputs: 2 x headphones
Output impedance: 6.9 ohms
THD: <0.2% at 1 kHz / 0.5 V / 33 ohms
Power consumption: 45 W
Dimensions: 225 x 322 x 126 mm (WxDxH)
Weight: 6 kg
| Color: | black |
|---|---|
| Condition: | new item |
| Device depth mm: | 322 |
| Device height mm: | 126 |
| Device width mm: | 225 |
| Inputs: | Analog RCA, USB |
| Outputs: | Analog 6.35 mm jack two-pole |
| Product type: | headphone amplifier |
Manufacturer
Unison Research A.r.i.a. Srl
Via E. Barone 4
31030 Dosson di Casier (TV)
Italy
tecnico@unisonresearch.com
Safety Information
Product-specific safety instructions can be found in the operating manual.
