Crestron AirMedia AM-3200-WF-I wireless presentation system

Crestron AirMedia® Receiver 3200 (AM-3200-WF-I): Intelligent conferencing technology for wireless collaboration at the highest level

With the AirMedia® Receiver 3200 with integrated Wi-Fi® functionality (AM-3200-WF-I), Crestron presents a powerful solution for the modern, digital workplace. This versatile device is specifically designed to meet the demands of secure, wireless presentations and video conferencing—ideal for meeting rooms, huddle spaces, lobbies, or other work environments where productivity and flexibility are essential.

Maximum flexibility for wireless presentations

Thanks to integrated AirMedia technology, the AM-3200-WF-I connects seamlessly to laptops, smartphones, or tablets. Content can be streamed wirelessly via the integrated Wi-Fi® or an external Wi-Fi network. Windows® and macOS® devices, as well as Android™ and iOS® platforms, are supported. It can be used either via the AirMedia app, the AirMedia browser plug-in, or via Miracast® technology – all without the hassle of cables.

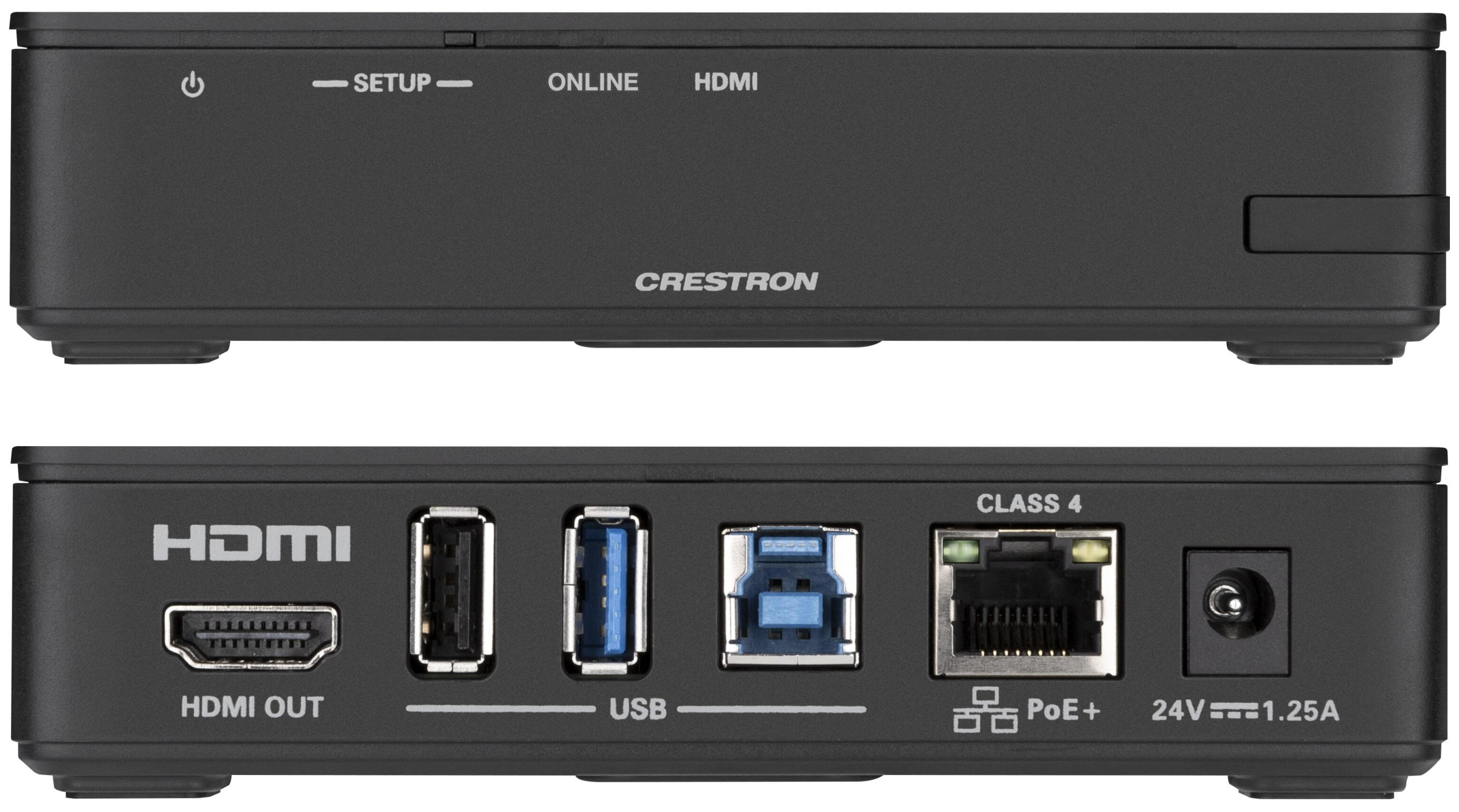

Seamless connection via HDMI and USB

In addition to wireless transmission, the device offers an HDMI® input for wired sources, such as mini PCs or notebooks. An additional HDMI output transmits content to the display in razor-sharp 4K resolution. Various USB ports enable connection to conference peripherals such as cameras, speakers, or soundbars – ideal for hybrid meeting scenarios.

AirMedia Canvas: Multiple presentations under control

The clever AirMedia Canvas feature allows you to display up to four different sources simultaneously. The system automatically adjusts the screen layout to suit the respective content. It's conveniently controlled via the AirMedia app or an optional Crestron touch panel.

Professional video conferencing – completely without cables

With support for wireless conferencing, the AM-3200-WF-I becomes the central interface for video calls via Microsoft Teams® or Zoom™. The wireless integration of connected conferencing devices noticeably increases efficiency and user-friendliness – the connected devices are immediately available to the laptop.

Integrated calendar and signage functions

The device can do more than just present: The calendar-synchronized display with Microsoft 365®, Google Calendar™, or Crestron Fusion® shows room availability and meeting details directly on the screen. Thanks to support for digital signage systems like Appspace®, signage content is automatically displayed when not in use.

Smart control and automation

Expandable with an optional touchscreen or a Power-over-Ethernet motion sensor, the receiver can be seamlessly integrated into a larger automation system. Lighting, display control, source selection, and room occupancy can all be intelligently controlled and monitored.

IT-friendly & secure

Crucial for businesses: The AM-3200-WF-I is equipped with enterprise-grade security standards , including 802.1x network access control, Active Directory® authentication, and AES encryption. Integration into existing IT infrastructures is effortless via web browser, XiO Cloud®, or Crestron Fusion®.

Technical specifications of the Crestron AirMedia® Receiver 3200 (AM-3200-WF-I)

communication

Ethernet : 100/1000 Mbps, TCP/IP, UDP/IP, DHCP, SSL, TLS5, SSH, SFTP, IEEE 802.1x, Active Directory, HTTPS, 802.3af PoE

Wi-Fi : Dual-band 802.11a/b/g/n/ac/ax (2.4 & 5 GHz), up to 30 m range at 80 Mbps

Bluetooth® : Version 5.0

USB Host : USB 2.0 & USB 3.0 for conference peripherals

USB Device : USB 3.0 for setup & firmware

RS-232 : 2-way control, up to 115.2k baud

IR/Serial : 1-way IR or TTL/RS-232 up to 19.2k baud

video

Inputs : HDMI (HDCP 1.4), AirMedia

Outputs : HDMI (HDCP 2.2), scalable up to 4K

Max. resolution :

HDMI Input: 1920x1080@60Hz

AirMedia: 1920x1080@30Hz

AirMedia Adapter: 3840x2160@30Hz

HDMI Output Resolutions :

1280x720@50/60Hz, 1600x1200@60Hz, 1920x1080@50/60Hz, 3840x2160@30/50/60Hz

Audio

Inputs : AirMedia, HDMI

Outputs : HDMI (2-channel LPCM)

Note: Volume control requires compatible display with CEC, IP, IR or RS-232 control

Compatibility & Software

AirMedia Software : Supports Windows 10/11, macOS, iOS, Android, Chrome OS

Frame Rate : Up to 30 fps

Logo/Background Support : JPEG, PNG
