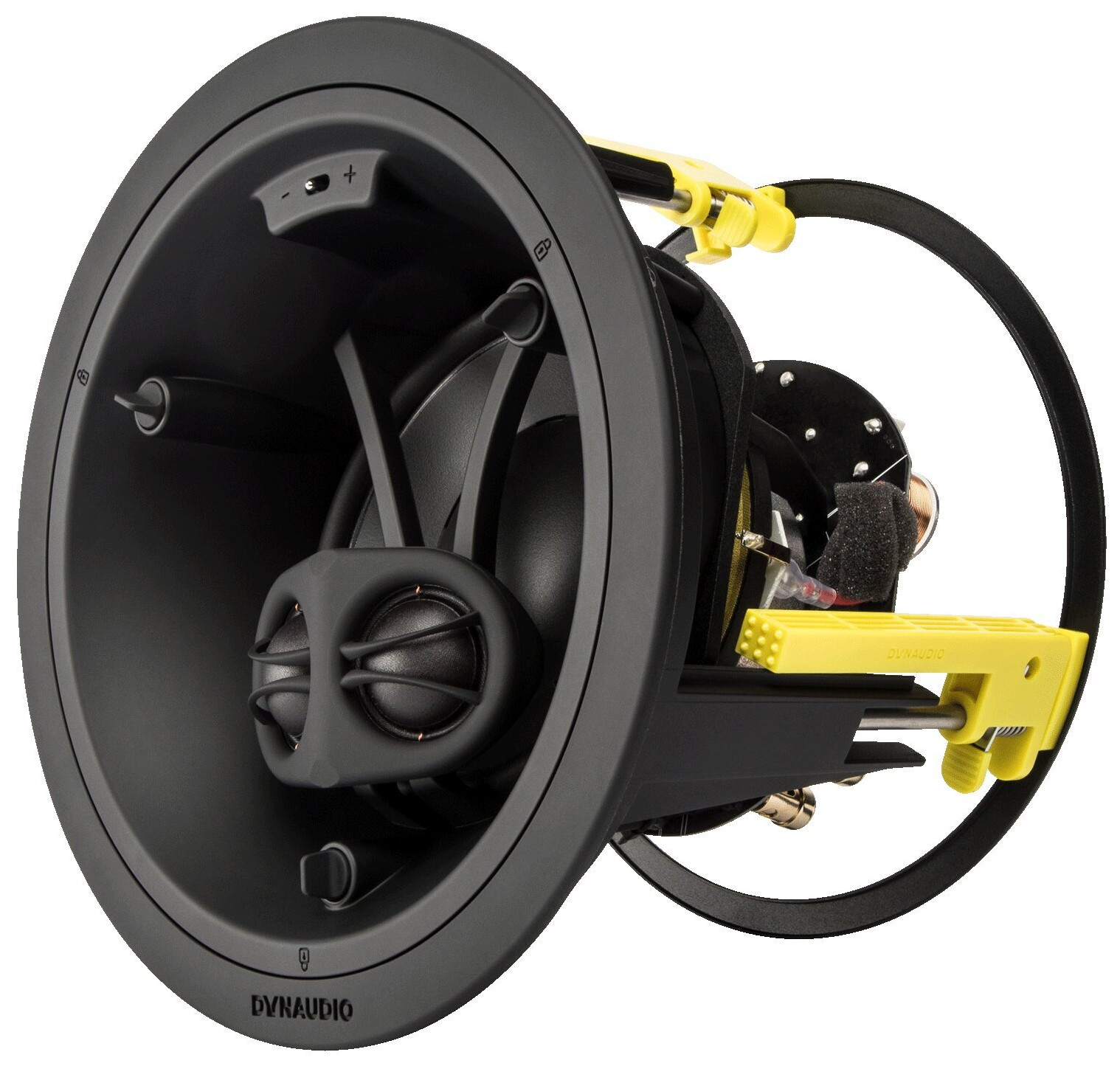

Dynaudio S4-DVC 65 Dual-Voice-Coil in-ceiling loudspeaker

Dynaudio S4-DVC65 – Flexible 2-way stereo ceiling speaker with dual voice coil technology

The Dynaudio S4-DVC65 was designed for installations demanding maximum flexibility and superior sound quality. Thanks to its innovative dual voice coil technology, this in-ceiling speaker can reproduce both stereo and mono signals through a single speaker unit. This makes it ideal for hallways, bathrooms, kitchens, smaller rooms, or areas where installing multiple speakers is not possible or desired.

Inside, a high-quality 16.5 cm MSP woofer/midrange driver with a dual voice coil works in conjunction with two precise 28 mm soft-dome tweeters. This design ensures balanced, detailed sound reproduction and enables even sound distribution, even in challenging room layouts.

A particular advantage of the S4-DVC65 is its high degree of adaptability. The speaker features a main driver angled at 18°, which can also be rotated 360°. The two tweeters can be precisely aimed at the listening area, allowing the sound to be optimally adapted to the room acoustics. The integrated switch also allows the tweeter level to be adjusted for individual customization.

For even greater versatility, the speaker features a separate dipole switch on the back. This makes the S4-DVC65 ideal for surround sound applications and offers additional flexibility when planning high-quality home theater or multi-room systems.

The well-designed construction is equally impressive during installation. The patented locking mechanism allows for quick, tool-free assembly and significantly reduces installation time. At the same time, the mounting frame fits into many common ceiling cutouts, thus simplifying both new installations and retrofits.

The speaker also blends harmoniously into any room design. The magnetically attached steel grilles are painted white and can be painted over if desired. In addition to the included round cover, a square version is also available as an option, allowing the speaker to be discreetly integrated into almost any residential or commercial design.

Like all models in the Dynaudio Studio series, the S4-DVC65 benefits from proven technologies found in the manufacturer's high-end loudspeakers. The high-quality MSP woofer/midrange driver and the precise soft-dome tweeters ensure natural, dynamic, and long-term listening pleasure at the highest level.

Technical data

Model: Dynaudio S4-DVC65

Series: Studio

Application area: Custom Install

Design: 2-way stereo ceiling-mounted speaker with dual voice coil

Sensitivity: 83.5 dB (2.83 V/1 m)

Rated power: 2 × 50 W

Long-term power output: 2 × 100 W

Nominal impedance: 2 × 4 ohms

Minimum impedance: 2 × 3.2 ohms

Frequency range: 50 Hz – 20 kHz (±3 dB)

Crossover: 2-way stereo

Tweeter: 2 × 28 mm soft-dome fabric dome

Woofer/midrange driver: 16.5 cm MSP with Dual Voice Coil

Tweeter level: -3 dB / 0 dB

Adjustability: 18° angled chassis, 360° rotatable, tweeter adjustable

Dipole mode: Yes, via rear switch

Outer diameter: 232 mm

Installation depth: 167 mm

Ceiling cutout: 210 mm

Covering: Painted steel, magnetically attached

Covers: Available in round (included) or square versions.

Certifications: CE, RoHS compliant
