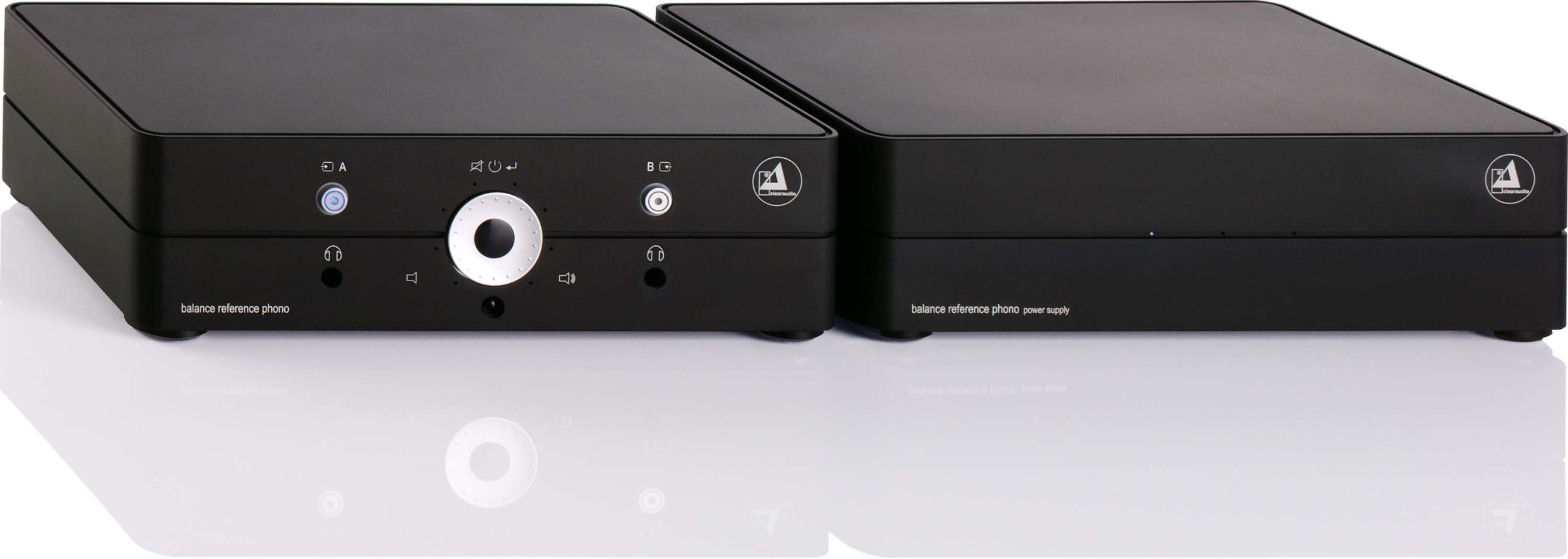

Clearaudio BALANCED Reference Phonostage
€5,500.00
per Piece incl. VAT / incl. Shipping
Available in 7 days, delivery time 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
description
A dual-mono pre-stage with a reference claim can only be created by those who translate tireless research and years of experience into a technology that is sophisticated down to the last detail. With this preamplifier, the left and right channels work completely separately from each other: Each channel 'lives' in its own housing from its own power supply. This eliminates any crosstalk between the two channels from the outset, resulting in unrivaled spatial representation during playback. The input impedance and the load capacity can be adapted externally to any requirements and wishes using a connector.
The outsourced power supply unit is also symmetrical and, thanks to its generous dimensions, offers an absolutely constant power supply. A step switch regulates the gain from 30 to 63 dB in 3 dB steps. The output stages can be controlled directly. But we offer you even more: unbalanced inputs and outputs with cinch sockets, two balanced inputs with XLR connectors and 5-pin binder connectors as well as an integrated switch-on delay; this means that noises will not occur when switching on and off. By using low-loss silver-mica capacitors and non-magnetic resistors, we open up new horizons in music reproduction.
Technical details
Power supply: | Dual voltage supply with four voltages per channel, switchable 115 / 230V using a switch in the device |
Signal to noise ratio: | 95 dB (A) at G = 40 dB; 75 dB (A) at G = 60 dB |
Gain (1kHz): | Adjustable from 30 - 63 dB in 3 dB steps by means of a step switch |
Maximum output voltage: | 11 Vrms |
Distortion factor: | <0.001% |
Input resistance: | Can be selected as required up to max. 100 kOhm |
Output resistance: | 50 ohms |
Equalization: | according to RIAA standard, deviation max. 0.05 dB |
Frequency response: | 10 Hz - 100 kHz - 0.1 dB |
Entrances: | - Power supply 9-pin SUB-D connector |
Outputs: | - Unbalanced cinch |
Dimensions (W / D / H in mm): | - approx. 380 x 220 x 58 (Phonostage) |
Weight: | - approx. 3.6 kg (Phonostage) |
| Condition: | New goods |
|---|---|
| Product type: | Phono preamplifier |
Manufacturer
clearaudio electronic GmbH
Spardorfer Strasse 150
91054 Erlangen
Deutschland
info@clearaudio.de
Safety Information
Product-specific safety instructions can be found in the operating manual.
