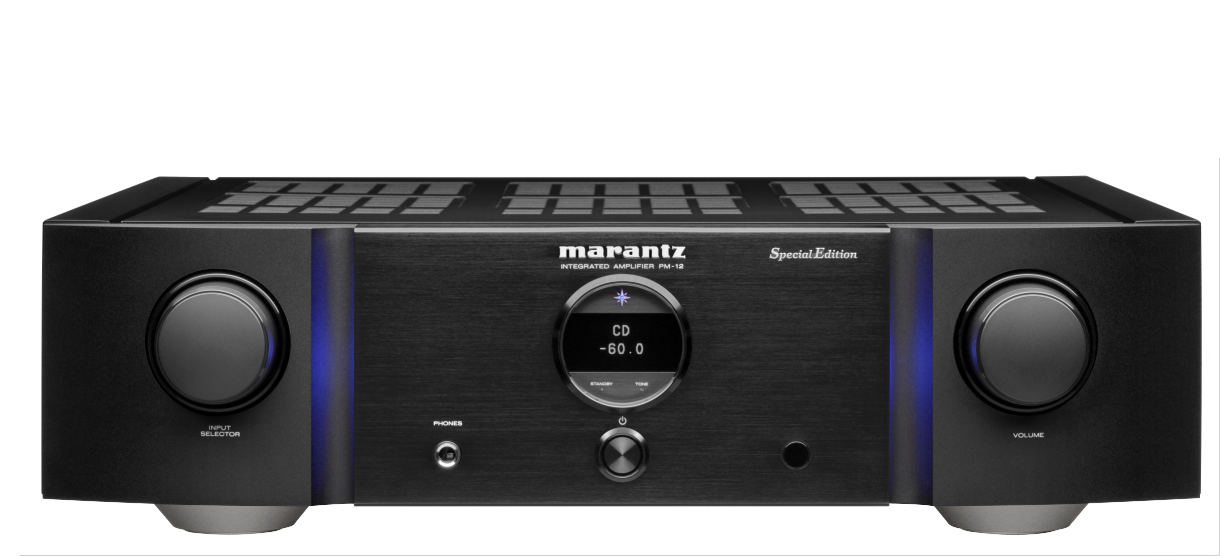

Marantz PM-12SE/N1B Amplifier

PM-12 Special Edition

It was only after the Japan and Europe-based Marantz sound engineers felt the quality met their high standards that they stopped their intensive work. The PM-12SE offers the most direct signal path through the amplifier, delivering 100 watts per channel into 8 ohm speakers or 200 watts per channel into 4 ohm speakers. In addition, the device has high-quality nickel-plated input terminals and speaker connections made of high-purity copper.

When building the PM-12SE, only one major goal was pursued: the best possible reproduction of music. For this reason, a discrete two-stage design is used, with separate power supplies for the preamp and power amp channels. The sound engineers orientated themselves on the flagship integrated amplifiers PM-10 and PM-KI Ruby: phono amplifiers for MM/MC with Marantz Musical Premium Phono EQ circuit and Marantz HDAM technology for optimal signal purity. The PM-12SE's all-analog design contributes to its noise-reducing structure and clean build.

Many competing designs today use a DAC or digital amplification and volume control. Marantz, on the other hand, uses a sophisticated and fully analogue design to keep all operations as clean and simple as possible. While an in-amp D/A converter is an extremely practical solution, digital circuitry creates a noise floor and can interfere with the delicate analog signals passing through the amplifier.

That's why Marantz has chosen to do all digital-to-analogue conversions in its SACD/CD players or network players for its Premium series and to keep the amplifiers free. Because Music Matters

The PM-12 Special Edition integrated amplifier at a glance:

• Developed and extensively tuned by European and Japanese sound engineers drawing on more than 65 years of experience designing Marantz amplifiers
• Marantz high-resolution preamp stage with proprietary HDAM technology • Switching amplifier design of flagship PM-10 and PM-KI Ruby amplifiers
• Load-independent frequency response allows the use of any speaker
• High output power: 100W + 100W (8 ohms), 200W + 200W (4 ohms)

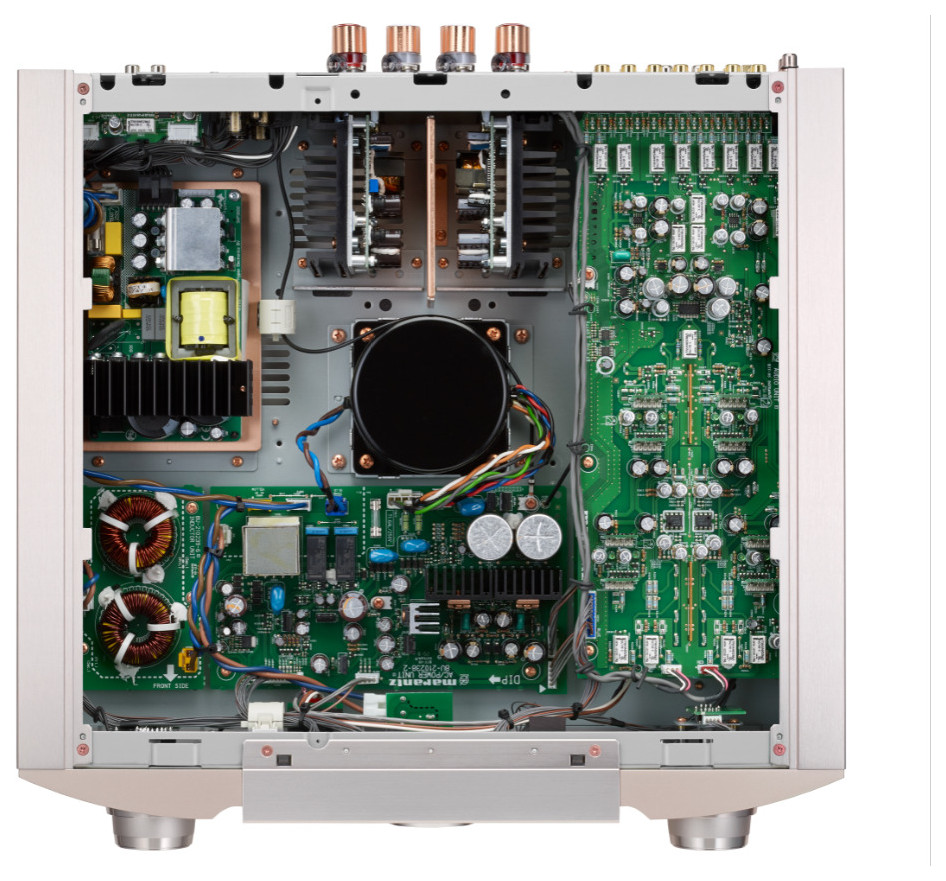

• Discreet two-stage design for optimal signal purity with separate power supplies for preamp and power amp channels to reduce interference
• Toroidal transformer on the preamp for clear, precise sound
• Current feedback design with newly developed circuits for wide frequency and dynamic ranges
• HDAM ® SA3 circuit for a pure signal and excellent dynamics
• MM/MC phono input with new, discrete Marantz Musical premium phono EQ circuitry
• Thick, nickel-plated connection sockets for CD and phono, high-quality loudspeaker terminals from Marantz made of high-purity copper
• Stepless volume control with new electric volume system

properties

channels 2
Current Feedback Design
Phono EQ Marantz Musical Premium Phono EQ
HDAM version SA3, SA2
Power transformer toroidal and SMPS
High quality audio components
Optimized components
Symmetrical board layout
Die-Cast Aluminum Heatsink (Separate)

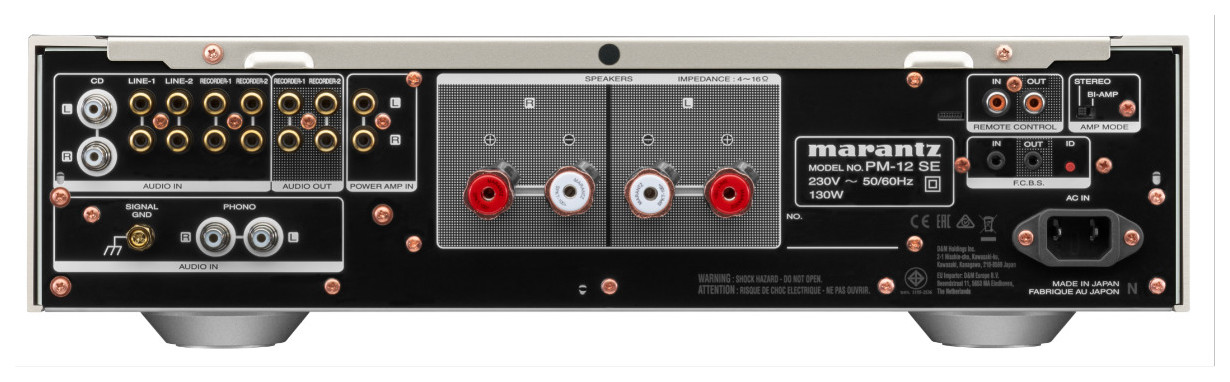

INPUTS / OUTPUTS
Audio inputs/outputs 6 / 2
Phono input MM / MC
power amplifier
Gold Plated RCA Connectors • Nickel Plated / CD and Phono
Speaker terminals Marantz SPKT-100+
Number of terminals 2
D bus
Control Bus (3.5mm x 2)
headphone output

specifications

Power (8 / 4 ohms RMS) 100W / 200W
Frequency range 5 Hz - 50 kHz
Distortion 0.005%
damping factor 500
Input sensitivity: MM 2.3 mV / 39 kOhm
Input sensitivity: MC 250 µV / 100 ohms
Signal to noise ratio: MM / MC 88 / 75 dB
Input sensitivity: high level 220 mV / 13 kOhm
Signal-to-noise ratio: high level 107 dB (2V input)
Input sensitivity: Power Amp Direct IN 1.1 V / 13 kOhm

additional

Linear power supply (preamp)
Linear volume control
Bi-amping and multi-channel option
Schottky diodes
Double layer bottom plate
OLED LCD display

characteristics

Colors available: Gold/Black
metal front panel
Power consumption in W 130
Standby consumption in W 0.2
Automatic shutdown
Detachable power cord
RC005PMSA remote control
system remote control
Dimensions (W x D x H) in mm 440 x 453 x 123
Weight in kg 15.3
