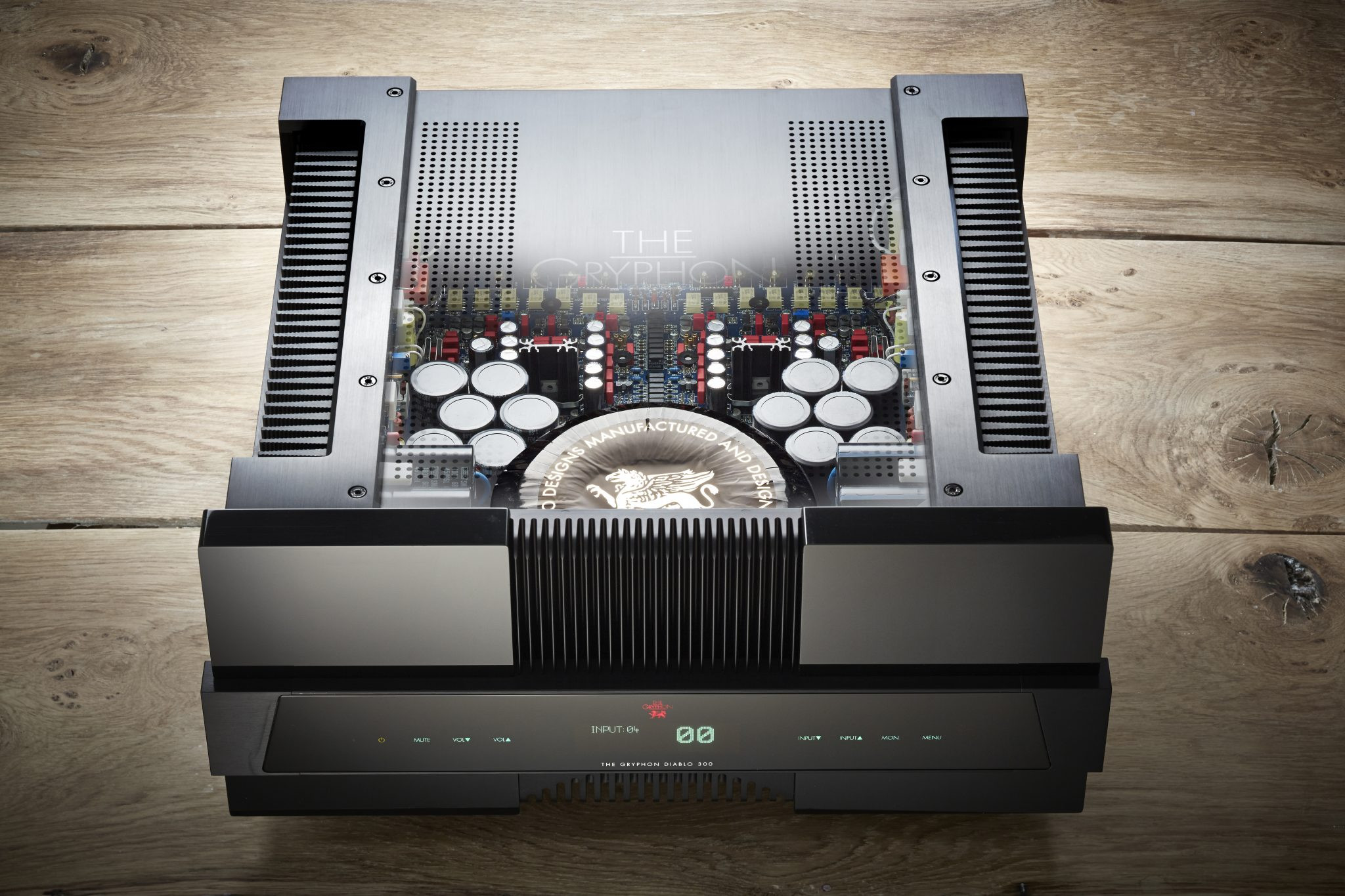

Gryphon Diablo 300 Reference incl. DAC Module Demo Unit
€14,600.00
% €22,512.00 RRP (€7,912.00 saved)per Piece incl. VAT / incl. Shipping (only Germany, Austria, Switzerland)
Available in 1-3 Days, Delivery time 1-3 days
GermanyDue to the size and/or weight of this item, we ship quickly and securely via courier. After the order has been placed, the delivery date will be agreed with you by telephone.
Output power 2 x 300W (8 Ohm), 2 x 600W
(4 ohms), 2 x 950W (2 ohms)
True double-mono construction, no negative feedback
43-stage microprocessor-controlled symmetrical volume control with relays and a minimized number of precision resistors for best sound characteristics
Shortest possible signal path, reduced wiring
Two- and four-layer printed circuit boards according to MIL specifications with up to 105 µm copper plating
Channel-separated vacuum-impregnated Holmgren toroidal transformers for lowest vibration
Connections directly on the circuit board for minimal wiring and shortest signal path
Novel, fast, discrete input circuit in single-ended Class A with high sound quality
Separate parallel regulators for best interference suppression
Protection circuit without influence on the transmission quality

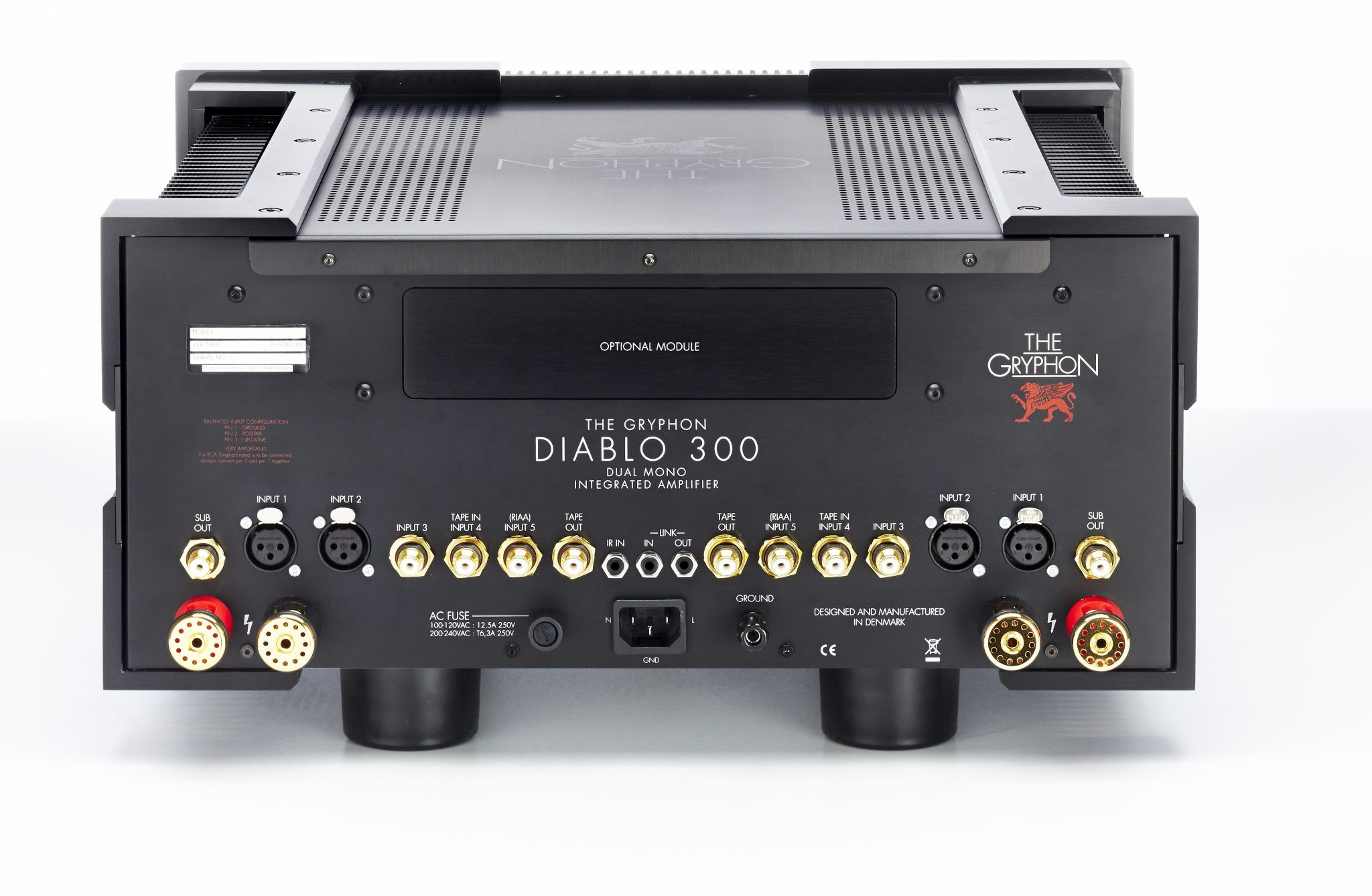

Gold-plated Neutrik (Switzerland) XLR connectors for two balanced inputs
Gold-plated Teflon-insulated RCA jacks for three additional inputs and two outputs
Through-connected AV connection for easy integration into a surround system
Level adjustment of the inputs

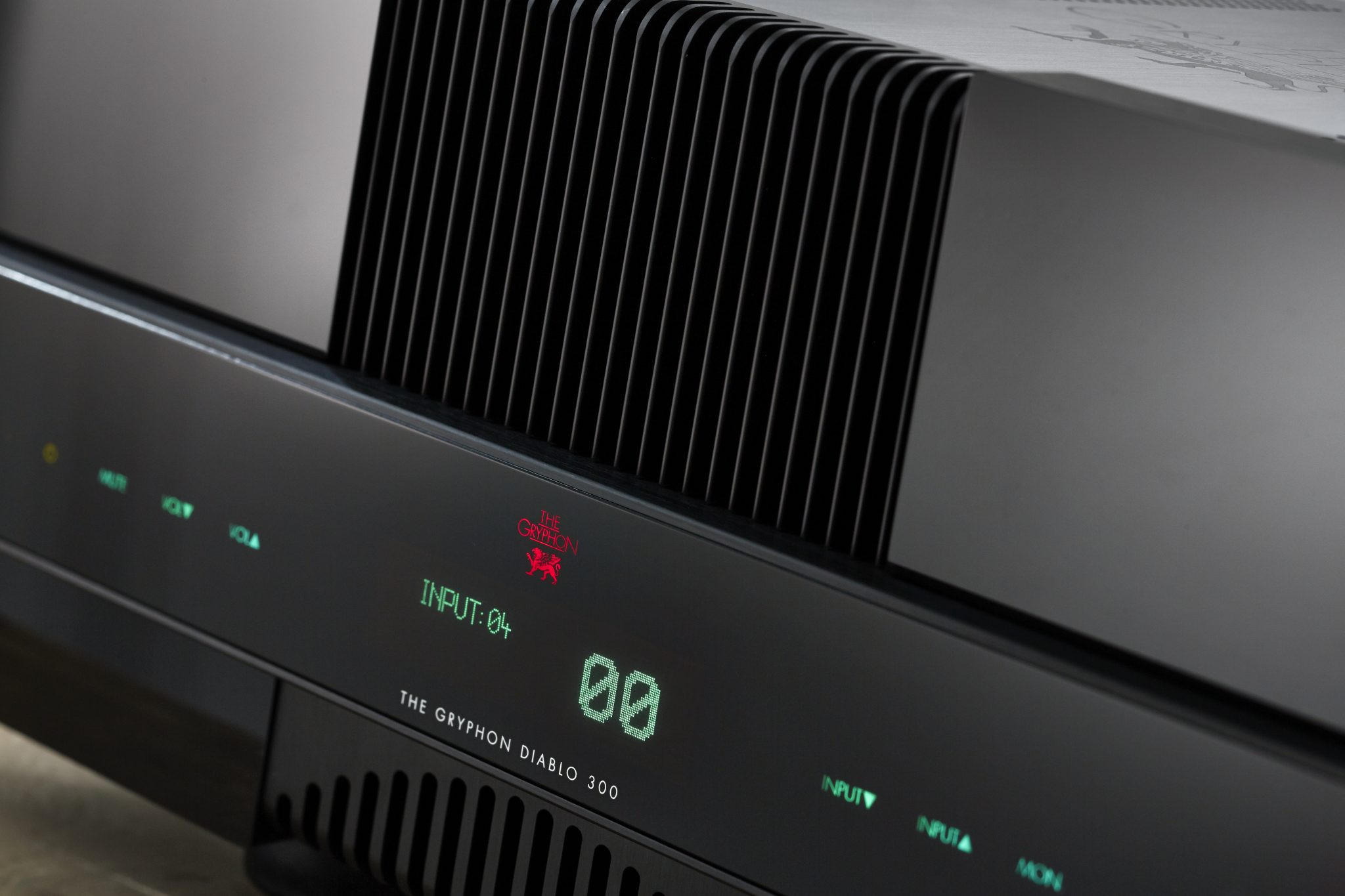

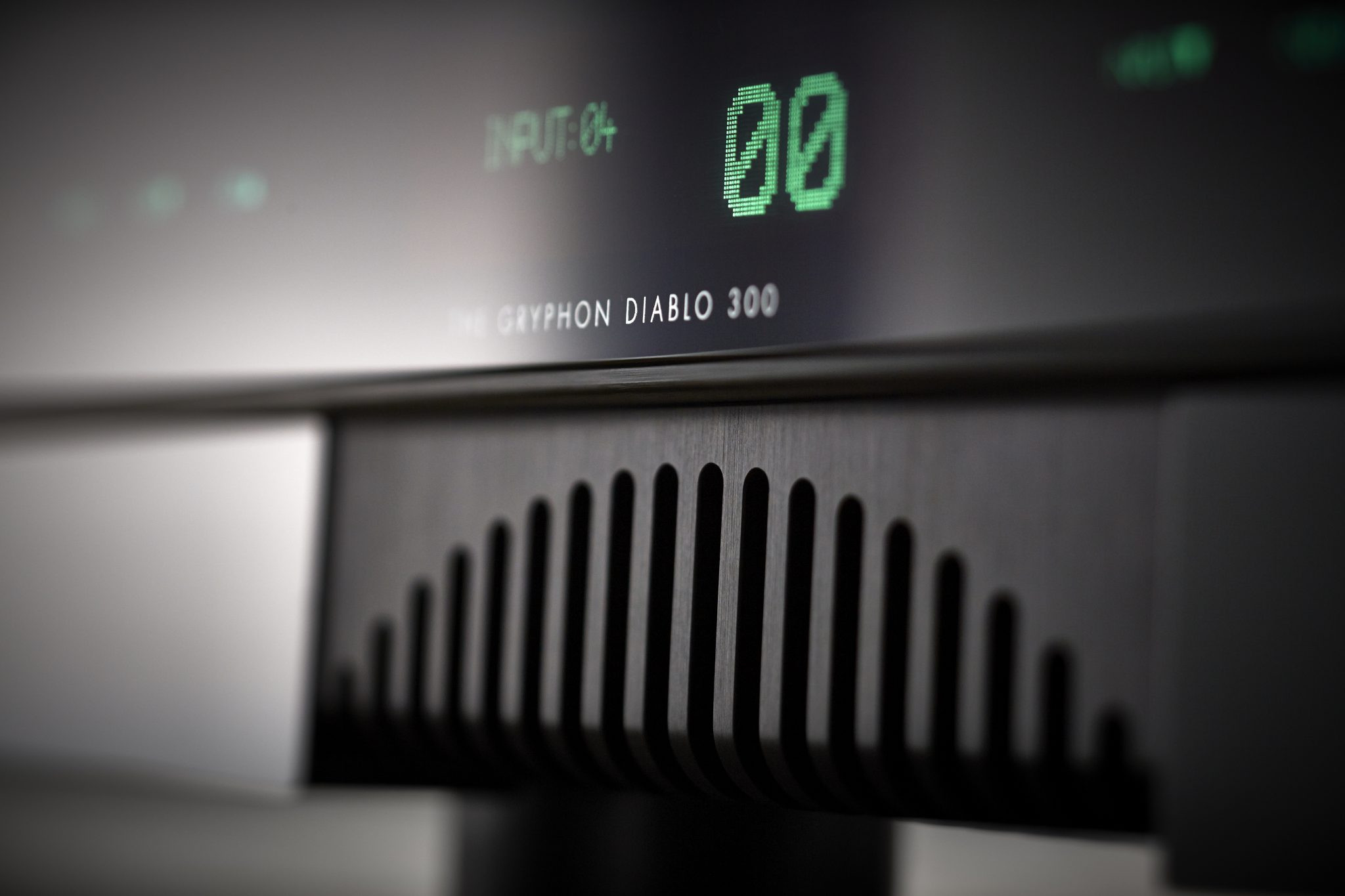

Large, easy-to-read and switchable fluorescent display with four-level adjustable brightness
Illuminated sensor keys
Phono module MM/MC on request
PCM/DSD DA converter module with USB, 2xSPDIF, AES and optical input can be retrofitted
12V remote control connection
Software adaptation through external key
IR remote control
Connection for external IR receiver
Power consumption in standby below 0.5W according to the latest EU specifications
DAC PCM/DSD module optionally available
EU CE certified, developed and manufactured in Denmark
Dimensions: H 23.5 cm, W 48 cm, D 46 cm
Weight: 38.1 kg
Color: black
| Color: | black |
|---|---|
| Condition: | Demo device |
| Device depth mm: | 46 |
| Device height mm: | 235 |
| Device width mm: | 480 |
| Features / special features: | True double-mono construction |
| Inputs: | Analog RCA, Analog XLR, Control: 3.5 mm jack, two-pole, 12-volt trigger |
| Material: | aluminum |
| Operation: | remote control |
| Outputs: | Analog RCA, Control 3.5 mm jack two-pole 12 volt trigger, Subwoofer Out RCA |
| Power amplifier: | stereo |
| Power amplifier channels: | 2 |
| Power per channel in W: | 300 |
| Product type: | amplifier |
| Series: | Diablo |
| Surface: | aluminum |
Manufacturer
Gryphon Audio Designs ApS
Industrivej 10B
8680 Ry
Denmark
sales@gryphon-audio.dk
Safety Information
Product-specific safety instructions can be found in the operating manual.
