T+A PA 3100 HV V 1.0 Integrated amplifier with VU-Meter

PA 3100 HV integrated amplifier

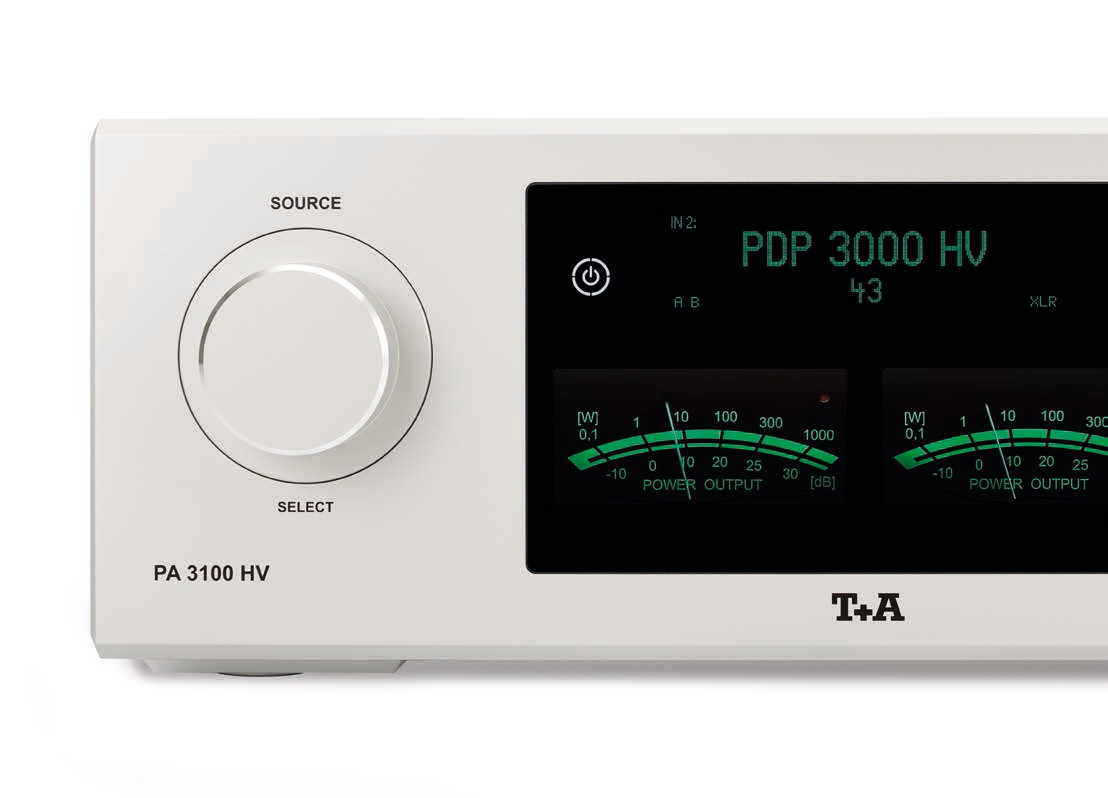

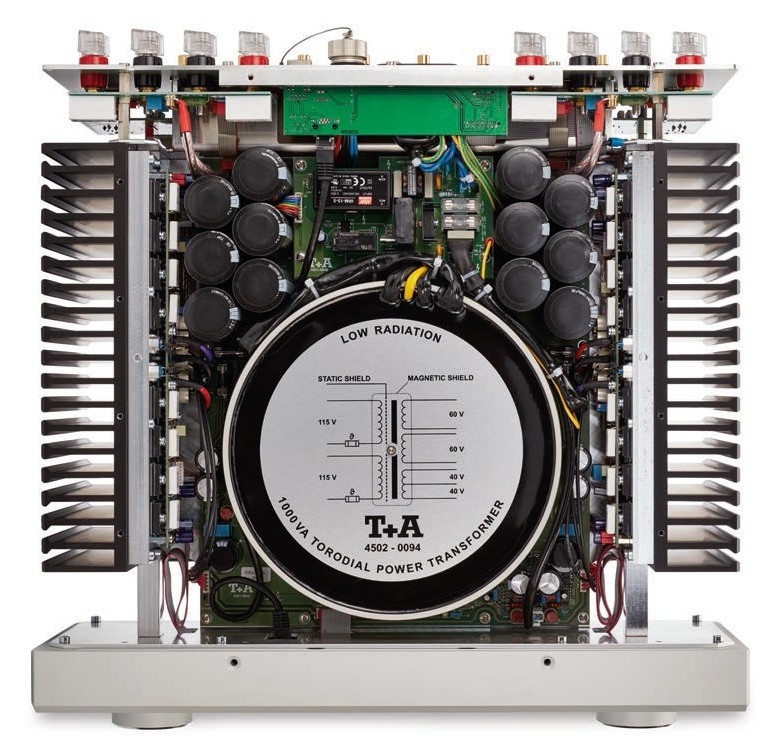

The PA 3100 HV is a further development of the PA 3000 HV and is identical in most of the assemblies. The immediately visible difference is the two VU meters in the front, which show the power output per channel logarithmically in watts into 4 ohms. Furthermore, a new concept for the analog power supply and the power supply similar to the A 3000 HV has been developed that enables the PS 3000 HV power supply to be connected and the stability and performance of the entire power supply to be further increased. By revising the preamplifier section, the sound could be improved again.

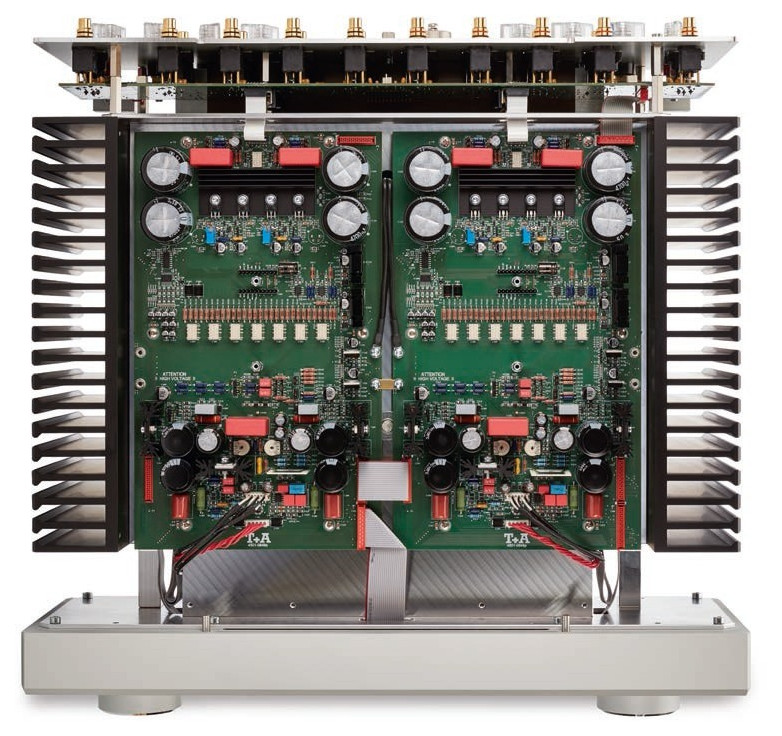

As in the P 3000 HV, the circuit topology of the integrated amplifier is based on a cascode differential amplifier with hand-selected audio J-FET transistors and completely discrete stages without operational amplifiers. With this circuit concept and the quality of the components, practically no over-all negative feedback is necessary. With its high operating voltage, HV technology enables not only high linearity but also an extremely high dynamic range. Signals up to 60 Vss can be processed without distortion.
In the HV series, control and switching functions in the signal range are taken over by gas-tight encapsulated gold contact relays, which, even after many years of operation, have no contact problems due to corrosion, dust, etc. and no aging. Bi-stable relays are used in the preamplifier, in which no permanent coil current flows and thus no inductive impairment of the audio signals can occur. By integrating the relays directly into the circuit, the signal paths are optimally short and there is no need for cables such as with conventional volume potentiometers. The volume control is also built with discrete precision resistors and gold contact relays, which is why there is absolutely exact channel synchronization and no noise or distortion.
The entire control electronics are deeply embedded and shielded in the 40 mm thick front panel milled from solid, on the front of which is the bright and dimmable display (VFD) made of glass with wear-free sensor buttons.
The rotary knobs for source selection and volume control are needle-bearing precision incremental encoders with a unique switching feel.

Technical specifications

Prepress

• Frequency response + 0 / - 3 dB 0.5 Hz -300 kHz
• S / N ratio 105/110 dB
• Distortion factor <0.001%
• Intermodulation <0.001%
• Channel separation> 90 dB

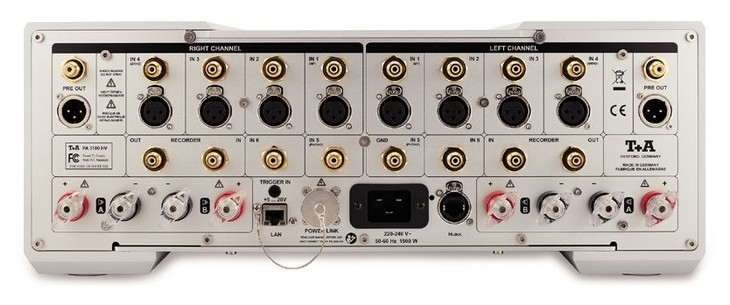

• Input sensitivity nominal high level (RCA) 7 x 250 mVeff ... 6 Veff / 20 kOhm
• Input sensitivity nominally balanced (XLR) 4 x 500 mVeff ... 12 Veff / 5 kOhm


Outputs

• 50 ohm headphones
• 1 x recorder 250 mVeff / 100 Ohm
• PRE out Cinch nom 1 Veff, max 9.5 Veff / 50 Ohm
• PRE out XLR nom 1.45 VRMS, max 19.6 VRMS / 50 Ohm


Power amplifier

• Nominal power per channel at 8 ohms 300 watts
• Rated power per channel at 4 ohms 500 watts
• Pulse power at 8 ohms 380 watts
• Impulse power at 4 ohms 700 watts
• Power bandwidth 1 Hz - 150 kHz
• Frequency response + 0 / - 3 dB 0.5 Hz - 180 kHz
• Slew rate 60 V / µs
• Damping factor> 65
• Signal-to-noise ratio> 115 dB
• Distortion factor <0.03%
• Sieving 120000 µF


Connection / accessories / dimensions

• Mains connection Netzan. 110 V / 60 Hz or 220/240 V / 50 Hz
• Standby mode <0.5 W.
• Remote control F 3001
• Additional equipment: trigger input +5 ... 20 V for remote switch-on, input 4 configurable as a front channel for surround decoder, connection for additional power supply PS 3000 HV, LAN connection for home automation systems
• Dimensions (H x W x D) 17 x 46 x 46 cm
• Weight 38 kg
• Versions of housing: silver paint 47 or titanium 64, heat sink black 42


Technical changes reserved!
