Rotel A12 Integrated Amplifier
€599.00
% €979.00 RRP (38.82% saved)per Piece incl. VAT / incl. Shipping
No longer available
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.

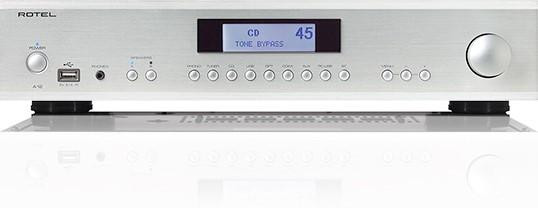

Rotel A12 integrated amplifier

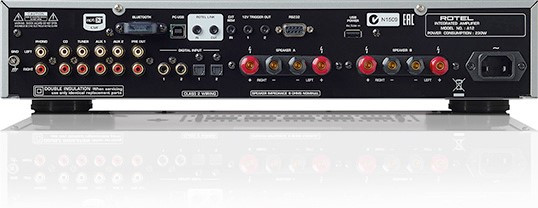

The Rotel integrated amplifier A12 also impresses with the best audio performance at a slightly lower continuous output power of 60 watts per channel compared to the A14. It has a wide range of digital and analog input connections (including a phono MM input) and also supports audio streaming via Bluetooth (aptX support included).
Product description
The A12 integrated amplifier offers a continuous output power of 60 watts/channel RMS at 8 ohms. Like the A14, it is characterized by its timeless design with clear lines and can be operated intuitively. The basis for its first-class audio performance is the power supply, into which a lot of time and money has been invested. Rotel only uses high-quality materials from well-known suppliers for the toroidal transformers it manufactures in-house. This has created a powerful power supply, allowing the A12 to handle signal peaks without clipping and easily drive demanding loudspeakers.
details
DIMENSIONS (W × H × D)
430×93×345mm
17' × 3.6' × 13.5'
PANEL HEIGHT
80mm (3.15')
POWER SUPPLY
230V, 50Hz
POWER CONSUMPTION
230W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
8kg (17.6lbs.)
BTU (4O, 1/8 power)
517 BTU/hr
CONTINUOUS OUTPUT
60W/Ch (2 channels active, 8O)
OVERALL THD
(20Hz-20kHz) <0.03%
FREQUENCY RESPONSE
High level inputs: 10Hz - 100kHz ±0.5dB
Digital inputs: 10Hz - 80kHz ±3dB
Phono input: 20Hz - 15kHz ±0.5dB
NOISE-TO-NOISE RATIO (IHF A)
High level inputs: 100dB
Digital inputs: 103dB
Phono input: 90dB
More specifications
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
220
SPEAKER IMPEDANCE
4O minimum
INPUT SENSITIVITY
High level inputs: 200mV
Digital inputs: 0dBfs
Phono input (MM): 3mV
INPUT IMPEDANCE
High level inputs: 24kO
Digital inputs: 75O
Phono input (MM): 47kO
OVERLOAD
High level inputs: 4V
Phono input: 50mV
OUTPUT LEVEL
1V
OUTPUT IMPEDANCE
470O
TONE CONTROL
±10dB at 100Hz / 10kHz
DIGITAL SIGNALS (COAXIAL/OPTICAL)
LPCM (up to 24-bit/192kHz)
PC USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 24/192)
