Rotel c8+ power amplifier for rack mounting
€3,199.00
per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
Rotel C8+ rack mount power amplifier
Power efficiency with excellent sound quality defines the Rotel C8+ 8-channel Class AB multi-channel amplifier. With 150 W per channel or an impressive 300 W in the bridge circuit at 4 ohms, this device relies on proven Rotel amplifier technology.

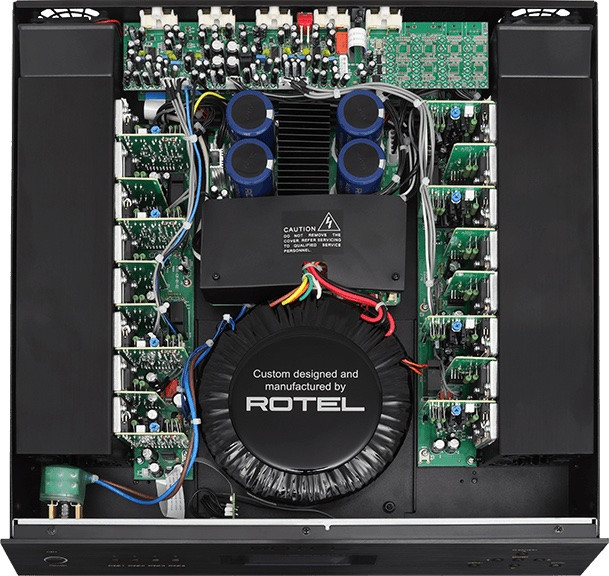

The generously sized toroidal transformer, manufactured in-house, supplies 32 output components to ensure effortless and controlled bass reproduction. Installation flexibility is enabled by 4 analog and 4 digital inputs that can be routed to all zones. Controls and a front display offer the option of selecting sources and individually adjusting volume, bass and treble in the individual channels.

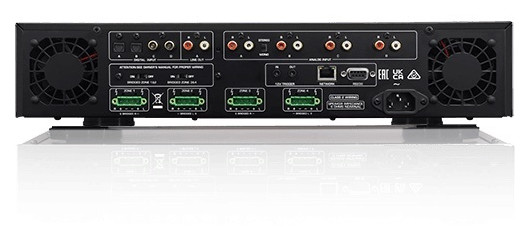

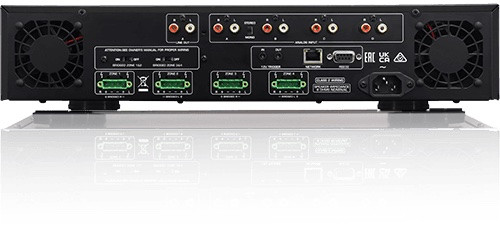

For integration into control systems, the C8+ has IP and RS232 interfaces as well as a 12 V trigger. The 2U housing does not require any additional space up or down when installed in the rack and is only available in black.
Technical data:
- Dimensions (W × H × D): 430 × 97 × 414 mm
- Panel height: 2U / 88.1 mm (3.5')
- Power supply: 230V, 50Hz
- Power consumption: 980W
- Standby power consumption: Normal: <0.5W, Network standby: <2W
- Net weight: 18.35 kg (40.79 lbs.)
- BTU (4O, 1/8th power): 2744 BTU/h
Maximum output power:
- 150 W/Ch (8 channels active, 4O)
Continuous output power:
- 100 W/Ch (8 channels active, 8O)
Other specifications:
- Total harmonic distortion: <0.1%
- Frequency response: High level inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB; Digital inputs: 10Hz - 20kHz, 0 ± 0.5dB
- Signal-to-noise ratio (IHF 'A'): High level inputs: 100dB; Digital inputs: 102dB
- Intermodulation distortion (60Hz:7kHz, 4:1): <0.1%
- Damping factor (20Hz - 20kHz, 8O): 80
- Tone control: ± 10dB at 100Hz / 10kHz
- Crosstalk/Separation: >50dB
- Digital/analog converter: Texas Instruments
- Input Sensitivity: High Level Inputs: 0.43V; Digital inputs: -13.5dBfs
- Input impedance: High level inputs: 31kO; Digital inputs: 75O
- Overload: High level inputs (RCA): 2.8V
- Digital signals (coaxial/optical): SPDIF LPCM (up to 192kHz/24-bit)
| Color: | black |
|---|---|
| Condition: | new goods |
| Device depth mm: | 414 |
| Device height mm: | 97 |
| Device width mm: | 430 |
