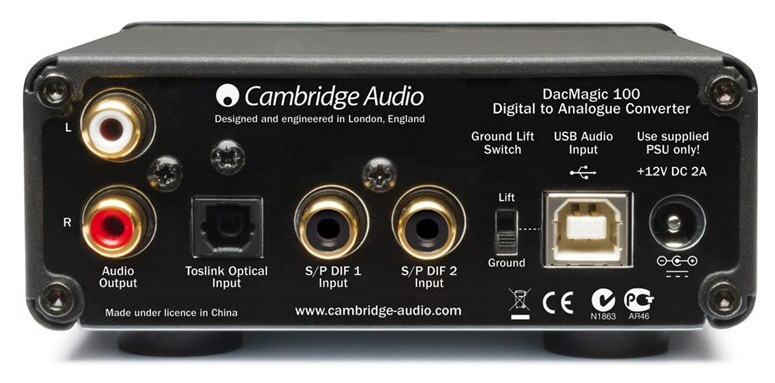

Cambridge Audio DACMAGIC 100 Digital Analog Converter

DACMAGIC100

DIGITAL-ANALOG CONVERTER

Thanks to a Wolfson 24-bit DAC, a driverless USB Audio 1.0 input with 24 bit / 96 kHz as well as an S / PDIF and TosLink digital inputs, the DacMagic 100 is able to receive audio signals from your computer, iPod, TV or other digital signals Reproduce devices while ensuring a true sound experience with detail, depth and clarity.

Pure signal processing

In general, the digital-to-analog converters in conventional digital devices are rather poor and are not able to get the best sound from your sources. The DacMagic 100 picks up the digital audio signal of your devices directly and bypasses their sound card or DAC. Then the audio signal is digitally processed using our proprietary technology, which dramatically improves the sound quality and reduces distortion. This results in greater detail, clearer highs, and greater depth for all of your audio signals.

compatibility

The DacMagic 100 is very flexible and supports almost all digital file formats, including uncompressed files from your computer in the highest 24-bit studio quality. With three different digital connections and the possibility of connecting four devices at the same time, the DacMagic 100 is a true digital switching center. The setup is completely intuitive and allows you to be enjoying better sound in minutes.

' THE SOUND IS THE MOST IMPORTANT' DESIGN

Like all of our products, the DacMagic 100 was designed from the ground up by the design team at our London headquarters. Our engineers put an incredible amount of detail into ensuring that sound quality is the main focus of the product. The DacMagic 100 included installing the latest digital-to-analog converter from market leader Wolfson.

Ipod integration

In connection with the iD100 Dock from Cambridge Audio, it is the perfect partner for iPad, iPhone or iPod (supports iPhone 3, 3G, 3GS, 4, 4S and iPod Touch with 30-pin connector. IPhone 5, iPad mini and iPads with Retina display and Lightning connector are not supported)

Technical specifications

• Digital-to-analog converter Wolfson WM8742 24-Bit DAC

• Frequency response 20 Hz - 20 kHz (+/- 0.1 dB)

• Total harmonic distortion at 1 kHz 0 dBFS <0.0025% 24 bit

• Total harmonic distortion at 1 kHz -10 dBFS <0.0025% 24 bit

• Total harmonic distortion at 20 kHz 0 dBFS <0.0025%

• Signal-to-noise ratio> -113 dBr

• Total correlated jitter <130 pS

• Cross-talk at 1 kHz <-130 dB

• Cross-talk at 20 kHz <-112 dB

• Output impedance <50 ohms

• Max. Output voltage (unbalanced) 2.3 V QMW

• Digital input, supported signal depths 16-24 bit

• Digital input, supported sampling rates 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz

• Max. Power consumption 5 W

• Colors Black or Silver

• Dimensions (W x H x D) 106 x 46 x 130 mm

• Weight 0.5 kg
