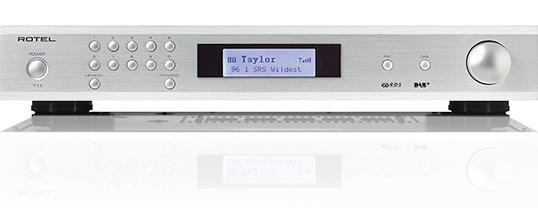

Rotel T11 Tuner

T11

Rotel's T11 is a high-quality FM and DAB tuner (DAB+ included) and offers the option of storing 30 stations each. As with all Series 14 devices, the display and the LED are dimmable.

DIMENSIONS (W × H × D)

430×73×330mm
17' × 2.9' × 13'

PANEL HEIGHT

60mm (2.36')

POWER SUPPLY

230V, 50Hz

POWER CONSUMPTION

10W

STANDBY POWER CONSUMPTION

<0.5W

NET WEIGHT

4.3kg (9lbs.)

Btu

17 BTU/hr

DAB SENSITIVITY

-80dBm

DAB TUNING SECTION

Band III (174-240MHz)

DAB AUDIO DATA RATE

224Kbps max

DAB FREQUENCY RESPONSE

20Hz - 20kHz ±1dB

DAB OUTPUT LEVEL

2.1V at 0dBfs

DAB ANTENNA INPUT

75O F Connector

Product description

Rotel has been manufacturing high-quality tuners since the 1960s. One of the newest devices in this long-established product category is the T11, which offers a wide range of stations and quick access to classic analogue VHF radio and digital radio programs (DAB+).

As with the T14, this tuner also has 30 station memories each for FM and DAB+. As with all other products in the 14 series, the display and power LED can also be dimmed for perfect adaptation to the respective lighting conditions.

More specifications

FM USABLE SENSITIVITY

22.2dBf

FM 50DB SENSITIVITY THRESHOLD

27.2dBf (mono)

FM S/N RATIO (at 65dBf)

63dBf (mono)

60dBf (stereo)

FM HARMONIC DISTORTION (at 65dBf)

0.2% (mono)

0.3% (Stereo)

FM FREQUENCY RESPONSE

10Hz - 15kHz ±3dB

FM STEREO CHANNEL SEPARATION (100Hz/1kHz)

40dB/37dB

FM OUTPUT LEVEL

1V

FM ANTENNA INPUT

75O F Connector
