b-system wallboxx
€299.00
per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
Wallboxx: installation housing for masonry walls
Would you like to use loudspeakers and technology in brick walls? Then the Wallboxx is exactly the right solution. With the right built-in loudspeaker, your living room or home theater becomes a sound experience in just a few steps.
Brick walls
The Wallboxx is the backbox for built-in wall speakers, LCR speakers and ideal for installing them in masonry walls. For new builds or renovations.
Sound optimized
The material of the Wallboxx was carefully selected so that high-quality built-in speakers are supported in the sound; the material is optimized for brick walls.
In-wall loudspeaker
Square, rectangular or large LCR speakers: thanks to the different Wallboxx sizes, almost any speaker can now be used in brick walls.
Get to know the Wallboxx
The Wallboxx was developed to enable a highly professional installation of flush-mounted speakers for brick or concrete walls. The Wallboxx fits easily into your installation process and enables the wall surface to be processed quickly and easily.
The housing material is framed by EPS and additionally insulated on the inside in order to achieve low resonances and improved sound insulation properties.
The Wallboxx Universal will be delivered with the latest version, which will be available from the beginning of 2021. Alternatively, pre-defined cut-out dimensions are still possible ex works.
High performance
The design of the Wallboxx has been continuously improved over the years. Installation is simplified and performance increased.
In the living room
When selecting the material, we made sure that handling is as easy as possible and that high-quality ceiling speakers can develop their full sonic performance.
For home theater
Hollywood has long known that emotions are largely transported through sound. The perfect home cinema experience is created by the interplay of numerous speakers. LCR, Atmos, subwoofer. The Wallboxx enables the loudspeakers to be installed on the wall in home cinemas and home cinema rooms.
WALLBOXX: SPEAKER BACKBOX FOR BRICK WALLS
Architects and planners
The Wallboxx offers a standardized installation method and enables the convenient installation of in-wall speakers in the masonry. In addition to the safe installation, the interior design is supported.
Electricians
The installation and wiring of technology and electronic components enables electrical installers to easily install in-wall speakers in houses, apartments and home cinemas with the Wallboxx.
Audio-video dealer
Audio-video dealers can sell in-wall speakers with a clear conscience, because the sound quality is supported by the Wallboxx and enables numerous possibilities to realize a living room cinema or home cinema room.
Features
- Front and back panels made of quartz-coated
OSB panels (15 mm) - Fixed breakout points for the optimal laying of
Electric pipes (20 mm + 25 mm) - Interior insulation foam, gray (10 mm)
- Low weight and high stability with excellent
Vibration dampening compared to others
Built-in housings - Better audio reproduction than other enclosures
Wood, sheet metal or plastic - Better airborne and structure-borne sound insulation than conventional
Built-in systems - Universal cut-out (30 mm)
Wallboxx L (Universal)

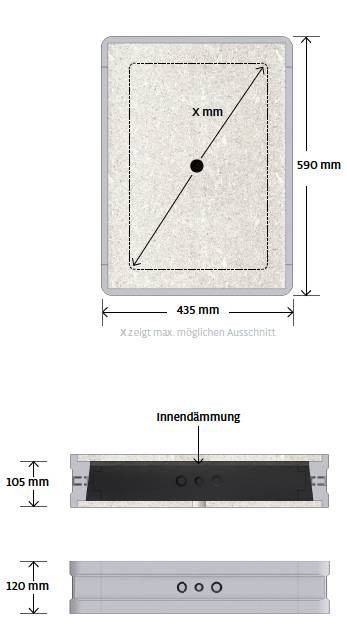

Dimensions
590 × 435 × 120 mm (L × W × H)
Installation depth
max. 105 mm
Recess dimension X
max: 470 × 315 mm
Internal volume
17 l
Fire protection class
B1
1 Wallboxx
1 installation guide
1 cardboard box
| Condition: | new item |
|---|---|
| Configuration: | Size L |
| Cut-out height mm: | 470 |
| Cut-out width mm: | 315 |
| Device depth mm: | 120 |
| Device height mm: | 590 |
| Device width mm: | 435 |
| Installation depth mm: | 105 |
| Product type: | HiFi tuning |
Manufacturer
B-System GmbH
Bismarckstr. 19
78652 Deisslingen
Germany
info@b-system.com
Safety Information
Product-specific safety instructions can be found in the operating manual.
