Dynaudio P4-C80 2-way in-ceiling loudspeaker

Dynaudio P4-C80 – Powerful slimline ceiling speaker for large rooms and Dolby Atmos

The Dynaudio P4-C80 combines powerful sound with an exceptionally slim design, making it ideal for demanding custom installation projects. As a high-quality in-ceiling speaker from the Performance Series, it delivers impressive sound quality and is the perfect choice for large living rooms, home theaters, multi-room systems, or Dolby Atmos installations.

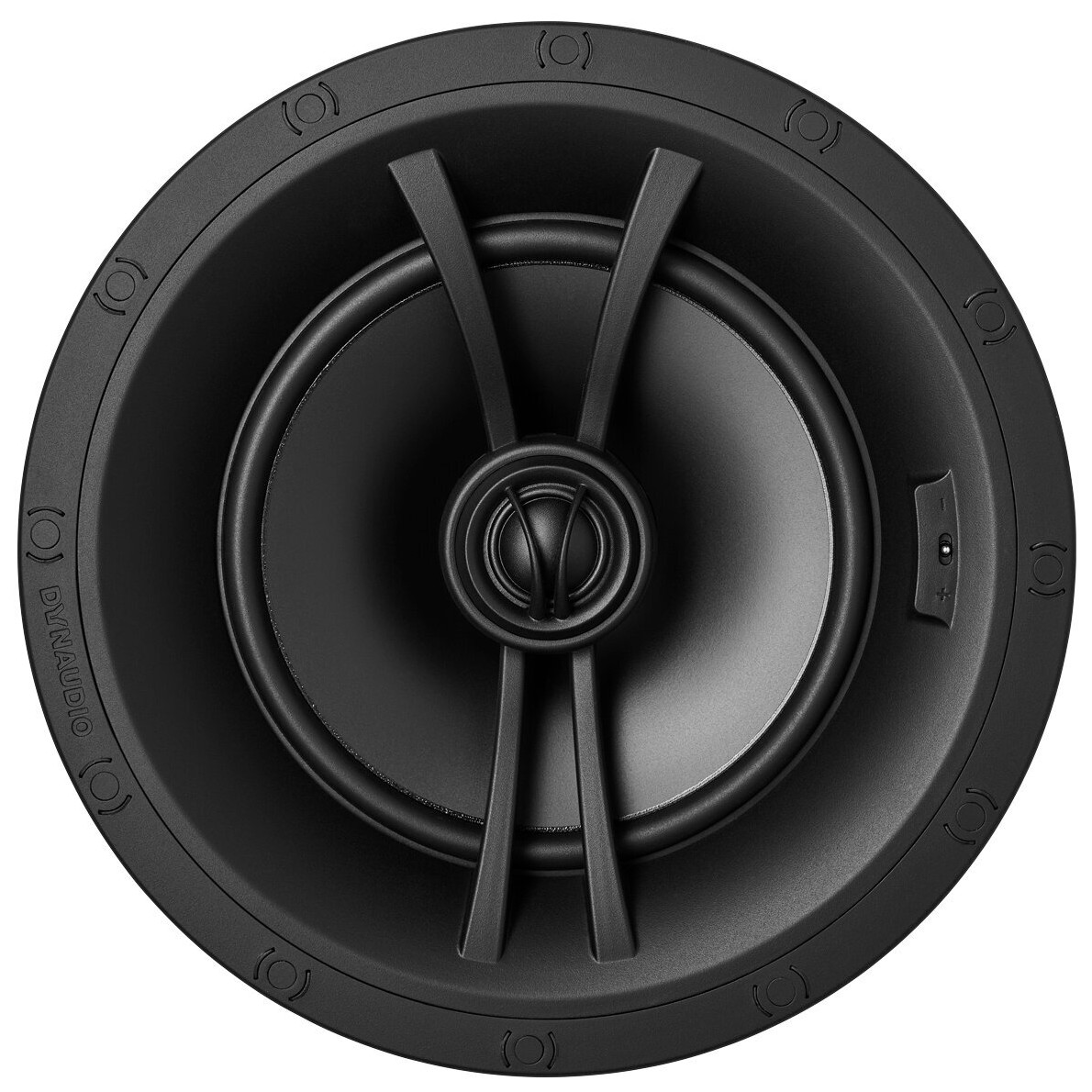

Equipped with a powerful 20cm MSP woofer/midrange driver and a swiveling 28mm soft-dome tweeter, the P4-C80 produces a balanced sound with powerful bass, natural midrange, and detailed highs. Even in larger rooms, the speaker ensures even sound distribution and precise reproduction of music, movies, and speech.

A particular advantage is the extremely shallow installation depth of only 90 mm. This allows the loudspeaker to be easily integrated even into shallow ceiling cavities and makes it ideal for new builds as well as modernization and renovation projects. Different ceiling constructions within a building pose no problem, allowing for a consistent loudspeaker design throughout.

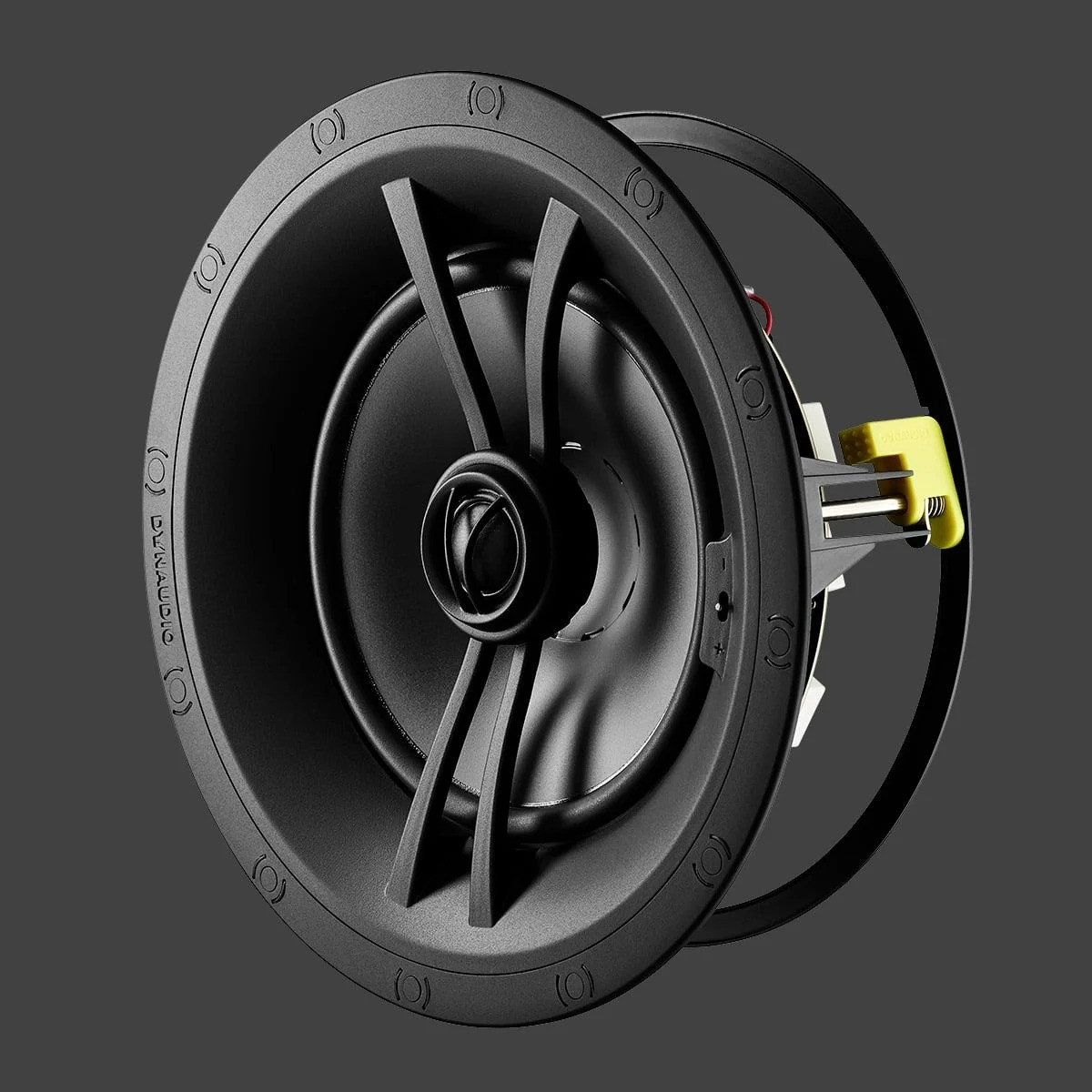

The installation process was also designed with ease of use in mind. The tool-free mounting system with sturdy doglegs allows for quick and secure ceiling mounting. The speaker is then simply inserted into the mounting frame and locked in place – straightforward and time-saving.

Dynaudio relies on proven technologies from high-end loudspeaker design to achieve its outstanding sound quality. The specially developed MSP (Magnesium Silicate Polymer) diaphragm ensures precise and controlled bass and midrange reproduction, while the swiveling soft-dome tweeter allows for exact aiming at the listening position. Additionally, the treble level can be adjusted in three steps to optimally adapt the sound to the room acoustics.

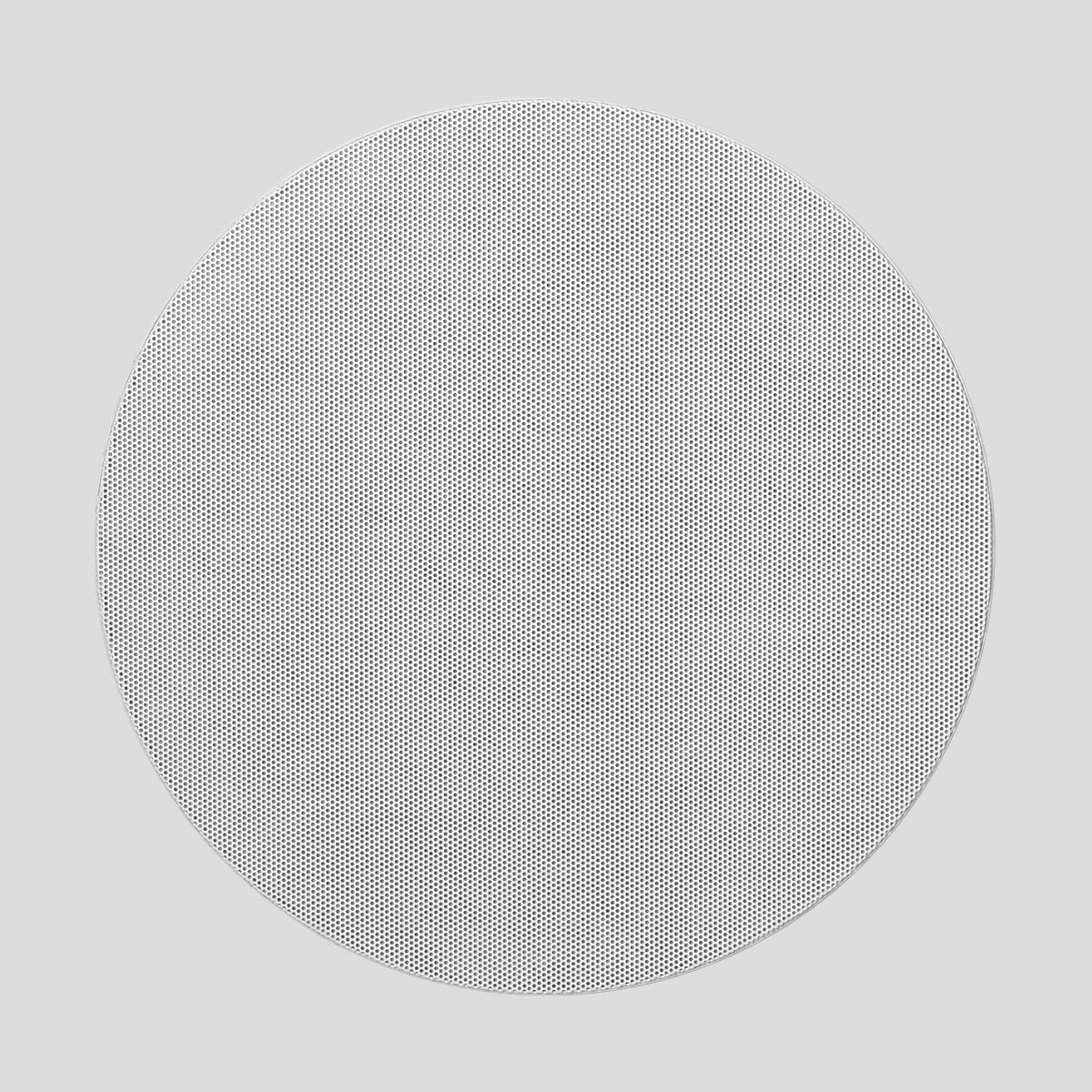

The Dynaudio P4-C80 also impresses visually with its discreet integration. The magnetically attached grille can be painted to match your ceiling design and blends almost invisibly into any ceiling. This allows the speaker to combine first-class sound with an elegant, unobtrusive appearance.

Whether as a ceiling speaker in a home cinema, as a Dolby Atmos speaker or as part of a high-quality multiroom audio system – the Dynaudio P4-C80 offers high performance, flexible application options and easy installation even in limited installation space.

Technical data

Model: Dynaudio P4-C80

Type: Ceiling-mounted speaker

Series: Performance

Segment: Custom Install

Crossover: 2-way

Sensitivity: 89 dB (2.83 V/1 m)

Rated power: 50 W

Long-term load capacity: 160 W

Nominal impedance: 8 ohms

Minimum impedance: 5 ohms

Lower cutoff frequency: 42 Hz (±3 dB)

Tweeter: 28 mm soft dome, swiveling

Woofer/midrange driver: 20 cm MSP

Tweeter level: -3 dB / 0 dB / +3 dB

Outer diameter: 280 mm

Installation depth: 90 mm

Ceiling cutout: 260 mm

Assembly: Tool-free quick-assembly system with doglegs

Cover: Magnetically attached, paintable
