REL Acoustics Ltd HT/1003 MKII Subwoofer

REL HT/1003 MKII – Compact performance at a new level

With a powerful 300-watt Class D amplifier and a newly developed 10” (250 mm) CarbonGlas™ driver, this subwoofer delivers impressive performance. The new design doubles the volume compared to the previous model. Despite the compact dimensions, the sound quality is maintained, for both home theater and music applications.

Technical Highlights

• Active driver: 10' (250 mm) CarbonGlas™ diaphragm with inverted carbon fiber centering cap
• Amplifier power: 300 watts RMS (Class D)
• Frequency response: Low bass extension to -6 dB at 24 Hz
• Inputs: 2x low-level RCA, 1x LFE RCA
• Outputs: 2x low-level RCA (Daisy Chain), 1x LFE RCA
• Protection systems: Electronic set safe, DC fault protection, output short circuit protection
• Wireless function: HT-Air™ compatible (sold separately)
• Mains voltage: 220-240V / 110-120V (depending on the market)

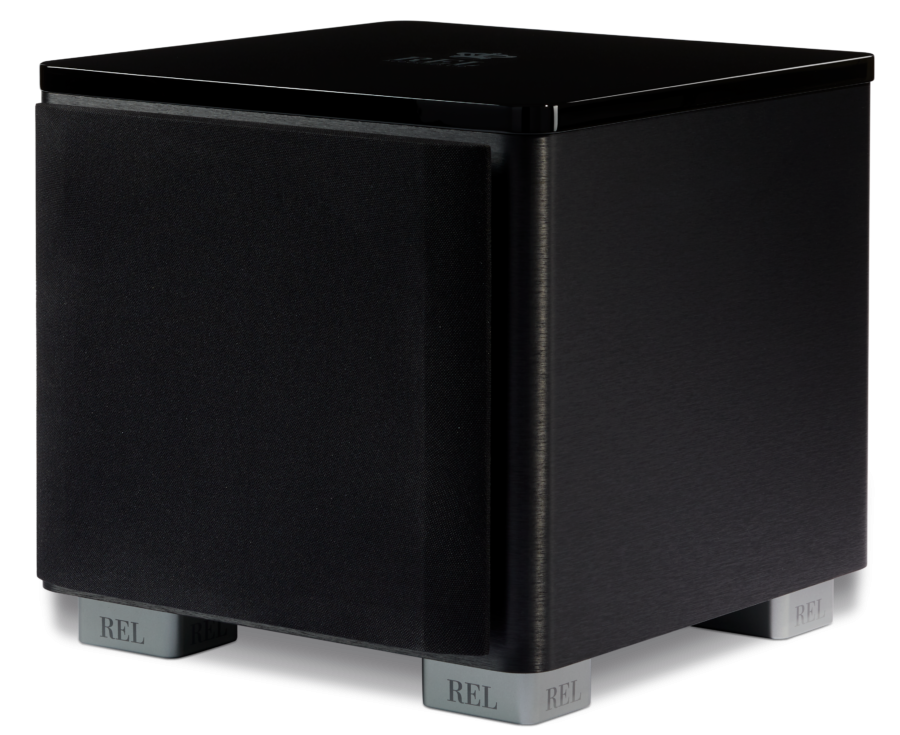

High-quality housing design

The HT/1003 MKII is not only impressive in terms of sound, but also in terms of appearance. The flat, elegant housing is based on the REL reference models and ensures faster and deeper bass reproduction. The high-gloss black surface is finished with five layers of hand-polished lacquer, while the horizontal line structure of the housing offers a sophisticated look. This design enables seamless integration into home cinema setups with the REL T/x or S series .

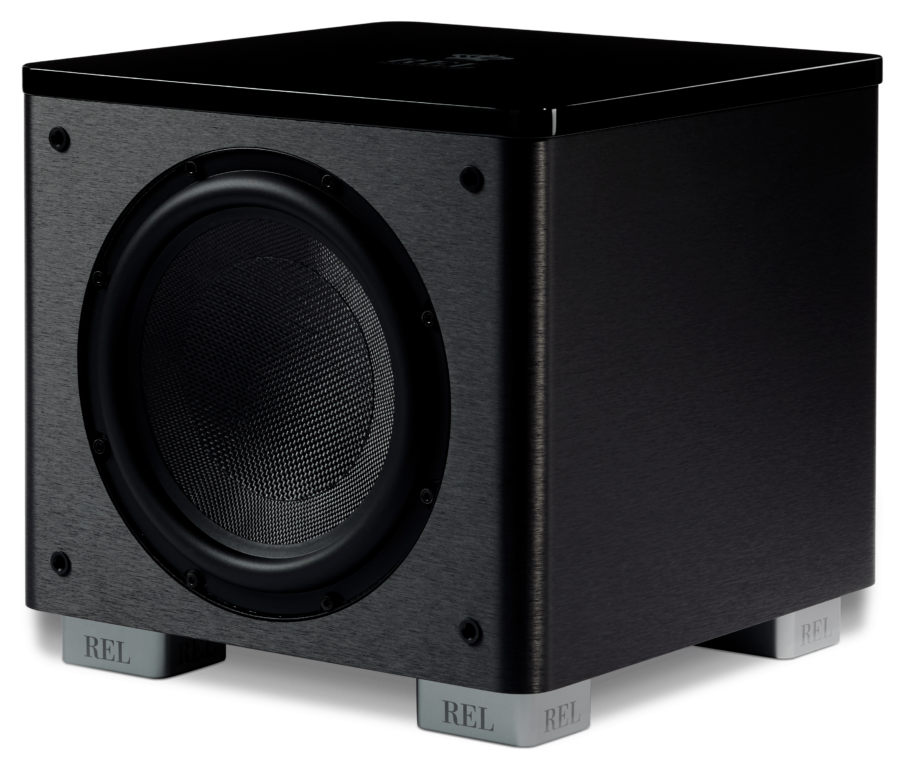

Optimized driver for maximum performance

The newly developed 10” CarbonGlas™ driver has been extensively redesigned to ensure even higher performance. A larger magnet structure and an improved suspension with an enlarged edge ensure more precise control of the bass reproduction. The result: an exceptionally dynamic performance that can keep up with larger subwoofers.

Improved amplifier technology

The 300-watt Class D amplifier was developed by a leading manufacturer and features improved circuit boards and optimized power supplies . This ensures a long service life and a constant power output without distortion. As with all REL subwoofers, the power is specified as RMS Continuous - comparable to high-quality monoblock amplifiers.

Precise filter technology for maximum sound

The HT/1003 MKII benefits from the latest generation of PerfectFilters™ . These analog filters optimize bass reproduction by:

Boost explosive bass without compromising sound quality.

Filter out subsonic frequencies below 12 Hz to minimize unwanted resonances.

Expand the frequency response to make explosions and effects more realistic.

Wireless connectivity with HT-Air™

Thanks to the optional HT-Air™ technology, the subwoofer can be operated wirelessly. The 5.8 GHz transmitter and receiver enable fast, lossless transmission over up to 18 meters without digital compression. This technology uses the same LSIC chip as the high-end AirShip II , but without expensive digital-to-analog converters.

Compact performance for home theater and music

With an impressive performance that is twice as loud as its predecessor and high-quality construction , the HT/1003 MKII is an ideal upgrade for home theater and music lovers with limited space. The combination of precise engineering, powerful performance and elegant design makes this subwoofer an outstanding choice for demanding users.

REL HT/1003 MKII – Technical Specifications

Type:
Closed housing, front driver

Active Driver – Size & Material:
10 inch (250 mm) long stroke, CarbonGlas™ cone structure, inverted carbon fiber central cover, steel chassis

Passive Radiator – Size & Material:
Not applicable

Low bass extension:
-6 dB at 24 Hz

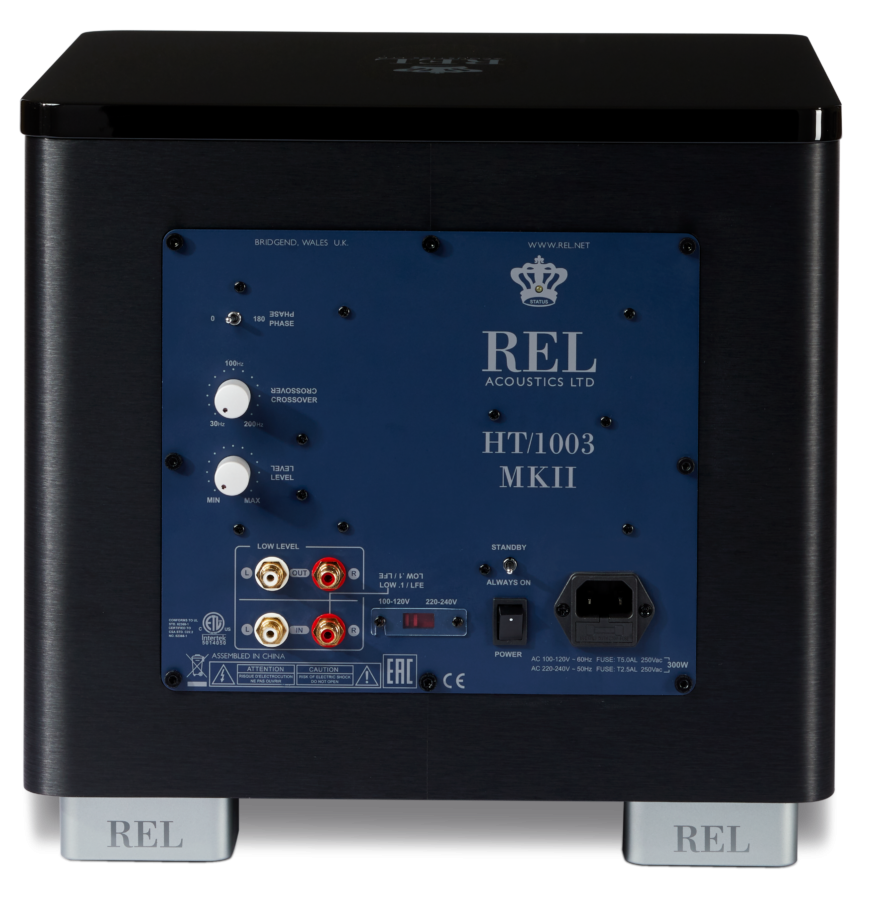

Input connections:
(2) Low Level RCA or (1) LFE RCA

Output connections:
Daisy Chain (2) Low Level RCA or (1) LFE RCA

Perfomance:
300 watts (RMS)

Amplifier type:
Class D

Wireless connection:
HT-Air MKII (sold separately)

Dual-Parametric Filter:
Not applicable

protection system:

Fully electronic set safe

DC Fault

output short circuit

Mains voltage:
220-240 volts, 110-120 volts for certain markets

fuses:
6.3 amps delayed at 230 or 115 volt operation

Dimensions (W x H x D):
14.25 inches x 13.25 inches x 15.25 inches (362 mm x 343 mm x 387 mm)

Net weight:
34.2 lbs. (15.5 kg), shipping weight 41 lbs. (18.6 kg)

Surface finish:
Horizontally oriented, line-grained composite structure, 15 mm top plate, finished with 5 layers of hand-polished high-gloss varnish

Included accessories:

Power cord: Yes

Neutrik Speakon: Not applicable

Connection cable: No

User manual: Yes
