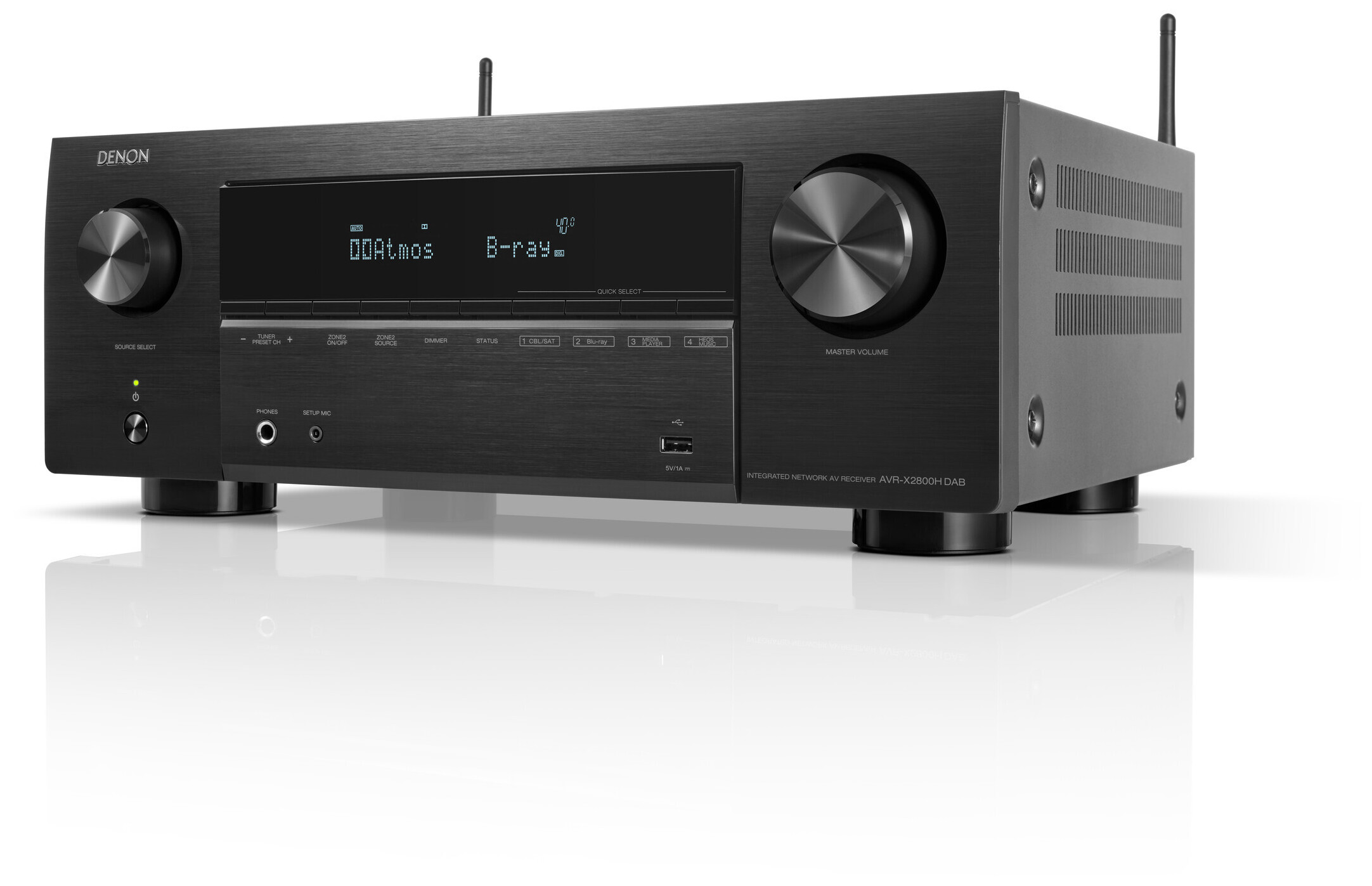

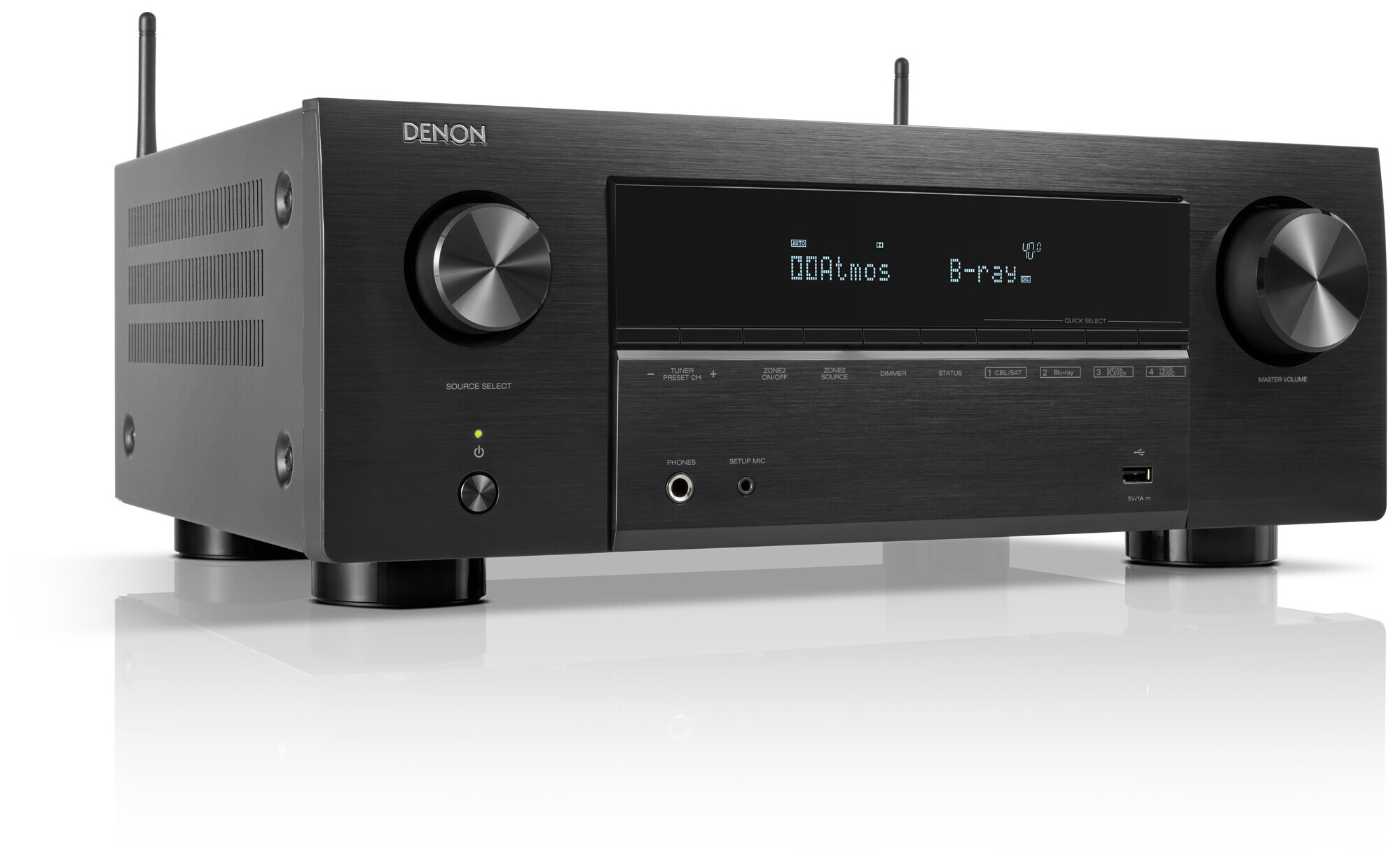

Denon AVR-X 2800H Surround-Receiver Black

The AVR-X2800H guarantees fascinating entertainment experiences with 8K video and immersive 3D sound. As a 7.2 or 5.2.2 system with Dolby Atmos and DTS:X, it fills medium-sized rooms with top-class sound. HEOS® Built-in also makes it possible to stream online music wirelessly and transfer it to HEOS-enabled speakers in other rooms.

Powerful sound

The AV receiver fills medium-sized rooms with excellent sound. Immerse yourself in the sound of music and films.

8K ready

Experience excellent video quality thanks to the latest 8K technology.

Powerful, discrete 7-channel amplifier

Discrete amplifiers on all channels with up to 150 watts per channel - enough power for every speaker.

Immersive audio experiences

Experience music and films up close with Dolby Atmos® and DTS:X® as well as the upmixers Dolby Surround and DTS Neural:X to optimize non-surround content.

Advanced 8K home theater

Three of the six HDMI inputs and two outputs support 8K video. Enjoy easy video compatibility and great image quality with HLG, HDR, Dolby Vision, HDR10+ and Dynamic HDR.

HEOS® Built-in technology

Stream songs from various music streaming services wirelessly to compatible HEOS components. You can equip multiple rooms with Denon Home speakers and control the entire system via the HEOS app.

Technical data

Multi-channel surround

Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround No, Yes
Multi-channel stereo Yes
Max. Number of Processing (Pre-Amp) Channels 7.1
Sound technologies
Discrete power amplifiers Yes
Pure Direct Yes
Audyssey MultEQ XT
Audyssey Dynamic EQ, Dynamic Volume Yes, Yes
Compressed Audio Restorer Yes
network
Media server Yes
HEOS Multiroom and Streaming Yes
Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
Lossless formats: MP3 / WMA / AAC Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes
Lossless formats: FLAC HD / WAV / ALAC (all 192kHz/24 bit) Yes, Yes, Yes
DSD audio streaming Yes (2.8/5.6MHz)
AirPlay 2 Yes
TuneIn Yes
Spotify Connect Yes
Roon Tested Yes
HEOS app control Yes
Compatible with remote APP for smartphones Denon 2016 AVR Remote
Ethernet ports Yes
WiFi Yes
Bluetooth Yes

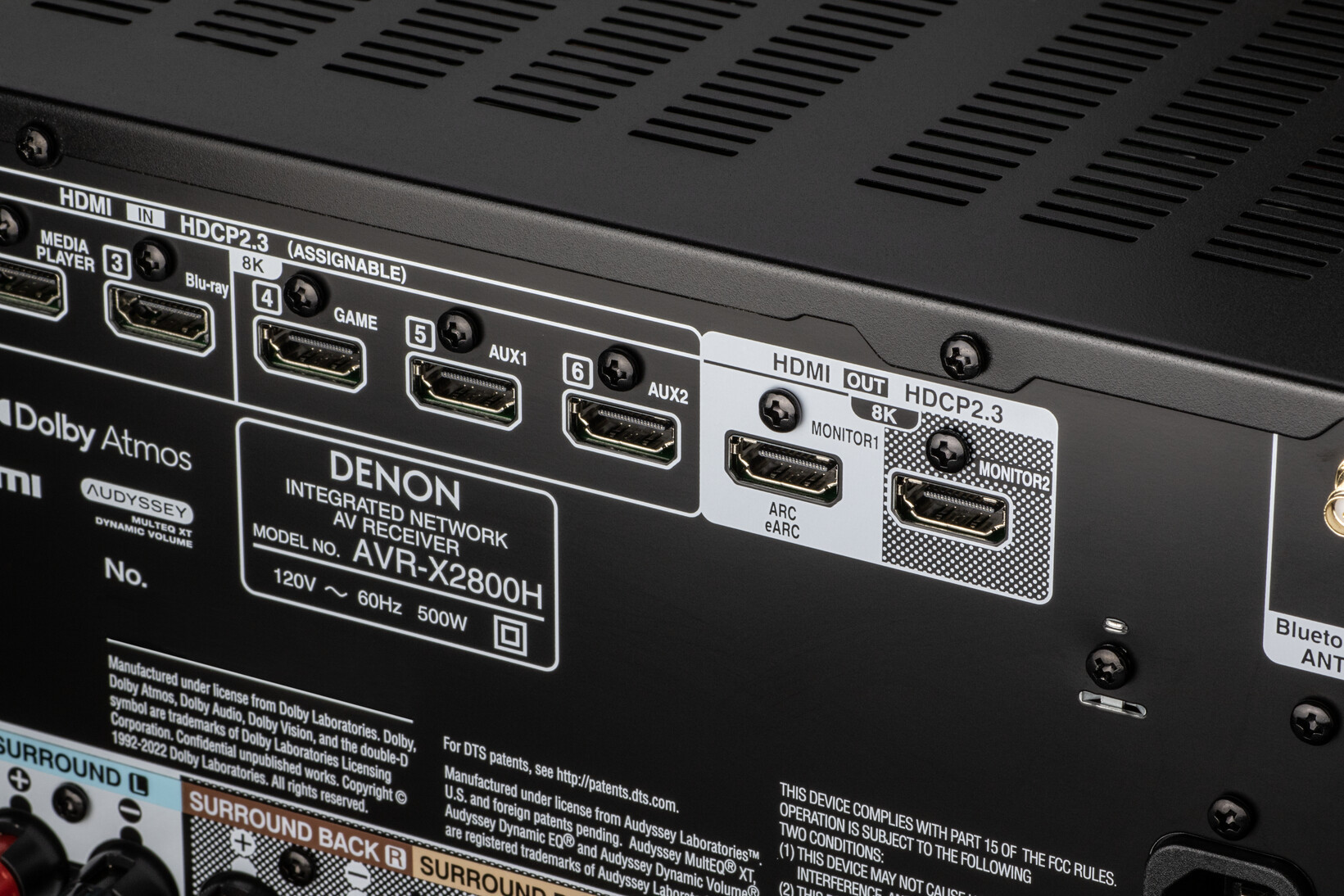

HDMI
HDMI inputs: rear / front 6, No
HDCP2.3 support Yes
HDMI outputs: Main zone / Zone 2, No
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes, Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) pass-through for gaming Yes
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching Yes, Yes, No
3D Signal Passthrough Yes
8K signal pass-through / scaling / GUI overlay Yes, Yes, Yes
AARC (Audio Return Channel) / Enhanced ARC Yes, Yes
Auto LipSync Yes
Multiroom/Installer
Number of zones (including main zone) 2
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out Yes, Yes
IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
Remote control input/output Yes, Yes
HDMI diagnosis Yes
Miscellaneous
Automatic speaker configuration with Audyssey MultEQ XT calibration microphone
Front display 1-line FLD
GUI languages 3
Setup wizard Yes
Quick Select Plus, Quick Select Yes, No
Variable crossover frequency Yes
Optimized bass redirection Yes
ECO mode Yes
Automatic shutdown Yes
Sleep timer Yes

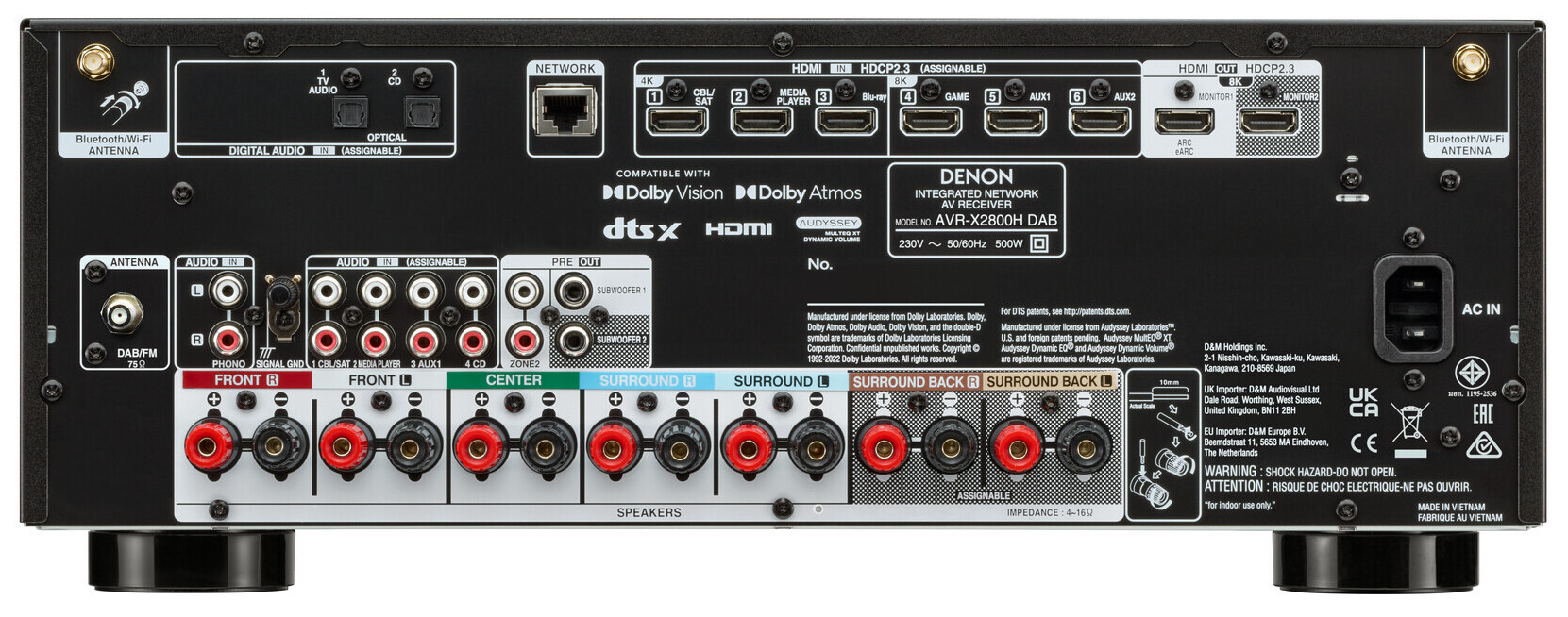

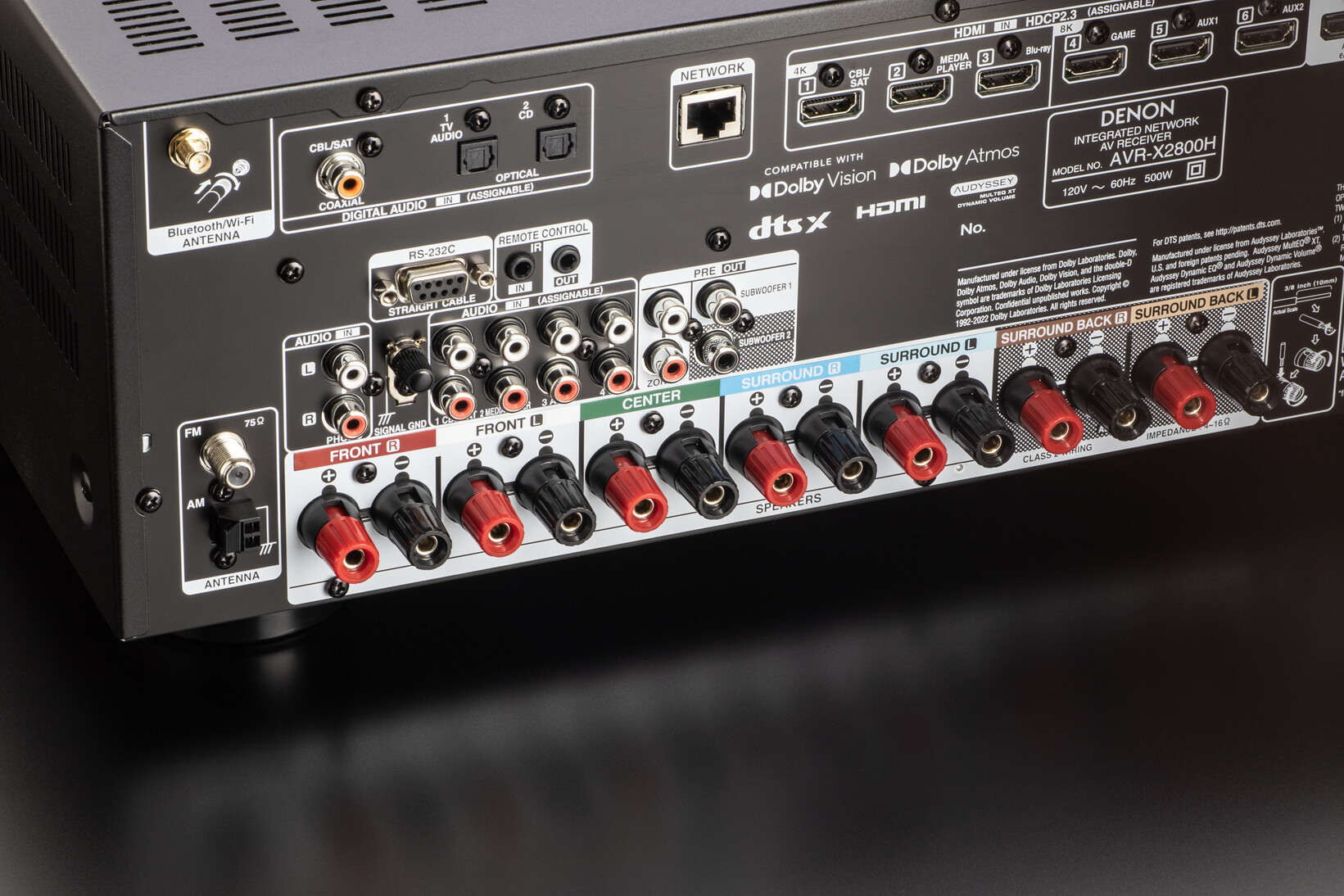

Inputs/Outputs
HDMI input/output 6, 2
Multi-Room Video Out: Video, HDMI No, No
Analog input/output 4 / No
Phono (MM) input Yes
Digital In: Optical, Coaxial 2/0
Multi-Room Out: Analogue, Digital 1 / No
Preamp output for main zone Yes (0.2)
Subwoofer output 2
Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes
Number of speaker connections 7
Speaker A/B Assignable
Bi-Amp operation Assignable
Zone speaker connections Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone Yes, No, No
AM/FM tuner yes
Technical data
Number of power amplifiers 7
Output power (8 ohms, 20 Hz - 20 kHz, 0.08% THD, 2-channel operation) 95W
Output power (6 ohms, 1 kHz, 0.7% THD, 2-channel operation) 125W
Output power (6 ohms, 1 kHz, 1% THD, 1-channel operation) 150W
Generally
System remote control RC-1253
Pre-programmed, learnable, LCD display No, No, No
Power consumption in W 500
Power consumption when idle (ECO on/off) in watts 35W/75W
Standby power consumption in W 0.1
CEC standby power consumption in watts 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
(Antenna:Vertical:(W x D x H) in mm)
? w/o antenna :(W x D x H) in mm? 434x341x167
(434x341x237)
? 434x330x167?
Weight in kg 9.5
Carton Weight (incl. product) in KG 11.5
