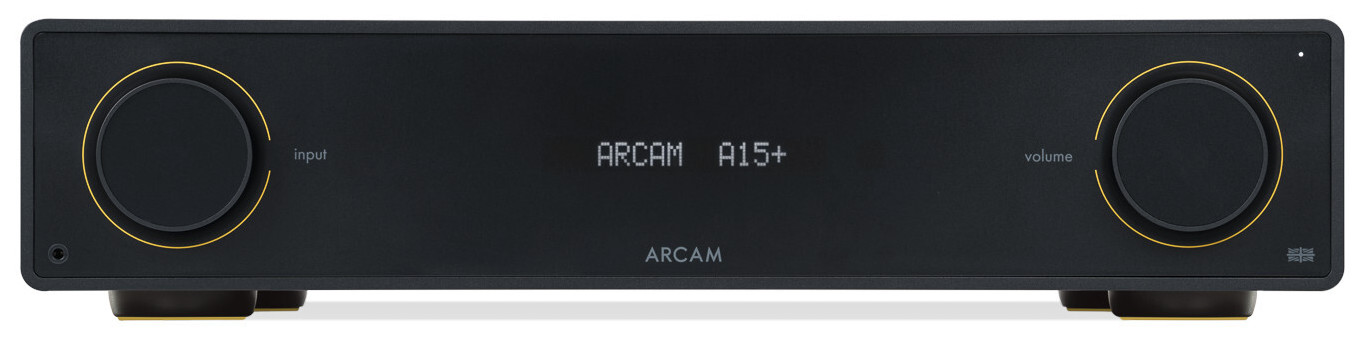

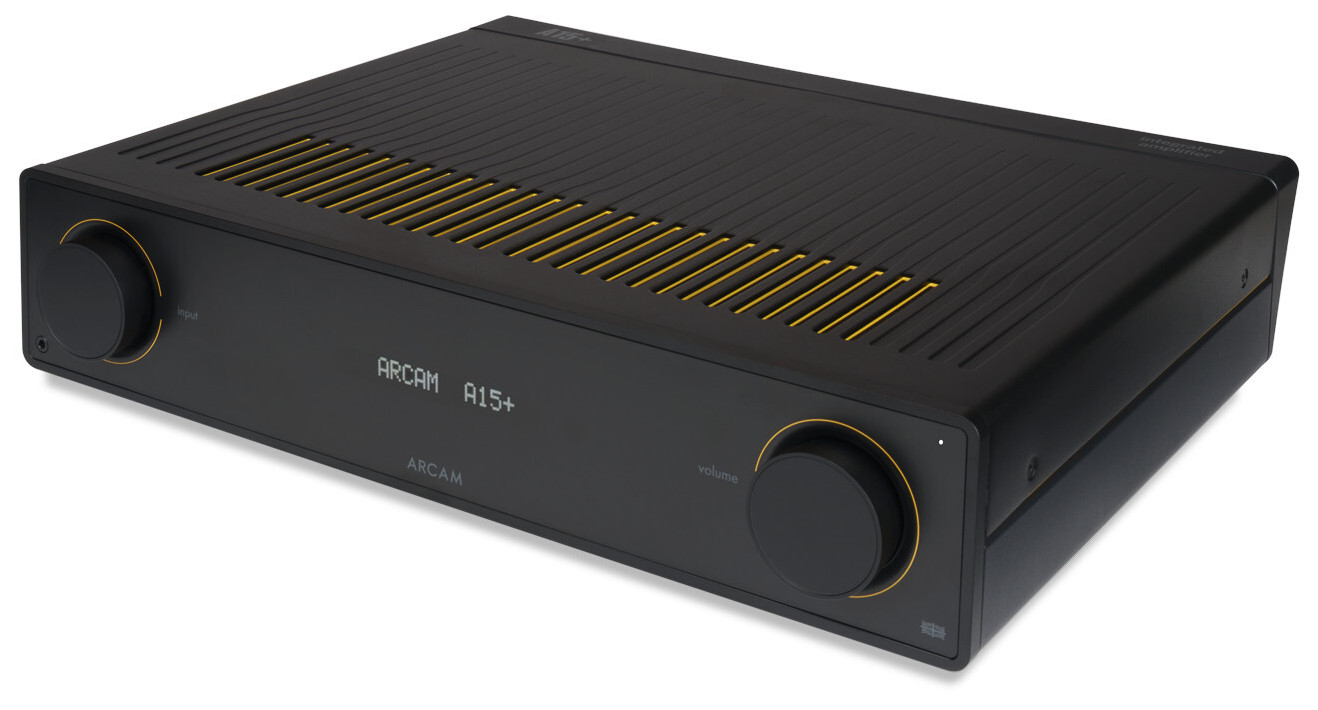

Arcam A15+ Integrated Amplifier

A15+ Integrated amplifier with Bluetooth and Auracast

The ARCAM A15+ is a powerful integrated amplifier that delivers brilliant sound for music. For over 45 years, ARCAM has stood for the highest level of amplifier expertise – beginning in 1976 with the A&R Cambridge A60. Building on the award-winning Radia A15, our engineers have developed the A15+: even more powerful, more versatile, and sonically superior.

Thanks to optimized power delivery and state-of-the-art wireless technologies, the A15+ offers an outstanding listening experience right from the start. Snapdragon Sound delivers lossless digital music via Bluetooth, while Auracast enables the simultaneous connection of multiple compatible headphones or speakers – all without complicated pairing.

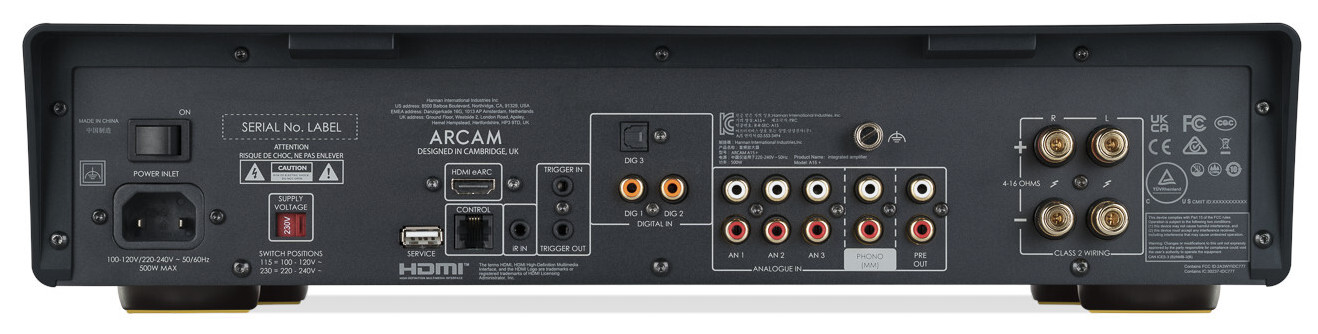

The A15+ features a wide range of analog inputs, including a finely tuned phono stage, as well as digital connections such as HDMI eARC. This allows it to deliver impressive performance for all sources – from vinyl records and TVs to wireless audio streams.

Highlights of the ARCAM A15+:

• ARCAM Class AB Amplification – for musical brilliance
• 2 x 80W output power – dynamic and powerful playback
• Wireless audio – Snapdragon Sound and Auracast integrated for maximum flexibility
• Headphone jack, wired or wireless – for undisturbed listening.
• HDMI eARC/ARC input – easy integration into TV systems
• Finely tuned phono stage – for detailed vinyl enjoyment

Technical data

Performance

• Continuous Power Output (0.5% THD), per channel:
• 2 channels operated, 20Hz – 20kHz, 800W
• 2 channels operated, 1kHz, 40: 120W
• Harmonic distortion, 80% power, 80° at 1kHz: 0.002%

Analog inputs

• Number of inputs: 3 (RCA pairs)
• Signal-to-noise ratio (A-weighted, ref. 50W, 1V input): 106 dB
• Frequency response: 20Hz – 20kHz ± 0.2 dB

Phono (MM) input

• Input resistance: 47kΩ + 100pF
• Frequency response (referenced to RIAA curve): 20Hz – 20kHz ± 1 dB

Digital inputs

• Supported sampling rates (kHz): 44.1 / 48 / 88.2 / 96 / 176.4 / 192
• Bit depth: 16 / 24 bit
• Frequency response (filter 1): 20Hz – 20kHz ± 0.2 dB
• Signal-to-noise ratio (A-weighted, ref. 50W, 0dBFS): 109 dB

headphone output

• Maximum output voltage (RMS) at 32Ω / 300Ω: 2.5V / 5V RMS
• Load range: 160 – 2kO

Wireless specifications

• Bluetooth Version: 5.4
• Supports A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD, aptX Lossless, LE Audio, Auracast
• Bluetooth Transmitter Frequency & Power: 2400 MHz – 2483.5 MHz, <20 dBm

Generally

• Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
• Power consumption (max.): 500W
• Power consumption (standby): <0.5W
• Dimensions (W x D x H including speaker terminals and feet): 431 x 344 x 98 mm
• Weight (net): 10 kg
• Weight (packaged): 13 kg
