KLH Audio Model 7 Floorstanding Speaker
€5,990.00
per Pair (Unit Price: 2.995,00 €) incl. VAT / incl. Shipping
Available in 10 days, delivery time 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
KLH Model Seven
The KLH Model Seven is the latest addition to the renowned Model Collection series. This three-way system with a 13-inch woofer is based on the proven Acoustic Suspension design that dominated the loudspeaker industry for decades and made the KLH Model Five one of the most highly regarded loudspeakers of its time.
Technology and sound quality
The KLH Model Seven's acoustic suspension design delivers the most precise and linear sound reproduction available today. The speakers are equipped with cutting-edge technology:
- Three-way system : A dedicated midrange driver ensures clear and detailed reproduction of the critical midrange.
- High-quality materials : The 1-inch tweeter features a milled aluminum front panel, while the midrange and woofer frames are made of resonance-free die-cast aluminum.
- Adjustable sound output : The three-position acoustic balance control allows individual adjustment of the sound to difficult acoustic environments.
- High-quality crossovers : The crossover consists of 13 components, including iron core coils and Mylar capacitors, to ensure precise sound separation.
Technical specifications of the KLH Model Seven loudspeaker
Frequency range:
- Frequency response: 38 Hz – 20,000 Hz (+/- 3 dB)
- Bass extension: -10 dB @ 26 Hz
Sensitivity:
- In-room sensitivity: 91 dB @ 2.83 V / 1 m
- Free-field sensitivity: 88 dB @ 2.83 V / 1 m
Perfomance:
- Power handling: 250 watts / 1,000 watts peak power
- Recommended amplifier power: 20 watts – 250 watts
- Maximum in-room SPL: 115 dB
- Maximum output level at 45 Hz: 111 dB
Impedance:
- Nominal impedance: 4 ohms
Radiation behavior:
- Horizontal dispersion: 140 degrees
Crossovers:
- Midrange: 300 Hz
- High frequency range: 3,500 Hz

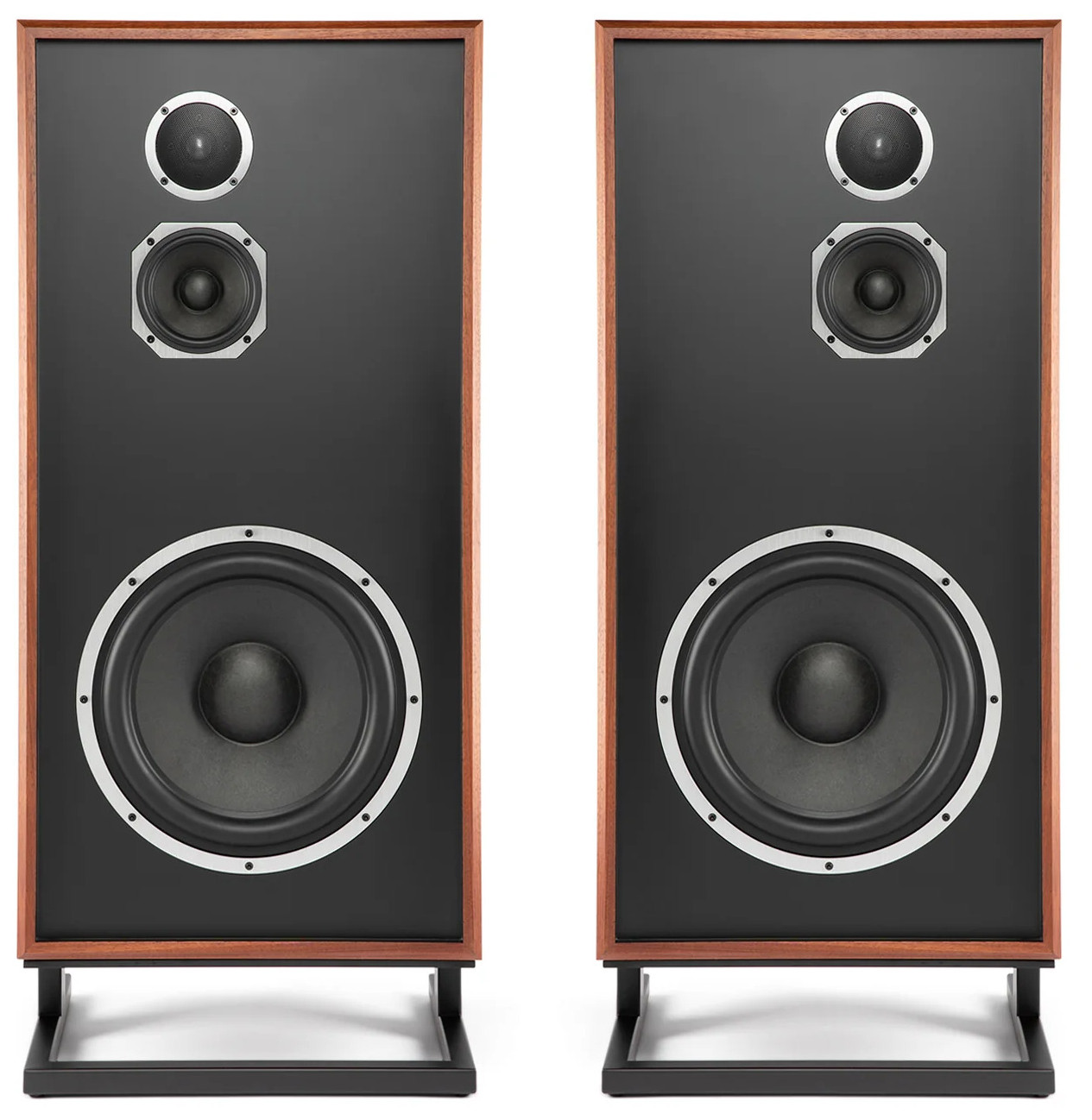

Driver:
- Tweeter: 1' aluminum dome with soft rubber suspension
- Midrange driver: 5' cellulose membrane with reverse-roll rubber suspension
- Woofer: 13' cellulose cone with reverse-roll rubber suspension, 2' flat wire voice coil
Housing:
- Material: Reinforced MDF boards (3/4' & 1')

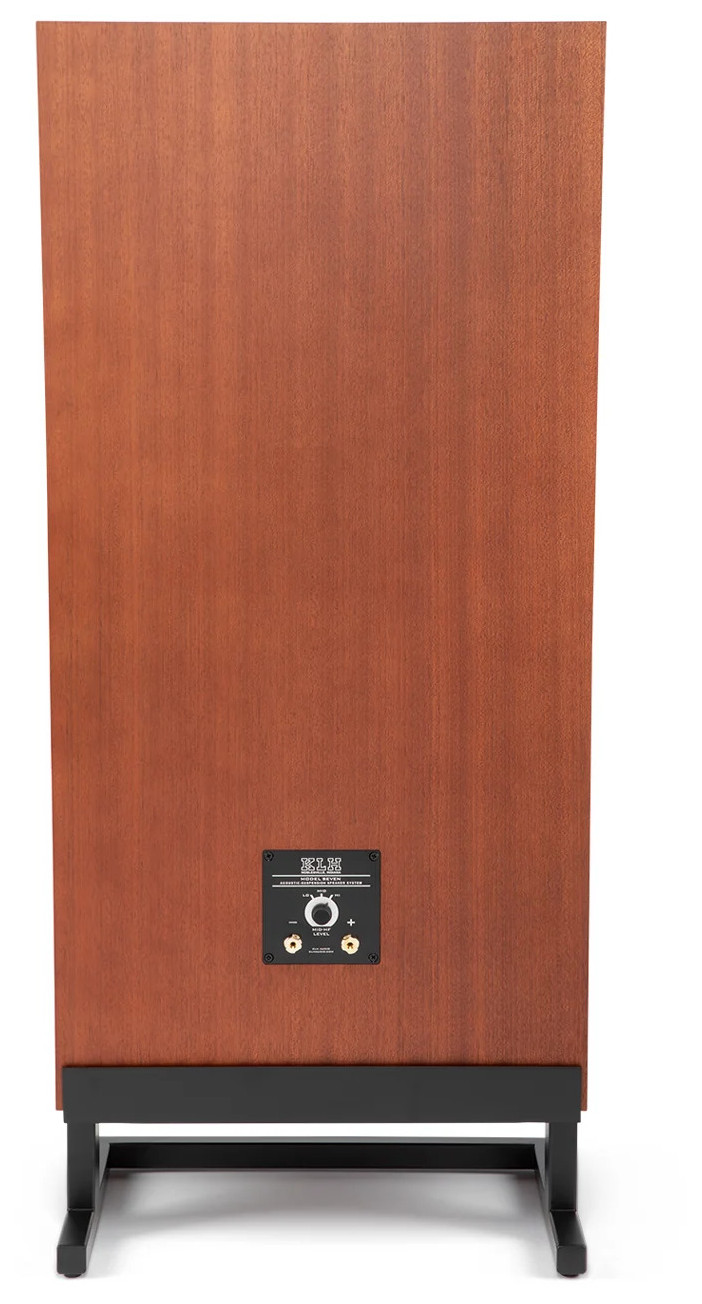

Connections:
- Connection terminals: five-way gold-plated binding posts
Dimensions:
- Height:
- With riser base: 41" (104.1 cm)
- Without riser base: 36' (91.4 cm)
- Width: 18' (45.7 cm)
- Depth:
- With Riser Base: 12.25" (31.1cm)
- Without riser base: 9.75' (24.8 cm)
Weight:
- Without riser base: 68 lbs. (31kg)
- With riser base: 78.8 lbs. (35.8kg)
Accesories:
- Matte black riser base with 3° tilt
Special features:

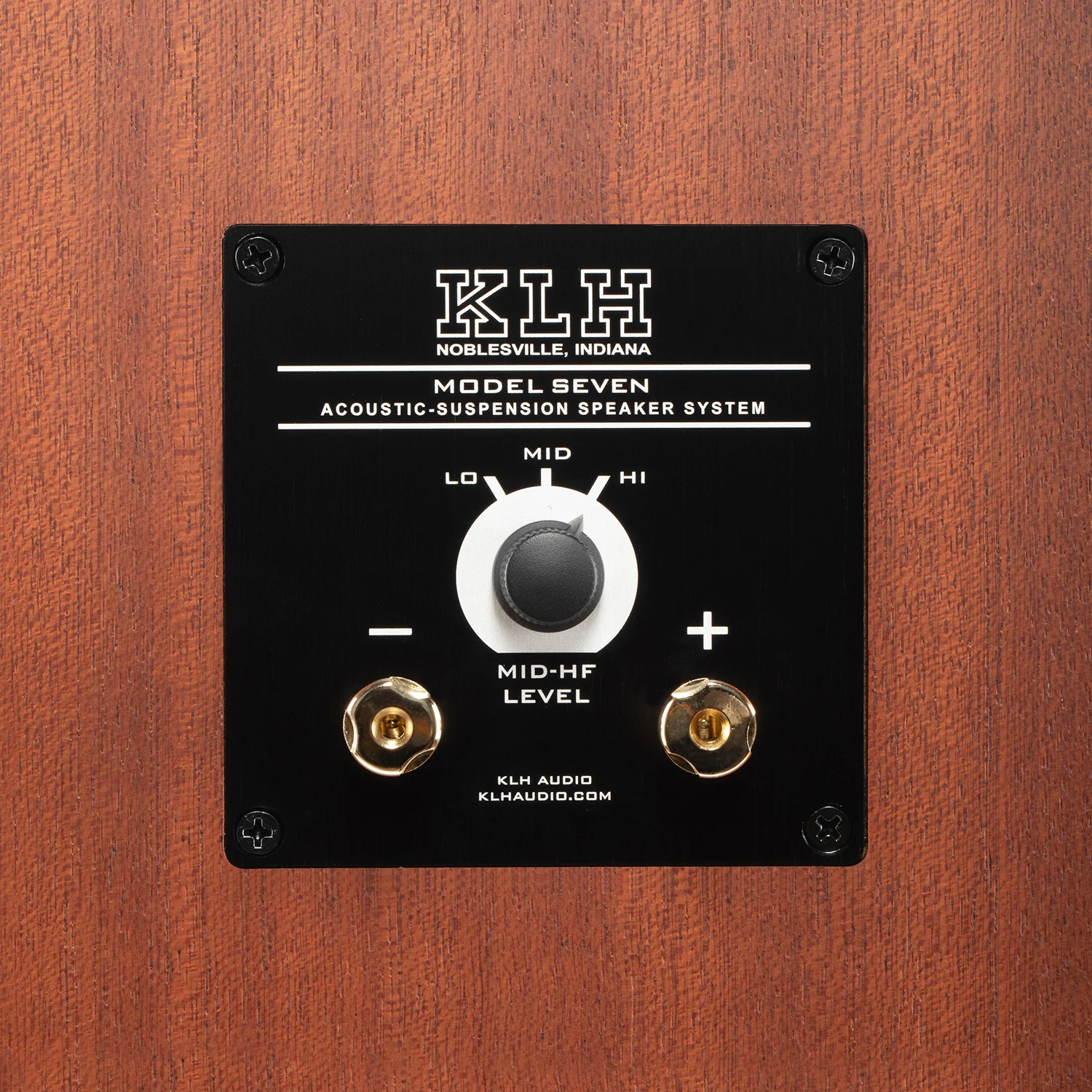

- Three-position acoustic balance control
| Color: | English Walnut |
|---|---|
| Condition: | new item |
| Device depth mm: | 311 |
| Device height mm: | 1041 |
| Device width mm: | 457 |
Safety Information
Product-specific safety instructions can be found in the operating manual.
