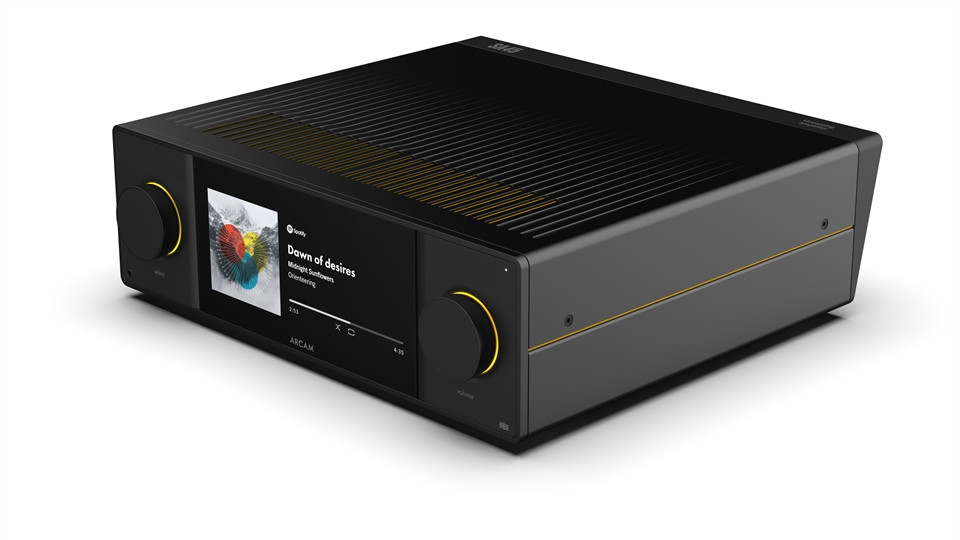

Arcam SA 45 compact integrated amp incl. streaming client

ARCAM S45 INTEGRATED AMPLIFIER WITH INTEGRATED STREAMING CLIENT

The ARCAM SA45 is the ultimate all-in-one streaming system for discerning music lovers. Designed in Cambridge, UK, it uses cutting-edge technology to reproduce music in its purest form. The SA45 relies entirely on balanced digital and analogue audio paths for pristine sound quality.

Thanks to an innovative digital audio and streaming platform, the SA45 achieves exceptional audio fidelity. The board's extensive ground plane minimizes noise and interference, while ESS's latest Hyperstream iV DAC topology and advanced jitter elimination are used in a balanced configuration. A linear toroidal transformer power supply design ensures quiet operation of all internal components, further enhancing sound quality.

As a high-resolution audio solution, the ARCAM SA45 offers complete flexibility. With subwoofer outputs and Dirac Live room correction, it optimises the sound in any room and with any speaker configuration. ARCAM's 5th generation Class G amplifier design delivers 2x 180W of power with ultra-low distortion, resulting in excellent sound quality and dynamics. New components and materials have been carefully selected and tested to ensure uncompromising sound performance.

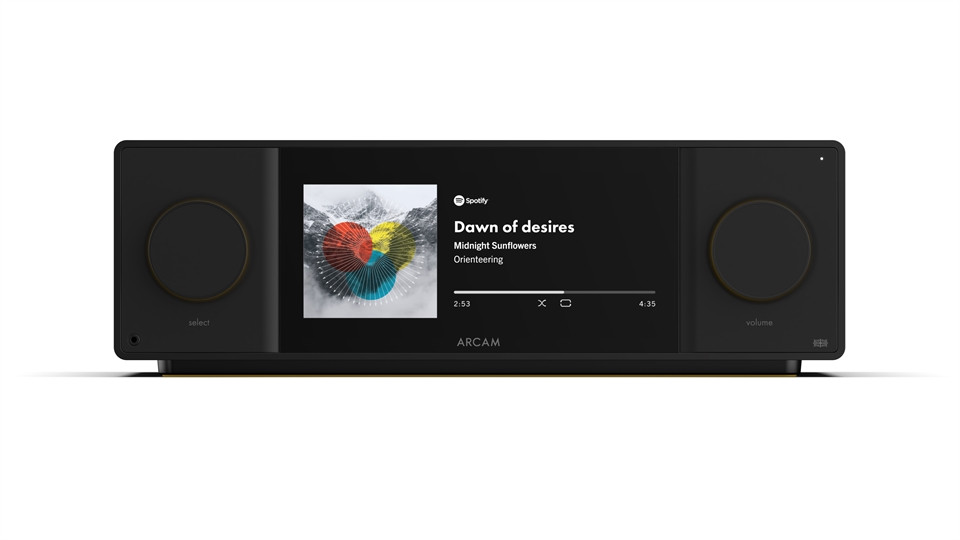

The large 8.8" high-resolution display on the front shows album art and metadata in impressive clarity. Connecting to your home network via WiFi is quick and easy with the ARCAM Radia app. Once set up, you can immediately enjoy Apple Airplay, Chromecast, Spotify Connect, Tidal Connect and Roon.

Key Features:

• Ultra-high-resolution streaming platform for premium sound quality
• ARCAM Class G amplification with 2x 180W power and minimal distortion
• Symmetrical analog and digital audio paths
• MM and MC phono inputs
• HDMI eARC input
• Dual subwoofer outputs and Dirac Live room correction
• High-resolution display for clear display of album art and metadata
• Support for Apple Airplay, Chromecast, Spotify Connect and Tidal Connect
• Easy setup with the ARCAM Radia app for presets, internet radio and podcasts
• Hi-Res audio support up to 32 bit / 768 kHz
• Roon Ready

TECHNICAL DATA

Continuous power (0.5% THD) per channel:

• 2 channels operated, 20Hz—20kHz, 8O: 180W
• 2 channels operated, 1kHz, 4O: 300W
• Harmonic distortion, 80% power, 8O at 1kHz: 0.002%

Analog inputs:

• Number of inputs: 3x RCA pairs + 1x XLR pair
• Phono inputs: MM and MC
• Frequency response: 20Hz—20kHz ± 0.2dB
• Signal-to-noise ratio (A-weighted, based on 50W, 1V input): 106dB

Digital inputs:

• Supported streaming media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 1024), MP3, MP4, OGG, WMA
• Supported streaming bit depths: 16, 24, 32
• Supported streaming sample rates (kHz): up to 768 kHz
• Gapless playback: Yes
• Digital audio inputs: 1x HDMI ARC, 2x coaxial (RCA), 2x optical (Toslink)
• Supported bit depths of digital inputs: 16, 24
• Supported sampling rates of digital inputs (kHz): up to 192 kHz
• Frequency response (filter 1): 20Hz—20kHz ± 0.2dB
• Signal-to-noise ratio (A-weighted, based on 50W, 0dBFS): 110dB

Wireless specifications:

• Bluetooth profile: 5.2; A2DP sink/source, AVRCP, BLE, aptX, aptX HD, aptX Adaptive, AAC
• Bluetooth transmit frequency and power: 2402 MHz to 2480 MHz <13dBm
• Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• 2.4G Wi-Fi transmit frequency range and power: 2400-2483.5MHz (US 11 channels, Europe and others 13 channels) <20dBm
• 5G Wi-Fi transmit frequency range and power:
  • 5150-5250MHz <23dBm
  • 5250-5350MHz & 5470-5725MHz <20dBm
  • 5725-5850MHz <14dBm

Generally:

• Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
• Power consumption (maximum): 1500W
• Power consumption (standby): <0.5W
• Dimensions W x D (including speaker terminals) x H (including feet): 431 x 344 x 143mm
• Weight (net): 17 kg
• Weight (packed): 20 kg

Included supply:

• Power cable
• Remote control with 2 x AAA batteries
• Measuring microphone
• 5m USB cable
• Quick start guide
• important safety instructions
