Lyngdorf Audio SDA-2400

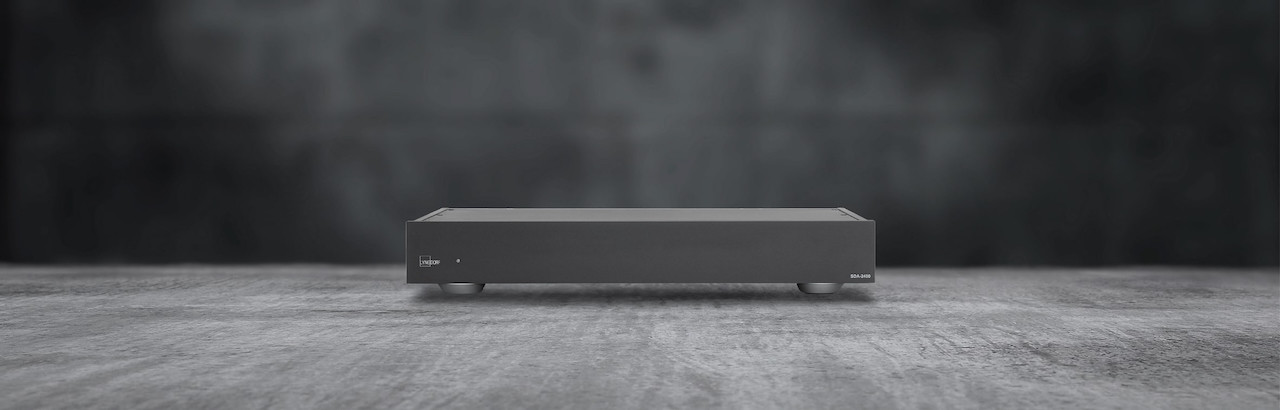

The SDA-2400 is a class D digital power amplifier from Lyngdorf Audio. With its slim and elegant design and optional rack mount, the power amplifier can be used universally. Even if it can be combined with all pre-stages, it is also the perfect extension for the TDAI-2170.
The output stage has an output of 2 x 400 watts at 4 ohms. It is therefore ideally equipped for almost all types of loudspeakers. Together with the TDAI-2170, a 2 + 2 speaker system can be formed in addition to a more powerful 2-channel setup. Bi-amping with large speakers is also conceivable. Other suitable combination options are the connection with a media player such as a Chord DSX-1000 or a Lyngdorf DPA-1. In the surround area, the SDA-2400 can also be used as a surround power amplifier with a surround processor such as the Steinway & Sons P1.
Why digital inputs?
In addition to analog inputs (RCA & XLR), digital inputs (USB-DAC, SPDIF and TOSLINK) are also installed. This means that the data is transmitted in the digital area. That means: no loss of information, so better quality. The device focuses on optimal jitter handling for improved signal processing.
For technology lovers
The following are installed:
Wolfson WM8804 PLL transceiver
Supports 192kHz / 24 bit digital input
Separate quartz clocking for optimal jitter reduction at the input
Burr-Brown / TI PCM5102 High Performance DAC
DirectPath Ö Stereo-Digital-Analog-Converter with 112dB output
Harmonic distortion (THD + N) at -1dBFS: 93dB
Excellent dynamic performance and improved tolerance to jitter clocking in the segment DAC architecture
In the event of clock errors or system failure, the analog inputs are muted and the system is automatically restored to avoid serious consequences
| Color: | black |
|---|---|
| Condition: | new item |
| Device depth mm: | 360 |
| Device height mm: | 730 |
| Device width mm: | 450 |

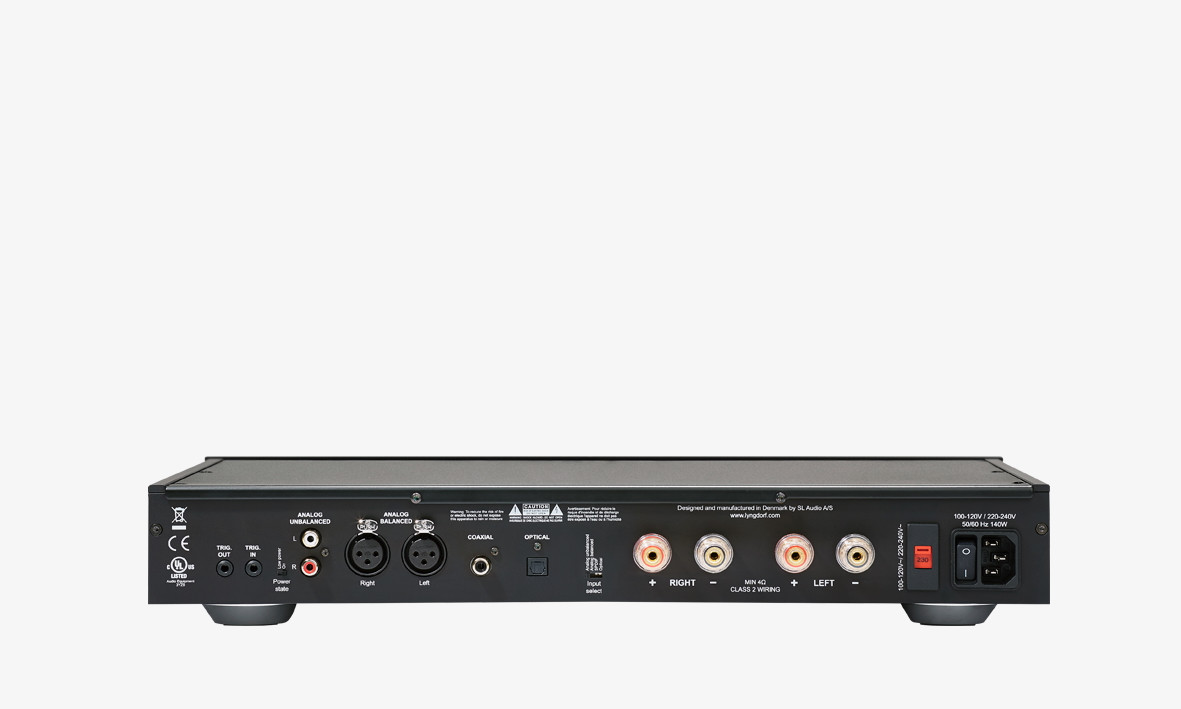

| Inputs: | Analog RCA, Analog XLR, Control 3.5 mm jack two-pole 12-volt trigger, Digital RCA, Digital Toslink |
| Material: | aluminum, plastic |
| Outputs: | Control 3.5 mm jack two-pole 12-volt trigger |
| Power amplifier channels: | 2 |
| Power per channel in W: | 200 |
| Product type: | Power amplifier |
| Series: | SDA |
| Surface: | aluminum |
Manufacturer
SL Audio A/S
Rævevej 3
DK-7800 Skive
Denmark
contact@lyngdorf.com
EU Representative
Drei H Vertriebs GmbH
Stormsweg 8
22085 Hamburg
Germany
info@3-h.de
Safety Information
Product-specific safety instructions can be found in the operating manual.
