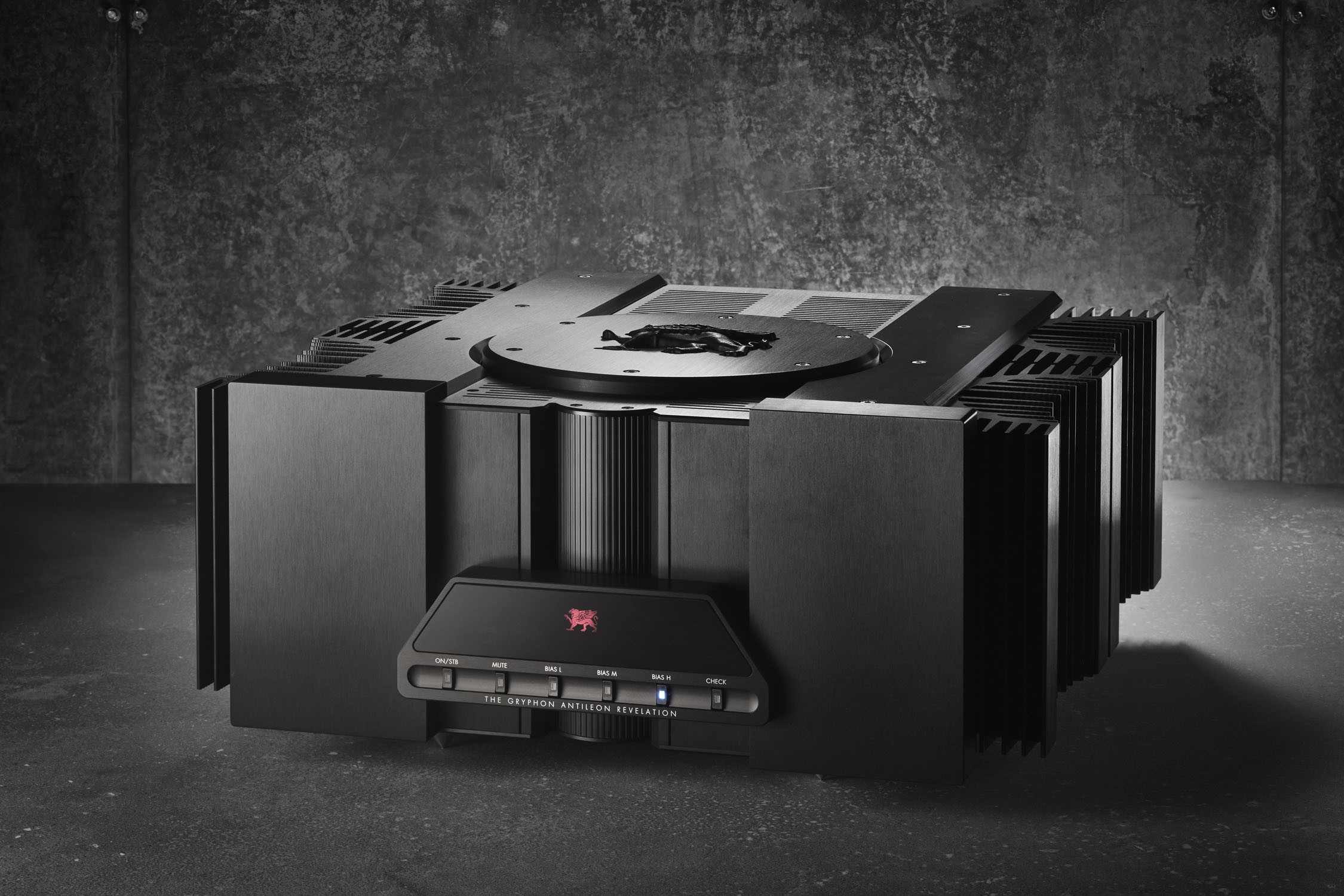

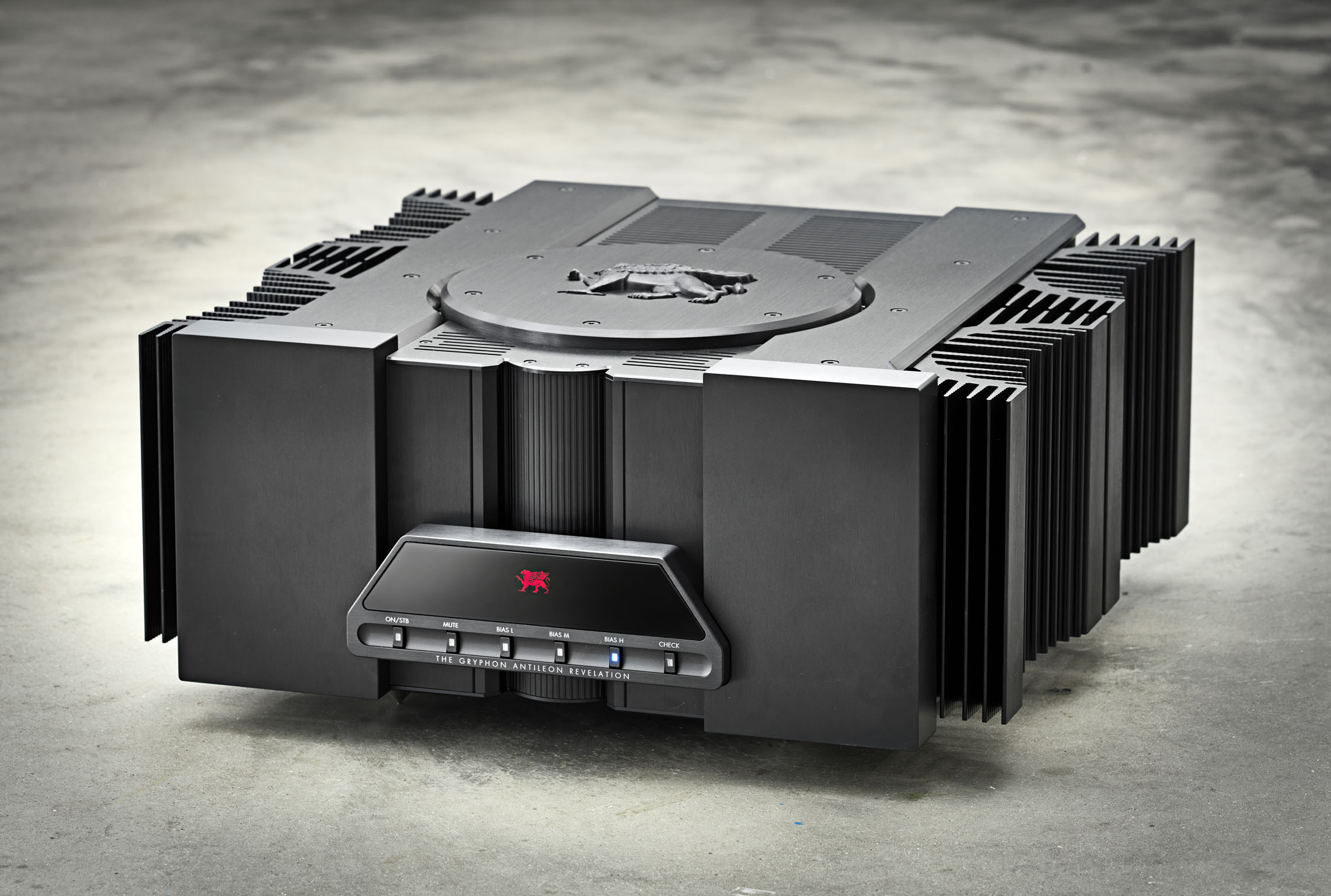

Gryphon Antileon Revelation power amplifier
Technical excellence in its latest form: To mark Gryphon Audio Designs' 40th anniversary, the Antileon Revelation celebrates its premiere – the most advanced version of the legendary amplifier to date.
Building on the technological heritage of the DM-100 introduced in 1991, the Revelation combines modern engineering with Gryphon's signature design principles:
- uncompromising dual-mono architecture
- pure Class A circuit and
- highest performance reserves.
Technical highlights at a glance:
Optimized power supply: Two separate, specially designed 1150 VA toroidal transformers per chassis ensure a stable and powerful power supply. An additional, independent power supply precisely controls the digital electronics—decoupled from the audio signal path.

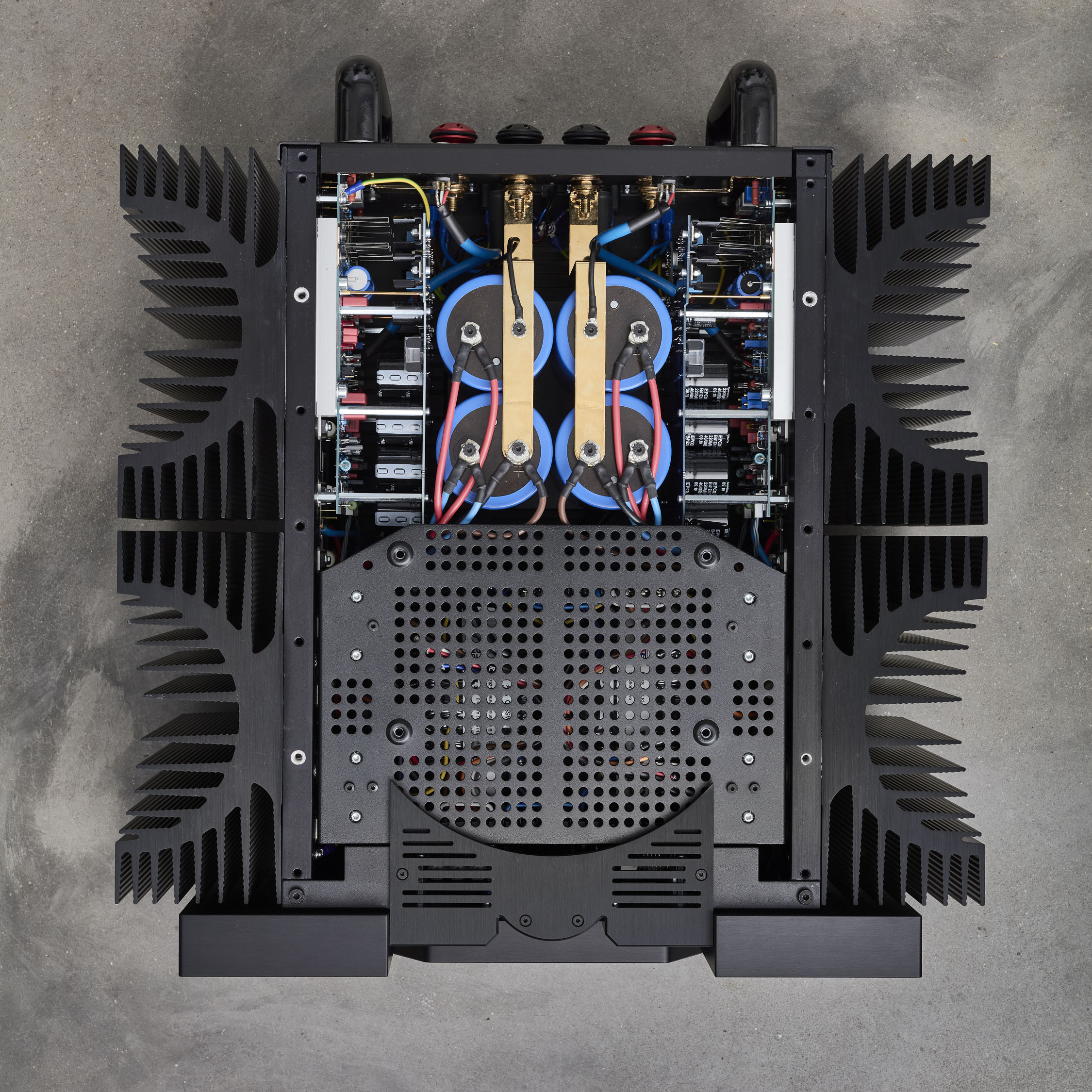

Massive power reserves: A total of 40 Toshiba high-current bipolar transistors per chassis – identical to those in the Gryphon Apex – as well as an impressive 670,000 µF filter capacitance enable confident control over any speaker load.

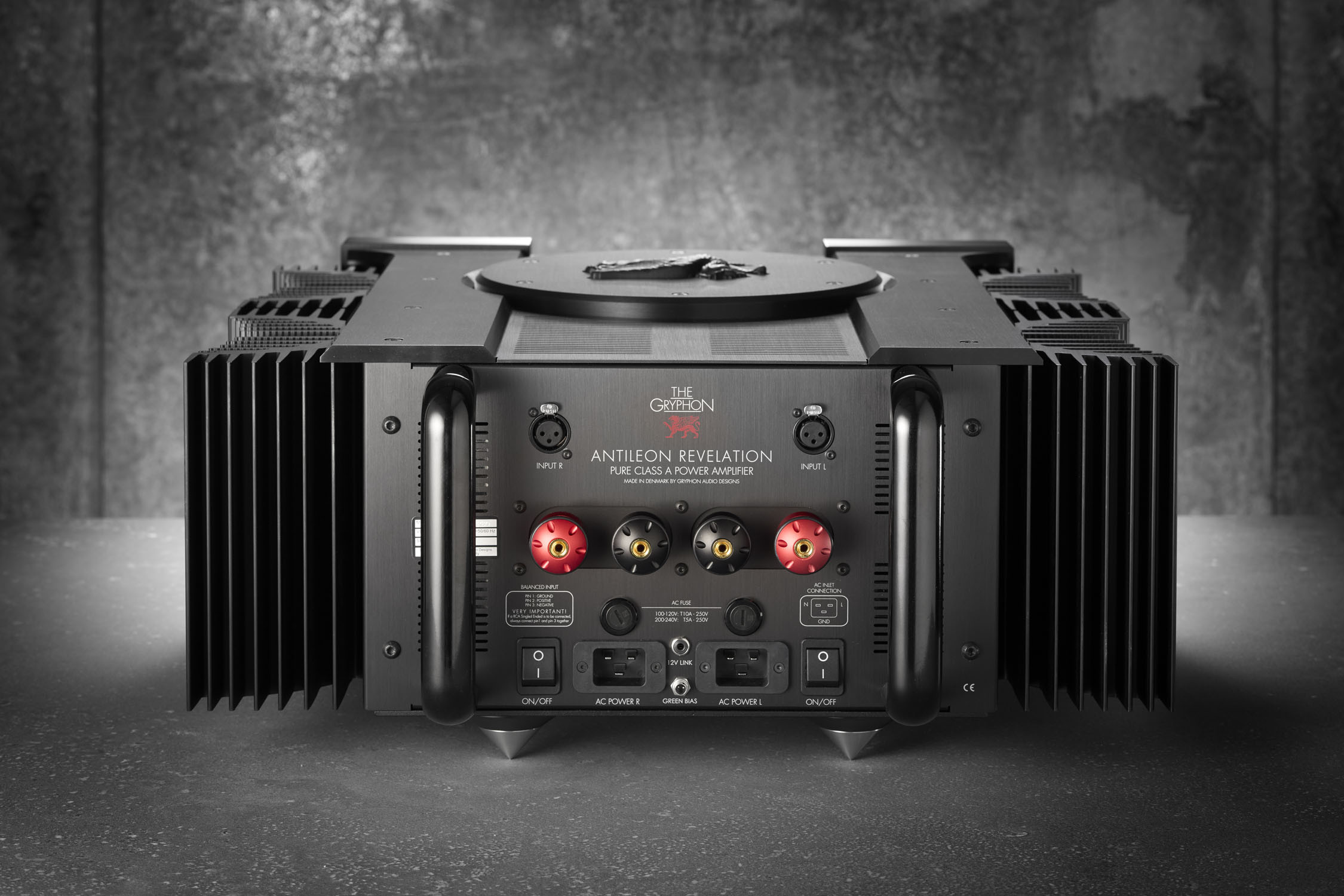

New connection components: The rear panel has been equipped with custom-made Gryphon speaker terminals and two 20A mains connectors, ensuring loss-free power supply at maximum performance.

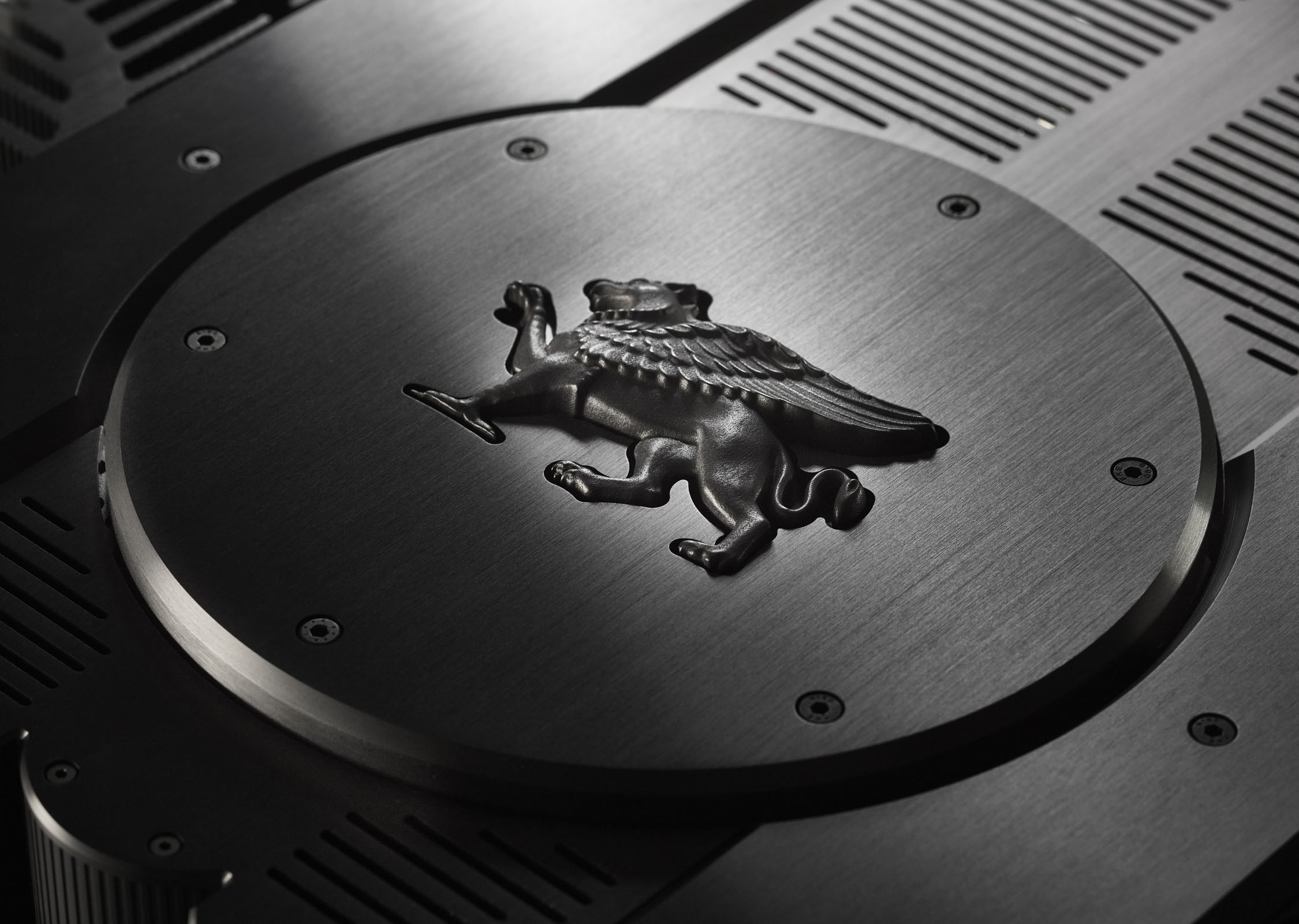

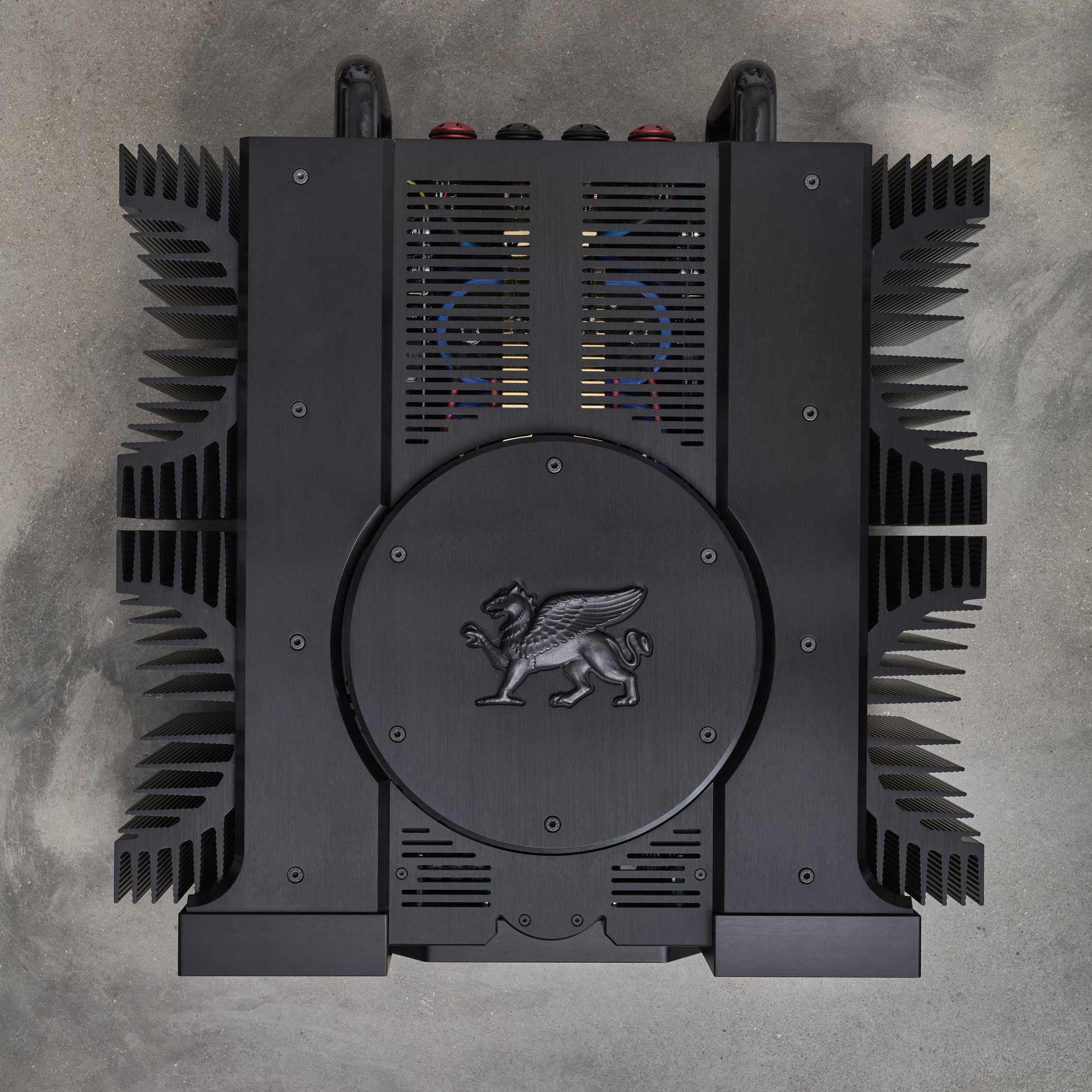

Design meets function: The high-quality metal craftsmanship of the Antileon EVO remains intact. A new addition is a striking Gryphon sculpture that covers the transformer as a decorative and protective element.
Operational flexibility: The Antileon Revelation is available as a stereo version with 165 W per channel and as a mono version with 180 W – each in pure Class A operation for maximum sonic purity.
The Antileon Revelation redefines the standard: with increased dynamics, an even deeper bass foundation, airier highs and a three-dimensional sound image that impresses with its technical sophistication.
Revelation Mono – Technical Features
- Pure dual-mono design
- 2 × 40 high-current bipolar transistors from Toshiba per mono channel (total 80 per device)
- Capacitor bank with 670,000 µF per mono channel
- Balanced, differential Class-A input circuit with extremely fast voltage amplification
- Fully regulated, low-noise power supply for all amplifier stages
- Without output relay – for unadulterated signal flow
- DC servo coupling
- Frequency-independent damping factor
- Silver plated internal Gryphon signal cables
- High-quality polypropylene capacitors for local decoupling of the power supply
- Encapsulated and decoupled transformers to minimize mechanical influences
- Double-sided boards with up to 105 µm copper according to military specifications
- Two custom-made 1150VA toroidal transformers per mono channel
- Separate power supplies for analog and digital circuits
- Soft-start circuit to protect the house fuse when switched on
- Gold-plated Neutrik XLR input (female) – one balanced input per channel
- Gold-plated Neutrik XLR loop-through output (male)
- Gold-plated, custom-made speaker terminals
- AC Polarity Indicator
- 12V trigger input/output for remote control

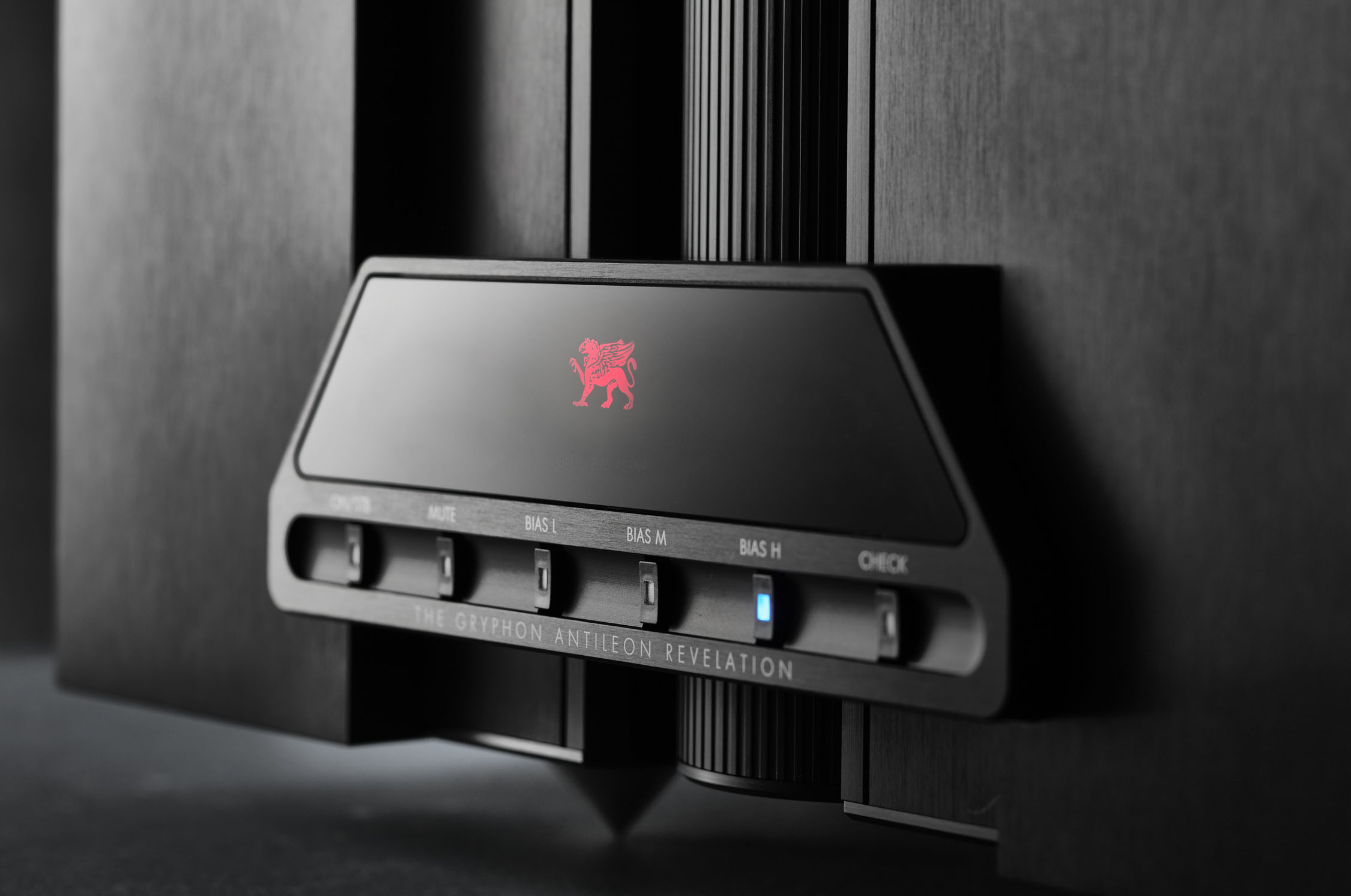

- Automatic “Green Bias” control or manual bias adjustment (Low / Mid / High)
- Firmware updates via PC or key fob (flash memory)
- Non-invasive protection circuit
- Standby power consumption less than 0.5 W
- Equipped with spikes and washers for optimal mechanical decoupling
- CE certification (EU)
- Development and production in Denmark
Technical data
- Output power per mono channel:
1 × 180 W at 8 Ohm
1 × 360 W at 4 Ohm - Supply voltage: 115 V / 230 V AC
- Output impedance: 0.02 ohms
- Frequency range (-3 dB): 0.3 Hz to 350 kHz
- Total capacity of the power supply: 2 × 670,000 µF
- Gain: +31.0 dB
- Input impedance (balanced, 20 Hz – 20 kHz): 10 kOhm
- Power connection: 1 × IEC C19 per mono channel
Dimensions & Weight
- Dimensions (W × H × D): 57 cm × 26 cm × 60 cm
- Weight: 84 kg per mono chassis (net)
| Color: | black |
|---|---|
| Condition: | new item |
| Device depth mm: | 600 |
| Device height mm: | 260 |
| Device width mm: | 570 |
| Features / special features: | Pure Class A amplifier |
| Inputs: | Analog XLR |
| Material: | aluminum |
| Power amplifier: | Mono |
| Product type: | power amplifier |
| Surface: | aluminum |
