Rotel RMB-1504 Amplifier
€1,349.00
per Piece incl. VAT / incl. Shipping
Available in 7 days, delivery time 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.
RMB-1504
The RMB-1504 4-channel Class AB amplifier offers a continuous promise of performance without compromise and builds on over 55 years of Rotel amplifier design and in-house hi-fi electronics manufacturing. This amplifier offers the power and refinement appropriate for home theater installations as well as custom multi-room installation solutions.
Technical details
DIMENSIONS (W × H × D)
431×144×443mm
17' × 5.7' × 17.5'
PANEL HEIGHT
3U / 132.6mm (5.25')
POWER SUPPLY
230V, 50Hz
POWER CONSUMPTION
450W
STANDBY POWER CONSUMPTION
Standby < 0.5W
Signal Sense 1W
NET WEIGHT
14.9kg (32.8lbs.)
Btu
810 BTU/hr
CONTINUOUS OUTPUT
4 x 70W/Ch (all channels used, 8O)
OVERALL THD
(20Hz–20kHz, 8O) <0.03%
FREQUENCY RESPONSE
10Hz - 100kHz ±1dB
NOISE-TO-NOISE RATIO (IHF A)
115dB
GAIN
26dB
More specifications
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
>200
SPEAKER IMPEDANCE
4O minimum
INPUT SENSITIVITY
1V
INPUT IMPEDANCE
20kO
Product description
The RMB-1504 4-channel Class AB amplifier delivers 70 watts per channel into 8 ohms and 115 watts into 4 ohm loads, with an ongoing commitment to uncompromising performance backed by over 55 years of design, engineering and... Manufacture of Rotel Amplifiers. This amplifier provides power and refinement for object-based overhead speakers in home theater installations and the demanding drive required for custom installation and multi-room audio solutions.

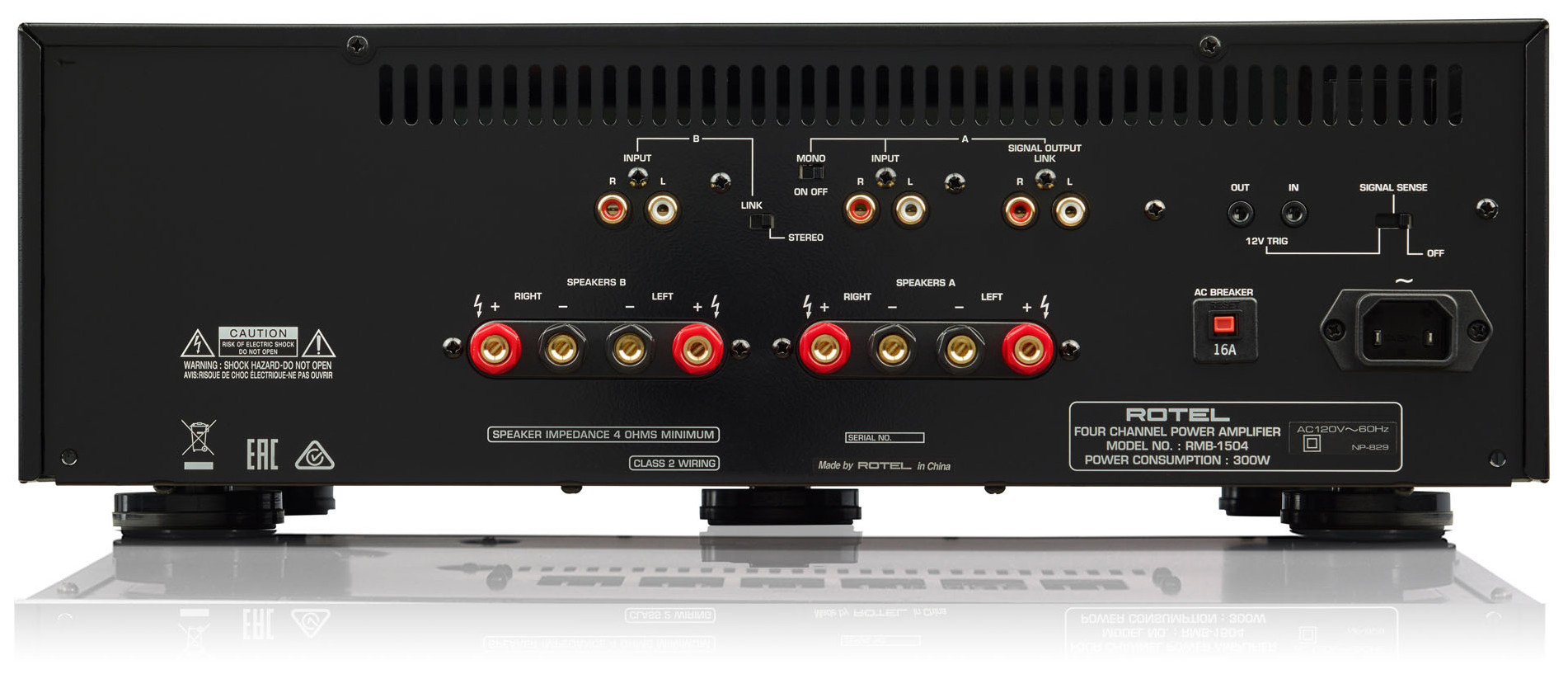

The 12 volt trigger input and output connectors, user-selected power control for capturing the audio signal, front panel volume controls, audio output link connections, 5-way speaker binding posts, and available rack-mounting kit provide ultimate installation flexibility.
An oversized factory-made toroidal transformer and high-efficiency capacitors drive a bank of high-current output transistors that ensure fast transient response, accurate detail, and controlled low-frequency consistency, regardless of speaker power rating or cable run distance. Maintaining crucial timing and energy while delivering effortless performance is a hallmark of this amplifier, which offers more speaker placement options.
Critical evaluation of circuit design and careful selection of each acoustic audio component ensures accuracy, power and efficiency combined with an unmatched build quality that ensures this amplifier proudly bears the Rotel name.
