Rotel RC-1590 MKII Stereo Amplifier

RC-1590MKII

Reference audio systems call for reference equipment The Rotel RC-1590MKII reference preamplifier reproduces audio signals with natural expression, an open stage and dynamic clarity. The RC-1590MKII finely tunes analogue, digital and Bluetooth sources as well as turntables so you can immerse yourself in your favorite music.

Important information at a glance

• Roon certified
• Supports MQA and MQA Studio
• Premium 32-bit/384kHz digital-to-analog converters from Texas Instruments
• MM phono input for connecting a turntable
• Wireless aptX™ and AAC Bluetooth

Technical details

DIMENSIONS (W × H × D):

431×144×348mm
17' × 5.7' × 13.9'

PANEL HEIGHT:

3U / 132.6mm (5.25')

POWER SUPPLY:

230V, 50Hz

POWER CONSUMPTION:

45W

STANDBY POWER CONSUMPTION:

<0.5W

NET WEIGHT:

10.1kg (22.27bs.)

BTU :

78 BTU/hr

CONTINUOUS OUTPUT POWER:

(20Hz - 20kHz) <0.002%

TOTAL HARMONIC FACTOR:

High level inputs: 10Hz - 100kHz (+0dB, +0.1dB)

Digital inputs: 20Hz - 20kHz (0±0.5dB, Max)

Phono input: 20Hz - 20kHz (+0.3dB, -0.2dB)

NOISE-TO-NOISE RATIO (IHF A):

High level inputs (RCA): 117dB

High level inputs (XLR): 115dB

Digital inputs: 108dB

Phono input: 80dB

Product description

Reference audio systems call for reference units The Rotel RC-1590MKII is just that - a reference preamplifier that reproduces analog and digital sources with great naturalness on a wide and open stage with impressive clarity.

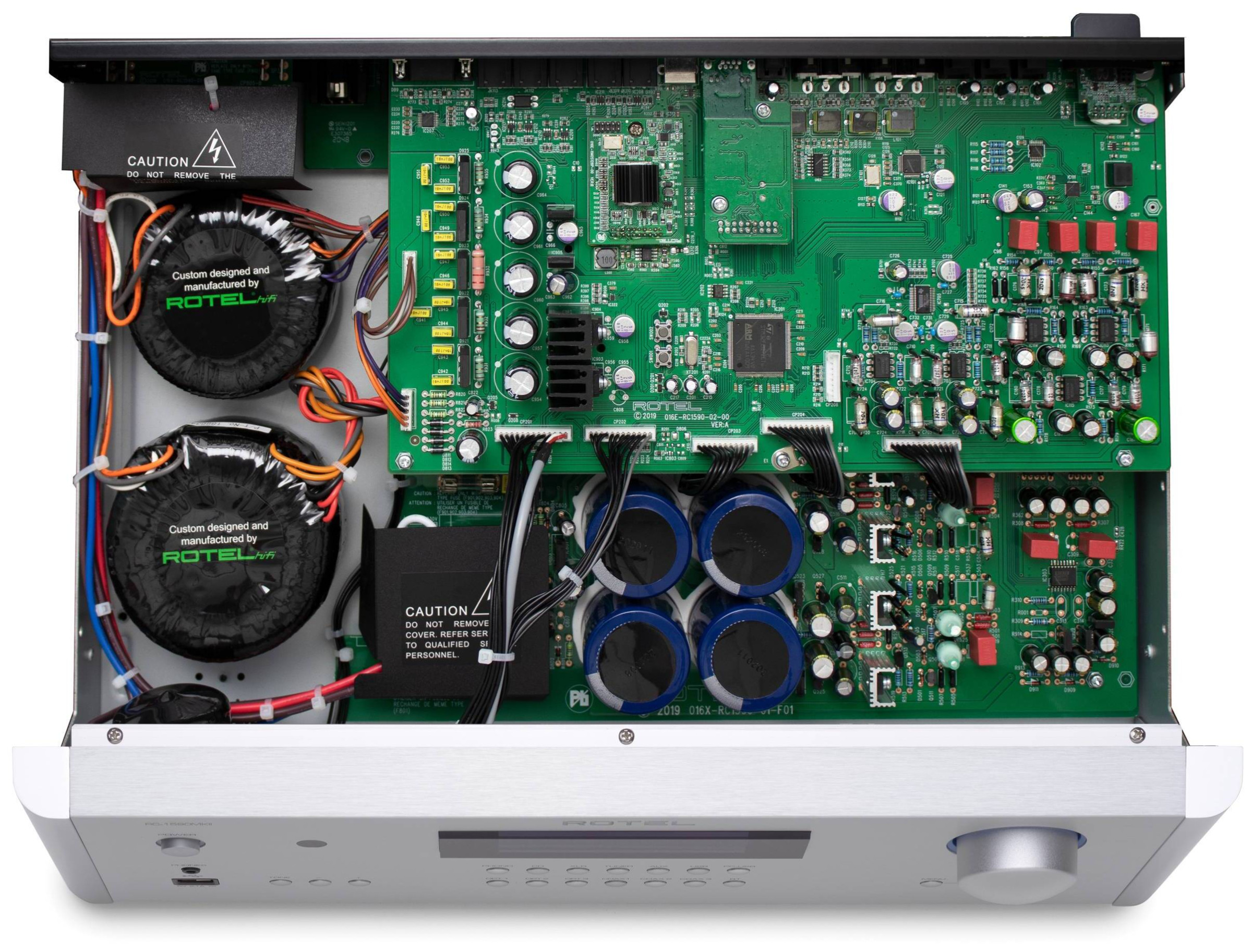

The heart of the RC-1590MKII is a power supply with two Rotel-made toroidal transformers. The transformers are physically and electrically isolated from each other and separately source the supply voltages for the analog and digital circuitry via low-ESR slit-foil capacitors that eliminate unwanted distortion and provide an extremely low noise floor.

The digital input signals are processed with an audiophile-quality 32-bit/384 kHz Texas Instruments digital-to-analog converter (DAC) with carefully tuned external audio filters to reproduce even the finest details with exceptional clarity and precise localization.

The analog signal paths feature DIRECT-PATH bypass modes to bypass non-essential circuitry, preserve full signal integrity, and provide even better rejection of unwanted glitches and distortions. This allows you to immerse yourself even more deeply and intensively in your music.

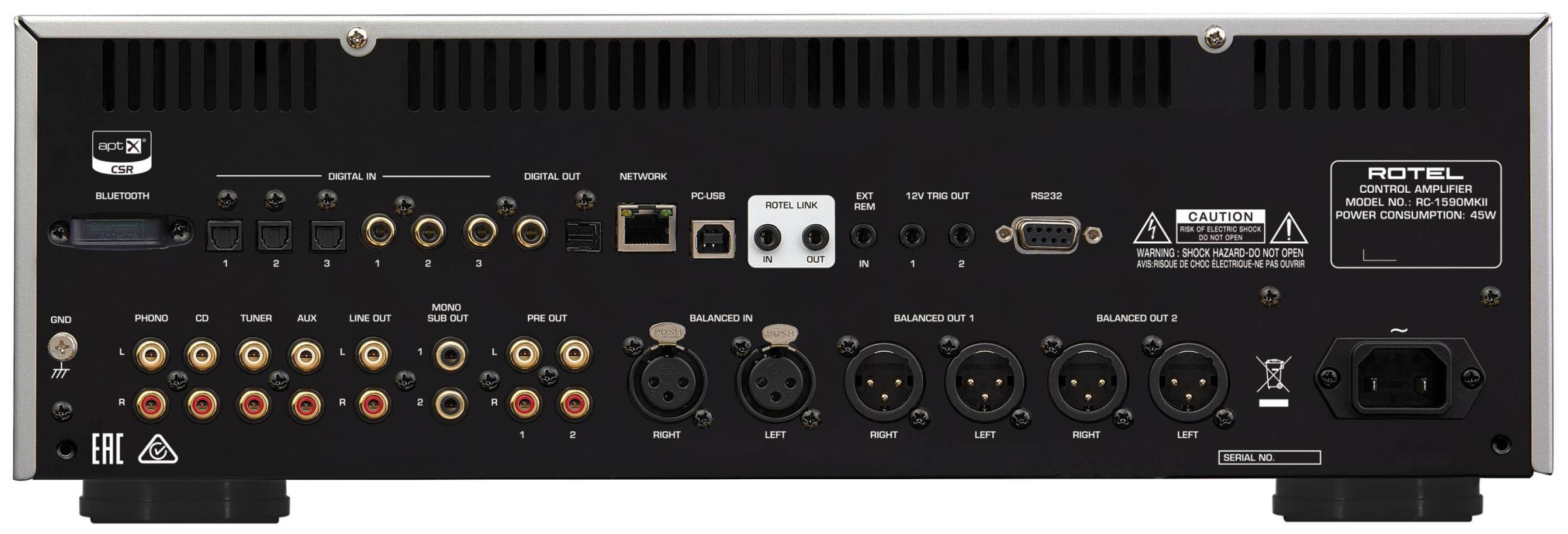

The RC-1590MKII offers a wide range of inputs to connect your favorite sources. These include an MM phono input for vinyl lovers, analogue, digital, balanced XLR inputs, wireless aptX™ and Bluetooth AAC in high quality, and PC-USB (32-bit/384kHz) with MQA support and Roon certification.

Double RCA and XLR outputs allow maximum flexibility and the construction of bi-amping systems. A subwoofer output is also available.

The RC-1590MKII continues Rotel's 60 year legacy and tradition with our promise of superior performance, value and our unconditional commitment to quality. Authentic, fascinating and spatial - the RC-1590MKII is a proud representative of this well-known brand.

More specifications

INTERMODULATION DISTORTION:

(60Hz:7kHz, 4:1)

<0.002%

INPUT SENSITIVITY:

High level inputs (RCA): 150mV

High level inputs (XLR): 250mV

Digital inputs: 0dBFs

Phono input (MM): 2.5mV

INPUT IMPEDANCE:

High level inputs (RCA): 100kO

High level inputs (XLR): 100kO

Digital inputs: 75O

Phono input (MM): 47kO

OVERLOAD:

High level inputs (RCA): 4V

High level inputs (XLR): 5.5V

Phono input: 64mV

OUTPUT LEVEL:

High level (RCA): 1V

Balanced (XLR): 2V

OUTPUT IMPEDANCE:

High level inputs (RCA): >85dB

High level inputs (XLR): >75dB

Phono input: >85dB

TONE CONTROL:

±10dB at 100Hz / 10kHz
