Dali Phantom CI AMP-4750 DSP Amplifier
€4,199.00
per Piece incl. VAT / incl. Shipping
Available in 7 days, delivery time 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.

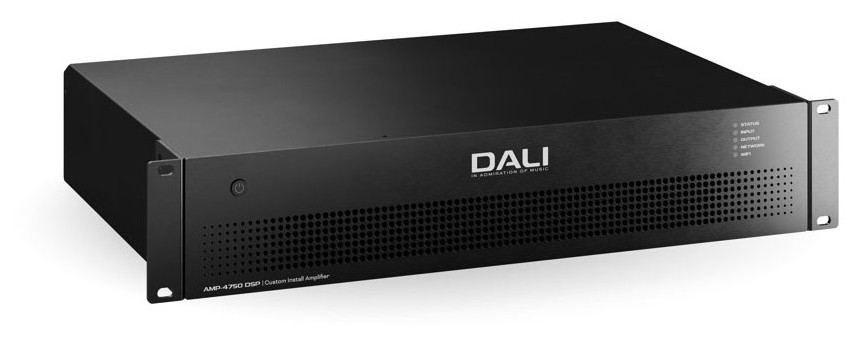

PHANTOM CI AMP-4750 DSP
Powerful 4-channel DSP amplifier for home cinema & multiroom
The DALI PHANTOM CI AMP-4750 DSP is a high-quality 4-channel Class-D amplifier that delivers impressive power with 750 W per channel @ 4 ohms . Thanks to the advanced DSP functionality , which is specifically tuned to DALI PHANTOM CI speakers and subwoofers , it ensures optimal sound reproduction in home cinema and multi-room installations .
Perfect applications:
- Powerful home cinema solution: Ideal in combination with DALI PHANTOM S and M series speakers
- Flexible multi-room integration: Control multiple zones with individual DSP settings
- Optimized DSP for DALI speakers & subwoofers: Ready to use without complicated calibration
- Ideal for LCR + SUB systems: One amplifier for a complete front channel configuration
Technical highlights:
- 750 W per channel , bridgeable to 1500 W mono
- Power sharing technology for flexible power distribution
- DALI PHANTOM AMP CONFIGURATOR for precise DSP adjustments
- Rack-mountable 2U design for professional installations
- Wi-Fi and LAN connectivity for easy setup
The DALI PHANTOM CI AMP-4750 DSP offers maximum performance, flexibility and easy integration – the perfect choice for modern audio installations!
Technical data
General specifications:
- Frequency range: 12 Hz – 20 kHz (+/- 1 dB, 8 O load, 3 dB below rated power)
- Amplifier technology: UMAC™ Class D – Full Bandwidth PWM modulator with ultra-low distortion
- Total power: 3000 W

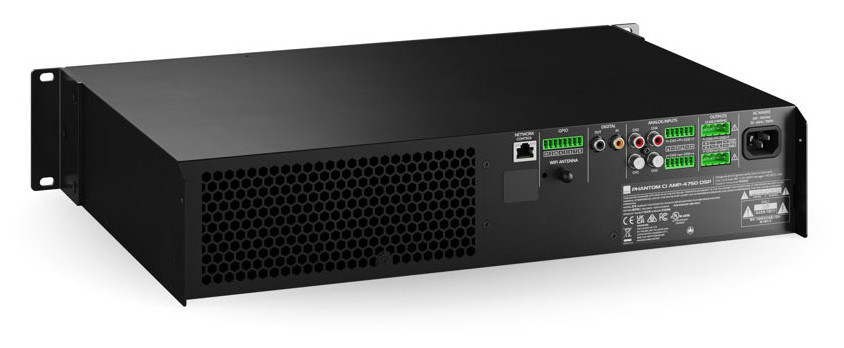

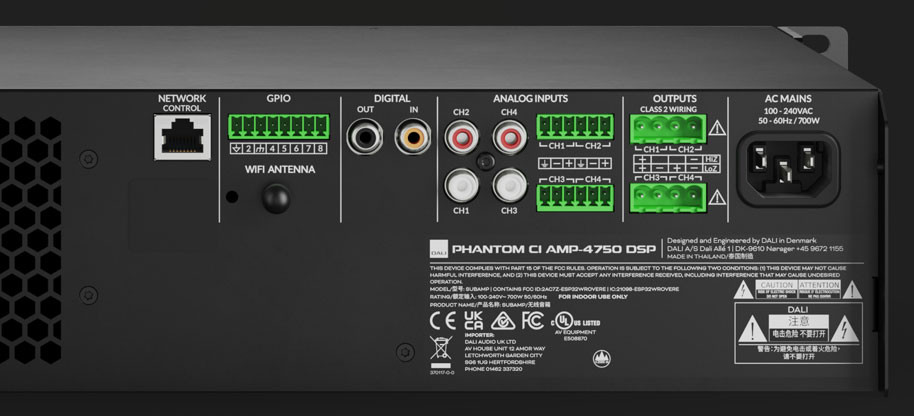

Inputs & Connections:
- Analog inputs:
- 4x Analog unbalanced (RCA)
- 4x Analog balanced (Euroblock connector)
- Digital inputs:
- 1x S/PDIF (RCA)
- Maximum speaker cable cross-section: 2.5 mm² / AWG 14 (Euroblock standard)
Output power:
- @ 4 Ohm: 4 × 750W (SE), 2 × 2500W (BTL)
- @ 8 Ohm: 4 × 400W (SE), 2 × 1500W (BTL)
- @ 2.7 Ohm: 2 × 1200W (SE), 4 × 750W (SE)
- @ 70V: 2 × 1200 W (BTL)
- @ 100V: 1 × 1500 W (BTL)
- Output voltage:
- SE: 85Vp / 170Vpp (unloaded)
- BTL: 170Vp / 340Vpp (unloaded)
- 70/100V (Hi-Z)
Signal characteristics & operation:
- Signal-to-noise ratio: > 106 dB (A-weighted, 20 Hz - 20 kHz, 8 O load)
- THD+N (typical): < 0.05 % (20 Hz - 20 kHz, 8 O load, 3 dB below rated power)
- Operating temperature: 0 - 40° C
- Mains voltage: Universal power supply 100 V - 240 V, 50 Hz - 60 Hz
- Power consumption: 1100 W
- Standby consumption: < 0.5 W
Dimensions & Weight:
- Device dimensions (H × W × D): 88 × 440 × 332 mm / 3.50 × 17.30 × 13.10 inches
- Weight (without packaging): 7.22 kg / 15.91 lb
- Shipping weight: 9.34 kg / 20.59 lb
Accesories:
- 2 × two-channel balanced input connector
- 2 × two-channel speaker output connector
- 1 × GPIO socket connector
- 1 × power cable
- 4 × Self-adhesive rubber feet
- 2 × rack mounting brackets (pre-assembled)
| Color: | black |
|---|---|
| Condition: | new item |
| Device depth mm: | 332 |
| Device height mm: | 88 |
| Device width mm: | 440 |
| Inputs: | Analog RCA |
| Product type: | amplifier |
| Series: | phantom |
Manufacturer
DALI A/S
Dali Allé 1
9610 Noerager
Denmark
www.dali-speakers.com
support@dali.dk
Safety Information
Product-specific safety instructions can be found in the operating manual.
