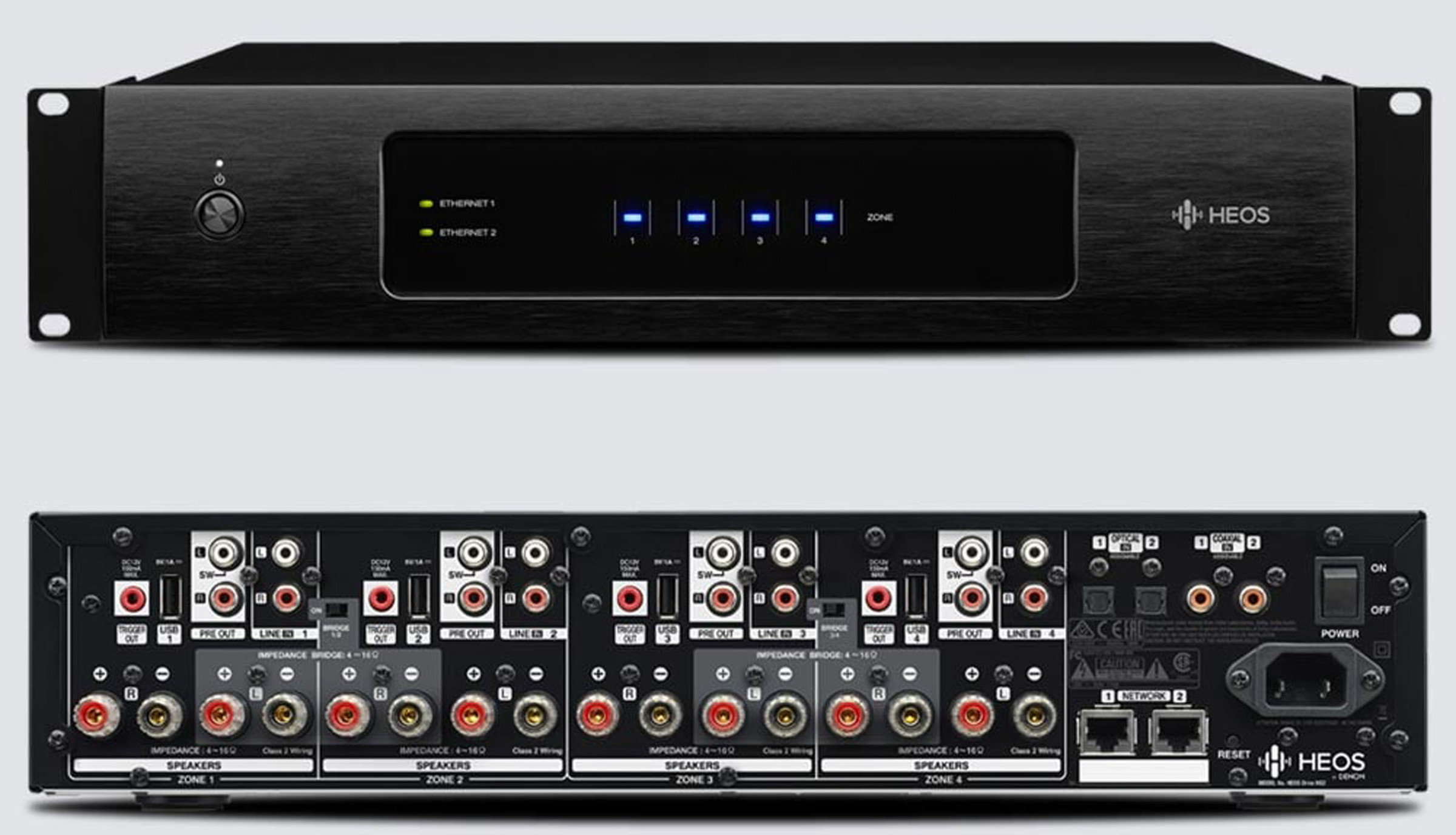

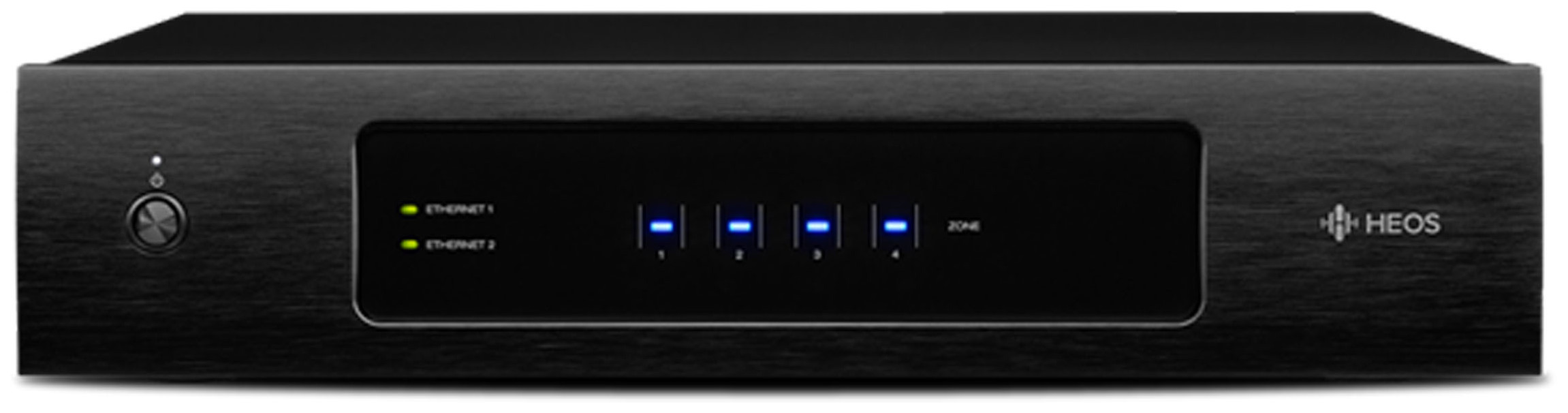

HEOS by Denon HEOS Drive HS2- 4 Zone Installation-AMP

Denon HEOS Drive HS2 – Powerful 4-zone audio system for the whole house

The Denon HEOS Drive HS2 is a state-of-the-art 4-zone professional total home audio system designed specifically for custom installations. It offers eight channels of Class D amplification in a compact 2RU single chassis, making it an ideal choice for demanding multi-room audio applications. Thanks to the high-quality components and advanced technology, the system delivers the premium Denon Signature Sound , which dates back to over 110 years of audiophile tradition.

Flexible 4-zone system with 8 channels

The HEOS Drive HS2 is a unique multi-room audio system that offers a flexible and powerful solution for simultaneously powering up to four zones. With its eight Class-D amplifiers delivering 60 watts per channel (at 8 ohms, 20Hz-20kHz, all channels driven), the system offers enough power to supply multiple rooms with impressive hi-fi sound simultaneously. Each amplifier can be switched to bridged mode , increasing the power to 130 watts per channel when more power is needed for specific zones.

This flexibility makes the HEOS Drive HS2 an ideal solution for large homes, offices or commercial environments where multiple rooms need to be independently supplied with music. Additionally, external amplifiers can be connected to the 4 stereo preamp outputs to provide even more power and customization options.

Support for high-resolution audio and comprehensive streaming services

Music lovers who value the highest sound quality will get their money's worth with the HEOS Drive HS2 . The system supports a variety of high-resolution audio formats , including WAV, ALAC and FLAC at up to 24 bit / 192 kHz as well as DSD at 2.8 MHz and 5.6 MHz . These high-resolution audio formats enable incredibly detailed and dynamic music playback that reproduces even the finest nuances of the original recordings.

In addition, the HEOS Drive HS2 offers support for a variety of popular streaming services , including Spotify , Amazon Music , Deezer , TIDAL , TuneIn and many more. With the HEOS app, users have access to a wide range of music sources, be it from streaming services, Internet radio or locally stored music files on a USB drive . Thanks to the versatile connection options, analog and digital sources (optical or coaxial) can also be connected and integrated into the multi-room system.

Easy integration and advanced control options

The Denon HEOS Drive HS2 is not only powerful, but also extremely easy to integrate into existing audio and network systems. It has two RJ45 Ethernet sockets to establish a reliable wired network connection and offers straightforward integration into complex networks thanks to the integrated switch. This ensures stable and uninterrupted music playback, even in large networks with many connected devices.

The HEOS Drive HS2 is controlled via the user-friendly HEOS app , which is available for iOS, Android and Kindle Fire. With this app, users can individually control music in different zones, adjust volume and sources and create playlists. In addition, NAS (network storage) and other DLNA-compatible music servers can be integrated so that all available music sources can be managed in a single, central system.

Robust construction and professional installation

The HEOS Drive HS2 housing is designed for professional use in rack mounting systems . With a height of 88 mm (without rack mount ears), the 2RU housing fits perfectly into standard 19-inch racks and is therefore ideal for installation in AV cabinets or professional installations. The rack mount ears are included in the delivery to enable easy installation.

The robust design and high-quality workmanship make the HEOS Drive HS2 not only a powerful audio device, but also a durable and reliable one. With a weight of 7.2 kg and a solid construction, the device is designed for long-term use in demanding environments. In addition, the system supports operation in a wide temperature range from 5°C to 35°C , which makes it suitable for use in various climatic conditions.

Versatile usage options and language support

The Denon HEOS Drive HS2 not only offers comprehensive audio and control functions, but also supports multiple languages, including English , French and Spanish . This makes it easier for international users to use and enables seamless integration into multilingual environments.

The Denon HEOS Drive HS2 is the perfect choice for demanding hi-fi installations where flexibility, performance and easy access to the latest music technology are paramount.

Technical data

Amplifier unit :

• 8 channels, Class D amplification
• 60 watts per channel (20Hz~20kHz, 0.05% THD, 8 ohms, all channels driven)
• Bridged mode: 130 watts per channel

Preamplifier section :

• 4 stereo preamp outputs
• Connection of external power amplifiers possible

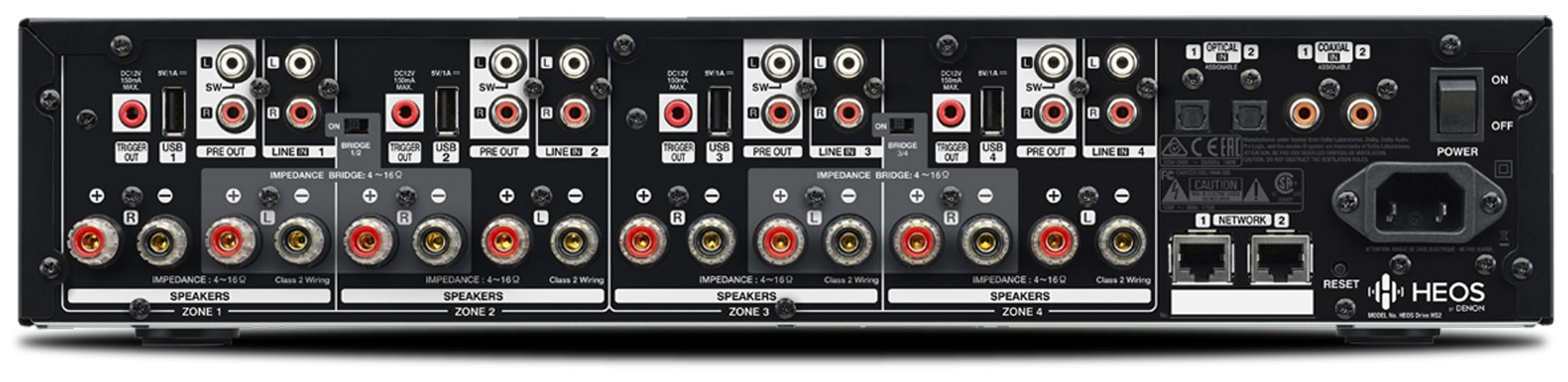

Connections :

• 4 USB ports (one per zone)
• 2x RJ45 Ethernet sockets
• Analog, optical and coaxial inputs

Audio formats :

• WAV, ALAC, FLAC (up to 24 bit / 192 kHz)
• DSD (2.8MHz, 5.6MHz)
• WMA (up to 192 kbit/s), AAC and MP3 (up to 320 kbit/s)

Network :

• Ethernet switch integrated
• DLNA compatible for NAS

Power supply :

• 100~240 V , AC 50~60 Hz, automatic switching

Dimensions (H x W x D) :

• 88 mm x 430 mm x 402 mm (without rackmount ears)
• 88 mm x 483 mm x 402 mm (with rackmount ears)

Weight : 7.2 kg

Supported image formats : JPG, PNG, BMP, GIF

Available colors : Black
