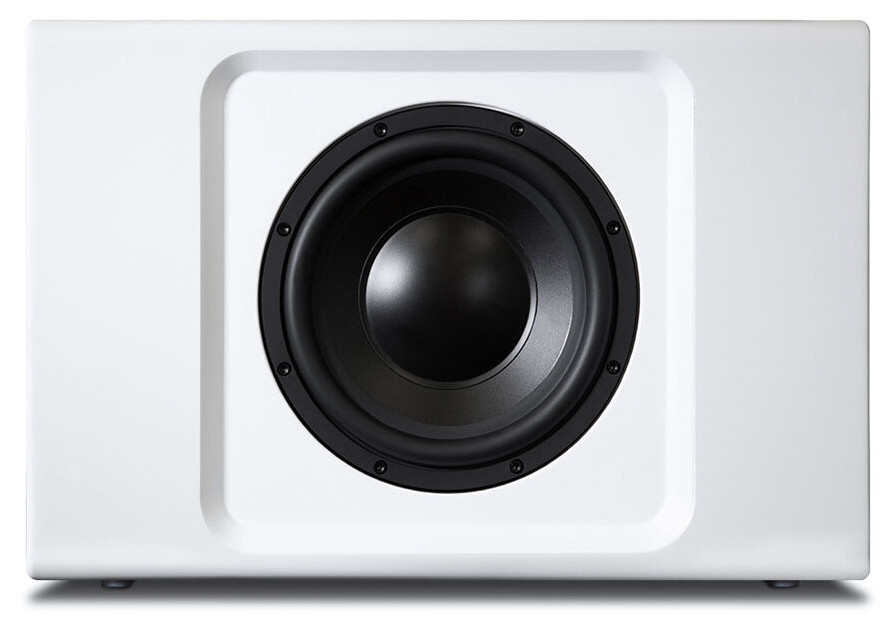

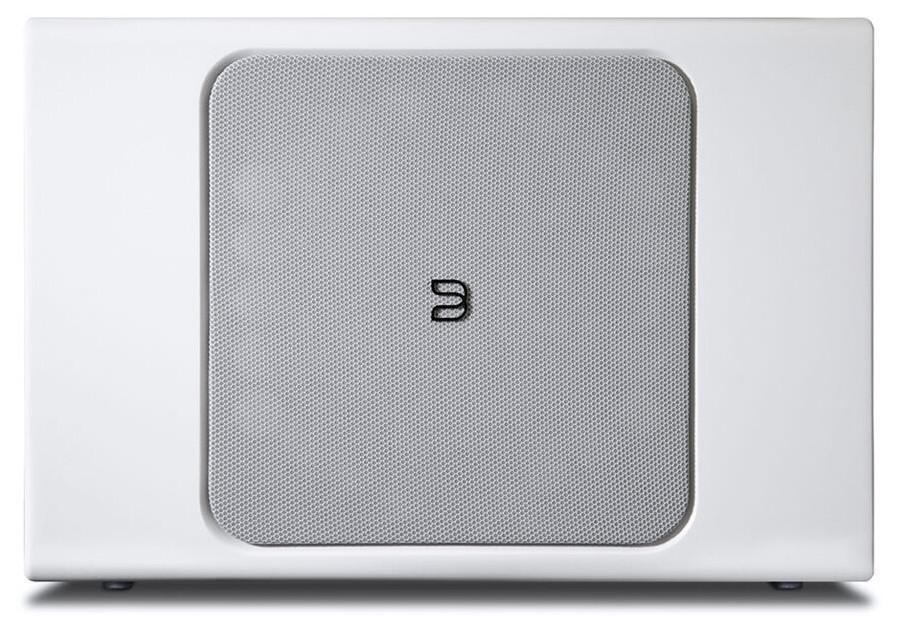

BlueSound Pulse Sub+ Subwoofer

PULSE SUB+

Wireless active subwoofer

The compact active subwoofer PULSE SUB+ largely corresponds to its predecessor in format and shape, but otherwise no stone was left unturned. For the first time, the PULSE SUB+ is integrated into the home network as an independent player, just like the other Bluesound products. The assignment to the desired speaker is carried out - as well as most other settings - conveniently and centrally via the BluOS TM app installed on a smartphone, tablet, PC or Mac. Apart from the mains cable, a cable connection is no longer required, but can be used alternatively via the cinch input of the SUB+ if required.

Also new are the significantly larger woofers with a diameter of 200 mm and the significantly more powerful output stage with 200 watts of pulse power. The chassis with its particularly light and strong polypropylene membrane and the amplifier are perfectly matched with the help of the integrated digital sound processor and ensure powerful, dynamic bass reproduction in small to medium-sized living rooms.

However, Bluesound has retained the versatile installation options for the PULSE SUB+: Thanks to its housing, which is only 15 cm deep, it can be hung on the wall in addition to the standard placement, inconspicuously behind hide it in a curtain or put it under the sofa. A wall mount is included.

Home cinema sound with rich bass

The PULSE SOUNDBAR 2i is impressive on its own with powerful and energetic bass reproduction, but in combination with the PULSE SUB+, the home cinema front speaker becomes a fully-fledged home cinema system that can be expanded with two PULSE FLEX 2i for the surround channels. Like the SOUNDBAR 2i, the PULSE SUB+ is most easily controlled via the BluOS Controller app.

Feel the bass

Relieve your PULSE SOUNDBAR 2i from playing the low frequencies so that your home cinema sounds even more powerful and balanced. Once the PULSE SUB+ has been connected, the bass signals are transmitted wirelessly from the soundbar to the SUB+. With a continuous output of 150 watts and a 200 mm woofer, the PULSE SUB+ guarantees deep, dynamic bass reproduction.

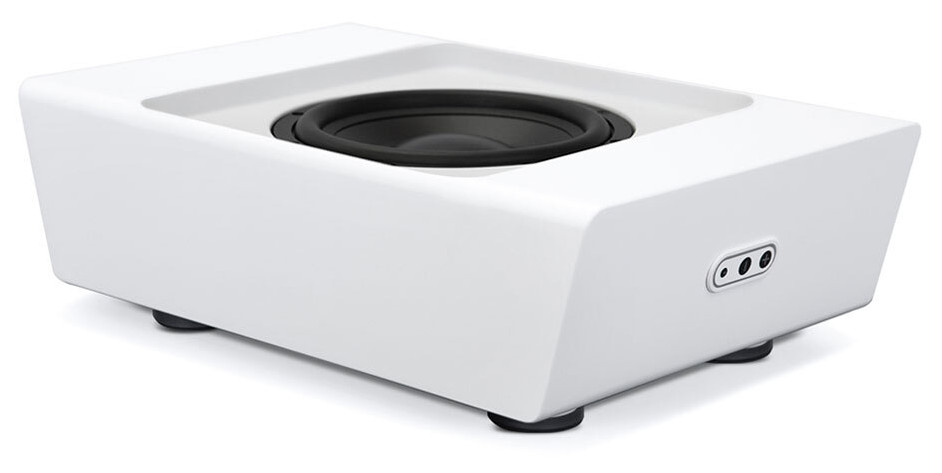

Compact design

Thanks to its compact design and wireless control, you can easily place the PULSE SUB+ anywhere in your living room. No matter where it is - the SUB+ will always convince you with a powerful bass foundation.

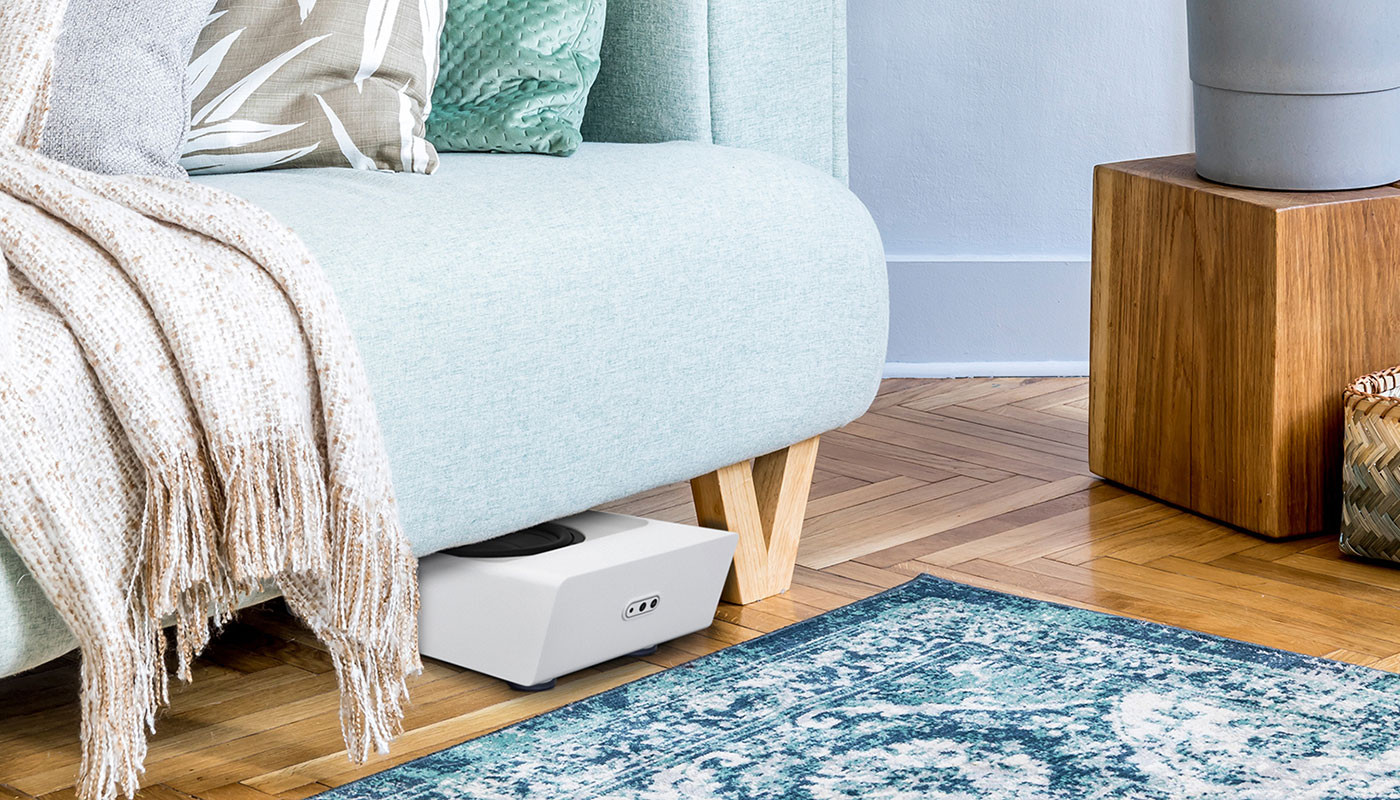

Discreet placement

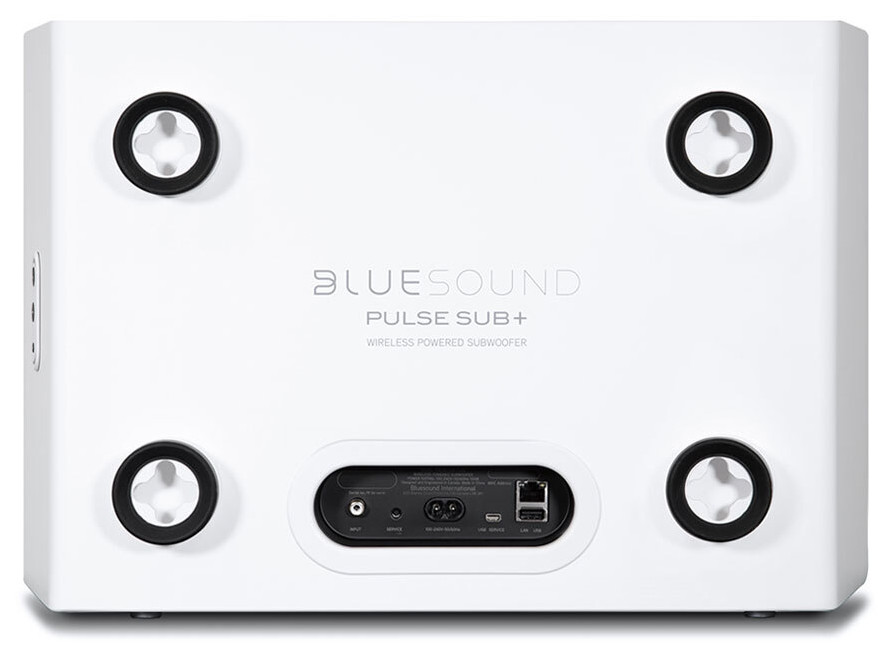

The scope of delivery of the PULSE SUB+ includes a wall bracket with which the subwoofer SUB+ can be placed discreetly behind your furniture or curtains. Due to its low height, it can also be hidden under a lot of seating furniture.

Everything under control

After downloading the BluOS TM

Controller app on your smartphone or tablet you can remotely control the PULSE SUB+ immediately. Whether the right volume or phase - you adjust the subwoofer exactly how you want to experience the bass reproduction in your room.

Technical specifications

General

Status indicator: dimmable LED

Processor: ARM® Cortex™ A9, 1GHz

Mains connection: 100-240V, 50/60Hz

Wireless integration: WLAN 802.11ac, dual band

Ethernet/LAN: Ethernet RJ45

Connections:

LFE RCA mono input
USB Type A (only for firmware updates)
USB type B (for service)

Housing finishes: black or white

user interface

Mobile operating system:

BluOS® - Free Android and iOS app available online on Google Play and Apple App Store

Setting options via the app:
volume +/-
frequency of use
phase

Buttons on the SUB+:

volume +/-
function/coupling

Audio

Frequency range (±3dB): 24 - 150 Hz

Operating frequency: 50 - 150 Hz variable

Subsonic filter at 20 Hz: -10 dB

amplifier

Continuous power: 150 W

Pulse power: 200 W

Design: Smart DSP, Class D

Power consumption: 0.5 watts in network standby

assembly

Woofer: 200 mm (8”) ø with polypropylene cone

Dimensions & Weight

Dimensions: 457 x 300 x 146 mm (W x H x D) without feet and wall bracket

Weight: 8.1kg
