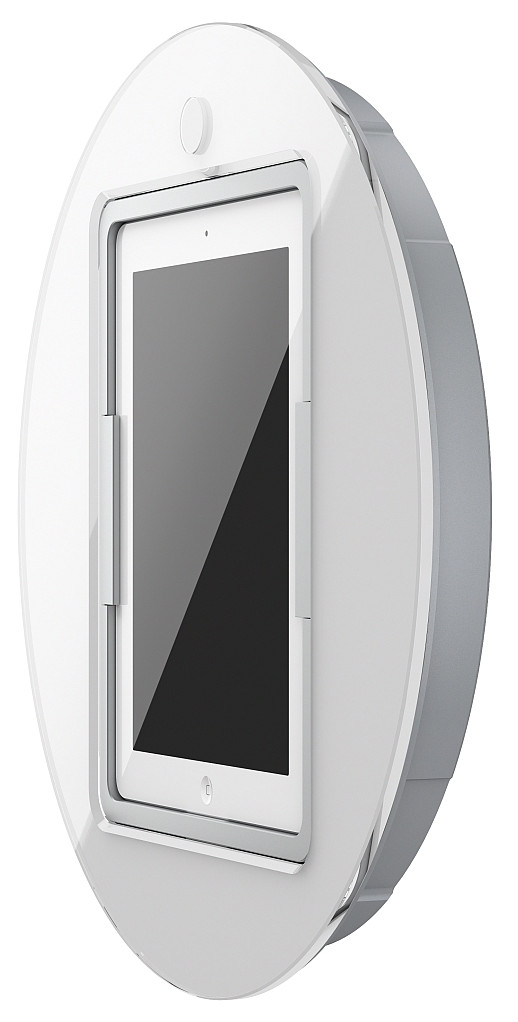

Viveroo LoopDock Clearwhite for iPad4. Gen

The LoopDock is the premium docking station for the iPad. Almost flush with the wall or other surfaces, it impresses with the highest quality materials and unique functions.

Future investment

The onion architecture of the LoopDock

The shell-shaped architecture of the LoopDock is new and unique. The LoopDock adapts itself optimally in height, width, depth, shape and electrical connector for current iPad generations and the expected future generations. For maximum flexibility and investment security.

Real materials and high quality mechanics.

The LoopDock is free of electronic drives. We consciously solved all functions of the LoopDock with high-quality mechanics and proven original components. Robust technology, noticeable workmanship, no compromises. LoopDock - 100% real material. Mechanics as you would expect in a Swiss watch.

design

The LoopDock is currently available in three particularly high-quality designs. The design cover can also be changed at any time.

Structure and functions

• Almost flush in the wall

• Can be rotated 90> with one finger

• Ingenious SoftClose at the end of the turn

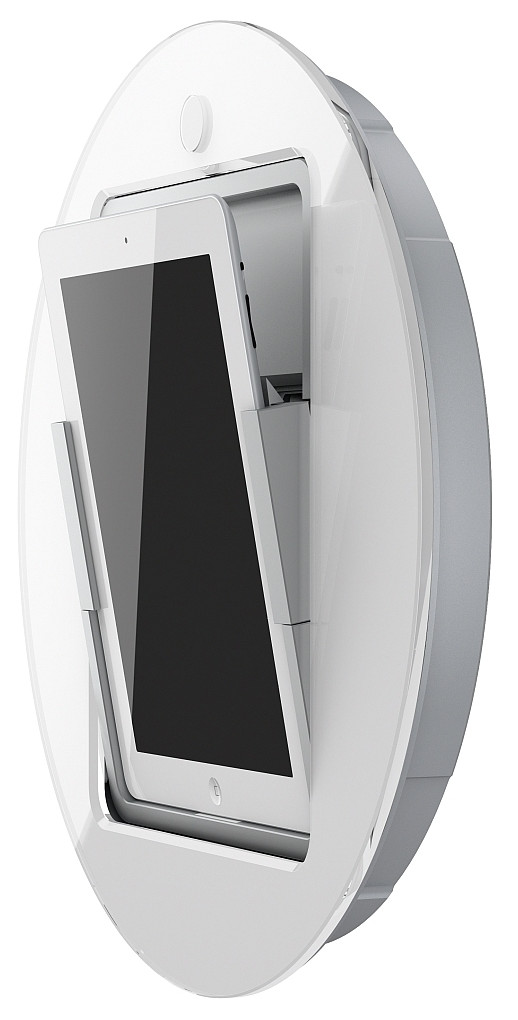

• iPad can be removed at the push of a button, with SoftOpen

• 100% finest material, original components

• Exchangeable electronic module for dock and Lightning connector, charging electronics with quick charging function

• Can be used almost anywhere thanks to an installation depth of approx. 41 mm

• Quick and easy installation with LoopDock assembly sets

• Fast and easy update to new iPad generations with LoopDock conversion kits

Technical specifications

• Weight in kg LoopDock (depending on the version) 5.5 - 8.2 kg

• Mains voltage 100-240 Vac, 50-60 Hz (see power supply unit of the respective assembly set)

• Low voltage 10-18 Vdc

• Electrical power consumption 18 watts

• Design panel diameter 385mm

• LoopDock depth 41mm

• Diameter opening 351mm (surface-mounted installation e.g. for furniture assembly)

• Diameter opening for flush-mounted box 363 mm (in-wall installation)

• Installation depth LoopDock 'surface-mounted installation' 30mm (without flush-mounted box, e.g. for furniture assembly)

• Installation depth LoopDock 'flush installation' 38 - 41mm (without flush-mounted box, e.g. for furniture assembly)

• Installation depth LoopDock with flush-mounted box 66mm (inwall mounting)

We are happy to provide dimensions and milling contours for flush installation in furniture, doors, etc. on request. Make use of our professional support for your individual installation situation.
