Diverse Mal Valve Head Amp Three Headphone Amplifier
€4,800.00
per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.

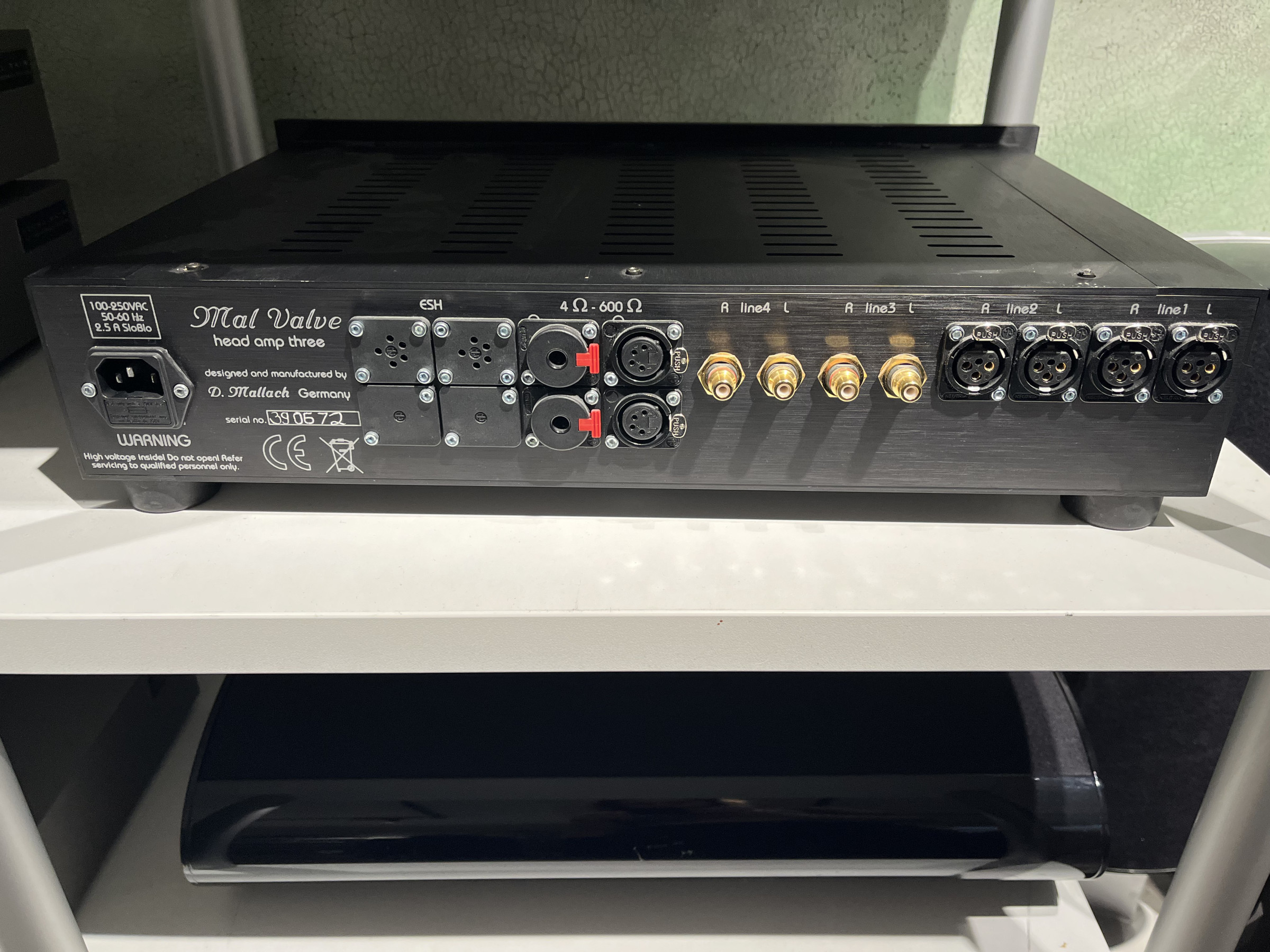

The MalValve Head Amp Three Mk. IV is a fully symmetrical, high-performance headphone amplifier made in Germany, aimed at users who demand the highest levels of flexibility, sound quality, and craftsmanship. It is designed to drive dynamic, magnetostatic, and electrostatic headphones of all impedances and also offers optional outputs and adjustment options to optimally power even specific headphone types.
The device uses pure tube technology in the signal path, combined with a sophisticated network of input and output transformers and a digital relay volume control. Voices, timbres, fine dynamics, and transients are reproduced vividly, richly, and with rich, controlled power. The modular design and high-quality aluminum construction make the amplifier robust and easy to service.
Technical data
- Entrances:
• 2 × balanced (Line, XLR)
• 2 × unbalanced (Line, RCA) - Input impedance: approx. 100 kOhm
- Input sensitivity: about 1 volt
- Outputs:
• 2 × balanced (4-pin XLR stereo)
• 2 × unbalanced jack sockets (6.3 mm stereo) or alternatively 2 × 3-pin XLR (pre-out)
• Special connectors for electrostatic headphones (Stax or ESH)
• Optional high-voltage outputs for other electrostatics (ESH) - Output power: approx. 2 × 12 watts at 4?/?16 ohms
- Output impedance (Pre Out, option): 4 – 16 – > 600 Ohm
- Low output impedance at the headphone output: < 1 Ohm
- Maximum output voltage: approx. 800 Vpp
- Polarization voltage Stax Pro / ESH: approx. 580 VDC
- Distortion (THD): approx. 0.05%
- Frequency response: approx. 10 Hz – 50,000 Hz
- Signal-to-noise ratio: approx. 92 dB (A)
- Mains voltage: 90 – 250 VAC, 50 – 60 Hz
- Power consumption: approx. 100 watts in operation
- Standby power consumption: approx. 0.3 watts
- Dimensions (W × H × D): ˜ 483 × 100 × 310 mm
- Weight: ˜ 11 kg
Equipment & Special Features
- All-tube technology with the following tube types:
• Driver / voltage amplifier: 2 × ECC 81, 4 × EF 184
• Power: 4 × 6V6 beam power tetrodes - Fully symmetrical design in all operating modes
- Input transformer for balancing and galvanic isolation
- Output transformer for impedance transformation
- Volume control via relay with 0.7 dB steps
- Balance control via relay-controlled steps
- Multiple operating modes/adjustments: 4 Ohm / 16 Ohm / ESH / Pre-Out (option)
- Display to show input, operating mode, volume and balance
- On/off muting
- Individual adjustment to the efficiency of the connected headphones
- Modular design (plug-in modules) for maintenance and updates
- Housing front panel and chassis made of aluminum, front panel 10 mm thick, black anodized or natural anodized
Notes on used equipment
| Number of previous owners | |
| Year of construction | |
| OVP | no |
| First purchase in the auditorium | no |
| Price at initial purchase | |
| Condition assessment | very good - fully functional, rarely used, well maintained, only slight signs of wear, complete |
| Color: | black |
|---|---|
| Condition: | Used device |
| Condition assessment: | very good - fully functional, rarely used, well maintained, only slight signs of wear, complete |
| Device depth mm: | 310 |
| Device height mm: | 100 |
| Device width mm: | 483 |
| Frequency response: | 10 Hz – 50,000 Hz |
| Initially purchased from Auditorium: | no |
| Inputs: | Analog RCA, Analog XLR |
| Original packaging: | no |
| Outputs: | Analog 6.35 mm jack three-pole |
| Product type: | amplifier |
Safety Information
Product-specific safety instructions can be found in the operating manual.
