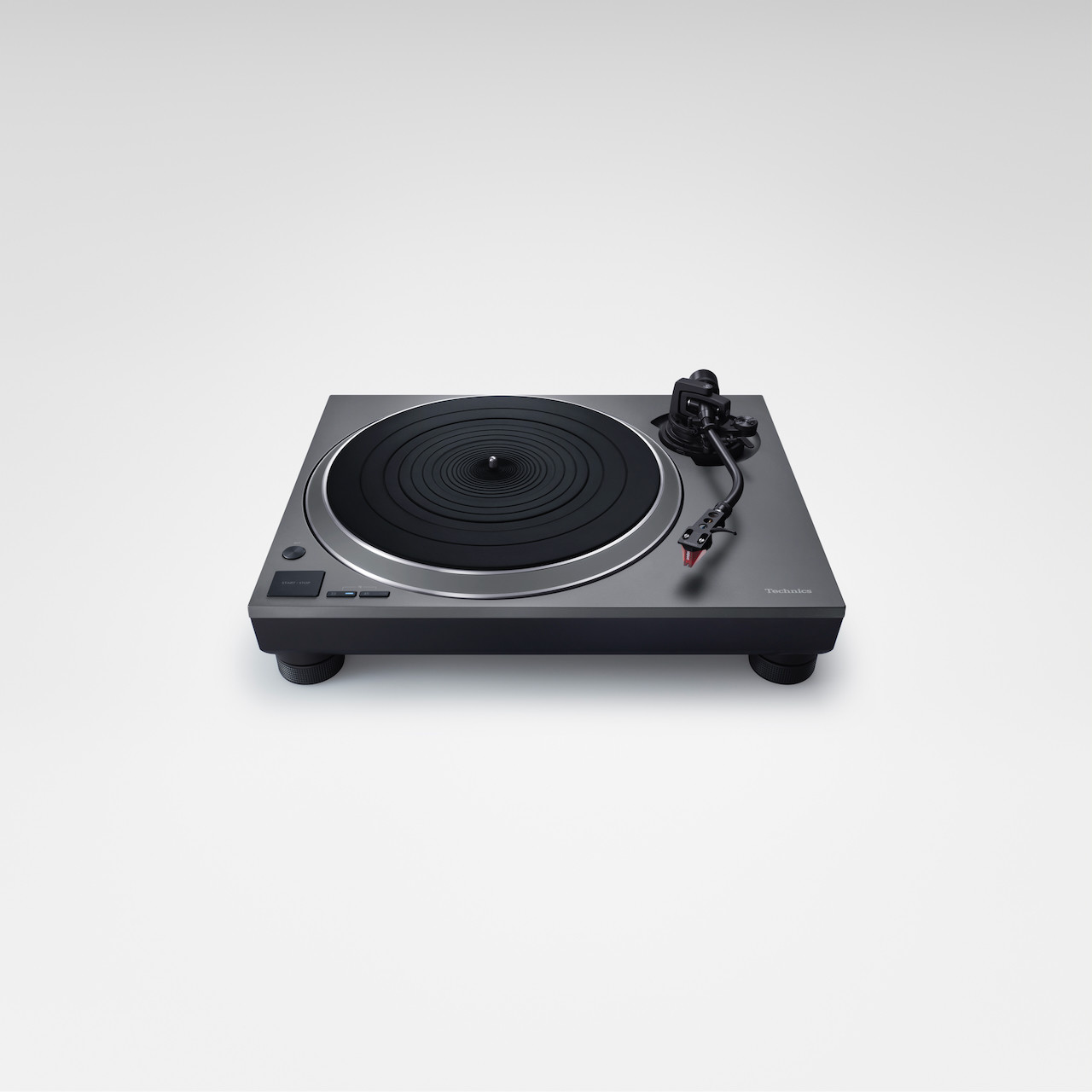

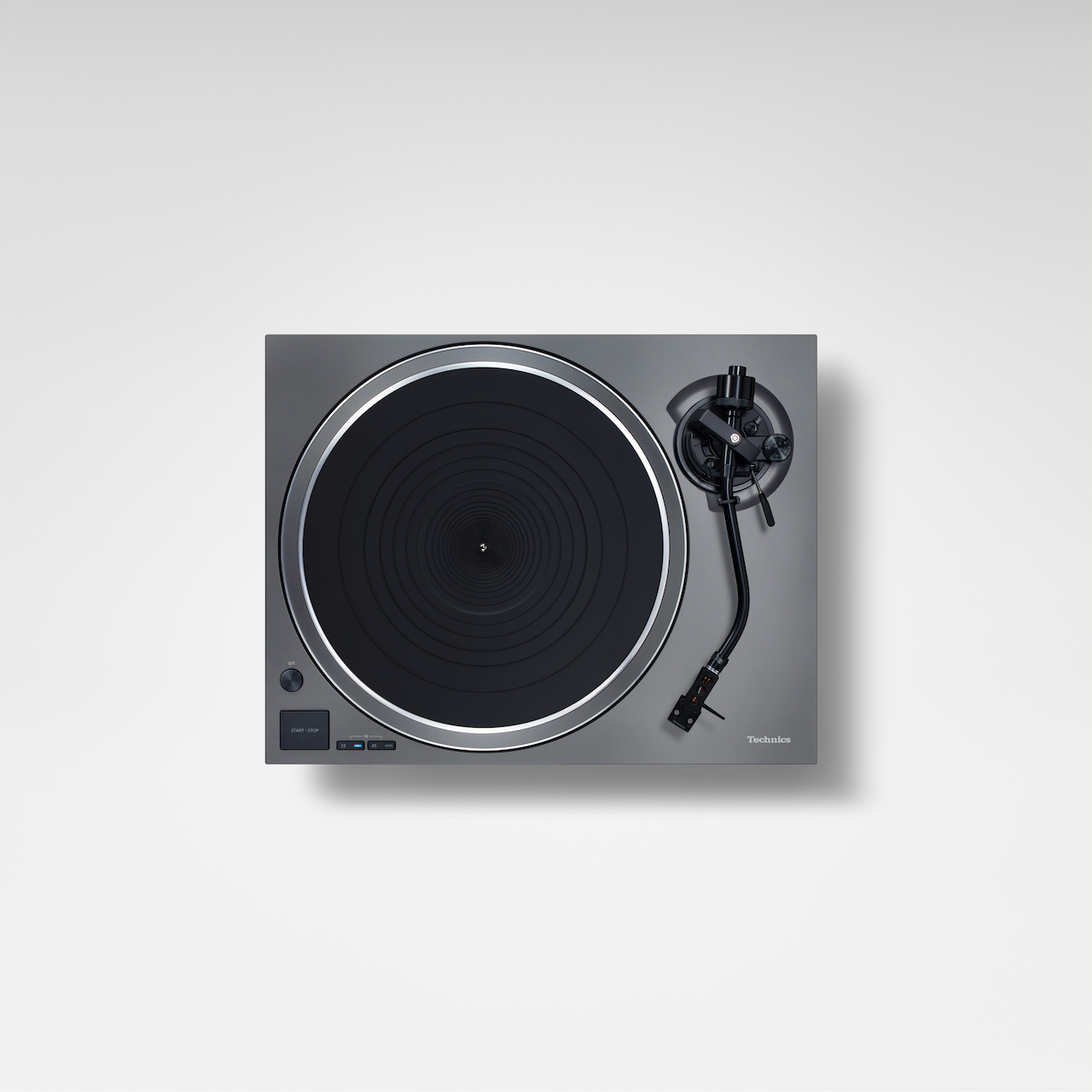

Technics SL-1500C ES Gun Metal Grey

Technics SL-1500CSE

Direct drive in a refined form – with Delta S-Drive

The SL-1500CSE is based on the proven SL-1500C in terms of design, but goes a crucial step further: The motor control adopts the Delta S-Drive technology (Delta-Sigma-Drive) derived from the Grand-Class models.

At its core is a coreless direct-drive motor with a 3-phase, 12-pole, 9-coil architecture. By eliminating an iron core in the stator, cogging torques are structurally eliminated – a crucial prerequisite for smooth rotation without microscopic torque fluctuations. The rotor yoke also reduces magnetic stray fields, thus protecting the sensitive scanning system.

The speed stability is 0.025% WRMS , and the acceleration time is 0.7 seconds (33 rpm) . These are values that clearly set it apart from the competition and are anything but standard in this class.

With S-Drive, motor control is further refined. While conventional PWM signals lose resolution at low levels, Delta-Sigma modulation operates with significantly higher signal resolution. The result:

• reduced distortion in the drive signal
• minimized micro-vibrations in the vertical axis
• more stable, quieter scanning conditions

This technical refinement is particularly noticeable in passages with subtle dynamics, complex timbres and long decay phases.

Two-layer turntable – optimized through simulation

The platter consists of a die-cast aluminum body with full-surface rubber damping on the underside. Its shape and material thickness were optimized using modal simulation to specifically reduce inherent resonances.

Reinforcing ribs increase stiffness, while the large-area connection between the aluminum and the damping layer significantly improves energy absorption. The result is controlled inertia combined with low resonance – a fundamental design principle for clean transients and stable spatial imaging.

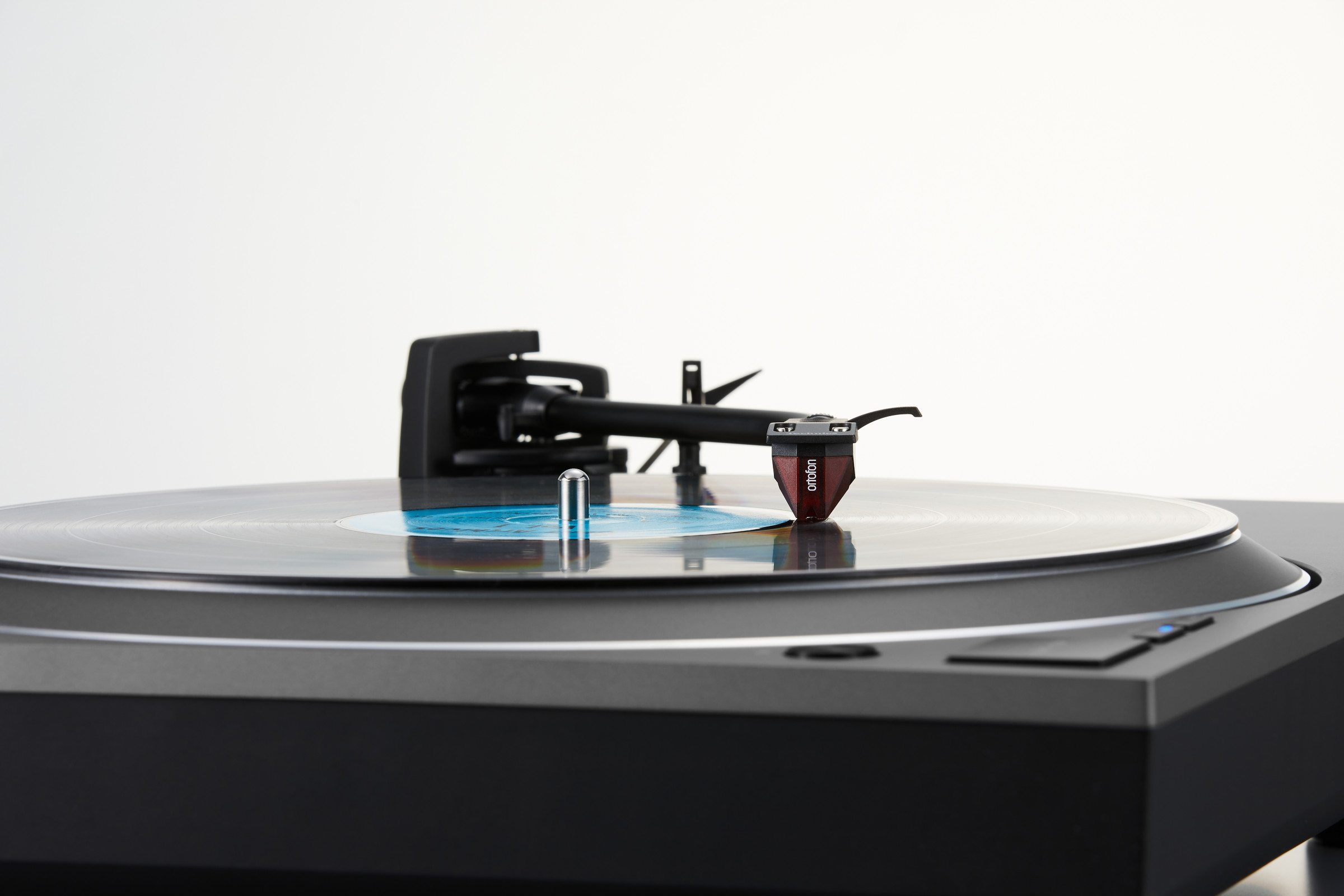

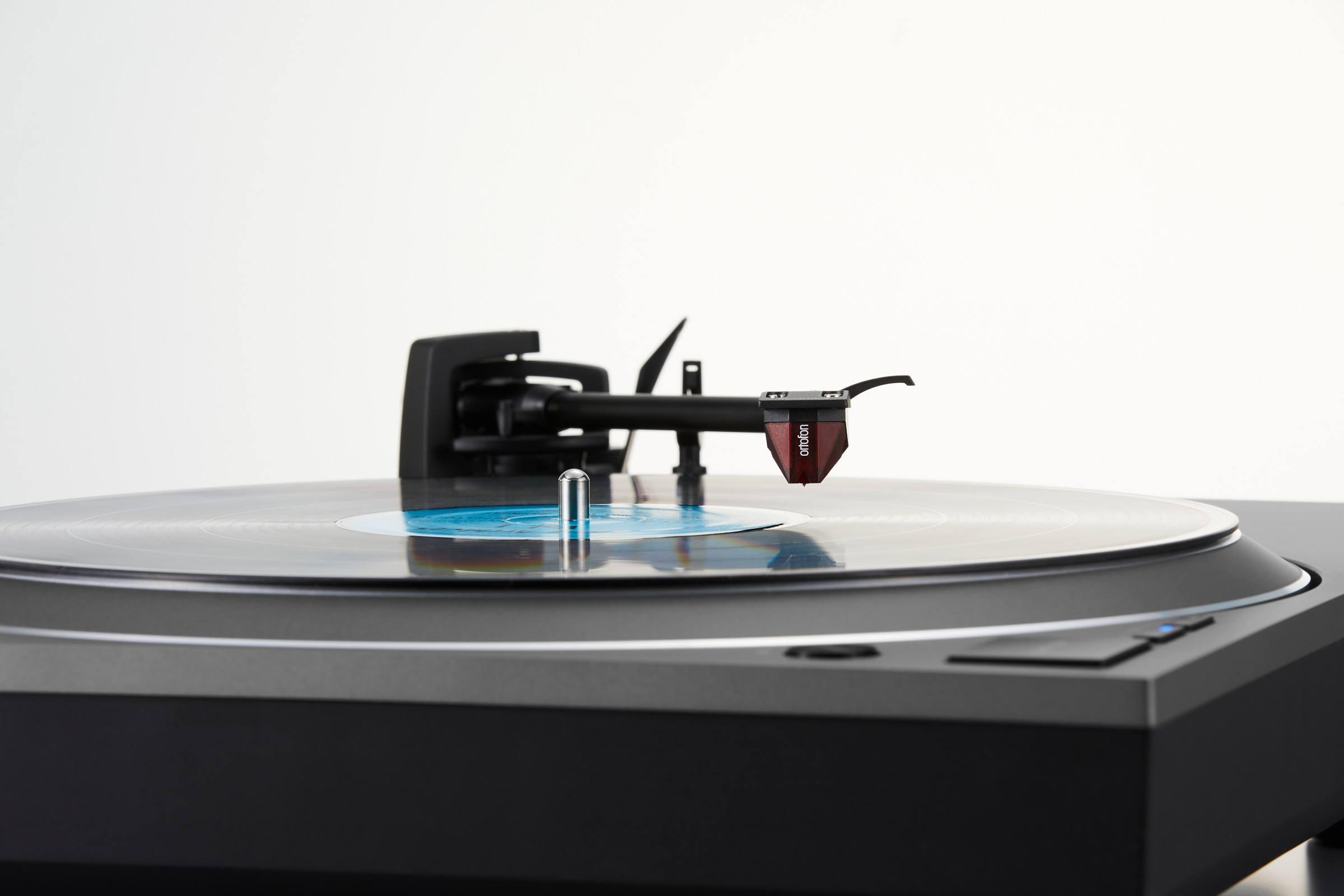

Tonearm – precise mechanics, sensitive bearings

The statically balanced S-shaped tonearm made of aluminum combines low effective weight with high structural stability. The gimbal bearing is precision-manufactured and designed for minimal breakaway torque – a crucial requirement for accurate groove tracking.

The tonearm height is adjustable by 6 mm. The included additional weight allows the use of cartridges weighing from 14.3 to 25.1 g (including headshell) .

The headshell comes pre-fitted with an Ortofon 2M Red cartridge and is precisely adjusted. This moving magnet (MM) cartridge offers a balanced tonal response with clear definition and good spatial imaging – a sensible choice for universal use and a well-designed starting point for future upgrades.

The integrated auto-lift function automatically raises the tonearm at the end of the record, thus reducing stylus and record wear. It can be deactivated if needed.

Integrated phono equalizer – discreetly designed, cleanly routed

The built-in MM phono equalizer is more than just a convenience feature. The circuit uses a low-noise FET in the input stage and deliberately omits coupling capacitors in the signal path.

A dedicated ± power supply powers the phono stage separately from the motor, and the grounding is correspondingly separated. This minimizes interference and preserves the signal's dynamics.

The switchable LINE/PHONO output allows the internal equalizer to be completely bypassed – useful for users who want to use an external reference phono stage.

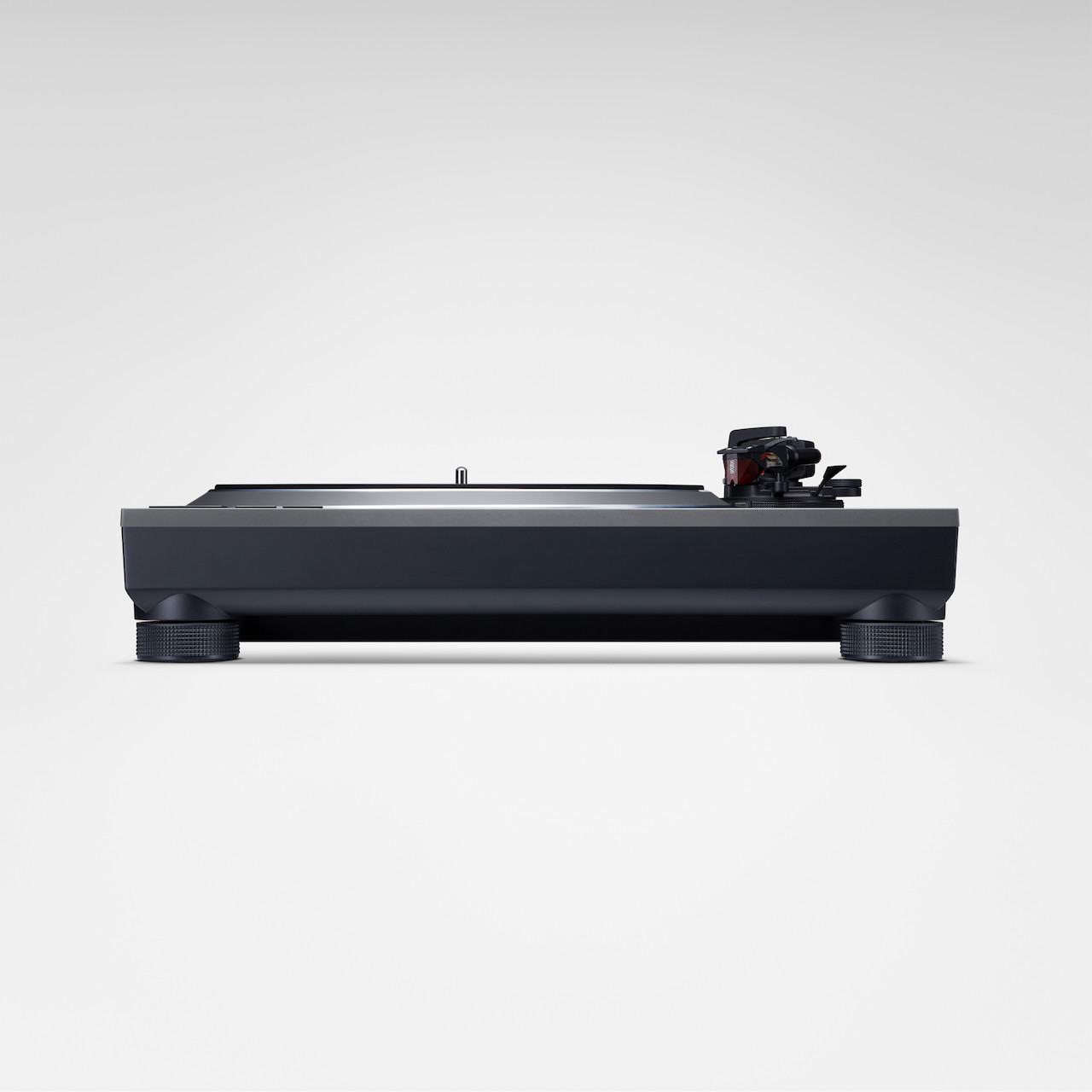

Chassis and damping feet – constructive tranquility

The two-layer chassis combines a die-cast aluminum top with a glass-fiber reinforced ABS substructure. This construction increases rigidity while simultaneously improving internal damping.

The height-adjustable feet use a spring-rubber combination and effectively isolate against impact noise and acoustic feedback – even at higher listening levels.

Operation and concept

The SL-1500CSE remains true to the clearly structured Technics layout: direct start, electronic speed switching, maintenance-free direct drive.

The phono preamplifier and pre-assembled system allow for immediate use – without additional equipment or adjustments. At the same time, the design offers ample scope for ambitious configurations.

Technical data

Drive & Motor

Drive principle: Direct drive

Motor type: Coreless DC direct drive, single rotor

Motor architecture: 3-phase / 12-pole / 9-coil

Motor control: ?S-Drive (Delta Sigma Drive)

Wow and flutter: 0.025% WRMS

Start-up time: 0.7 seconds (at 33 rpm)

Cogging torque: minimized by design through ironless stator

Magnetic shielding: Rotor yoke for reducing stray fields

turntable

Construction: Two-layer

Material: Die-cast aluminum

Underside: Full-surface rubber cushioning

Optimization: Resonance and stiffness optimization through simulation

Plate weight: approx. 1.8 kg

tonearm

Design: S-shaped, statically balanced

Material: Aluminum

Bearing: Cardan-mounted, high-precision manufactured

Height adjustment: 6 mm range

Supported system weight: 14.3 – 25.1 g (incl. headshell, with additional weight)

Additional weight: 1 type included in delivery

Automatic function: Auto-Lift (can be switched off)

Pickup

Pre-mounted MM system: Ortofon 2M Red

Phono section

Integrated MM phono equalizer

Input stage: Low-noise FET design

Signal path: Without coupling capacitors in the input stage

Power supply: Dedicated ± power supply for phono section

Grounding: Grounded separately from the motor

Output: Switchable LINE / PHONO

High-level output: Yes

Chassis & Construction

Housing structure: Two-layer construction

Aluminum die-cast cover plate

ABS (glass fiber reinforced) substructure

Damping feet: spring-rubber construction

Vibration protection: Mechanical decoupling of motor and housing

General data

Total weight: approx. 9.9 kg

Color variant: Metallic grey

Maintenance: Maintenance-free direct drive

Operating concept: Manual with electronic speed control

If desired, I can also prepare the data as a tabular comparison overview (e.g. vs. SL-1500C or SL-1200MK7).

Conclusion

The Technics SL-1500CSE combines the mechanical substance of the SL-1500C with the more precise motor control of Grand-Class technology.

It is not a lifestyle object or a retro statement, but a technically well-designed direct drive motor with a clearly defined objective: high speed stability, controlled resonance conditions and a well-thought-out signal routing.

For listeners who know why tracking accuracy, bearing precision and power supply architecture are not secondary matters – but rather the foundation of musical credibility.
