Wisdom INSIGHT-L8i In-Wall Loudspeaker

The Insight L8i from Wisdom Audio is a particularly slim and elegant speaker that integrates perfectly into modern home and cinema environments. Thanks to optional custom-made grilles, the speaker blends discreetly into any room design without compromising on sound quality. The combination of custom-engineered high-performance drivers and innovative technology enables a listening experience that meets even the most discerning expectations.

Advanced technology in a compact form

The L8i is a line-source loudspeaker characterized by exceptional detail, precise dynamics, and consistent sound quality across the entire volume range. It shares the same core technologies as the larger Sage Series L75i model, but is housed in a more compact and flexible enclosure. This makes the L8i ideal for demanding installations in rooms with limited space or specific architectural requirements.

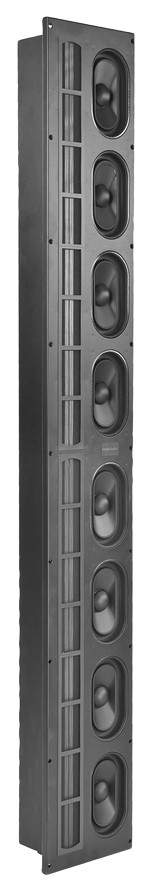

Planar magnetostatic high-performance driver

At the heart of the L8i are two planar magnetostatic line sources, each 60.96 cm (24 inches) long. These special drivers are responsible for the entire frequency range above 550 Hz – a large part of the audible spectrum. With six-octave coverage, the speaker delivers exceptionally high sound resolution, low-distortion reproduction, and a very wide dynamic range. The result is an extremely precise, clean sound image with excellent spatiality and clarity – regardless of the volume.

Advantages of line sources over point sources

Unlike conventional point-source loudspeakers, the L8i's line-source design creates a particularly uniform sound field. This largely eliminates distracting reflections from the floor and ceiling—a result that significantly improves localization and speech intelligibility. The even sound level across the entire height and width of the room also ensures a consistent listening experience at virtually every seat in the room.

The L8i particularly demonstrates its strengths in large, open-plan living spaces or multi-level home theaters. Its ability to efficiently and controllably fill the room plays a crucial role here. While conventional speakers often struggle with uneven sound distribution in such environments, the L8i delivers a homogenous sound image – even in acoustically challenging situations.

Flexibility in integration

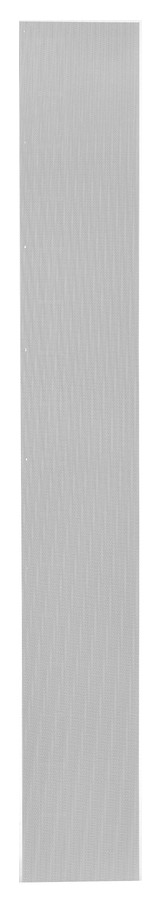

The slim design of the Insight L8i allows for discreet wall or recessed installation. Combined with customizable speaker grilles, the system can be perfectly integrated into a wide variety of room concepts—whether it's a minimalist living room or a luxurious home theater. The speaker offers flexibility not only in terms of sound but also in terms of design.

TECHNICAL DATA

• Frequency response : 80 Hz – 20 kHz (±2 dB)?
• Crossover frequency : 550 Hz?
• Nominal impedance : 4 ohms
• Minimum impedance : 2.5 ohms
• Sensitivity : 91 dB (2.83 V/1 m)?
• Maximum sound pressure level (SPL) : 118 dB @ 1 m?
• Recommended enclosure volume : at least 74.6 liters (2.63 cubic feet)?
• Minimum case volume : 41.63 liters (1.47 cubic feet)?
• Maximum wall thickness for installation : 3.175 cm (1.25 inches)?
• Dimensions :
  • Height: 131 cm (51.57 inches)?
  • Width: 21.2 cm (8.34 inches)?
  • Depth: not specified?
