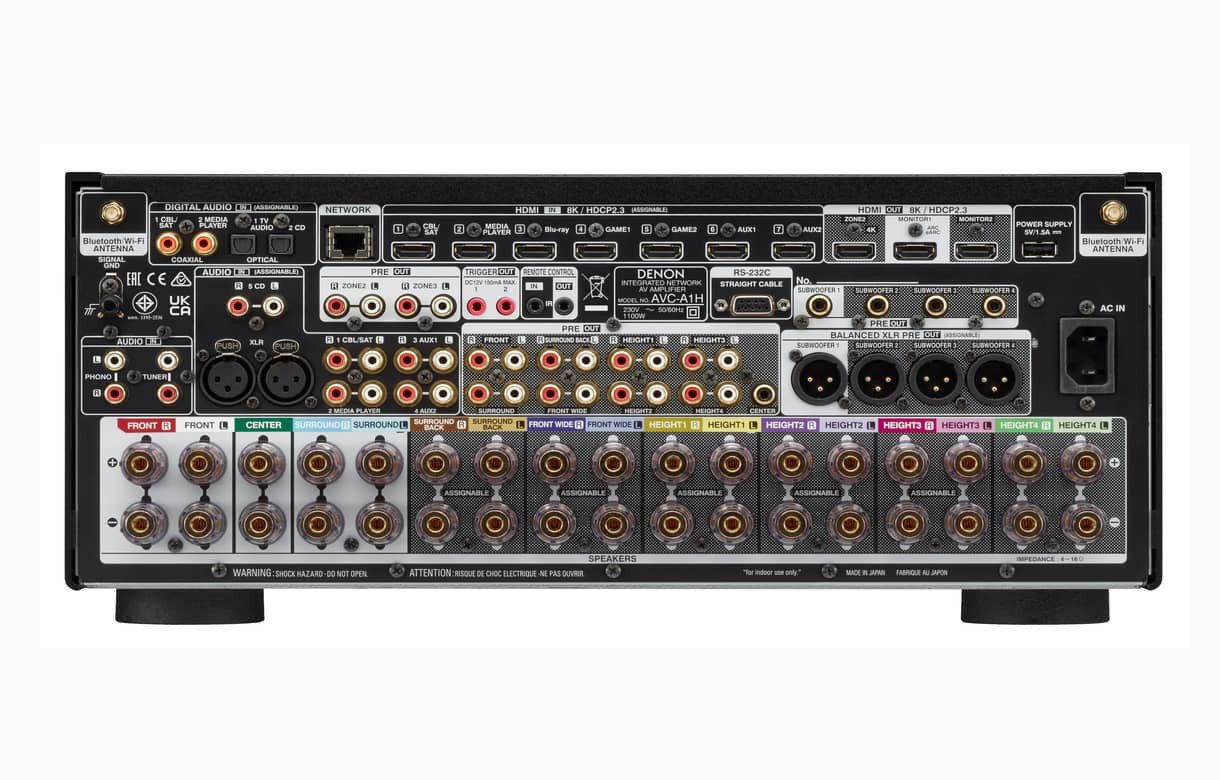

Denon AVC-A1H AV-Amplifier 8K

DENON

AVC-A1H

15.4-channel 8K AV amplifier Denon AVC-A1HD

Enjoy immersive 3D audio experiences with the AVC-A1H and rediscover your collections:

The AVC-A1H is the new flagship AV amplifier that guarantees you the ultimate home theater experience. With 15 amplifier channels, Denon's most powerful transformer, carefully selected components and robust construction, the AVC-A1H ensures a professional cinema experience in your own home and even meets the high demands of the installation business. It fills even large rooms with gripping 3D sound and is the perfect choice for discerning movie buffs.

In addition to its 15 amplifier channels, Denon's most powerful transformer to date, carefully selected components, extremely robust construction and support for configurations up to 9.4.6, the AVC-A1H brings you a highly professional entertainment experience at home.

The new flagship model was developed and manufactured at Denon's main plant in Japan to the highest standards. Weighing in at over 32kg, the AVC-A1H delivers 210W of power per channel. Thanks to sophisticated technology, you can hear your music and film collections like never before.

TECHNICAL SPECIFICATIONS

MULTI-CHANNEL SURROUND

DTS HD Master, DTS:X, DTS:X Pro: Yes, Yes, Yes

DTS Neo:X, DTS Neural:X: No, Yes (15ch)

DTS Virtual:X: Yes

IMAX Enhanced: Yes

Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: Yes, yes, yes, yes

Dolby ProLogic Ilz, Dolby Surround: No, Yes

Aurora 3D: Yes

360 Reality Audio / MPEG H: Yes, yes

Multichannel Stereo: Yes

max. number of processing (preamplifier) channels: 15.4

SOUND TECHNOLOGIES

Monoblock power amp structure: Yes (left/right separated)

Discrete Amplifiers: Yes

DDSC HD Digital: Yes (32-bit)

Pure Direct: Yes

Gold Plated RCA Jacks: Yes

Clock Jitter Reducer: Yes

Alpha Processing AL32 Processing Multichannel

Audyssey MultEQ XT32

Audyssey Dynamic EQ, Dynamic Volume: Yes, yes

Audyssey LFC: Yes

Dirac Live Ready: Yes

Compressed Audio Restorer: Yes

NETWORK

Media Server: Yes

HEOS Multiroom and Streaming: Yes

Alexa / Google Voice Assistant / Apple HomePod: yes, yes, yes

Data Reduced Formats: MP3 / WMA / AAC: Yes, Yes, Yes

Lossless Formats: FLAC / ALAC / WAV: Yes, Yes, Yes

Lossless formats: FLAC HD / WAV / ALAC (all 192kHz/24 bit): Yes, Yes, Yes

DSD audio streaming: Yes (2.8/5.6MHz)

AirPlay: 2 yes

TuneIn: Yes

Spotify Connect: Yes

Roon Tested: Yes

HEOS App Control: Yes

Compatible with remote APP for smartphones Denon AVR Remote

Ethernet Ports: Yes

WiFi: Yes

bluetooth: yes

HDMI

HDMI inputs: rear / front: 7, no

HDCP2.3 Support: Yes

HDMI outputs: main zone / zone 2, 1

HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB: Yes, Yes

HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR: Yes, Yes, Yes, Yes, Yes

ALLM (Auto Low Latency Mode) pass-through for gaming: Yes

Variable Refresh Rate, Quick Flame Transport, Quick Media Switching: yes, yes, no

3D signal pass-through: Yes

8K Signal Pass-Through/Scaling/GUI Overlay Yes, Yes, Yes

DSD Audio : Yes

AARC (Audio Return Channel) / Enhanced ARC Yes, yes

Auto LipSync: Yes

MULTIROOM / INSTALLER

Number of zones (incl. main zone): 3

Zone audio source: HDMI/opt, coax/network, USB/analog: yes (2ch), yes (2ch), yes, yes

Zone Audio Outputs: Speaker / Preout: Yes, Yes

Zone HDMI Output from HDMI sources: Yes

IP Control / RS232 Control / Web Control / App Control: Yes Yes / Yes Yes

Remote Control Input/Output: Yes Yes

DC trigger output 2

HDMI Diagnostics: Yes

MISCELLANEOUS

Automatic speaker configuration with calibration microphone: Audyssey MultEQ XT32

Dirac Live (by upgrade)

FL display 2 lines

GUI languages: 3

Setup Assistant: Yes

Quick Select Plus / Quick Select Buttons: Yes, No

Variable crossover frequency: Yes

Optimized Bass Redirection: Yes

Bass Sync: Yes

ECO mode: Yes

Auto Power Off: Yes

Sleep Timer: Yes

INPUTS / OUTPUTS

HDMI inputs / outputs: 7, 3

Multi-Room Video Output: Video / HDMI: No, Yes

Analog input / output: 5 (1x XLR) / no

Phono (MM) input: Yes

Digital inputs: optical / coaxial: 2 / 2

Zone Outputs: Analog / Digital: 2 / No

Multi-channel preamp output: Yes (17.4)

Subwoofer outputs: 4 (independent)

Speaker Screw Terminals Gold Plated / Regular: Yes, No

Number of speaker terminals: 17

Speaker A/B: Assignable

Bi-Amp Operation: Assignable

Zone Speaker Terminals: Assignable

Front inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No, No, No, No, Yes

USB Audio / Made for iPod / Made for iPhone: Yes, No, No

FM/AM Tuner: No

TECHNICAL SPECIFICATIONS

Number of power amplifiers: 15

Output power (8 ohms, 20 Hz - 20 kHz, 0.05% distortion, 2-channel operation): 150W

Output power (6 ohms, 1 kHz, 0.7% distortion, 2-channel operation): 190W

Output power (6 ohms, 1 kHz, 1% distortion, 1-channel operation): 210W

GENERALLY

Metal front: Yes

System remote control: RC-1250

Remote control pre-programmed / learning / with LCD display: no, no, no

Power consumption in W: 1100

Idle power consumption (ECO on / off) in watts: 80 W / 160 W

Standby power consumption in W: 0.1

CEC standby power consumption in watts: 0.5

Network Standby Power Consumption in Watts Less than 2.0

DIMENSIONS

with antenna: horizontal: (W x D x H) in mm: 434 x 498 x 195

( Antenna:Vertical :(W x D x H) in mm): (434 x 498 x 259)

? without antenna :(W x D x H) in mm?:? 434x493x195 ?

Weight in kg: 32.0

Weight (with packaging) in kg: 38.0
