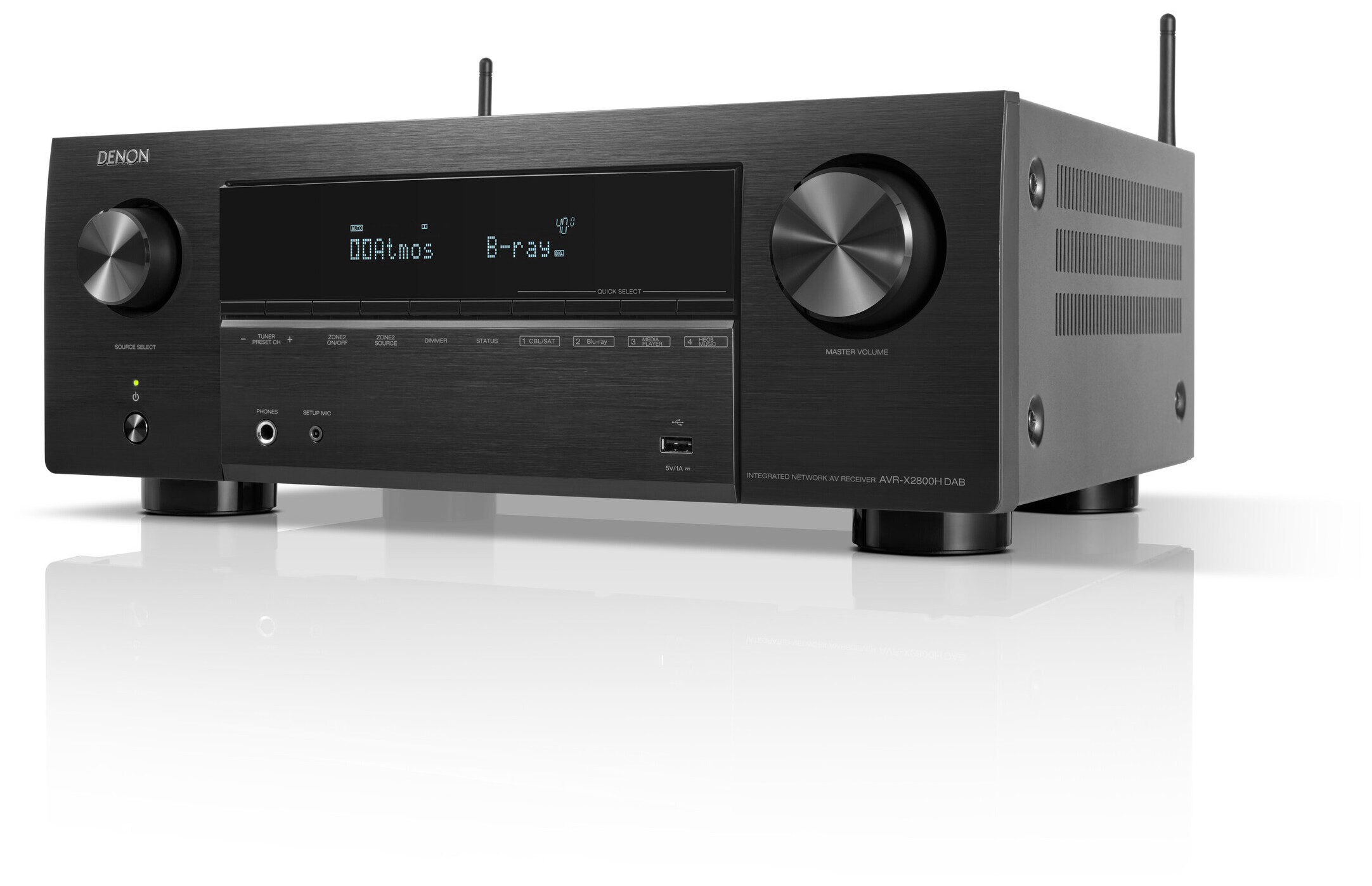

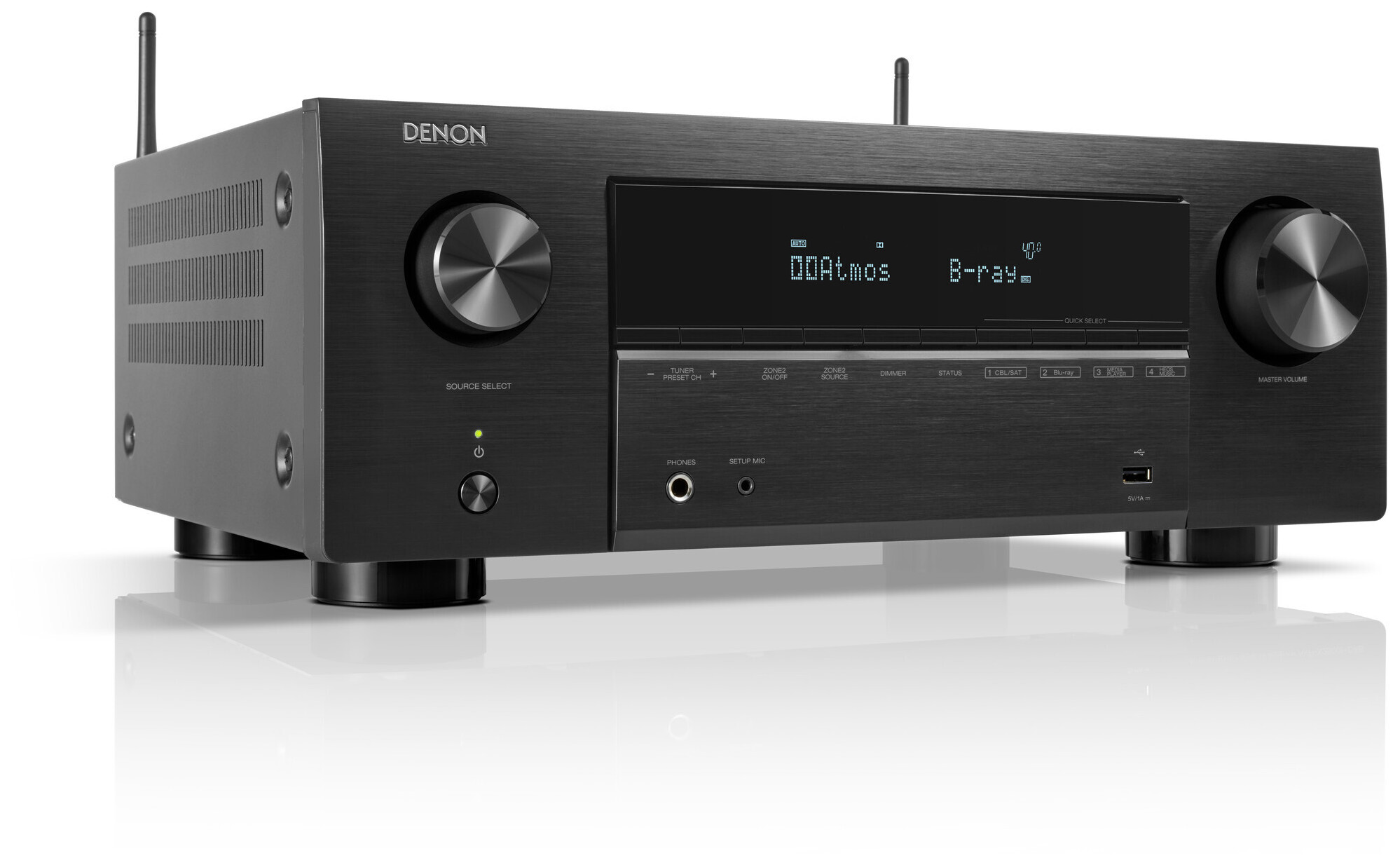

Denon AVR-X 2800H DAB Surround receiver Black

The AVR-X2800H guarantees fascinating entertainment experiences with 8K video and immersive 3D sound. As a 7.2 or 5.2.2 system with Dolby Atmos and DTS:X, it fills medium-sized rooms with top-class sound. HEOS® Built-in also allows online music to be wirelessly streamed and streamed to HEOS-enabled speakers in other rooms.

Powerful sound

The AV receiver fills medium-sized rooms with excellent sound. Immerse yourself in the sound of music and movies.

8K ready

Experience excellent video quality thanks to the latest 8K technology.

Powerful, discrete 7-channel amplifier

Discrete amplifiers on all channels with up to 150 watts per channel - enough power for every speaker.

Immersive audio experiences

Experience music and movies up close with Dolby Atmos® and DTS:X®, plus Dolby Surround and DTS Neural:X upmixers to enhance non-surround content.

Advanced 8K Home Theater

Three of the six HDMI inputs and two outputs support 8K video. Enjoy hassle-free video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+ and Dynamic HDR.

HEOS® Built-in Technology

Stream songs from a variety of music streaming services wirelessly to compatible HEOS components. You can equip several rooms with Denon Home speakers and control the entire system via the HEOS app.

Technical specifications

Multi-channel surround

Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround No, Yes
Multichannel Stereo Yes
Max. Number of Processing (Pre-Amp) Channels 7.1
sound technologies
Discrete power amplifiers Yes
Pure Direct Yes
Audyssey MultEQ XT
Audyssey Dynamic EQ, Dynamic Volume Yes, Yes
Compressed Audio Restorer Yes
network
Media Server Yes
HEOS Multiroom and Streaming Yes
Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
Lossless formats: MP3 / WMA / AAC Yes, Yes, Yes
Lossless Format: FLAC, ALAC, WAV Yes, Yes, Yes
Lossless formats: FLAC HD / WAV / ALAC (all 192kHz/24 bit) Yes, Yes, Yes
DSD audio streaming Yes (2.8/5.6MHz)
AirPlay 2 Yes
TuneIn Yes
Spotify Connect Yes
Roon Tested Yes
HEOS App Control Yes
Compatible with remote APP for smartphones Denon 2016 AVR Remote
Ethernet ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI
HDMI inputs: rear / front 6, no
HDCP2.3 support Yes
HDMI outputs: main zone / zone 2, no
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-Through for Gaming Yes
Variable refresh rate, quick flame transport, quick media switching Yes, Yes, No
3D signal pass-through Yes
8K Signal Pass-Through / Scaling / GUI Overlay Yes, Yes, Yes
AARC (Audio Return Channel) / Enhanced ARC Yes, Yes
Auto LipSync Yes
Multiroom / Installer
Number of zones (incl. main zone) 2
Zone Audio Source: HDMI; Optical, Coaxial, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre Out Yes, Yes
IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
Remote control in/out Yes, Yes
HDMI diagnostics Yes
Miscellaneous
Automatic speaker configuration with Audyssey MultEQ XT calibration microphone
Front display 1 line FLD
GUI languages 3
Setup Assistant Yes
Quick Select Plus, Quick Select Yes, No
Variable Crossover Yes
Optimized bass redirection Yes
ECO mode Yes
Auto power off Yes
Sleep timer Yes

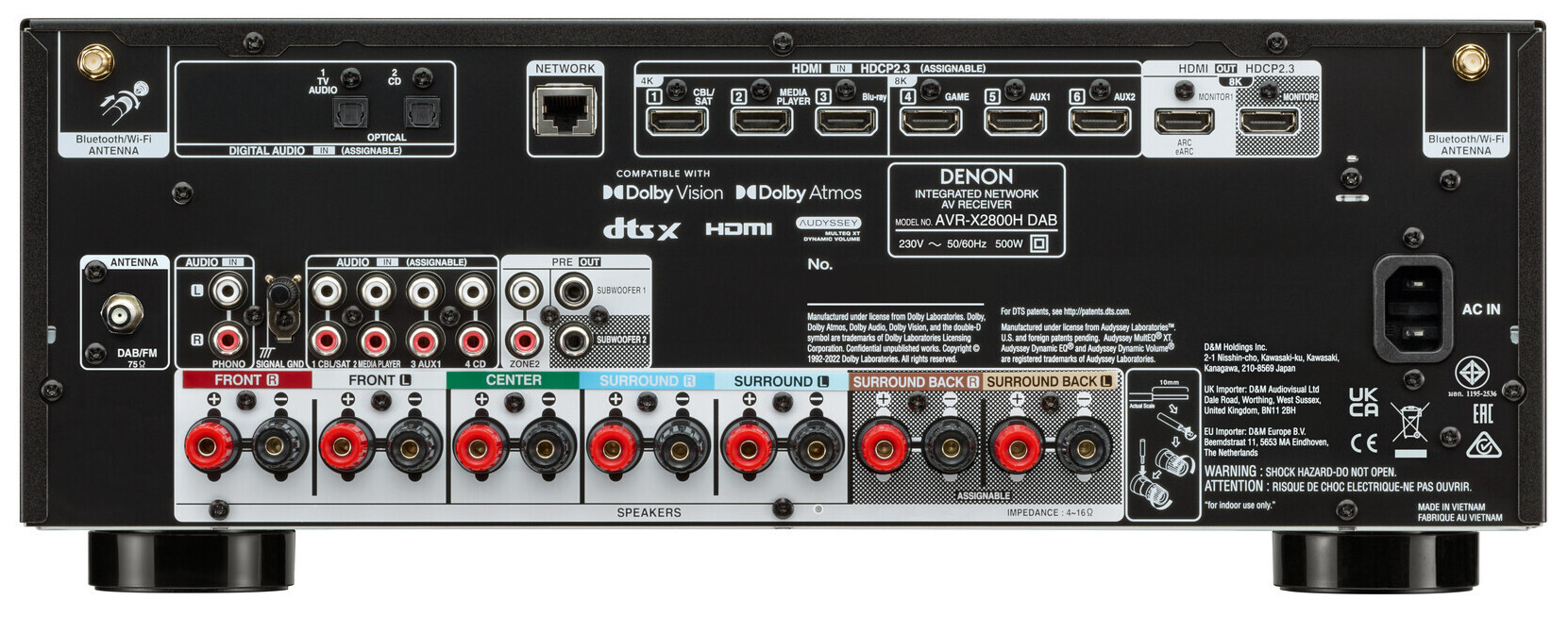

Inputs / Outputs
HDMI in / out 6, 2nd
Multi-Room Video Out: Video, HDMI No, No
Analog input/ output 4 / no
Phono (MM) input Yes
Digital In: Optical, Coaxial 2 / 0
Multi-Room Out: Analogue, Digital 1 / No
Main Zone Pre Out Yes (0.2)
Subwoofer output 2
Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes
Number of speaker terminals 7
Speaker A/B assignable
Bi-Amp Operation Assignable
Zones Speaker Connections Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone Yes, No, No
AM/FM Tuner Yes
Technical specifications
Number of power amplifiers 7
Output power (8 ohms, 20 Hz - 20 kHz, 0.08% distortion, 2-channel operation) 95W
Output power (6 ohms, 1 kHz, 0.7% distortion, 2-channel operation) 125W
Output power (6 ohms, 1 kHz, 1% distortion, 1-channel operation) 150W
General
System remote control RC-1253
Pre-programmed, learnable, LCD display no, no, no
Power consumption in W 500
Idle power consumption (ECO on / off) in watts 35W/75W
Standby power consumption in W 0.1
CEC standby power consumption in watts 0.5
Network standby consumption in W Less than 2.0
maximum dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
? w/o Antenna :(W x D x H) in mm? 434x341x167
(434x341x237)
? 434x330x167 ?
Weight in kg 9.5
Carton Weight (inc. product) in KG 11.5
