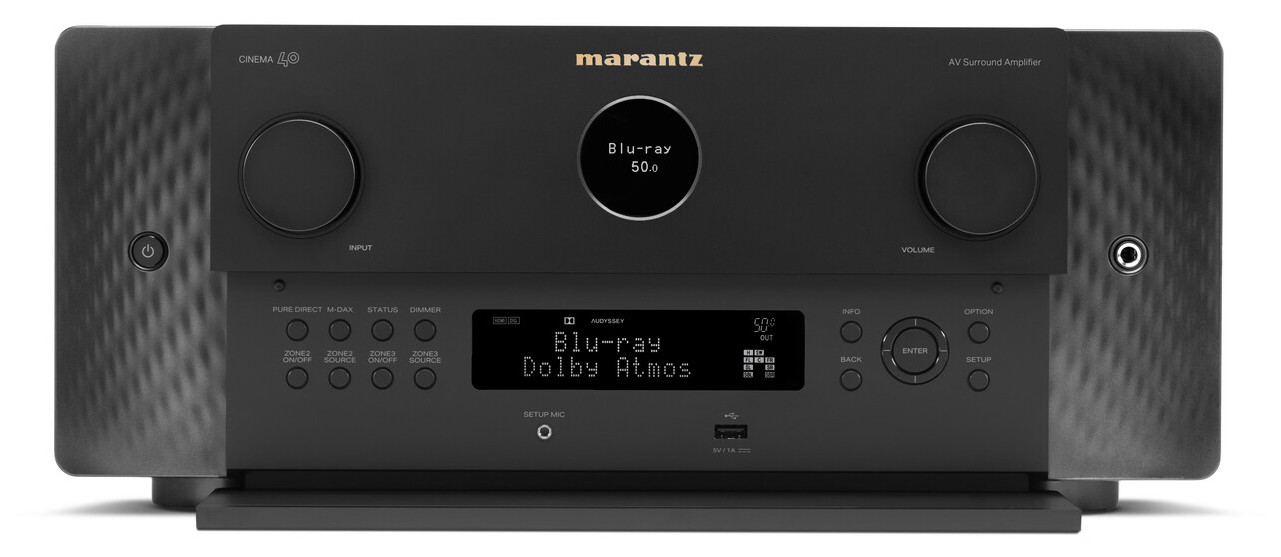

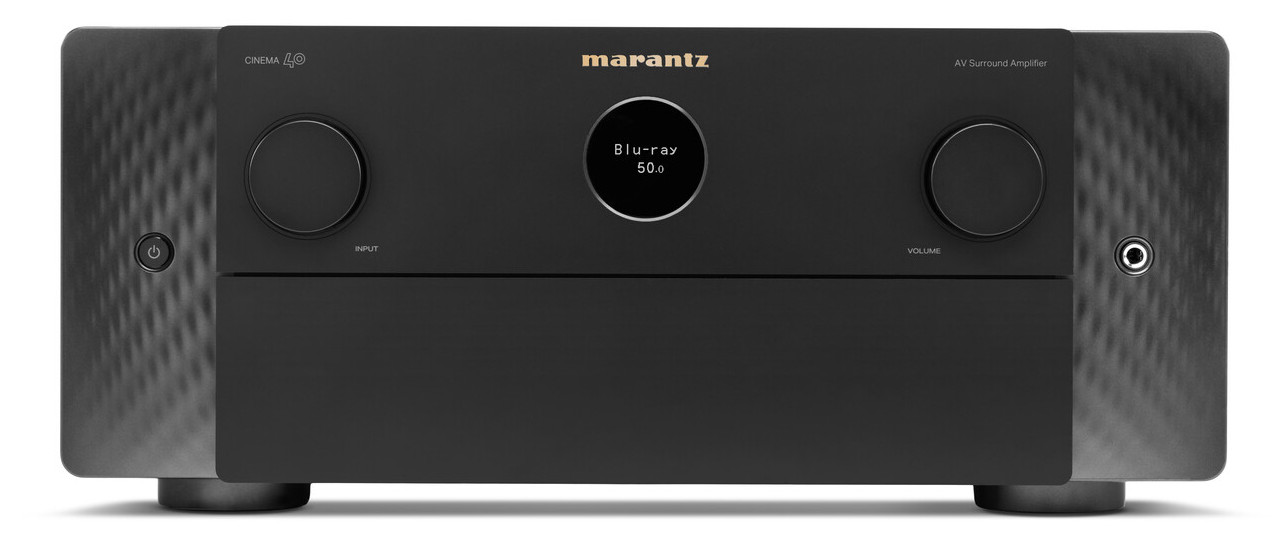

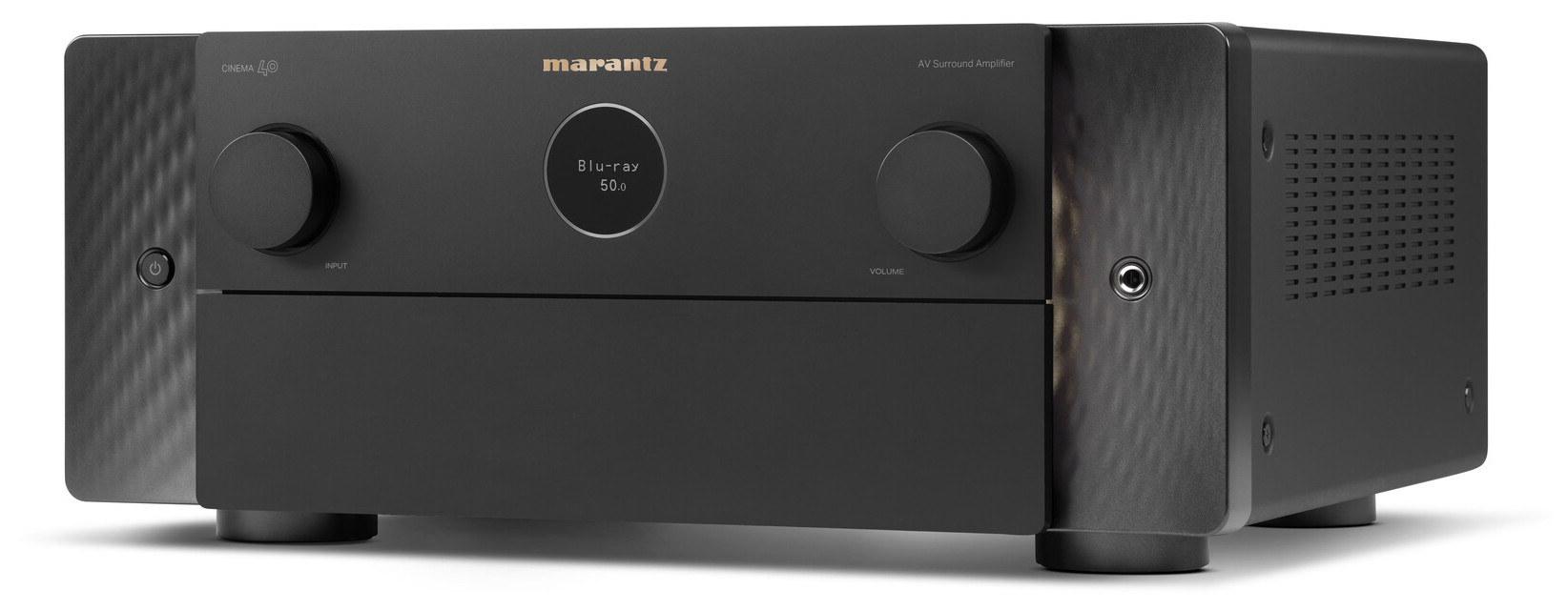

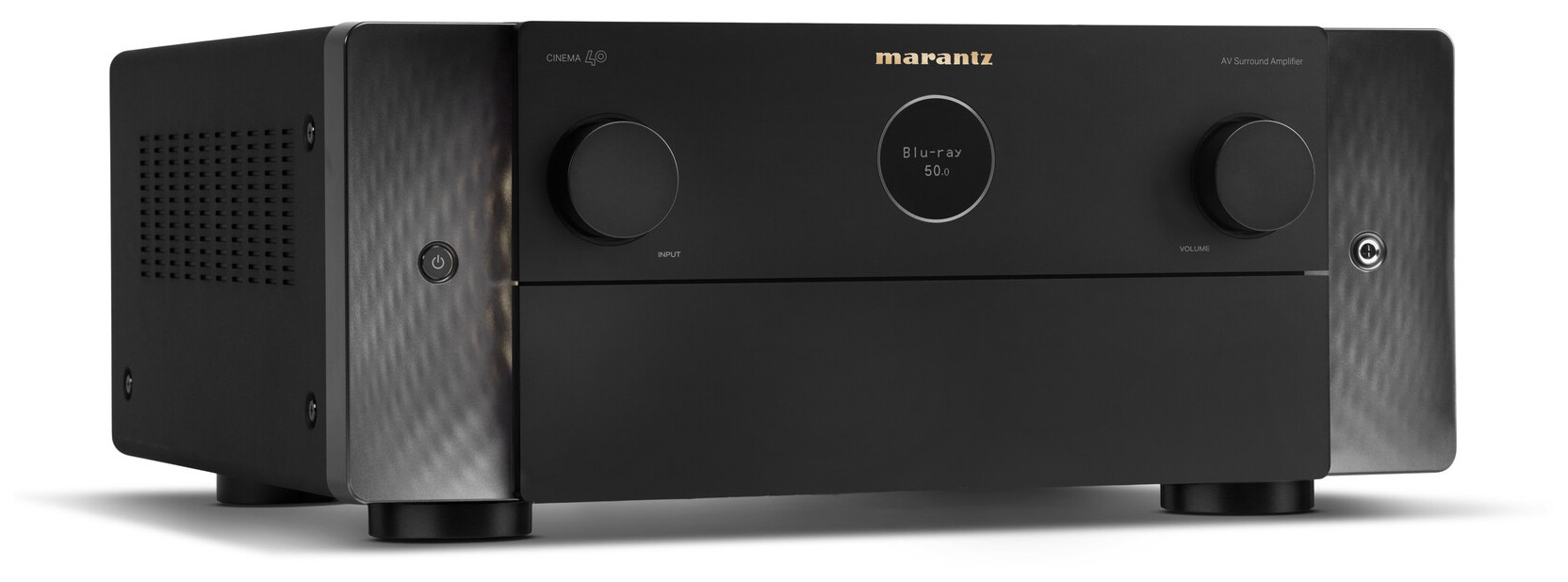

Marantz CINEMA 40 9.4 multichannel amplifier

performance

The CINEMA 40 has been expertly tuned by the Marantz Soundmaster with carefully selected parts for uncompromising performance - for the most musical sound in your home.

style

Excellence can be heard and seen. The CINEMA 40 has been crafted with remarkable attention to detail. The authentic materials and modern style reflect its long tradition and overwhelming performance.

Customizability

Thanks to carefully selected connection and fine-tuning options, you can adapt the CINEMA 40 to your needs.

Easy handling

The included remote control, easily accessible front panel controls and an intuitive on-screen setup wizard make operation a breeze.

amount of channels

Power Output (8 ohms, 20 Hz - 20 kHz, 0.08% 2ch Drive)
Power Output (8 ohms, 20 Hz - 20 kHz, 0.05% 2ch Drive) 125 W
Power Output (6 ohms, 1 kHz, 0.7% 2ch Drive) 165 W
Power Output (6 ohms, 1kHz, 10% 1ch Drive) 235W
70% Guarantee Yes
Discrete Power Amplifier Yes
Amplifier Topology Class A/B
Current Feedback Topology Yes
Bi-Amp Drive assignable

MULTICHANNEL SURROUND TECHNOLOGY

DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo
Max Number of Processing (Preamp) Channels 11.4

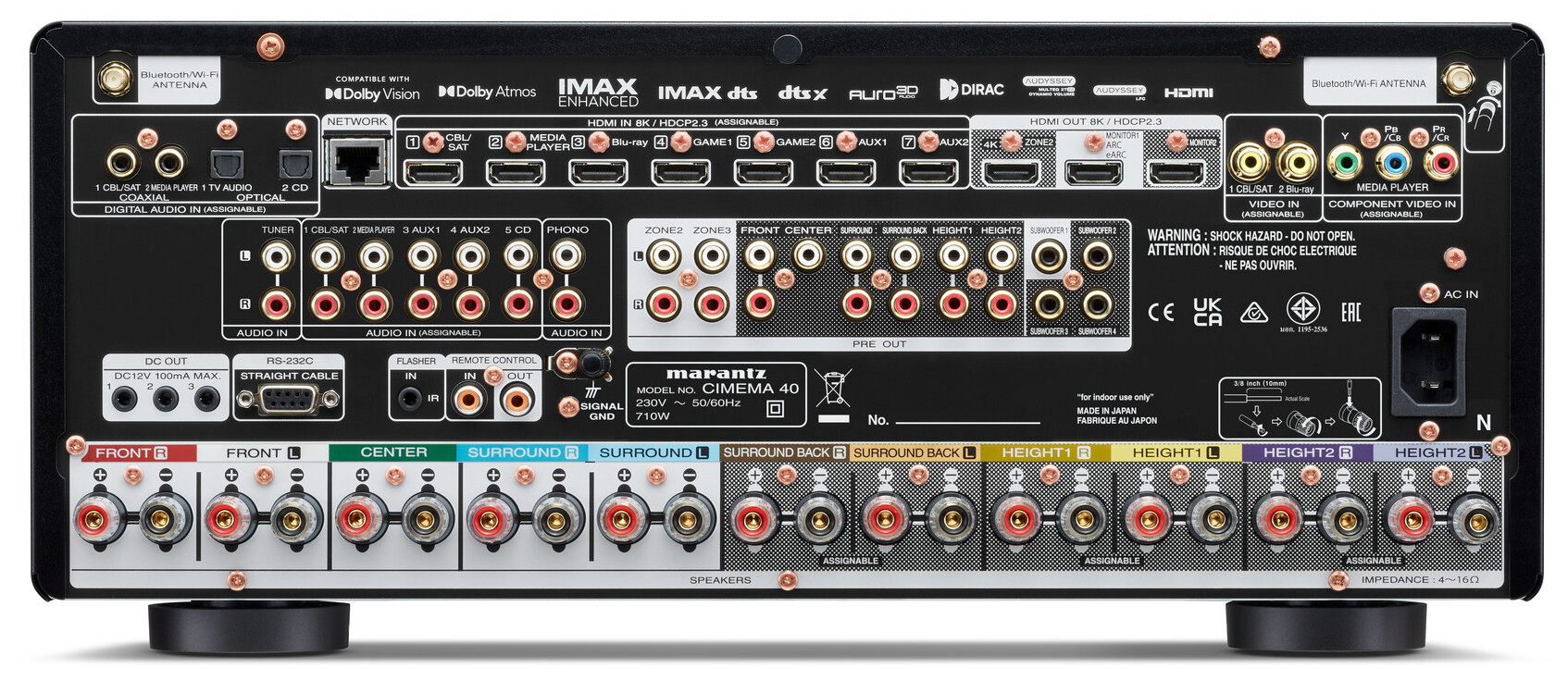

Inputs/Outputs

Composite inputs/outputs 2 / 0
Component input / output 1 / 0
HDMI inputs/outputs 7 / 3
Multi-Room Video Out via HDMI Yes
Analog In / Fixed Level Out 6 in / 0 out
Phono (MM) input Yes
Digital In: Optical / Coaxial 2 / 2
Multi-room output: analog / digital 2 / 0
Multichannel Preamp Out 11.4
Subwoofer output 4 (independent)
7.1 Multi-channel input Yes
Number of speaker terminals 11
Speaker A/B assignable
Multi-room speaker connections assignable
Front inputs USB-A
USB Audio Yes
FM tuner with RDS no
DAB+ tuner no

HDMI

Total HDMI Inputs / No. Support 8K 7/7
HDCP2.3 support Yes
HDMI outputs main zone / zone 2 / 1
Analog to HDMI Video Conversion Yes
HDMI Upscaling 1080P/4K to 8K
Max resolution @ frame rate 8K @ 60Hz, 4K @ 120Hz
Audio return channel for TV sound (ARC) eARC
Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes
HDMI pass-through in standby Yes
HDMI Control (CEC) Yes
DSD Audio over HDMI Yes
Auto LipSync Yes

PERFORMANCE TECHNOLOGIES

Copper Plated Chassis No
Toroidal Power Supply Transformer No
Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
Pure Direct Mode Yes
Gold Plated RCA Terminals Yes
Clock Jitter Reducer Yes

Acoustic / Room Correction

Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes / Yes
Dirac Live Support Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes

MUSIC FILE SUPPORT

Lossy format MP3 / WMA / AAC
Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio 2.8MHz / 5.6MHz
Gapless playback FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2 Yes
Network Audio Sharing Yes

STREAMING SERVICES

HEOS Multi-room and Streaming Yes
AirPlay Audio Streaming Airplay 2
Internet Radio TuneIn
Spotify* Spotify Connect
Pandora Yes
SiriusXM Yes
Other Streaming Services * Amazon Music HD/
Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
Roon tests Yes

NETWORK CONNECTIVITY

Ethernet ports Yes
Wi-Fi (include version / band) Yes
Bluetooth (Include version) Yes
Bluetooth Re-transmit for Bluetooth headphones Yes

SMART HOME INTEGRATION AND CONTROL

Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android) Marantz AVR App, HEOS
HEOS Multi Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi room zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source Yes
Control Connectivity IP Control / RS232 Control / Web Control / App Control
IR Flasher In Yes
Marantz Remote Bus Yes
DC trigger output 3
HDMI Diagnostics Yes

Miscellaneous

Front display 2 line FLD + port hole OLED
Primary Display Size (diagonal in/mm)
Secondary Display Size (diagonal in/mm)
GUI languages 9
Installation Wizard Yes
Smart Select on Remote Yes
Firmware update via network / USB Yes / Yes
ECO Mode Yes
Auto power off Yes
Sleep Timer Yes

General

Available colors Black/Silver-Gold
Metal front Yes
Remote Control RC-048SR
Power consumption in W 710
Power Consumption No-Sound (ECO on/off) in W 65W / 110W
Standby power consumption in W 0.2
CEC standby power consumption in W 0.5
Network standby consumption in W Less than 2.0
maximum dimensions
Antenna: Horizontal: (W x D x H) in mm: ?440x401x185?
Antenna: Vertical :(W x D x H) in mm: (440x414x254)
W/o Antenna:(W x D x H) in mm 440x414x185
Weight in kg 15.1
Scope of delivery. Remote Control, Batteries, Wire Labels, Quick Start Guide, Audyssey Microphone, Microphone Stand, 2 External Detachable Antenna, AC cord
