Acoustic Signature MCX3 MC Pickup
€1,557.00
per Piece incl. VAT / incl. Shipping
Available in 7 days, delivery time 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.

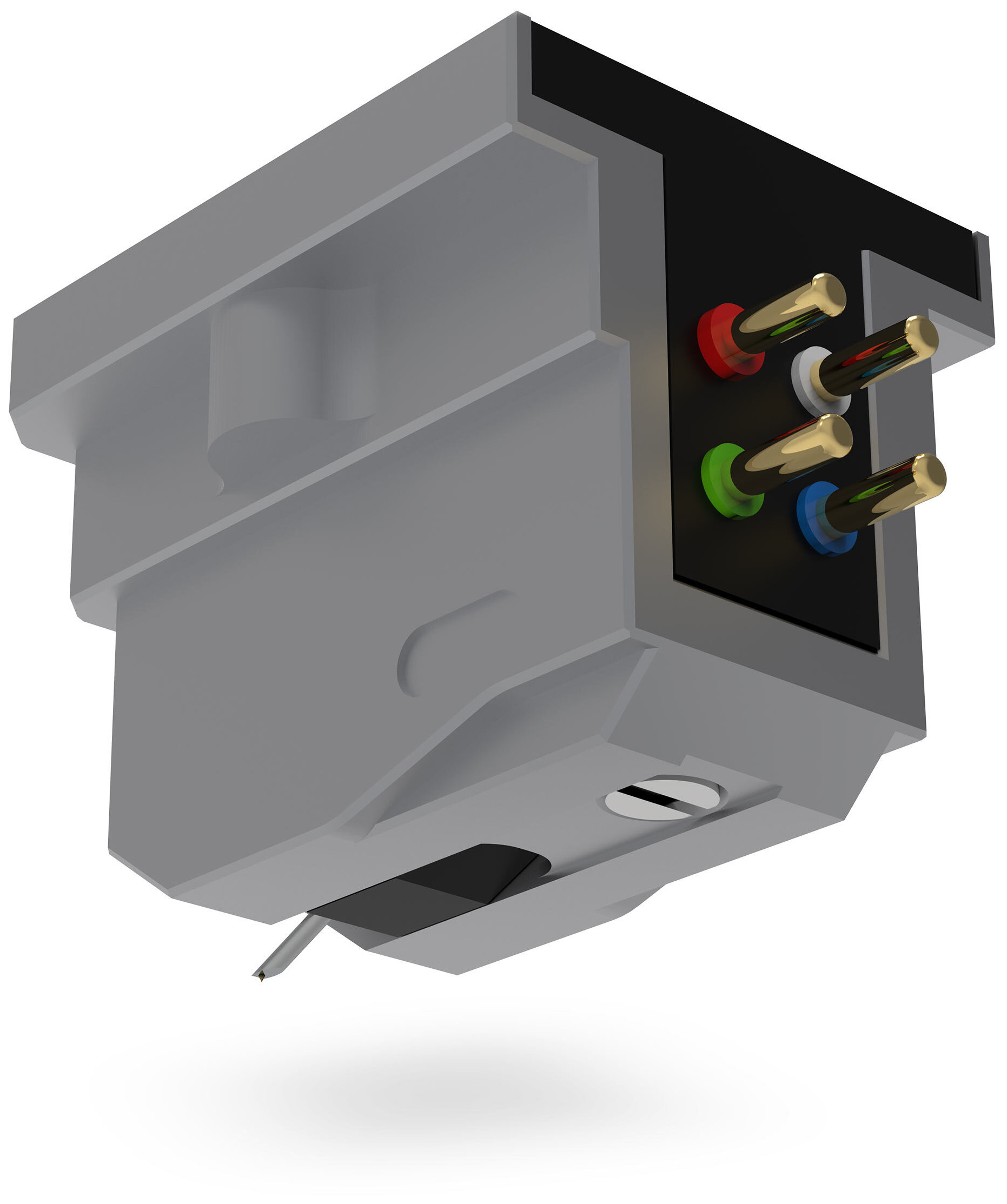

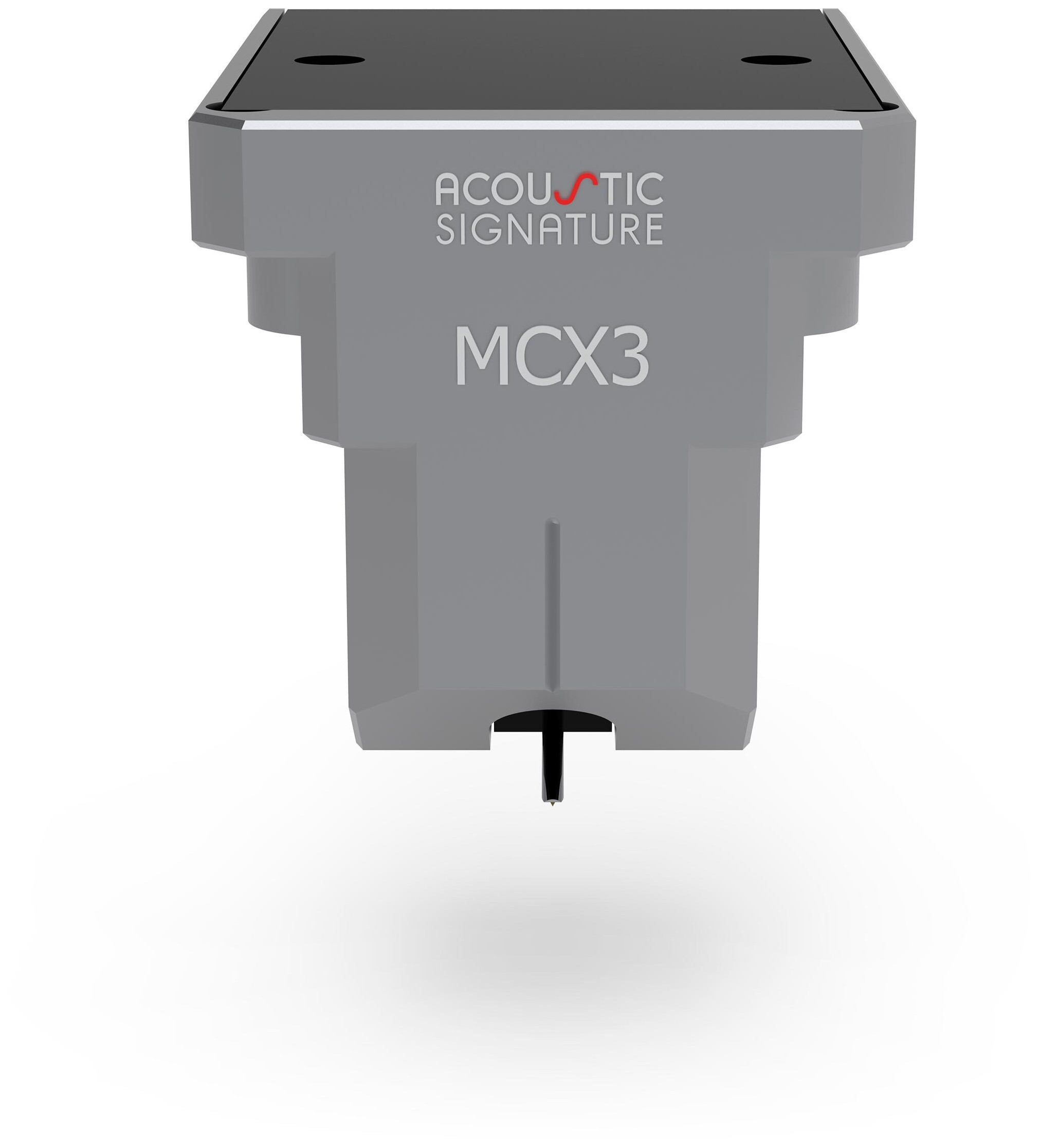

The Acoustic Signature MCX3 is a modern moving-coil cartridge, manufactured using the latest technologies and optimally matched to Acoustic Signature's NEO tonearms. Its Nude Fine Line stylus ensures precise tracking, while high-purity 4N copper coils transmit signals accurately. The CNC-machined, resonance-optimized aluminum housing, designed according to the finite element principle, minimizes vibrations and ensures pristine sound reproduction.
With a compliance suitable for medium to heavy tonearms, the MCX3 offers outstanding detail, dynamics and musicality – perfect for discerning analog enthusiasts.
Special features
- Modern moving-coil system with high-purity copper coils
- Resonance-optimized aluminum housing
- Nude fine-line stylus profile for precise tracking
- Suitable for medium to heavy tonearms
- Easy installation
Technical data
- Pickup system: Moving Coil
- Needle cut: Nude-Fine-Line
- Coil material: 4N copper
- Housing: Resonance-optimized aluminum
- Output voltage (1 kHz, 5 cm/s): 0.35 mV
- Channel balance (1 kHz): <1.2 dB
- Channel separation (1 kHz): > 24 dB
- Compliance: 15 m/mN
- Tracking force range: 2.1 – 2.5 g
- Recommended tracking force: 2.3 g (23 mN)
- Frequency range (-3 dB): 20 – 25,000 Hz
- Frequency response (20 – 20,000 Hz): ± 1.5 dB
- Coil impedance: 5 Ω
- Recommended termination impedance: 100 Ω
- Weight: 12.6 g
| Cartridge type: | MC |
|---|---|
| Color: | Gray |
| Condition: | New goods |
| Frequency response: | 20-25,000 Hz |
| Product type: | MC pickup |
| Tracking force in g: | 2.1 to 2.5 g |
Manufacturer
AS-Distribution GmbH
Hillenbrand Straße 10
73079 Süßen
Deutschland
+49 7162 207 97 0
info@as-distribution.de
www.acoustic-signature.de
Safety Information
Product-specific safety instructions can be found in the operating manual.
